DA12-050UK-M Overview

Soldering Irons Cartridge Chisel 2.5mm(0.1 in) 30Deg

DA12-050UK-M Parametric

Parameter Name	Attribute value
Product Category	Wall Mount AC Adapters
Manufacturer	Artesyn
RoHS	Details
Region	United Kingdom
Product	Fixed Plug
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	10 W
Output Voltage-Channel 1	5 V
Output Current-Channel 1	2 A
Commercial/Medical	Commercial, Medical
DC Output Connector	2.5 mm Barrel Plug
DC Output Cord Length	1.5 m
Efficiency	Level V
AC Plug included/required	Included
Load Regulation	Regulated
Mounting Style	Wall Mount
Factory Pack Quantity	200
Unit Weight	6 oz

Preview

Download Datasheet

View All

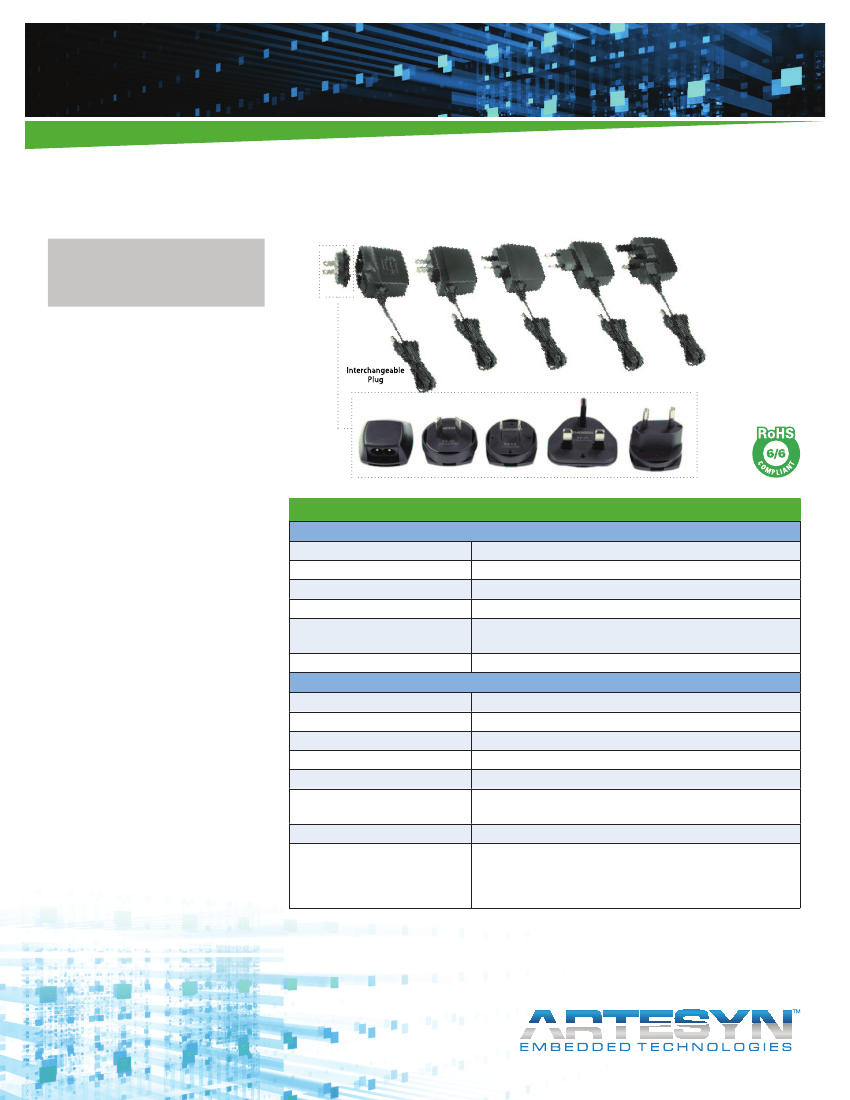

POWER

Data Sheet

Total Power: 12 Watts

Input Voltage: 90 - 264 Vac

# of Outputs: Single

Special FeatureS

5 V and 12 V versions

Medical and ITE Safeties

Switching wallmount

power supply

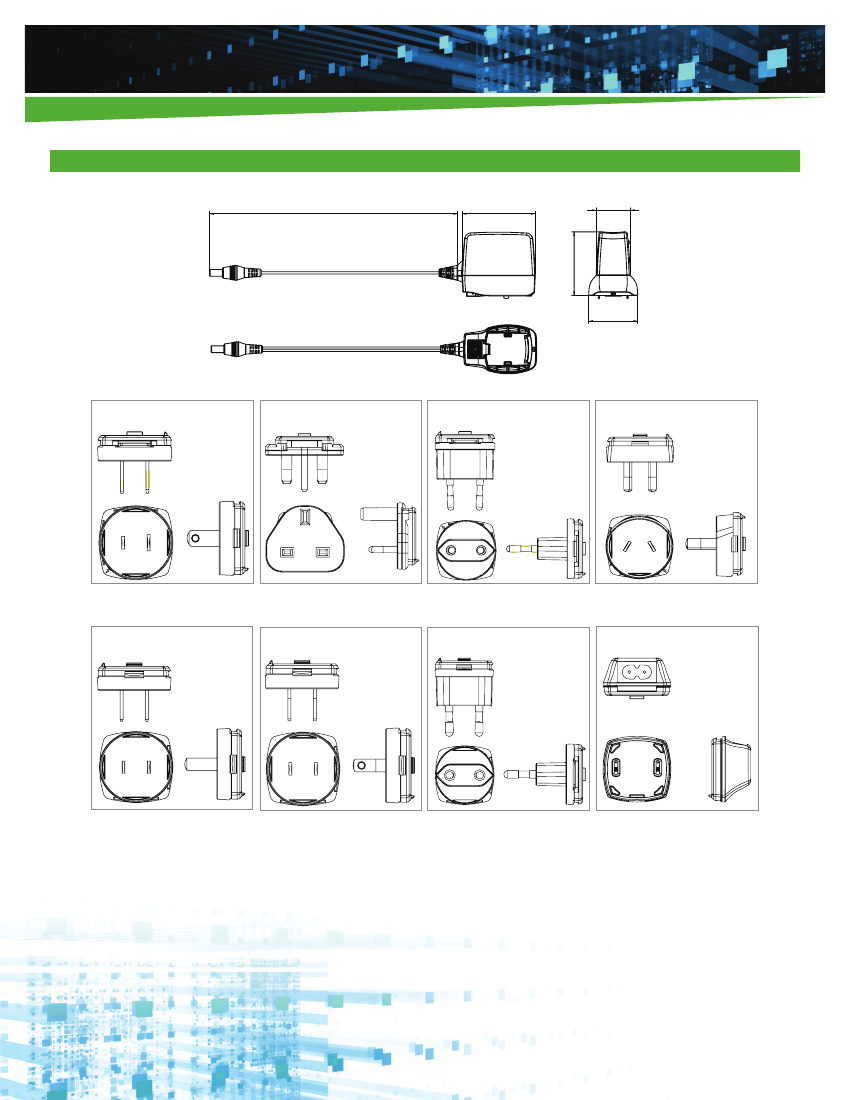

Available in interchangeable &

fixed ac plug configurations

CE Mark EMC, LVD & ErP 2011

Universal AC input

Fully regulated output

Overload and short circuit

protection

Thermal protection

Energy Star and CeC compliant

Efficiency level V

Constant voltage

High MTBF

Built in EMI filter

(CISPR 22 Class B)

DA12-M Series

12 Watts

Electrical Specifications

Input

Input range:

Frequency:

Inrush current:

Input current:

EMI/RFI:

Safety ground leakage current:

90 - 264 Vac (wide range)

47 - 63Hz

28 A @ 264 Vac

0.25 A rms @ 120 Vac; 0.15 A @ 240 Vac

FCC Part 15, Subpart B Class B & EN55022

(CISPR 22) Class B

100 μA @ 50/60 Hz, 264 Vac input

5.0 V and 12.0 V

± 5% @ constant voltage mode

12 W for 12 V models, 10 W for 5 V models

10 ms. typical at full load @ 230 Vac

Non-latching type

Output shortcircuit protection auto recover

Overload protected @ 150% above maximum rating

Auto recovery

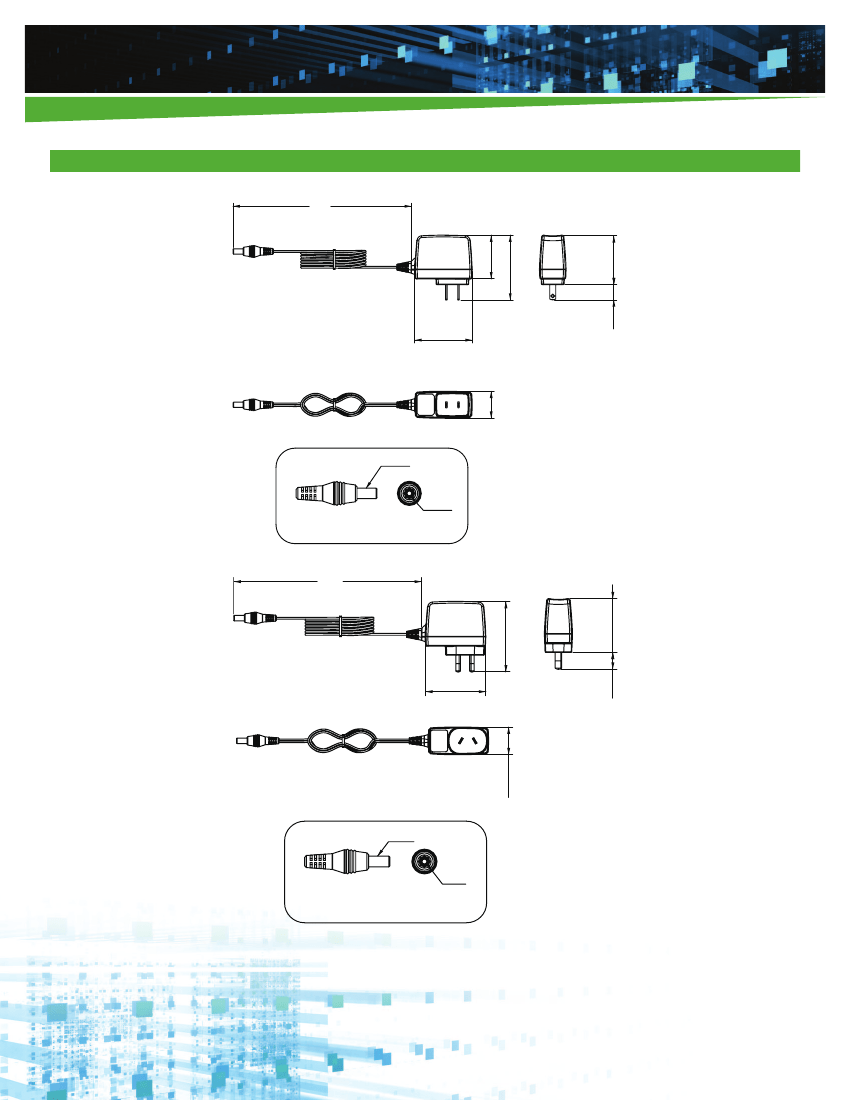

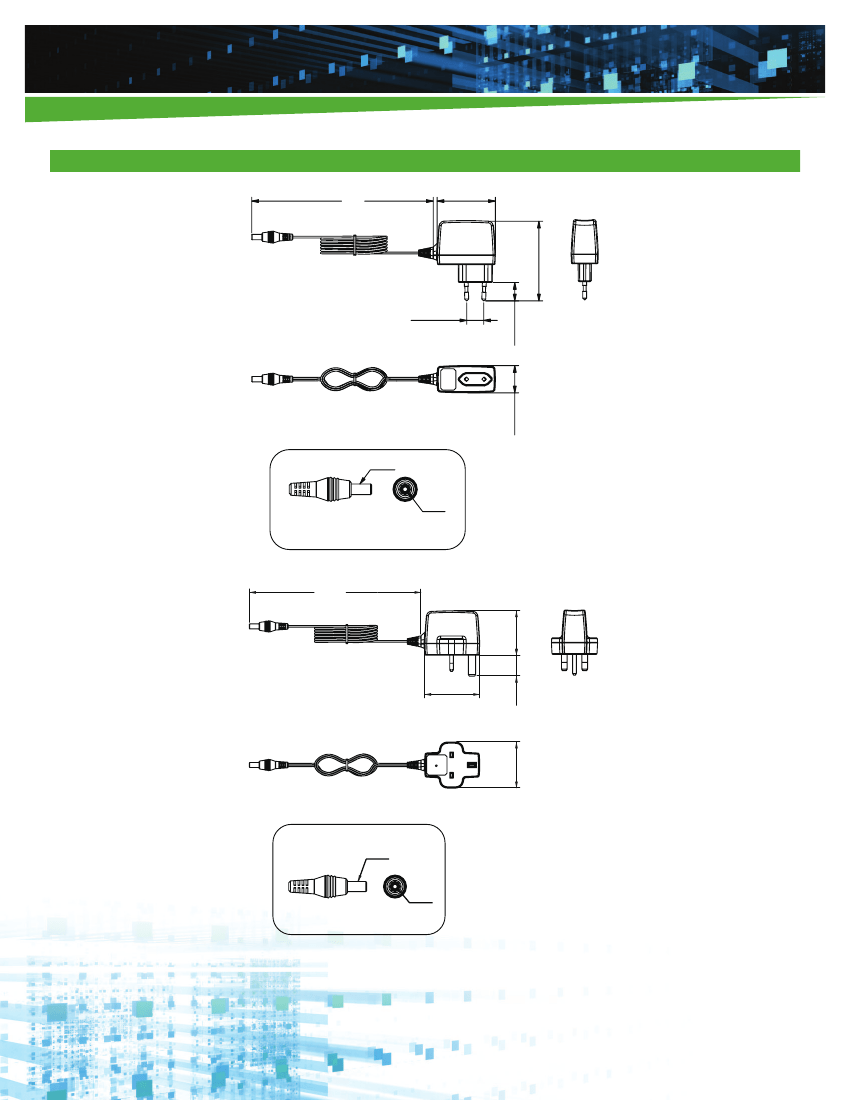

DC cable with 2.5 mm x 5.5mm barrel plug, 2.1 mm x 5.5 mm

available on DC multi-plug version. For others please contact factory.

DC plug center +v

DC plug outer -v

SaFety

cUL

TUV

AS/NZS

60950, 60601-1

60950-1, 60601-1

Certificate and report

EMC, LVD & ErP 2011

for EU & UK versions

Denan

<2000M, No Tropical

Output

Voltage (Vo):

Voltage regulation:

Maximum Power (Po):

Hold-up time:

Overvoltage protection:

Overload protection:

Overtemperature protection:

Output cable/connector

barrel polarity:

PSE

CCC
