V18
TRG15 SERIES
15W SWITCHING ADAPTER
Level VI Efficiency
Features
* Universal Input Range 90~264Vac
* Meets EN55022 Class B and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
*
Meet CoC Tier 2 & DoE Level VI
(Output Cable Length
≦
1800mm)
(TRG1506: Output Cable Length
≦
1220mm)
* No Load Power Consumption<75mw
Ordering information
TRG15XX - x
Model No.
AC Plug Type
A: USA 2 Pin
E: Europe 2 Pin
U: British 3 Pin
S: Australia 2 Pin
-XX
E
XX
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185 FOR 5V,7.5V.9V
* 16AWG / UL1185 FOR 6V
* 20AWG/UL1185FOR12V,13.6V,15V,18V,24V
DC Plug Type OVP DC Cable Length and Type
OUTPUT
MODEL
TRG1505
TRG1506
TRG1507
TRG1509
TRG1512
TRG1512-01
TRG1515
TRG1518
TRG1524
VOLTAGE
5V
6V
7.5 V
9V
12 V
13.6 V
15 V
18 V
24 V
OUTPUT
CURRENT
2.0 A
1.5 A
1.6 A
1.4 A
1.0 A
1.0 A
1.0 A
0.83 A
0.63 A
RIPPLE &
NOISE
NOTE 1
VOLTAGE
ACCURACY
NOTE 2
LINE
REGULATION
NOTE 3
LOAD
REGULATION
NOTE 4
AVERAGE
EFFICENCY min.
NOTE 5
50mVp-p
1%
1%
1%
1%
1%
1%
1%
1%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±4%
±3%
±3%
±2%
±2%
±2%
±2%
±2%
±2%
79%
81.57%
83.26%
83.54%
83.26%
83.97%
84.5%
84.48%
84.54%
Specifications are subject to change without notice.
1
V18
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…......................................................... 90~264Vac
Frequency ………………………………………….……………....... 47 to 63Hz
Input Current ………………….……………..................................... 0.5A max.
Inrush Current ……….................... Cold Start @25℃ 50A max. @ 240Vac
Leakage Current …………………………………………….……. 0.25mA max.

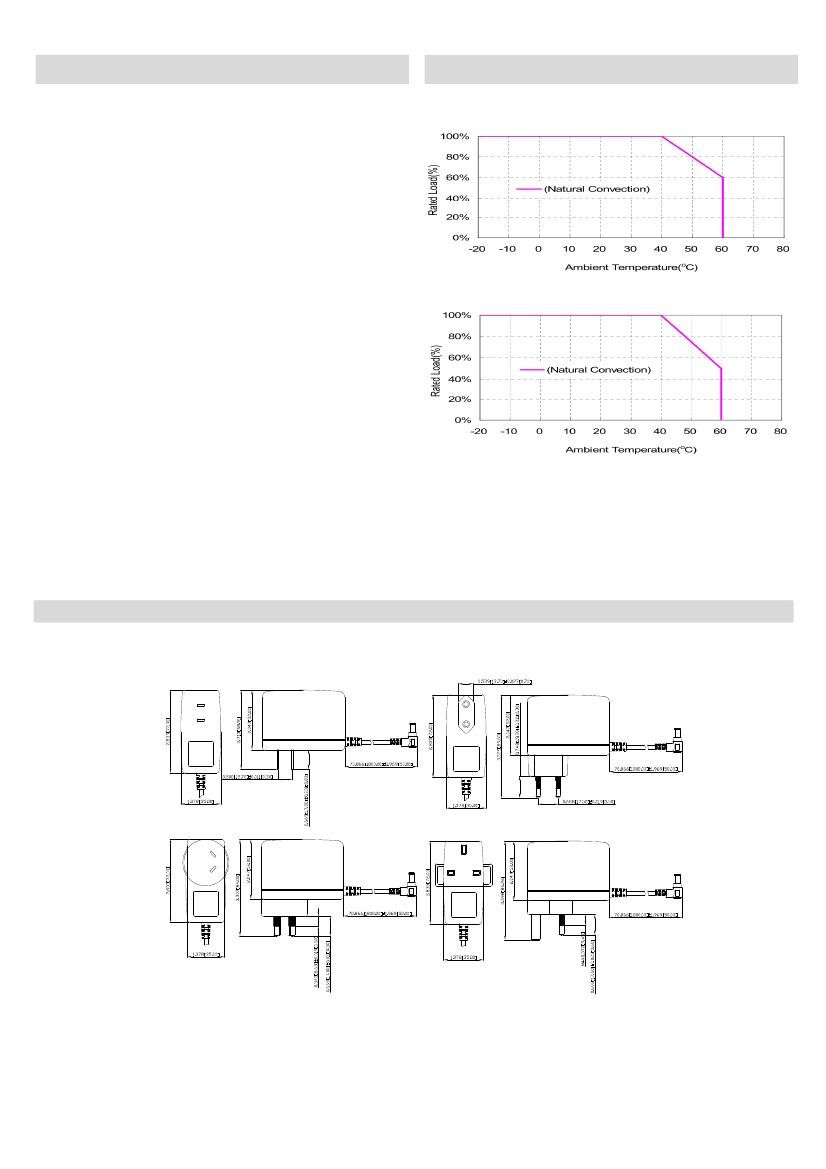

TRG15 Series Derating Curve
TRG1505, 1506, 1507, 1509, 1512, 1512-01
OUTPUT SPECIFICATIONS:
Hold-up Time ………….…………………………………… 8ms typ. @115Vac
Short Circuit Protection …………….………… Hiccup Mode (Auto Recovery)
Over Voltage Protection ………………........... Hiccup Mode (Auto Recovery)
Temperature Coefficient ……………………................................ ±0.05% /
℃
TRG1515, 1518, 1524
GENERAL SPECIFICATIONS:
Isolation ……………………..……………..…… Input to output = 4,242VDC
Operating Temperature ................................ -20 ~ 60℃(see derating curve)
Storage Temperature ……………………………...….......……........ -20~85℃
Humidity .................................................... 93% RH max. Non condensing
Cooling ………………………………….………………… Natural Convection
Switching Frequency …………Full Load………………115V / 85KHz Typical
……………………………………………………………...230V
/ 65KHz Typical
MTBF ….…… MIL-HDBK-217F, GB, at 25℃/115VAC ……. 200Khrs min.
Altitude ……………………..…………………………….……..……….. 5000m
Dimensions …….……..2.835x2.047x1.378 inches (72.00x52.00x35.00mm))
Weight ……………………………………………………… 140g(0.33 Pounds)
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation measured from 100Vac to 240Vac full load.
4. Load regulation measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. Average Efficiency measured at 25%,50%,75%,100% load and input
voltage is 115Vac / 230Vac.
SAFETY AND EMC:
Emission and Immunity ……........ EN55022 Class B, FCC Part 15 Class B
EN61000-6-3, EN61000-3-2, EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety ………………………Class II, IEC60950-01, EN60950-1, UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
