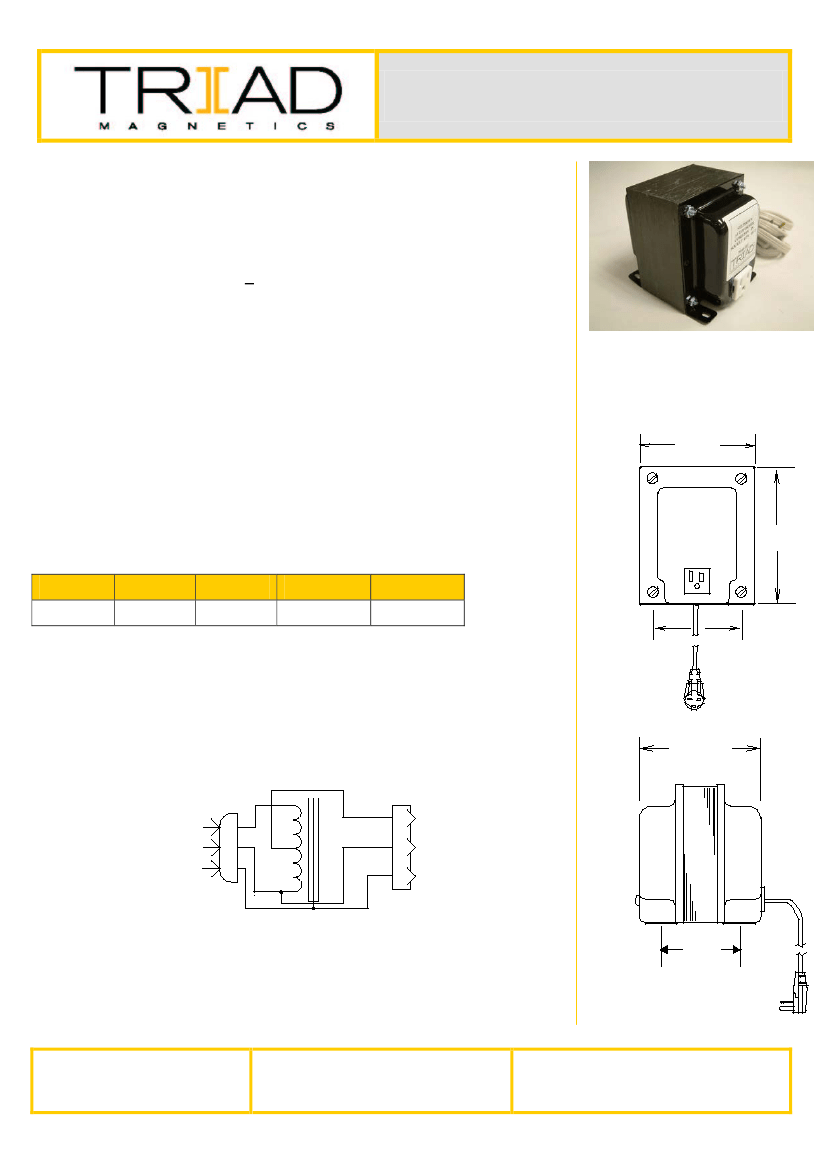

P
OWE R
T
RAN S FO R M E R
C
HASSIS
M
OUNT :
Autotransformer
N-5MG
Electrical Specifications (@25ºC)
1. Maximum Power:
250 VA
2. Input Voltage:
230 V, 50 / 60 Hz
3. Output Voltage:
115V + 5%
4. Full Secondary Load: 2.17 Amps RMS
Description:
The N-5MG is part of the line of Auto-Transformers that are single winding
transformers in which the secondary coil is a fraction of the entire winding for
voltage step-down. This causes part of the power to be transferred
conductively through the windings, rather than all of the power being
transferred by induction.
Safety:
These units are designed with 1500V isolation between the winding and the
core. Materials and construction are rated for Class B insulation system.
B
A
Dimensions:
A
3.875 Max
B
3.281 Max
C
4.812 Max
Unit: In inches
D
2.50 ± 0.125
E
3.50 ± 0.030
D
Weight: 7.0 lbs
Mounting Holes: .203 x .375
Cord: 6 ft. long, Plug NEMA 6-15P, Socket NEMA 5-15R
Schematic:
C
FN
WHT
230 V
T2
BLK
115 V
T1
ST
GRN
GRN
E
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact
Triad Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: September 6, 2016
