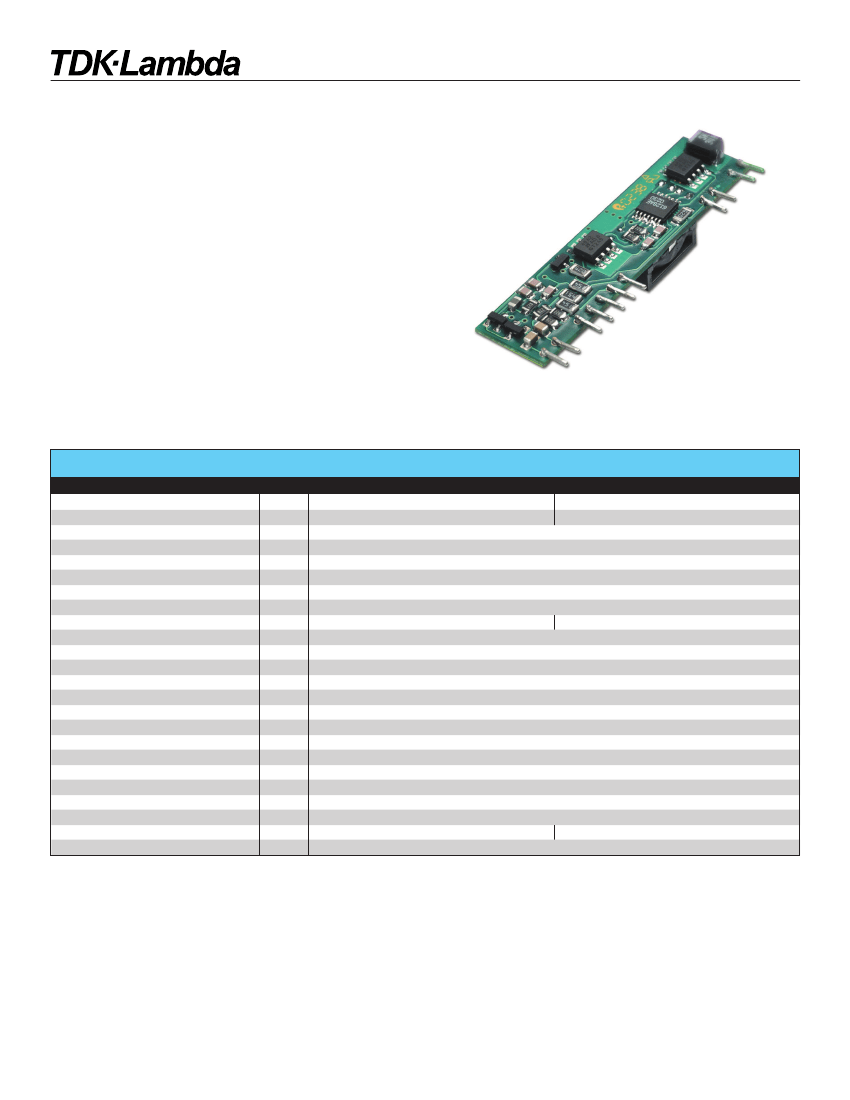

PL10S Series
Non-Isolated DC-DC Converters
Features
u
Industry Standard Package and Pin Out
u
No External Capacitors Needed
u
Full Power at 85°C Convection Cooled
u
Low Voltage Outputs to 0.9V
u
Output Currents up to 10A
u
5V & 12V Inputs
u
Wide Output Voltage Adjustment
u
Remote Sense (Optional)
u
High Efficiency up to 97%
u
Excellent transient response
u
0.9 - 5.0VDC Adjustment Range (12V C-version)
Key Market Segments & Applications
Specifications
Model
Input Voltage Range
(1)
Turn on/off Threshold (typ)
Output Voltage Accuracy
Voltage Trim
Ripple & Noise
Line Regulation (typ)
Load Regulation (typ)
Transient Response
(2)
Overcurrent Protection (OCP)
Overvoltage Protection (OVP)
Remote Sense / Parallel
Remote On / Off
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Cooling
Vibration (non operating)
Shock
Safety Agency Approvals
Weight (Typ)
Size (WxHxD)
Switching Frequency (fixed)
Warranty
VDC
VDC
%
-
mV
mV
mV
-
A
-
-
-
-
-
-
-
-
-
-
g
mm(in)
kHz
-
PL10S 05
3 - 5.5VDC
On: 2.95V, Off 2.9V
PL10S12
5 - 13VDC
On: 4.3V, Off 4.1V
±1
Yes
50mVp-p, 15mVrms Typical
8mV
15mV
100mV deviation, 50us settling time (typ) for 50-100% or 100%-50% load change
15A min
20A max
N/A
Optional - see Model Selector (Parallel uses external circuit)
Low or Short = off, High or Open = On
-40°C to +85°C
20 - 95% Non condensing
-65°C to +150°C
10 - 95% Non condensing
Convection, or forced air
10 - 55Hz (1 minute), amplitude 0.825mm (49m/s
2
max), X, Y, Z 1 hour each
196.1 m/s
2
UL1950, CSA950, EN60950
9
9.4 x 50.8 x 12.7 (0.37 x 2 x 0.5)
230 - 340
200 (typical)
2 Years
Notes
(1) Minimum input voltage = 3.3V at 2.5V output, 4.5V at 3.3V output
(2) With 470uF external capacitor
See Installation Manual for full details, test methods of parameters and application notes
OBSOLETE
1-800-526-2324 • www.us.tdk-lambda.com/lp/
13
PL10S Series
Outline Drawing
PL
10
Max. Output Current
S
Single Output
12
Nominal Input Voltage
C
(*)
T
T=No remote sense
TR=(+) and (-) Remote sense pin
TP= (+) Remote sense pin
* C=Customer selectable output voltage or requested factory set voltage. e.g. (0V9=0.9V)
Sample Model Number:
PL10S-12-C-TR
Models
Model
PL10S-05-C-T
PL10S-05-0V9-T
PL10S-05-1V0-T
PL10S-05-1V2-T
PL10S-05-1V5-T
PL10S-05-1V8-T
PL10S-05-2V0-T
PL10S-05-2V5-T
PL10S-05-3V3-T
PL10S-12-C-T
PL10S-12-0V9-T
PL10S-12-1V0-T
PL10S-12-1V2-T
PL10S-12-1V5-T
PL10S-12-1V8-T
PL10S-12-2V0-T
PL10S-12-2V5-T
PL10S-12-3V3-T
PL10S-12-5V0-T
Output
Max Out. Max Out. Max In.
Voltage
Cur. (A) Pwr (W) Cur. (A)
Selectable
10
33
-
0.9
10
9
3.7
1.0
10
10
4.0
1.2
10
12
4.7
1.5
10
15
5.8
1.8
10
18
6.7
2.0
10
20
7.3
2.5
10
25
9.1
3.3
10
33
7.7
Selectable
10
33
-
0.9
10
9
2.2
1.0
10
10
2.4
1.2
10
12
2.8
1.5
10
15
3.5
1.8
10
18
4.1
2.0
10
20
4.5
2.5
10
25
5.5
3.3
10
33
7.0
5.0
10
50
7.5
Full
Load
Eff.
-
83%
84%
86%
89%
90%
91%
93%
95%
-
85%
86%
88%
90%
92%
93%
94%
95%
97%

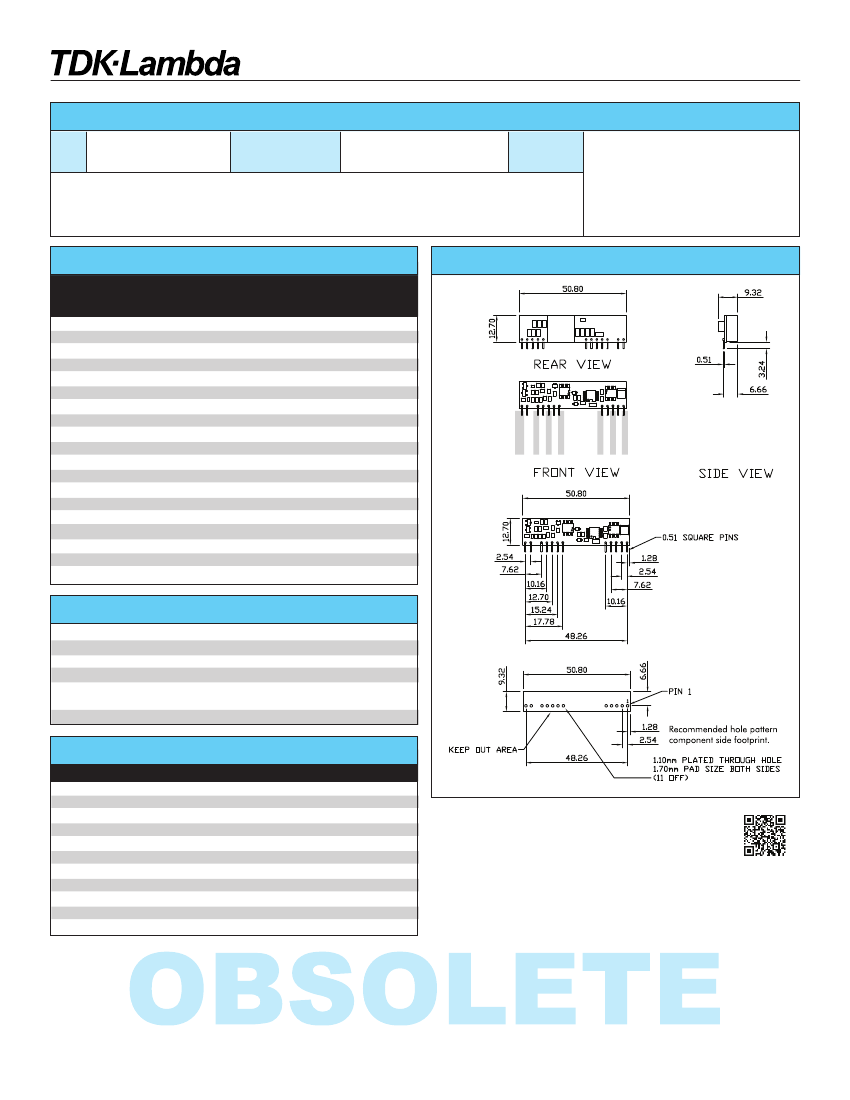

Outline Drawing
TR Version
T Version
TP Version
1110 9876 5
9 8 765X X
10 9 876 X X
4 3 X 21
4 3 X 21
5 4 321
X = Not fitted
Other DC-DC Products
X
SX
PAE
PAQ
PAH, PAH200H
PAF
10, 15, & 20W 24V & 48VDC Input DC-DC converters
20W surface mount 24V & 48VDC-DC
Up to 65W, up to 25A Eighth brick DC-DC
Up to 100W Quarter brick DC-DC, single & dual outputs
Up to 350W, up to 70A Half brick DC-DC, single & dual
outputs
500, 600 and 700W Full brick DC-DC
Pinout
PIN
1
2
3
4
5
6
7
8
9
10
11
T Version
Vout
Vout
Vout
GND
GND
Vin
Vin
Trim
On / Off
-
-
TR Version
Vout
Vout
Vout
GND
+RS
-RS
GND
Vin
Vin
Trim
On / Off
TP Version
Vout
Vout
+RS
Vout
GND
GND
Vin
Vin
Trim
On/Off
-
For Additional Information, please visit
us.tdk-lambda.com/lp/products/pl-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
14
Revision A5: Feb 2012
