EMCT03
1°C Triple SMBus
Temperature Sensor
Data Brief
General Description
The EMCT03 is a System Management Bus (SMBus)
temperature sensor that is capable of monitoring three
temperature zones for a PC or embedded environment.
The three temperature zones consist of two external and
one internal temperature diode. The internal 11 bit
sigma-delta ADC architecture with digital filtering
attributes to superb linearity and immunity to
interference and noise. An extended temperature format
may be selected for compatibility with a broad range of
CPUs. Selectable conversion rates and standy mode
support low-power operation.
■
Features
Low Power; 3.0V to 3.6V Supply
— Programmable conversion rate
— < 1mA at 16 Conversions per Second
— < 3uA in Standy Mode
■
■
SMBus 2.0 Compliant interface
Two External Temperature Monitors:
—
—
—
—
Range -64°C to +191°C
0.125°C resolution
±1°C
Accuracy 40°C to 80°C
Diode Fault Reporting
■
Internal Temperature Monitor
— Range 0°C to +85°C
— 0.125°C resolution
—
±3°C
Accuracy 0°C to 85°C
Applications
■
■
■
■
Desktop and Notebook Computers
Thermostats
Smart batteries
Industrial / Automotive
■
■
Programmable Conversion Rate
MSOP-8 3x3mm Package

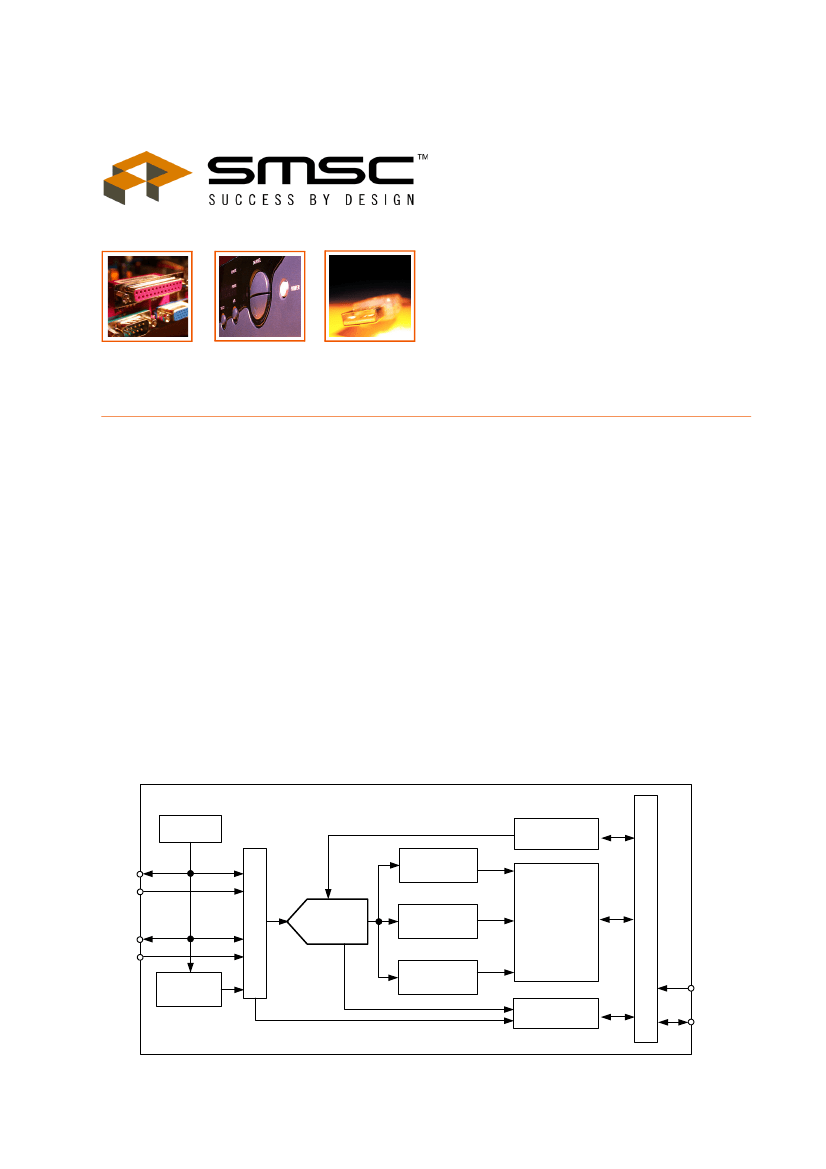

Simplified Block Diagram
EMCT03
Switching
Current
Remote Temp
Register 1
SMBus Interface
Analog Mux
Configuration
Register
DP1
DN1
DP2
DN2
Local Temp
Diode
11-bit
Sigma Delta
ADC
Remote Temp
Register 2
Digital Mux
and
Byte Interlock
Local Temp
Register
Status Register
SMCLK
SMDATA
SMSC EMCT03
PRODUCT PREVIEW
Revision 2.1 (09-03-04)
1°C Triple SMBus Temperature Sensor
Package Outline

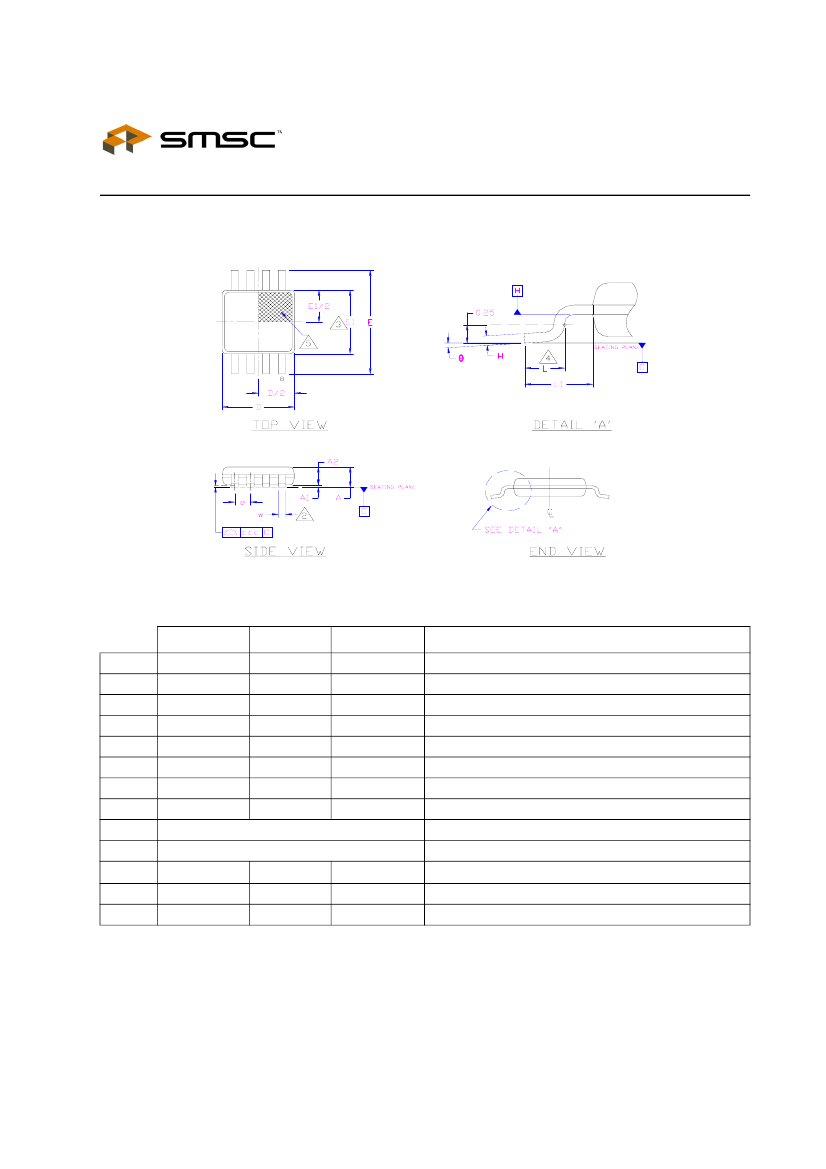

Figure 1 8-Pin MSOP Package Outline - 3x3mm Body 0.65mm Pitch
Table 1 8-Pin MSOP Package Parameters
MIN
A
A1
A2
D
E
E1
H
L
L1
e
0.80
0.05
0.75
2.80
4.65
2.80
0.08
0.40
NOMINAL
~
~
0.85
3.00
4.90
~
~
~
0.95 REF
0.65 BSC
0
o
0.22
~
~
~
~
8
o
0.38
0.10
MAX
1.10
0.15
0.95
3.20
5.15
3.20
0.23
0.80
REMARKS
Overall Package Height
Standoff
Body Thickness
X Body Size
Y Span
Y body Size
Lead Foot Thickness
Lead Foot Length
Lead Length
Lead Pitch
Lead Foot Angle
Lead Width
Coplanarity
θ
W
ccc
Notes:
1. Controlling Unit: millimeters.
2. Tolerance on the true position of the leads is ± 0.065 mm maximum.
3. Package body dimensions D and E1 do not include mold protrusion or flash. Dimensions D and
E1 to be determined at datum plane H. Maximum mold protrusion or flash is 0.15mm (0.006 inches)
per end, and 0.15mm (0.006 inches) per side.
4. Dimension for foot length L measured at the gauge plane 0.25 mm above the seating plane.
5. Details of pin 1 identifier are optional but must be located within the zone indicated.
Revision 2.1 (09-03-04)
PRODUCT PREVIEW
2
SMSC EMCT03
1°C Triple SMBus Temperature Sensor
ORDER NUMBER(S):
EMCT03-ACZB for 8-pin MSOP package
EMCT03-ACZB-TR for 8-pin MSOP package (Tape and Reel)
EMCT03-ACZL for 8-pin MSOP package (Lead Free)
EMCT03-ACZL-TR for 8-pin MSOP package (Lead Free, Tape and Reel)
Evaluation Board Available upon request.
80 Arkay Drive
Hauppauge, NY 11788
(631) 435-6000
FAX (631) 273-3123
Copyright © SMSC 2004. All rights reserved.
Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete
information sufficient for construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no
responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to specifications and product descriptions at any time without
notice. Contact your local SMSC sales office to obtain the latest specifications before placing your product order. The provision of this information does
not convey to the purchaser of the described semiconductor devices any licenses under any patent rights or other intellectual property rights of SMSC
or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated version of SMSC's standard
Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors
known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request.
SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where product failure could cause
or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an Officer of SMSC and further
testing and/or modification will be fully at the risk of the customer. Copies of this document or other SMSC literature, as well as the Terms of Sale
Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered trademark of Standard Microsystems
Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders.
SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND
ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE.
IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES;
OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON
CONTRACT; TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR
NOT ANY REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
SMSC EMCT03
PRODUCT PREVIEW
3
Revision 2.1 (09-03-04)
