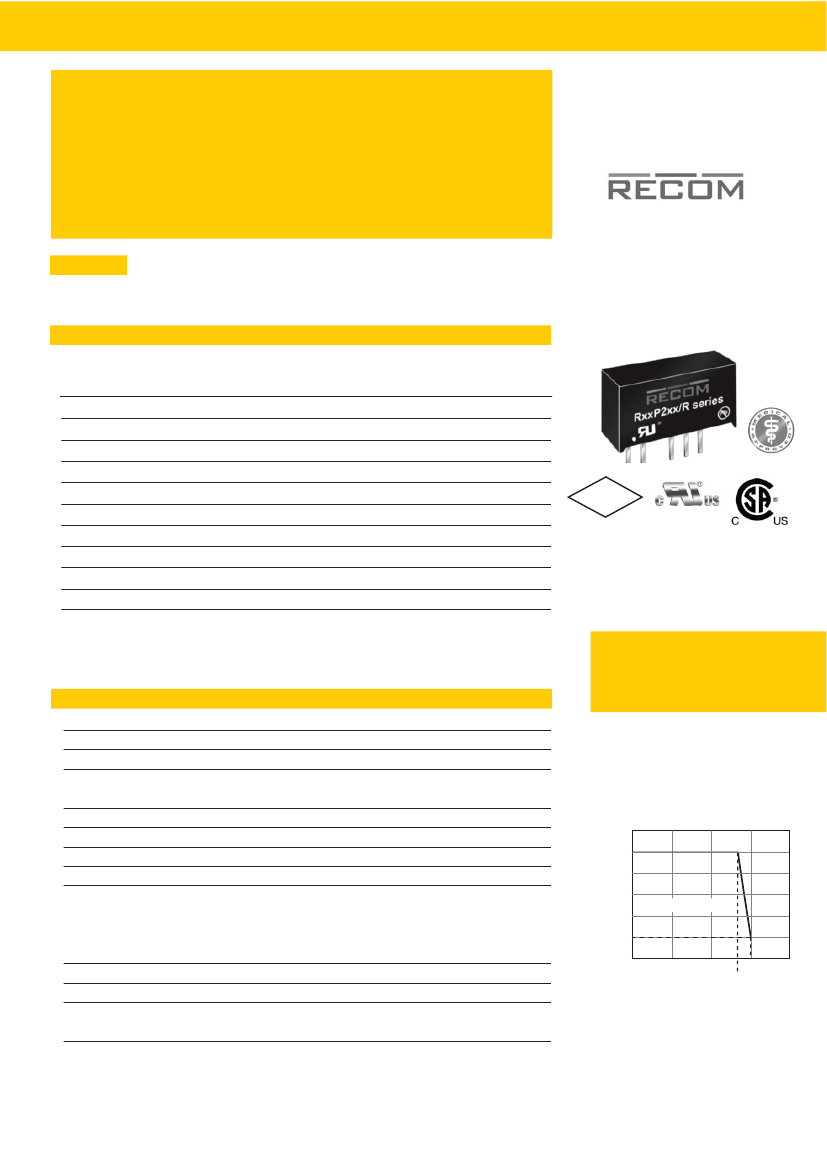

Features
Unregulated
Converters
●
●
●
●
●
●
●
●
●
UL/CSA and EN Safety certified
EN-61010 for Test, Measurement and Lab Use
EN-60601 for Medical Applications
Reinforced Isolation 6.4kVDC or 8kVDC
Optional Continuous Short Circuit Protected
Compact SIP7 Package
Efficiency to 88%
Very Low Isolation Capacitance
/X2 Version with >9mm Input/Output Clearance
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
The RxxP2xxS_D Series of DC/DC Converters are certified to UL/CSA-60950 and UL/CSA
60601. This makes them ideal for medical and safety applications where approved or reinforced
isolation is required. The reinforced versions are also EN61010-1 certified for Lab Equipment.
The /X2 version has an input/output clearance of more than 9mm.
2 Watt
SIP 7 Single
&
Dual Output
Selection Guide
Part
Number
SIP 7
RxxP23.3S
RxxP205S
RxxP209S
RxxP212S
RxxP215S
RxxP23.3D
RxxP205D
RxxP209D
RxxP212D
Reinforced
Isolation
(kVDC)
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
/R6.4 & /R8
Input
Voltage
(VDC)
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
±3.3
±5
±9
±12
Output
Current
(mA)
600
400
222
167
132
±300
±200
±111
±85
Efficiency
Std
(%)
72-78
79-84
80-87
80-87
80-88
73-80
79-85
80-87
80-87
Max
Capacitive
Load
(1)
3300µF
1200µF
1200µF
680µF
680µF
±1500µF
±470µF
±470µF
±330µF
2011/65/EU
6/6
RoHS
RxxP215D
/R6.4 & /R8
5, 12, 15, 24
±15
±66
80-88
±330µF
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
R05P205S/P, R05P205D/P
* add Suffix “/X2” for single output with alternative pinout, e.g.
R05P205S/X2, R05P205S/P/X2
* add Suffix “/R6.4” or “/R8” for Reinforced Isolation, e.g.
R05P205D/R6.4, R05P205S/P/X2/R8
E-314885
EN-60950-1 Certified
EN-60601-1 Certified
UL/CSA 60950-1 Certified
UL-60601 Certified
EN-61010-1 Certified
IEC-60601-1 CB Report
RxxP2xx/R
Derating-Graph
(Ambient Temperature)
100
80
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz BW)
Operating Frequency
Efficiency at Full Load
Minimum Load = 0%
Isolation Voltage
/R6.4 (tested for 1 second)
(rated for 1 minute**)
/R8 (tested for 1 second)
(rated for 1 minute**)
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
3.3, 5V output types
other output types
±10%
±5%
1.2%/1% of Vin typ.
15% max.
10% max.
200mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
65% min. / 80% max.
Specifications valid for 10% minimum load only.
Output Power (%)
6400VDC
3200VAC / 60Hz
8000VDC
4000VAC / 60Hz
1.5pF min. / 10pF max.
15 GΩ min.
1 Second
Continuous
continued on next page
60
40
20
0
Safe Operating Area
85
Operating Temperature °C
-40
0
50
100
150
**Any data referred to in this datasheet are of indicative nature and based on our practical experience only. For further details, please refer
to our Application Notes.
Refer to Application Notes
E-100
REV: 3/2016
www.recom-power.com
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Package Weight
Packing Quantity
Potting Material
MTBF (+25°C)
Detailed Information see
Application Notes chapter "MTBF"
.
(+85°C)
Reinforced
Reinforced Isolation
Transformer Creepage
Transformer Clearance
PCB Creepage & Clearance
Certifications
Measurement, Control and Laboratory Use Safety
CSA General Safety
RxxP2xxS_D
/Rx Series
-40°C to +85°C (see Graph)
-55°C to +125°C
95% RH
4.3g
25 pcs per Tube
Silicone Rubber Compound (UL94V-0)
1154 x 10
3
hours
168 x 10
3
hours
5.5 mm min.
5.5 mm min.
4.95 mm min.
EN 61010-1 : 2010
UL 60950-1 1st Edition
C22.2 No. 60950-1-03
UL60601-1 1st Edition
CAN/CSA-22.2 No 601.1-M90
EN60950-1 : 2006
IEC/EN 60601-1 3rd Edition
ES60601-1 3rd Edition
}
Reinforced Types
Reinforced Types
Reinforced Types
Report: T1301251-313
Report: 2207629
Report: 314885-A5
Report: 2207629
Report: SPCLVD1310079-1
Report: CA-10169-A1-UL
Report: E314885-A5
UL/cUL Medical Safety
CSA Medical Safety
EN General Safety
CB/EN Medical Safety
ANSI/AAMI Medical Safety
Notes
Note 1
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
Tolerance Envelope
+10%
+5%
V Nom.
Typical L
o
ad Line
+5%
1.5%
5%
RxxP2xx/R
Output Voltage
10%
50%
100%
Output Load Current (%)
Typical Characteristics
RxxP205S/R6.4 and RxxP205S/R8
Efficiency / Load
100
Deviation / Load
25.000
R05P205S/R6.4
Deviation from Nominal (%)
80
60
40
R12P205S/R6.4
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
R12P205S/R6.4
R24P205S/R6.4
R24P205S/R6.4
Efficiency %
20
0
R05P205S/R6.4
0% 20%
40%
60%
Total Output current (%)
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
www.recom-power.com
REV: 3/2016
E-101
ECONOLINE
DC/DC-Converter
Package Style and Pinning (mm)
7 PIN SIP Package
RxxP2xxS_D
/Rx Series
9.8
Dual Output
RECOM
RxxP2xxD/R6.4 or
RxxP2xxD/R8
****
1 2
5 6 7
Single Output
RECOM
RxxP2xxS/R6.4 or
RxxP2xxS/R8
****
1 2
5
7
12.5
RECOM
R05P205D/R6.4 or
R05P205D/R8
****
0.5
4.1
7.62
clearance
19.5
Bottom View
0.5
Recommended Footprint Details
/X2 Single Output
RECOM
RxxP2xxS/X2/R6.4 or
RxxP2xxS/X2/R8
****
1 2
6 7
2.54
0.25
1.00
ø
+0.15/0
2.4
1.9
15.24
2.54
19.5
/X2 Bottom View
Top View
2.54
0.25
1.00
ø
+0.15/0
Pin Connections
Pin #
1
2
5
6
7
Single
+Vin
-Vin
–Vout
No Pin
+Vout
Dual
+Vin
-Vin
–Vout
Com
+Vout
/X2
+Vin
-Vin
No Pin
-Vout
+Vout
RxxP2xx/R
2.4
1.9
10.16
clearance
2.54
/X2 Top View
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
www.recom-power.com
REV: 3/2016
E-103
