PLV-200S012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PLV-200S012

PLV-200S012: DescriptionLED Power Supplies LED DRIVER 200W C/V 12V 225X67.5X40; CategoryPower/power management; File Size1011KB，2 Pages; ManufacturerQualtek Electronics Corporation; Websitehttp://www.qualtekusa.com/

Download Datasheet Parametric Compare View All

PLV-200S012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLV-200S012	-	-	View	Buy Now

PLV-200S012 Overview

LED Power Supplies LED DRIVER 200W C/V 12V 225X67.5X40

PLV-200S012 Parametric

Parameter Name	Attribute value
Product Category	LED Power Supplies
Manufacturer	Qualtek Electronics Corporation
RoHS	Details
Operation Mode	Constant Voltage (CV)
Output Current-Channel 1	15 A
Output Voltage-Channel 1	12 V
Output Power	200 W
Input Voltage	90 VAC to 305 VAC
Dimming	Without Dimming
Number of Outputs	1 Output
Mounting Style	Chassis
Length	225 mm
Width	67.5 mm
Height	40 mm
Product	LED Power Supplies

Preview

Download Datasheet

View All

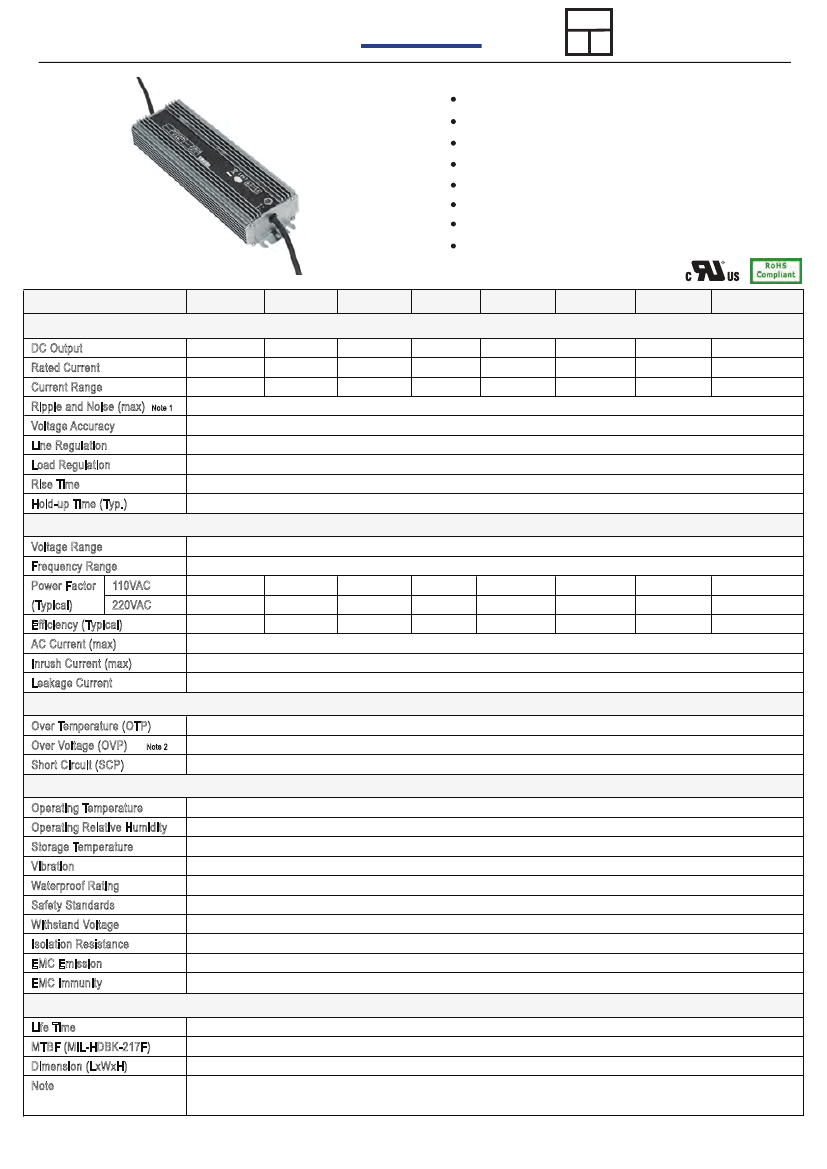

200Watts Single Output LED Driver

ualtek

P C

Electronics Corporation

PLV-200 Series

Features:

Constant Voltage Design

Universal AC input/ Full Range

Built-in Active PFC function, PF 0.99 Typical

High Efficiency (Up to 93%)

Output Protections: OLP/OVP/SCP/OTP

Lightning Protection

Waterproof (IP67)

5 Year Warranty

Model

DC Output

Rated Current

Current Range

Ripple and Noise (max)

Voltage Accuracy

Line Regulation

Load Regulation

Rise Time

Hold-up Time (Typ.)

Note 1

PLV-200S036

PLV-200S042

PLV-200S048

PLV-200S050

PLV-200S052

PLV-200S054

PLV-200S081

PLV-200S105

Output Characteristics

36V

5.56A

0~5.56A

±2% Vo

±1% Vo

±2% Vo

20mS Max @ Rated Load

10mS Min (110VAC input, full load), 20mS Min (220VAC input, full load)

90VAC~305VAC

47Hz-63Hz

>0.99

>0.95

92%

>0.99

>0.95

92%

>0.99

>0.95

92%

>0.99

>0.95

93%

>0.99

>0.95

93%

>0.99

>0.95

93%

>0.99

>0.95

93%

>0.99

>0.95

93%

110VAC

220VAC

42V

4.76A

0~4.76A

48V

4.17A

0~4.17A

50V

4.00A

0~4.00A

52V

3.84A

0~3.84A

54V

3.70A

0~3.70A

81V

2.47A

0~2.47A

105V

1.90A

0~1.90A

Input Characteristics

Voltage Range

Frequency Range

Power Factor

(Typical)

Efficiency (Typical)

AC Current (max)

Inrush Current (max)

Leakage Current

2.5A @ 100-277VAC Input Full Load

75A @ 230VAC, 25°C

0.75mA max @ 277VAC

110°C (Temperature of internal components); shut down, auto recover after the temperature decreases

1.2~1.4Vo

Long-term mode, auto recovery

-35°C~70°C

10% RH to 100% RH

-40°C~85°C, 5% to 100% RH non-condensing

10 to 300Hz sweep at constant acceleration of 1.0G(Breadth: 3.5mm) for 1 Hour for each of the perpendicular axes X, Y, Z

IP67

UL8750, Compliance to UL1012 UL935, IEC61347

L/N-GND: 4kV, L-N: 2kV

I/P-O/P: >100M Ohms / 500VDC / 25°C / 70% RH

Compliance to EN55022(CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3

Compliance to EN61000-3-2, 3 EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547

More than 50,000Hrs (25°C, 80% Load)

More than 255,000Hrs (25°C, 80% Load)

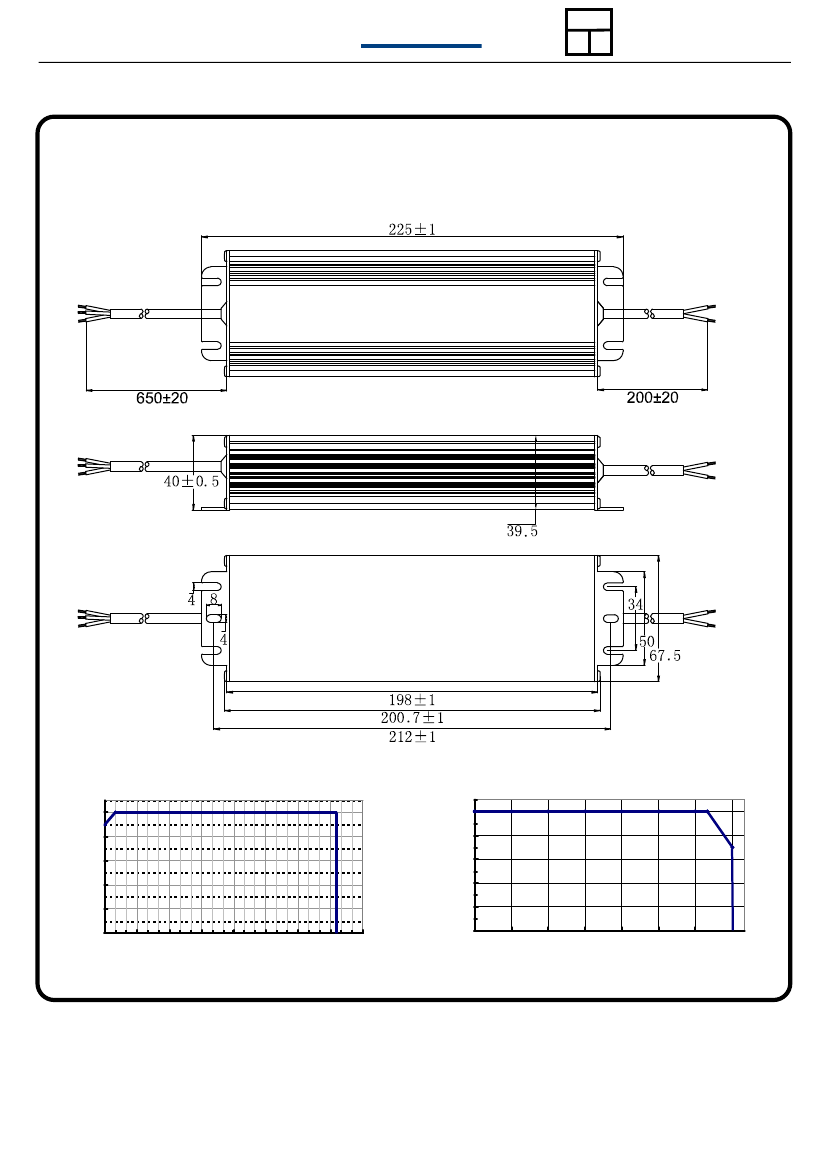

225x67.5x40mm

1. Ripple & Noise: Measured by 20 MHz bandwidth oscilloscope and the output paralleled with a 0.1 uF ceramic capacitor and a 1 0 uF electrolytic capacitor.

2. Latch Mode: The power supply shall return to normal operation only after the power is turned on again

Protection

Over Temperature (OTP)

Over Voltage (OVP)

Short Circuit (SCP)

Operating Temperature

Operating Relative Humidity

Storage Temperature

Vibration

Waterproof Rating

Safety Standards

Withstand Voltage

Isolation Resistance

EMC Emission

EMC Immunity

Note 2

Environmental Characteristics

Characteristics

Life Time

MTBF (MIL-HDBK-217F)

Dimension (LxWxH)

Note

Rev. B

Page 1 of 2

PLV-200S012 Related Products

	PLV-200S012	PLV-200S081	PLV-200S042	PLV-200S050	PLV-200S052	PLV-200S105	PLV-200S024
Description	LED Power Supplies LED DRIVER 200W C/V 12V 225X67.5X40	LED Power Supplies LED DRIVER 200W C/V 81V 225X67.5X40	LED Power Supplies LED DRIVER 200W C/V 42V 225X67.5X40	LED Power Supplies	LED Power Supplies LED DRIVER 200W C/V 52V 225X67.5X40	LED Power Supplies LED DRIVER 200W C/V 105V 225X67.5X40	LED Power Supplies LED DRIVER 200W C/V 24V 225X67.5X40
Product Category	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies
Manufacturer	Qualtek Electronics Corporation	Qualtek Electronics Corporation	Qualtek Electronics Corporation	Qualtek Electronics Corporation	Qualtek Electronics Corporation	Qualtek Electronics Corporation	Qualtek Electronics Corporation
Operation Mode	Constant Voltage (CV)	Constant Voltage (CV)	Constant Voltage (CV)	Constant Voltage (CV)	Constant Voltage (CV)	Constant Voltage (CV)	Constant Voltage (CV)
Output Current-Channel 1	15 A	2.47 A	4.76 A	4 A	3.84 A	1.9 A	8.33 A
Output Voltage-Channel 1	12 V	81 V	42 V	50 V	52 V	105 V	24 V
Output Power	200 W	200 W	200 W	200 W	200 W	200 W	200 W
Input Voltage	90 VAC to 305 VAC	90 VAC to 305 VAC	90 VAC to 305 VAC	90 VAC to 305 VAC	90 VAC to 305 VAC	90 VAC to 305 VAC	90 VAC to 305 VAC
Dimming	Without Dimming	Without Dimming	Without Dimming	Without Dimming	Without Dimming	Without Dimming	Without Dimming
Number of Outputs	1 Output	1 Output	1 Output	1 Output	1 Output	1 Output	1 Output
Mounting Style	Chassis	Chassis	Chassis	Chassis	Chassis	Chassis	Chassis
Length	225 mm	225 mm	225 mm	225 mm	225 mm	225 mm	225 mm
Width	67.5 mm	67.5 mm	67.5 mm	67.5 mm	67.5 mm	67.5 mm	67.5 mm
Height	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
Product	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies
RoHS	Details	Details	Details	-	Details	Details	Details
