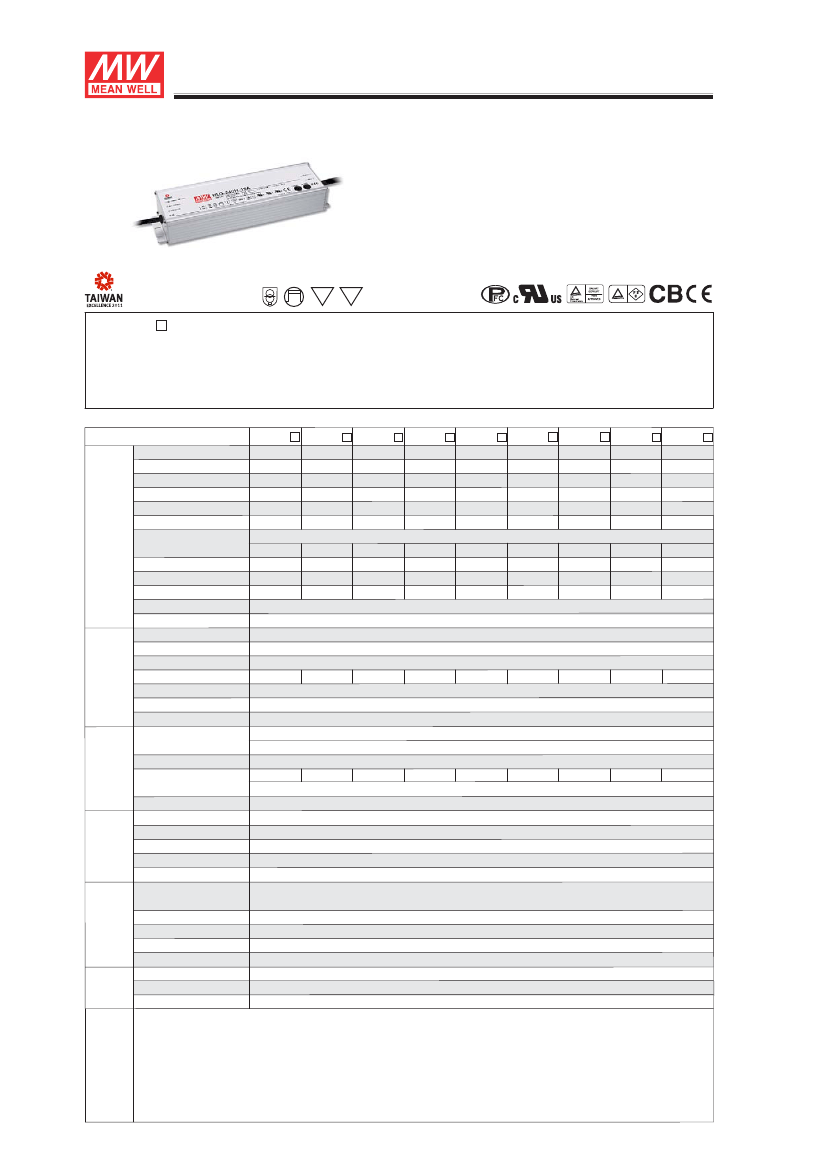

240W Single Output Switching Power Supply
■
Features :
HLG-240
series
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal
potentiometer
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
5 years warranty (Note.10)
F
110
SELV
IP65 IP67
..
HLG-240-12 A
Blank : IP67 rated. Cable for I/O connection.
A : IP65 rated. Output voltage and constant current level can be adjusted through internal
potentiometer.
B : IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.
C : Terminal block for I/O connection. Output voltage and constant current level can be adjusted through internal
potentiometer.
D
(option, safety pending) : IP67 rated. Timer dimming function, contact MEAN WELL for details.
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLG-240-12
12V
16A
192W
CONSTANT CURRENT REGION
Note.4
6 ~12V
HLG-240-15
15V
7.5 ~ 15V
15A
225W
150mVp-p
14 ~ 16V
7.5 ~ 15A
±2.0%
±0.5%
±1.5%
HLG-240-20
20V
10 ~ 20V
12A
240W
150mVp-p
HLG-240-24
24V
12 ~ 24V
10A
240W
150mVp-p
HLG-240-30
30V
15 ~ 30V
8A
240W
200mVp-p
HLG-240-36
36V
18 ~ 36V
6.7A
241.2W
250mVp-p
HLG-240-42
42V
21 ~ 42V
5.72A
240.24W
250mVp-p
HLG-240-48
48V
24 ~ 48V
5A
240W
250mVp-p
HLG-240-54
54V
27 ~ 54V
4.45A
240.3W
350mVp-p
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE ADJ. RANGE
Note.6
11.2 ~ 12.8V
OUTPUT
CURRENT ADJ. RANGE
8 ~ 16A
±0.5%
±2.0%
18.6 ~ 21.4V 22.4 ~ 25.6V 28 ~ 32V
6 ~ 12A
±1.0%
±0.5%
±1.0%
5 ~ 10A
±1.0%
±0.5%
±0.5%
4 ~ 8A
±1.0%
±0.5%
±0.5%
33.5 ~ 38.5V 39 ~ 45V
3.3 ~ 6.7A
±1.0%
±0.5%
±0.5%
44.8 ~ 51.2V 50 ~ 57V
2.23 ~ 4.45A
±1.0%
±0.5%
±0.5%
Can be adjusted by internal potentiometer
A type and C type only
2.86 ~ 5.72A 2.5 ~ 5A
±1.0%
±1.0%
±
0.5%
±0.5%
±0.5%
±0.5%
VOLTAGE TOLERANCE
Note.3
±2.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER CURRENT
PROTECTION
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
Note.7
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
Note.4
Note.8
2500ms, 80ms at full load
230VAC /115VAC
15ms at full load
Note.5
90 ~ 264VAC
230VAC /115VAC
127 ~ 373VDC
47 ~ 63Hz
PF>0.98/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
91.5%
92.5%
90%
92.5%
4A / 115VAC
2A / 230VAC
COLD START 75A(t
width
=570 s measured at 50% I
peak
) at 230VAC
μ
<0.75mA / 240VAC
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
33 ~ 39V
13.5 ~ 18V
17.5 ~ 21.5V 23.5 ~ 27.5V 27 ~ 34V
43 ~ 49V
48 ~ 54V
55 ~ 63V
60 ~ 67V
90%
92.5%
92.5%
93%
93.5%
Protection type : Shut down and latch off o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-40 ~ +70
℃
(Refer to "Derating Curve")
20 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13 independent
(except for HLG-240 C type), UL60950-1, UL8750, TUV EN60950-1, IP65 or IP67, J61347-1, J61347-2-13 approved
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (
≧
50% load) ; EN61000-3-3
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
207.9K hrs min. MIL-HDBK-217F (25
℃
)
244.2*68*38.8mm (L*W*H)(HLG-240-Blank/A/B)
251*68*38.8mm (L*W*H)(HLG-240-C)
DIMENSION
1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B)
1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240-C)
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4.
Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type and C type only.
7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.
File Name:HLG-240-SPEC
2013-11-27
240W Single Output Switching Power Supply
DRIVING METHODS OF LED MODULE
HLG-240
series
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B).
100
(A) Constant
Voltage area
(B)
Constant
Current area
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
50
(max.)
(C)
Hiccup
Protection
50
95
Io (%)
Vo(%)
Typical LED power supply I-V curve
DIMMING OPERATION (for B-type only)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
HLG-240
-V(Black)
+V(Red)
DIM+(Blue)
DIM-(White)
※
Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
※
Please DO NOT connect "DIM-" to "-V".
※
Reference resistance value for output current adjustment (Typical)
Single driver
10KΩ 20KΩ 30KΩ 40KΩ 50KΩ 60KΩ 70KΩ 80KΩ 90KΩ 100KΩ
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
Ω
/N 20K
Ω
/N 30K
Ω
/N 40K
Ω
/N 50K
Ω
/N 60K
Ω
/N 70K
Ω
/N 80K
Ω
/N 90K
Ω
/N 100K
Ω
/N
dimming operation)
OPEN
-----
95%~108%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
※
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
95%~108%
※
10V PWM signal for output current adjustment (Typical): Frequency range :100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
95%~108%
※Using
the built-in dimming function on B-type model can't turn the lighting fixture totally dark. Please refer to the connection method below to
achieve 0% brightness of the lighting fixture connecting to the LED power supply unit.
※Direct
connecting to LEDs is suggested, but is not suitable for using additional drivers.
Dimming connection diagram for turning the lighting fixture ON/OFF :
N
FG
L
Relay
Switch
Adjuster
0~100K Ohms resistance
1~10V DC Voltage
10V PWM Signal
Green/
Yellow
Brown
Blue
AC/L
AC/N
HLG-240
B Type
DIM+
DIM-
V(-)
V(+)
Blue
White
Black
Red
LED Lighting Fixture
Using a switch and relay can turn ON/OFF the lighting fixture.
1.Output constant current level can be adjusted through output cable by connecting a resistance or 1~10Vdc or 10V PWM signal between DIM+ and DIM-.
2.The LED lighting fixture can be turned ON/OFF by the switch.
File Name:HLG-240-SPEC 2013-11-27
