Sentrex
®
& Perma Power
®
Surge Protection Devices
High Performance, Computer Grade &
CabinetMATE
®
Surge Protectors
Wiremold
®
Sentrex
®
High Performance Rack Mount Series
and the Perma Power
®
Computer Grade Rack Mount and
CabinetMATE
®
Surge Protector Series offer a wide range of
solutions for communication closet, rack, and cabinet
applications. By dissipating and diverting excess voltage, a
Sentrex or Perma Power surge protection device keeps
your critical systems functioning properly.
Surges can strike once a month or hundreds of times a
day. They can penetrate a facility via AC, telephone, and
communication lines, or on any wire that enters a building.
Surges and noise are also generated inside a building
by fluorescent lighting, electric motors, HVAC equipment
and office machines. If left unprotected, sensitive
communications equipment and valuable data can be
damaged or destroyed.
Sentrex and Perma Power rack mount and CabinetMATE
surge protectors provide advanced protection for critical
electronic and communications equipment. They are an
integral part of the Sentrex Zoned Approach to whole
building protection.
SURGE

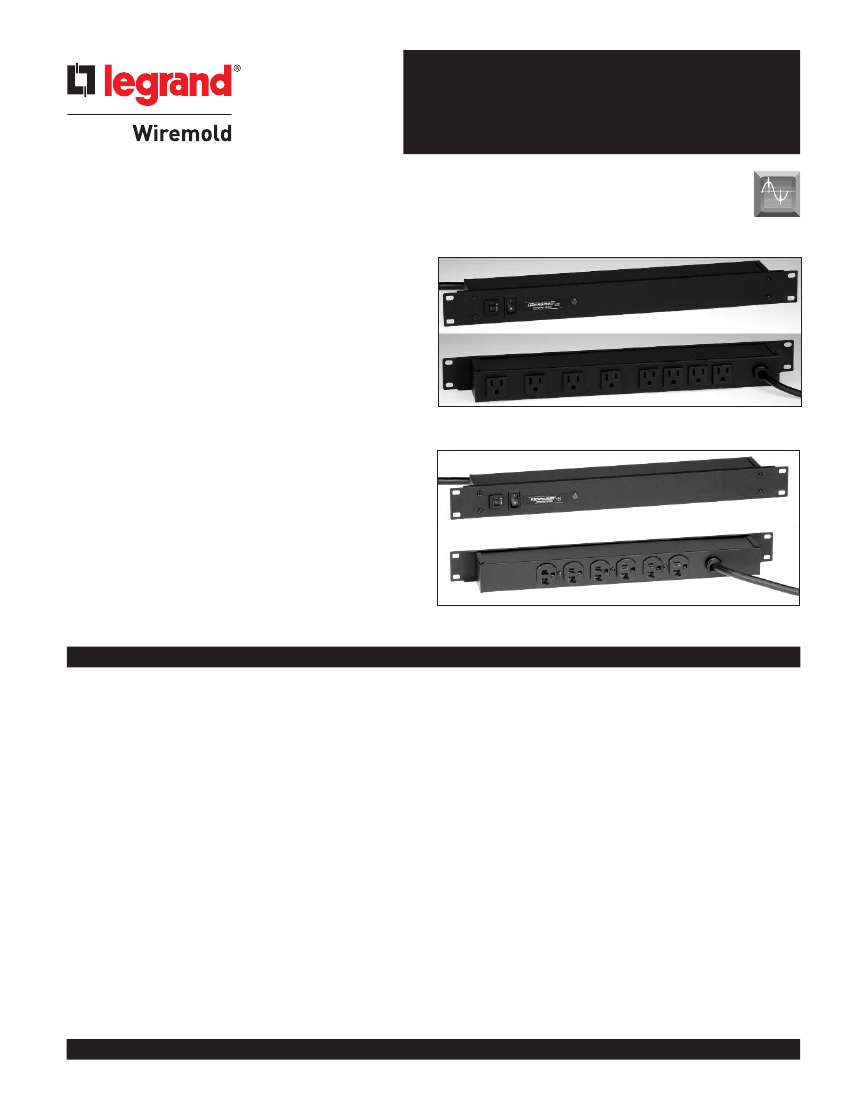

R8BZ (Front & Back)
R5BZ20 (Front & Back)
F E AT U R E S & B E N E F I T S
n
All lines are protected.
Units provide surge protection
on all three modes (L-N, L-G, and N-G). Units also have
thermal protection on all three lines.
n
600V UL1449 Voltage Protection Rating (VPR).
Outstanding
protection against harmful surges.
n
EMI / RFI noise reduction.
Protects against data disruption
due to electromagnetic or radio frequency interference.
n
Space saving.
Rack mount units fit standard 19" [482mm]
relay racks. Compact 1U design takes up minimum space.
23" [584mm] units available, consult factory.
n
Low profile.
CabinetMATE units offer a narrow 1 1/2" x
1 3/16" [38mm x 20mm] aluminum housing.
n
Aesthetically pleasing.
Rack mount units have a black
matte finish and a black cord. CabinetMATE units have
a gray finish and a black cord.
n
Cord properly rated to load requirements.
15A units
have a 14/3 SJT cord and a NEMA 5-15P plug. 20A units
have a 12/3 SJT cord and a NEMA 5-20P plug.
n
Lighted switch available on some units.
n
Protection indication.
All units have a protection indication
light to show the status of the unit.
n
Resettable circuit breaker.
Provides overload protection.
n
Product warranty.
Sentrex rack mount units come with a
lifetime product warranty. Perma Power rack mount and
CabinetMATE Series units come with a five-year
product warranty. Also includes a connected equipment
warranty up to $30,000.
n
UL and cUL Listed or Recognized.
Rack mount units
are UL and cUL recognized to both UL1363 and UL1449,
Third Edition. CabinetMATE units are UL and cUL Listed to
UL1363 and UL1449, Third Edition.
ED638R7 – Updated July 2010 – For latest specs visit www.legrand.us/wiremold
Sentrex High Performance Surge Protectors
Sentrex High Performance
Surge Protector Specifications
Surge Protection Circuitry
UL1449 Voltage Protection Rating
Maximum Surge Current
3 element, 3 stage hybrid circuit
600 Volts
56,000 Amps (32,000
Amps L-N, 12000 Amps
L-G, 12000 Amps N-G)
+50 dB
Less than 1 nanosecond
Lifetime
$30,000

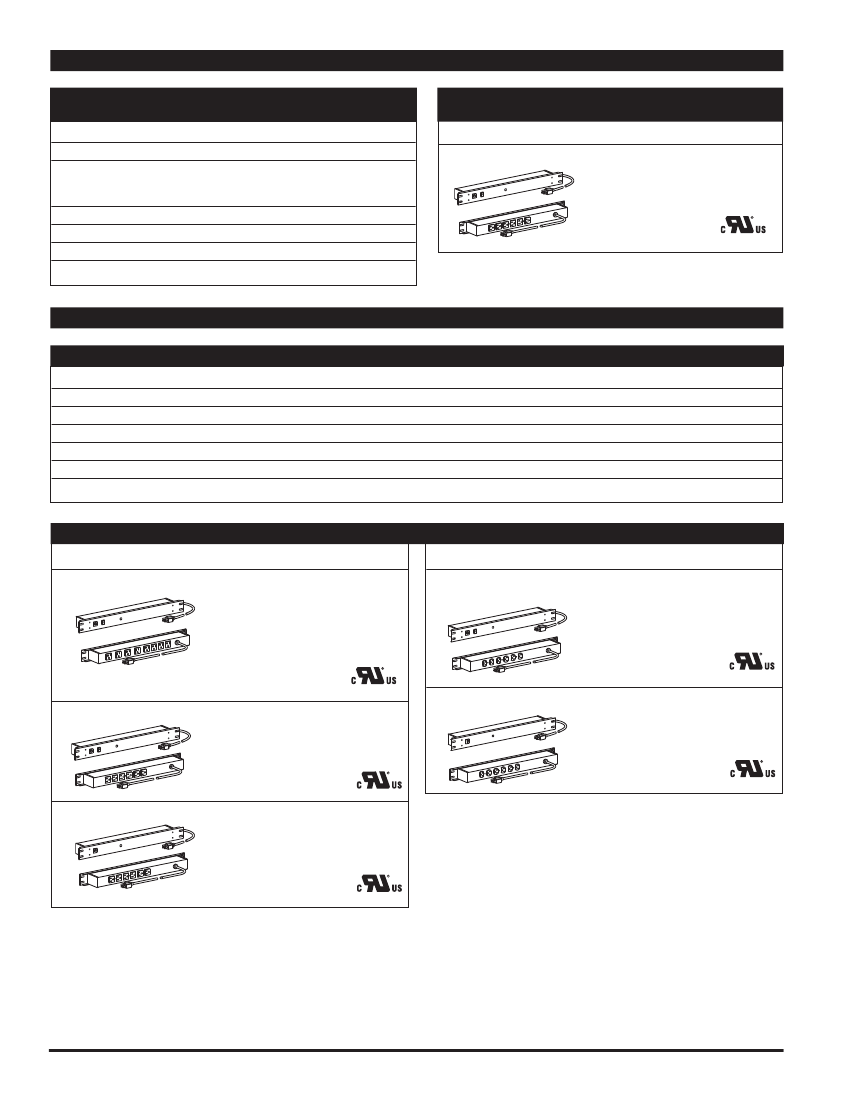

Sentrex High Performance
Surge Protector Ordering Information
Catalog No./Item
R5S/ R5S-15
Description/Specifications
High Performance Surge
Protector
– Six rear outlets,
lighted switch. 6' [1.8m] or 15'
[4.6m] cord.
Noise Reduction
Response Time
Product Warranty
Connected Equipment Warranty
Perma Power Computer Grade Surge Protectors
Perma Power Computer Grade Surge Protector Specifications
Surge Protection Circuitry
UL1449 Voltage Protection Rating
Maximum Surge Current
Noise Reduction
Response Time
Product Warranty
Connected Equipment Warranty
Single Stage
600 Volts
36,000 Amps (12,000 Amps L-N, 12,000 Amps L-G, 12,000 Amps N-G)
+35 dB
Less than 1 nanosecond
5-Year
$10,000
Perma Power Computer Grade Surge Protector Ordering Information
Catalog No./Item
R8BZ/ R8BZ-15
Description/Specifications
Computer Grade Surge
Protector
– Eight rear outlets,
lighted switch. Receptacles
rotated 90° and 4 outlets spaced
to accommodate transformers.
6' [1.8m] or 15' [4.6m] cord.
Catalog No./Item
R5BZ20/R5BZ20-15
Description/Specifications
20A Computer Grade Surge
Protector
– Six 20A rear outlets.
On/off switch. 6' [1.8m] or 15'
[4.6m] cord.
R5BZ20X/R5BZ20X-15
R5BZ/ R5BZ-15
Computer Grade Surge
Protector
– Six rear outlets,
lighted switch. 6' [1.8m] or 15'
[4.6m] cord.
20A Computer Grade Surge
Protector
– Six 20A rear outlets.
6' [1.8m] or 15' [4.6m] cord.
R5BZX/ R5BZX-15
Computer Grade Surge
Protector
– Six rear outlets.
6' [1.8m] or 15' [4.6m] cord.
CabinetMATE Surge Protectors
CabinetMATE Surge Protector Specifications
Surge Protection Circuitry
UL1449 Voltage Protection Rating
Maximum Surge Current
Noise Reduction
Response Time
Product Warranty
Single Stage
600 Volts
36,000 Amps (12,000 Amps L-N, 12,000 Amps L-G, 12,000 Amps N-G)
+35 dB
Less than 1 nanosecond
5-Year
15A CabinetMATE Surge Protector Ordering Information
Catalog No./
Item
4810BCS/
4810BDS
Description/
Specifications
CabinetMATE Surge
Protector
– Ten
outlets. 6' [1.8m] or
15' [4.6m] cord.
Length 48" [1.2m].
j
Catalog No./
Item
7011BCS/
7011BDS
Description/
Specifications
CabinetMATE Surge
Protector
– Eleven
outlets. 6' [1.8m] or
15' [4.6m] cord.
Length 70" [1.8m].
j
Catalog No./
Item
7712BCS/
7712BDS
Description/
Specifications
CabinetMATE Surge
Protector –
Twelve
outlets. 6' [1.8m] or
15' [4.6m] cord.
Length 77" [2m].
j
WHY DON’T WE SPECIFY JOULES?
The Joule rating does not provide an accurate indication of the robustness of a surge suppressor. The Joule rating is energy over time and it is
very easy to artificially inflate the Joule rating by changing the time base. The Institute of Electrical and Electronics Engineers (IEEE) as well as
the National Electrical Manufacturers Association (NEMA) both warn against using Joules to compare surge suppressors.
A much better indication of the robustness of a surge suppressor is the Nominal Discharge Current (I
n
). The Nominal Discharge Current is a
rating of the current surge current the surge suppressor can handle for 15 surges and still remain functional. This rating is independently
verified by Underwriters Laboratories (UL) and the rating is required to be marked on the surge suppressor.
In fact, UL requires that the surge suppressor must have an I
n
rating of 3kA or it is not suitable for installation closer than 30 feet [10m] from the
service entrance. All of our surge suppressors have an I
n
rating of 3kA and can be used anywhere in the building.
When comparing surge suppressors, don’t be fooled by the Joule game. Look for an I
n
rating of 3kA to be sure you are getting the best in
surge suppression.

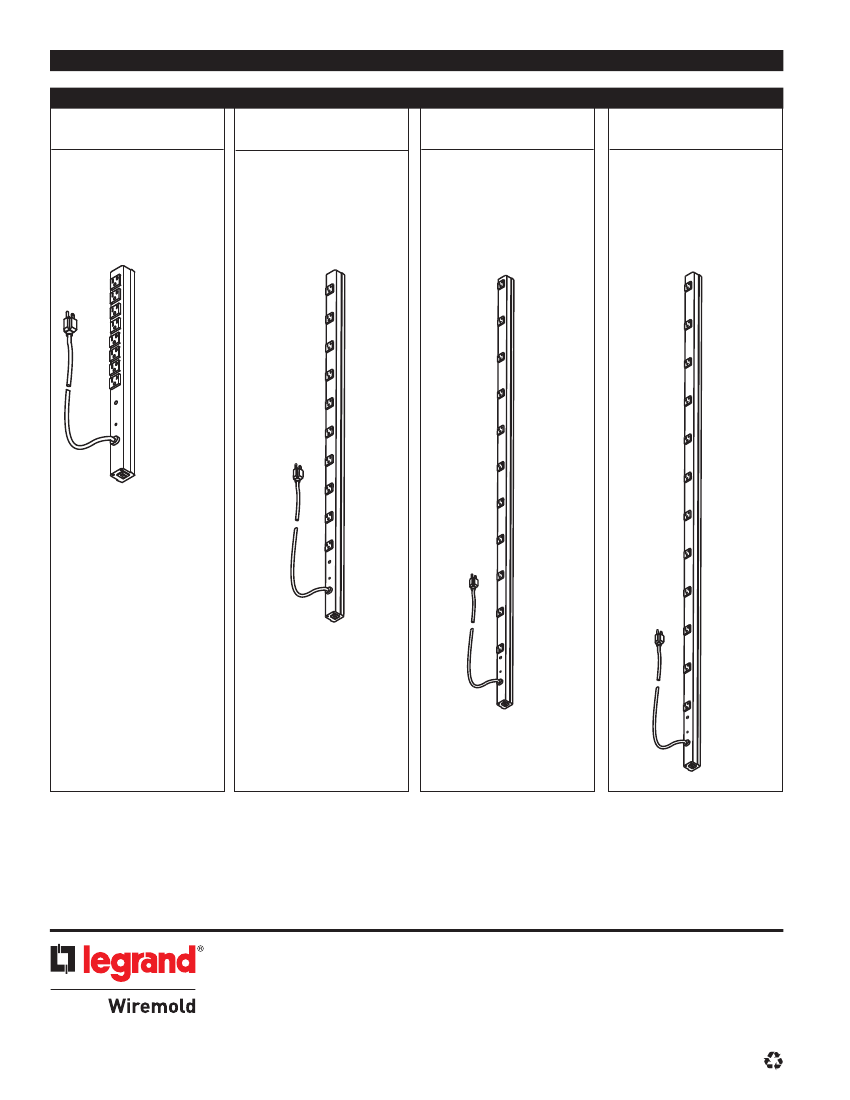

CabinetMATE Surge Protectors
(continued)
20A CabinetMATE Surge Protector Ordering Information
Catalog No.:
2008BCS20R/2008BDS20R
Description/
Item Specifications:
20A CabinetMATE Surge
Protector –
Eight 20A
outlets with t-slots. 6' [1.8m]
or 15'. Length: 20" [508mm].
j
Catalog No.:
4810BCS20R/4810BDS20R
Description/
Item Specifications:
20A CabinetMATE Surge
Protector –
Ten 20A outlets
with t-slots. 6' [1.8m] or
15' [4.6m] cord. Length:
48" [1.2m].
j
Catalog No.:
7011BCS20R/7011BDS20R
Description/
Item Specifications:
20A CabinetMATE Surge
Protector –
Eleven 20A
outlets with t-slots. 6'
[1.8m] or 15' [4.6m] cord.
Length: 70" [1.8m].
j
Catalog No.:
7712BCS20R/7712BDS20R
Description/
Item Specifications:
20A CabinetMATE Surge
Protector –
Twelve 20A
outlets with t-slots. 6'
[1.8m] or 15' [4.6m] cord.
Length: 77" [2m].
j
NOTE: For surge specifications of these CabinetMate products, refer to the
CabinetMate Surge Protector Specifications listed on the previous page.
Questions? Call Technical Support today at 1-800-SENTREX.
