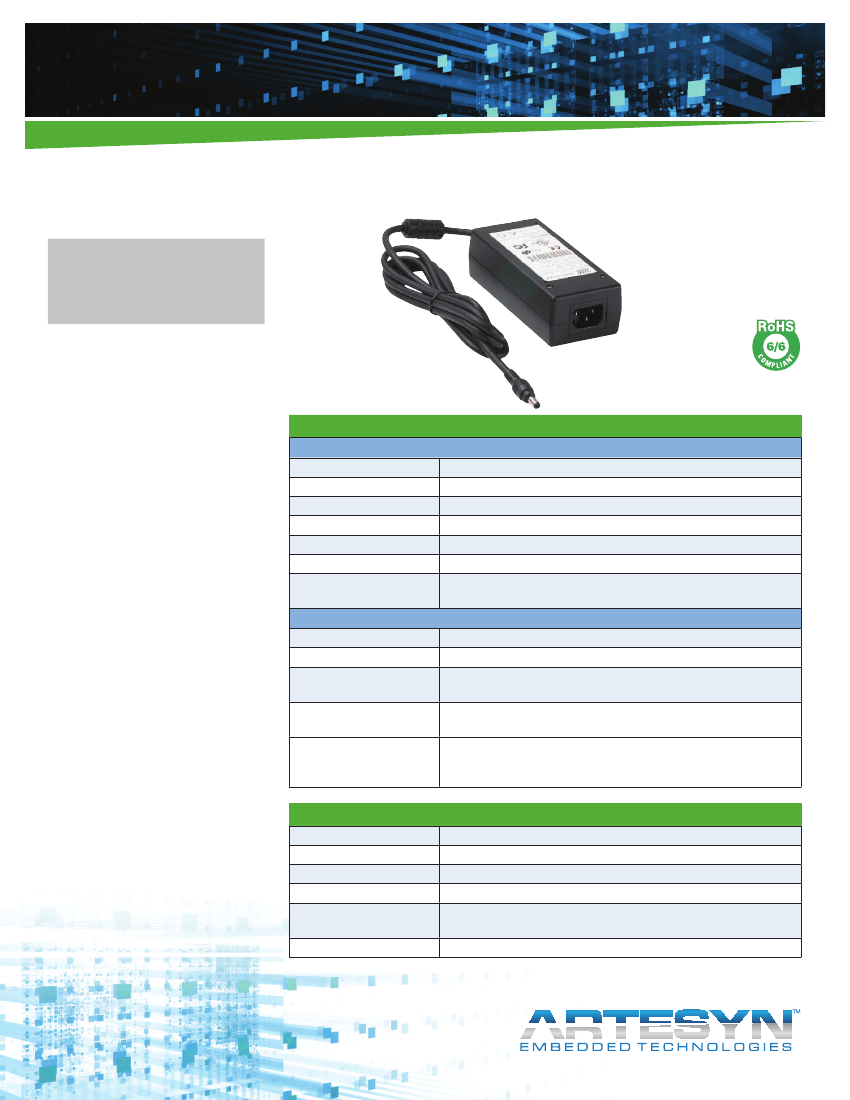

POWER
Data Sheet
Total Power: 30 - 60 Watts
Input Voltage: 90 - 264 Vac
127 - 300 Vdc
# of Outputs: Single
Special FeatureS
CE Mark EMC & LVD (except DPS52)
Universal AC input
Fully regulated output
Overload and short circuit protection
Internal remote sense
to the output plug
Constant voltage
Level V efficiency (except DPS52)
High MTBF
IEC320 AC receptacle, 3 pin (type C14)
Built in EMI filter (CISPR 22 Class B)
LED power good indicator
Input power < 74 watts
Complies with EN61000-3-2
Meets Energy Star
DPS50
60 Watts
Electrical Specifications
Input
Input range
Frequency
Inrush current
Input current
Efficiency
EMI/RFI
90 - 264 Vac (wide range)
127 - 300 Vdc
47-440 Hz
< 60 A @ 230 Vac, cold start @ 25 °C
< 2.0 A rms @ 115 Vac; < 1 A @ 230 Vac
80% @ full load typical, @115 Vac
Safety ground leakage current FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B
0.5 mA @ 50/60 Hz, 264 Vac input
Output
Maximum Power (Po)
Hold-up time
60 W (DPS52, 30 W)
10ms. typical at full load @ 115 Vac
20% - 45% above nominal output maximum
Latching type, recycle AC to reset.
Output short circuit protection auto recover
Overload protected @ 120 - 150% above maximum rating
DC cable with 2.5 mm center plug
DC plug center +v
DC plug outer -v
SaFety
UL
CSA
VDE
CE
UL 60950-1
CSA-C22.2 no.60950-1
EN60950-1
EMC, LVD & ErP 2011
(except DPS52)
Certificate and report
Denan 06-03051012
Overvoltage protection
Overcurrent protection
Cable/connector
CB
PSE
Environmental Specifications
Operating temperature:
Storage temperature:
Humidity:
Vibration:
MTBF demonstrated:
0° to +40 °C ambient. -20 °C start up
-40 °C to +85 °C
Operating; non-condensing 5% to 90% RH
Three orthogonal axes, 3 sweeps per axe at 1 oct/min. 2G peak 8 Hz to
500 Hz, operational
> 550,000 hours at full load and 25 °C ambient conditions
Electromagnetic susceptibility: Designed to meet EN61000-4, -2, -3, -4, -5, -6, -8, -11, level 3
DPS50 Data Sheet

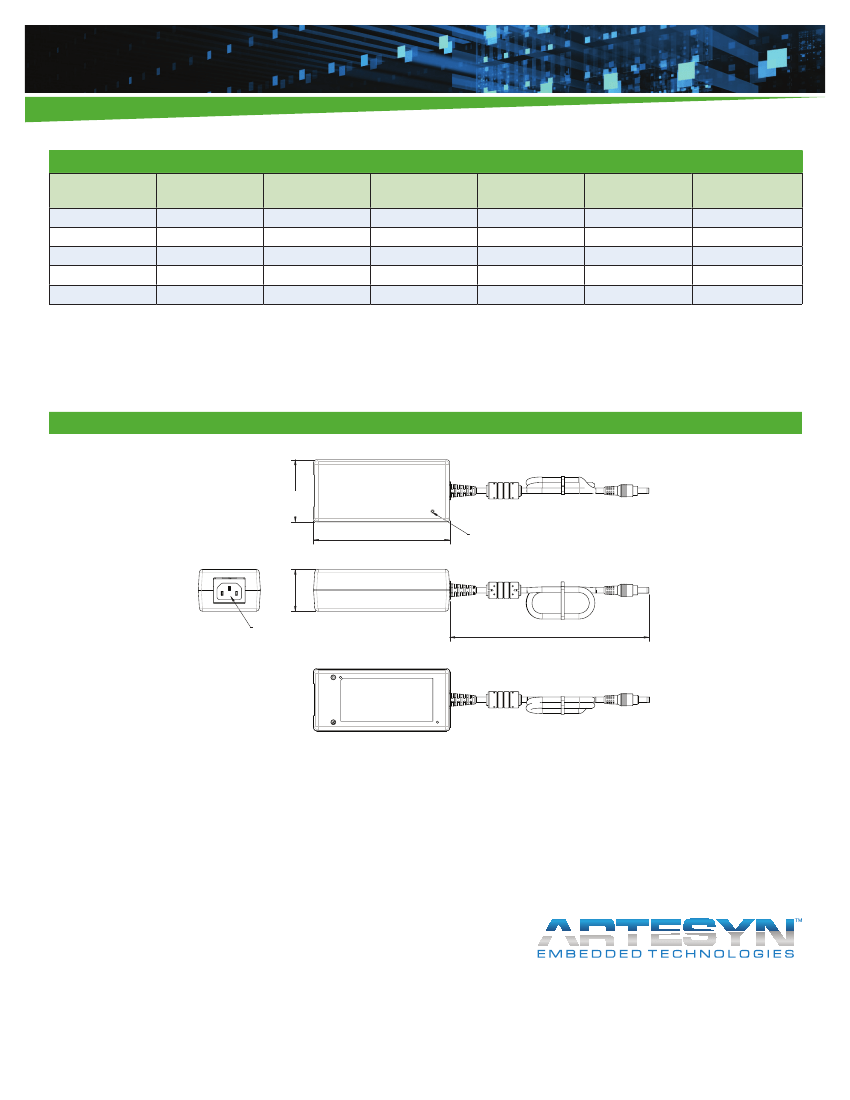

Ordering Information
Model
Number
DPS52*
DPS53
DPS54
DPS55
DPS58
Maximum
Power
30 W
60 W
60 W
60 W
60 W
Output
Voltage
5V
12 V
15 V
24 V
48 V
Maximum
Load
6A
5A
4A
2.5 A
1.25 A
Peak Load
1
6.5 A
5.4 A
4.3 A
2.7 A
1.35 A
Regulation
2
± 2%
± 2%
± 2%
± 2%
± 2%
Ripple
P/P (PARD)
3
50 mV
120 mV
150 mV
240 mV
480 mV
1. Peak current lasting < 15 seconds with a maximum 10% duty cycle.
2. At 25 ºC including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 μF (tantalum capacitor) in parallel with a 0.1 μF capacitor at rated line voltage and load ranges.
* No CE approval under new EUP directive
Mechanical Drawing
2.39"
(60.7)
5.24"
(133.0)
INDICATOR LED
DC OUTPUT CABLE
AC INLET
1.62"
(41.0)
78.7"
(2000±15)
MODEL LABEL
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ± 0.02” (± 0.5 mm)
3. Warranty: 2 year
4. Weight: 1.06 lb./.48 kg
5. AC input power cord sold separately.
6. Specifications are for convection rating at factory settings at 115 Vac input, 25 °C unless otherwise stated
