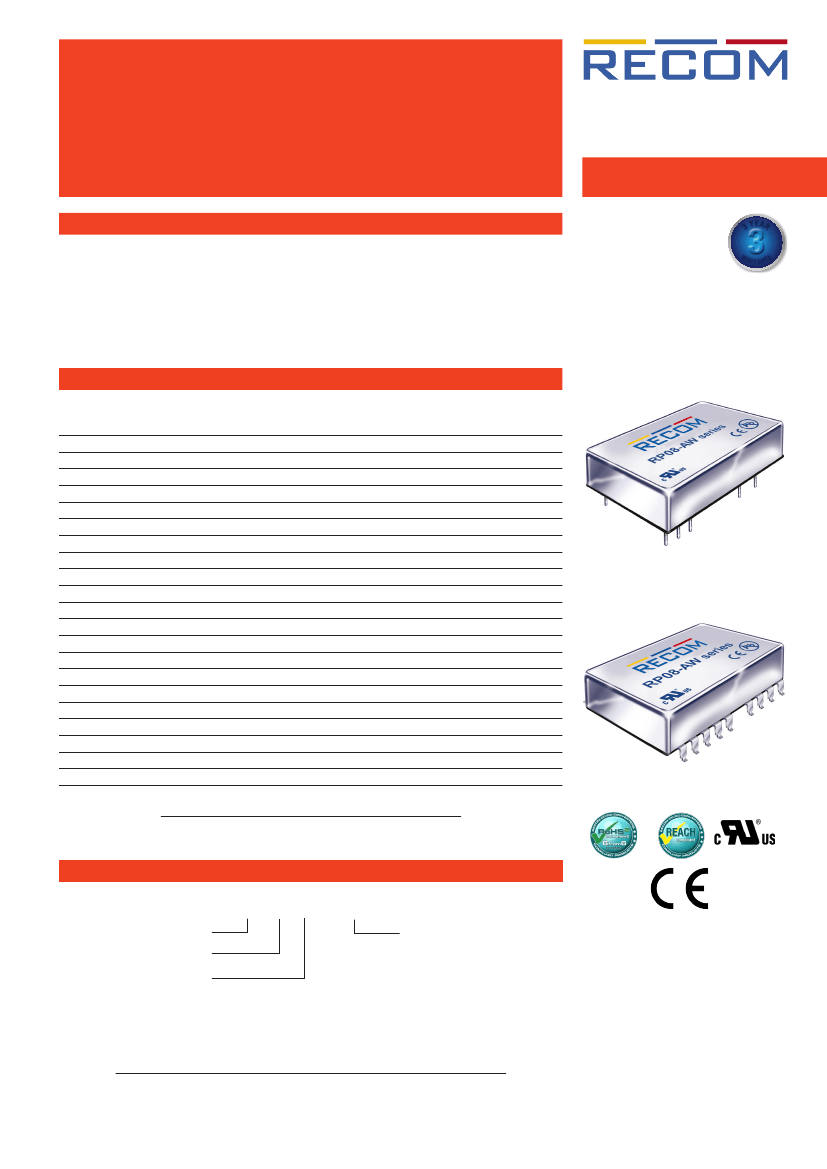

Features
Regulated
Converters
Description
•
•
•
•
•
•
4:1 Wide Input Voltage Range
1.6kVDC Isolation
UL60950-1, EN50155 Certified
Efficiency up to 88%
Protected Outputs
High Input Voltage Range (110VDC)
DC/DC Converter
RP08-AW
8 Watt
3
DIP24/SMD
Single & Dual
Output
3Y
wa
EAR
The RP08-AW series wide range input DC/DC converters are certified to UL 60950-1 and cUL 60950-1.
This makes them ideal for all telecom and industrial applications where approved safety standards are
required. The 24V and 110VDC input versions have been especially designed for railway applications.
The DIP24 package is available in both pinned and SMD case styles and meets military standards for
thermal shock and vibration tolerance.
rranty
Selection Guide
Part Number
RP08-243.3SAW
(3)
RP08-2405SAW
(3)
RP08-2412SAW
(3)
RP08-2415SAW
(3)
RP08-483.3SAW
(3)
RP08-4805SAW
(3)
RP08-4812SAW
(3)
RP08-4815SAW
(3)
RP08-1103.3SAW
(3)
RP08-11005SAW
(3)
RP08-11012SAW
(3)
RP08-11015SAW
(3)
RP08-2405DAW
(3)
RP08-2412DAW
(3)
RP08-2415DAW
(3)
RP08-4805DAW
(3)
RP08-4812DAW
(3)
RP08-4815DAW
(3)
RP08-11005DAW
(3)
RP08-11012DAW
(3)
RP08-11015DAW
(3)
Input
Voltage Range
[VDC]
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
43-160
43-160
43-160
43-160
9-36
9-36
9-36
18-75
18-75
18-75
43-160
43-160
43-160
Output
Voltage
[VDC]
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output
Current
[mA]
2400
1600
666
533
2400
1600
666
533
2400
1600
666
533
±800
±333
±267
±800
±333
±267
±800
±333
±267
Input
(1)
Efficiency
(1)
Current
typ.
[mA]
[%]
388
85
383
87
387
86
387
86
194
85
192
87
191
87
189
88
86
84
86
85
84
86
85
86
397
84
387
86
388
86
198
84
191
87
192
87
89
82
85
85
86
85
Max. Capacitive
Load
(2)
[µF]
1330
1330
288
200
1330
1330
288
200
1330
1330
288
200
±900
±133
±90
±900
±133
±90
±900
±133
±90
Notes:
Note1: Maximum value at nominal input voltage and full load
Note2: Test by minimum Vin and constant resistor load.
E196683
Model Numbering
RP08-__ __ _AW/_
Input Voltage
Output Voltage
Single
or
Dual
Ordering Examples
RP08-4805AW/SMD = 48V Input, 5V Output, SMD Package
RP08-2405AW = 24V Input, 5V Output, DIP24 Package
Notes:
Note3: No suffix for standard package (DIP24), add suffix “SMD” for SMD package
www.recom-power.com
REV.: 5/2017
PD-1
Package
(3)
UL60950-1 Certified
EN50155 Certified
RP08-AW
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
BASIC CHARACTERISTICS
Parameter
Input Voltage Range
Series
Condition
nom. Vin = 24V
nom. Vin = 48V
nom. Vin = 110V
Vin= 24V
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
Min.
9VDVC
18VDC
43VDC
Typ.
24VDC
48VDC
110VDC
8VDC
Max.
36VDC
75VDC
160VDC
9VDC
18VDC
Under Voltage Lockout (UVLO)
Vin= 48V
Vin=110V
16VDC
43VDC
40VDC
Pi-Type
20mAp-p
50VDC
100VDC
170VDC
450ms
5ms
270kHz
0%
300kHz
50mVp-p
50mVp-p
75mVp-p
Open or 3.0 < Vr < 12VDC
Short or 0 < Vr < 1.2VDC
2.5mA
-0.5mA
+0.5mA
330kHz
Input Filter
Input reflected Ripple Current
Input Surge Voltage
Start-up time
Operating Frequency Range
Minimum Load
Ripple and Noise
Remote ON/OFF
(4)
Input current of Remote pin (CTRL)
Vin = 24V
20MHz bandwidth Vin = 48V
Vin = 110V
Positive Logic
DC-DC ON
DC-DC OFF
DC-DC OFF
DC-DC ON
nominal Vin and full load
Vin = 24V, 100ms max.
Vin = 48V, 100ms max.
Vin = 110V, 100ms max.
Power up
Remote ON/OFF
Notes:
Note4: The ON/OFF control pin voltage is referenced to -Vin pin.
RP08-2405SAW

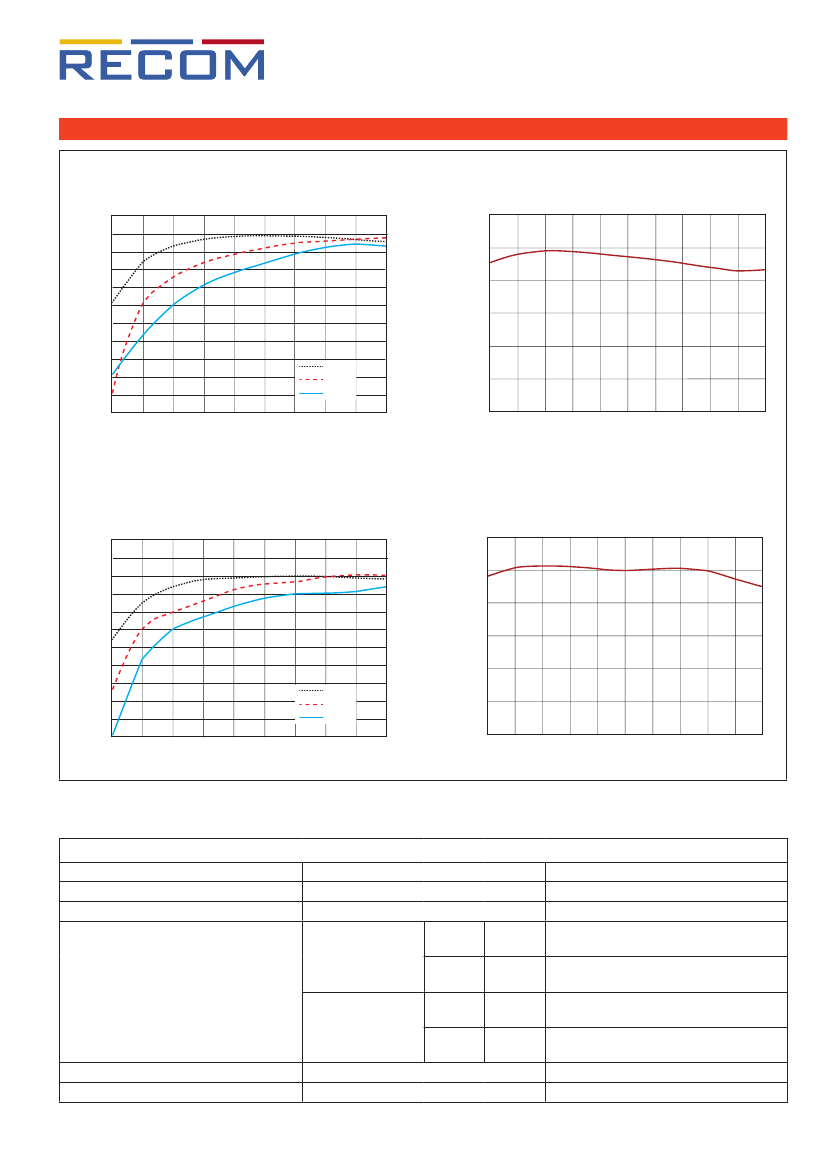

Efficiency vs. Output Current
95
90
85
80
75
70
65
55
50
45
40
10
20
30
40
50
60
70
9Vin
24Vin
36Vin
80
90
100
95
90
Efficiency vs. Input Voltage
Efficiency [%]
Efficiency [%]
85
80
75
70
65
9
12
15
18
21
24
27
30
33
36
Output Current [%]
Input Voltage [VDC]
continued on next page
PD-2
REV.: 5/2017
www.recom-power.com
RP08-AW
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
RP08-4805SAW
Efficiency vs. Output Current
95
90
85
90
80
75
70
65
60
55
50
45
40
10
20
30
40
50
60
70
18Vin
48Vin
75Vin
80
90
100
95
Series
Efficiency vs. Input Voltage
Efficiency [%]
Efficiency [%]
85
80
75
70
65
18
24
30
36
42
48
54
60
66
72
75
Output Current [%]
Input Voltage [VDC]
RP08-11005SAW
Efficiency vs. Output Current
95
90
85
Efficiency vs. Input Voltage
90
85
Efficiency [%]
80
75
70
65
60
55
50
45
40
43Vin
110Vin
160Vin
10
20
30
40
50
60
70
80
90
100
Efficiency [%]
80
75
70
65
60
43
55
67
79
91
103
115
127
139
151
160
Output Current [%]
Input Voltage [VDC]
REGULATIONS
Parameter
Output Voltage Accuracy
Line Voltage Regulation
low line to high line, full load
DIP24
no load to full load
SMD
Load Voltage Regulation
DIP24
10% load to 90% load
SMD
Cross Regulation
Transient Response recovery time
www.recom-power.com
Condition
Value
±1%
±0.2%
Single
Dual
Single
Dual
Single
Dual
Single
Dual
±0.5%
±1%
±1%
±1%
±0.3%
±0.8%
±0.8%
±0.8%
±5%
250μs typ.
PD-3
asymmetrical 25%<>100% load
25% load step change
REV.: 5/2017
RP08-AW
DC/DC Converter
Specifications
PROTECTIONS
Parameter
Short Circuit Protection (SCP)
3.3Vout
5Vout
Single Output
12Vout
15Vout
% of Iout rated
DIP24
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Notes:
Note5: This power module is not internally fused. An input line fuse must always be used.
SMD
I/P to O/P
I/P (O/P) to case
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
Series
Condition
Value
continuous, automatic recovery
3.9VDC typ.
6.2VDC typ.
15VDC typ.
18VDC typ.
150% typ.
1.6kVDC/1 minute
1.6kVDC/1 minute
1.6kVDC/1 minute
1.0kVDC/1 minute
1GΩ min.
1500pF max.
Over Voltage Protection (OVP)
Over Load Protection (OLP)
I/P to O/P
I/P (O/P) to case
500VDC
ENVIRONMENTAL
Parameter
Operating Temperature Range
(6)
Maximum Case Temperature
Temperature Coefficient
Thermal Impedance
Operating Humidity
Shock
Thermal Shock
Vibration
Fire protection on railway vehicles
MTBF
MIL-HDBK-217F
Bellcore-TR-NWT-000332
(7)
RP08-4805SAW
100
80
60
40
20
0
-40
Condition
without derating
with derating
Value
-40°C to +85°C
-40°C to +105°C
+105°C
±0.02%/°C max.
Natural convection (20LFM)
non-condensing
20°C/Watt
5% - 95% RH
MIL-STD-810F
MIL-STD-810F
MIL-STD-810F
according to EN45545-2, 2013 standard
2832 x 10
3
h
2350 x 10
3
h
Derating Graph
(8)
Output Power [%]
-20
0
20
40
60
Ambient Temperature [°C]
80 100 120
85 105
Notes:
Note6: Converter can meet the railway T2 and TX temperature requirement
Note7: BELLCORE TR-NWT-000332. Case l: 50% Stress, Temperature at 40°C (Ground Benign and controlled environment).
MIL-HDBK-217F, Notice 2, Full Load, 25°C, Ground Benign.
Note8: Derating graphs are valid only for the shown part numbers. If you need detailed derating-information about a part-
number not shown here please contact our technical support service at techsupportAT@recom-power.com.
PD-4
REV.: 5/2017
www.recom-power.com
RP08-AW
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
SAFETY AND CERTIFICATIONS
Certificate Type (Safety)
Information Technology Equipment, General Requirements for Safety
Railway Applications - Electrical Equipment used on rolling stock
Series
Report / File Number
E196683
15A100701E-C
Standard
UL60950-1 1st Ed.: 2003
C22.2 No. 60950 1st. Ed.: 2003
EN50155
EMC Compliance
Information technology equipment - Radio disturbance characteristics -
Limits and methods of measurement
(9)
Industrial, scientific and medical equipment - Radio frequency disturbance
characteristics - Limits and methods of measurement
(9)
Condition
with external filter
C2
Standard / Criterion
EN55022 Class A or B
EN55011 Class A or B
+V
OUT
ESD Electrostatic discharge immunity test
Air ±8kV and Contact ± 6kV
Fuse
Radiated, radio-frequency, electromagnetic field immunity test
20 V/m
Input
DC
(10)
Fast Transient and Burst Immunity
±2kV
C1
Surge Immunity
(10)
±2kV
DC
Immunity to conducted disturbances, induced by radio-frequency fields
10 Vr.m.s
Notes:
Note9: The standard modules meet EMI Class A or Class B with external components, see filter suggestions below.
C3
Note10: An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
Recom suggests Nippon chemi-con KY series 220μF/100V (24V and 48V) or 150μF/200V (110V).
+VIN
-V
OUT
-VIN
EN61000-4-2, Criteria A
EN61000-4-3, Criteria A
EN61000-4-4, Criteria A
EN61000-4-5, Criteria A
EN61000-4-6, Criteria A
LOAD
LOAD
LOAD
EMI Filtering Class A
Fuse
C2
C2
Input
C1
+VIN
+V
OUT
Fuse
DC
LOAD
Input
C1
+VIN
+V
OUT
DC
COM
DC
-V
OUT
-VIN
-VIN
DC
-V
OUT
C3
C3
MODEL
Fuse
C1
1.0μF/50V
1210MLCC
Fuse
L1
C3
RP08-24xxS_DW
RP08-24xxS_DW/SMD
LOAD
+VIN
+V
OUT
C2
Input
C2
N/A
N/A
C1
C3
1000pF/2kV
1206 MLCC
1000pF/2kV
1206 MLCC
1000pF/2kV
1206 MLCC
L1
C2
+VIN
+V
OUT
DC
DC
-V
OUT
-VIN
Input
C1
RP08-48xxS_DW
DC
RP08-48xxS_DW/SMD
COM
0.47μF/100V
1810MLCC
1μF/250V
1812 MLCC
-VIN
RP08-110xxS_DW
DC
RP08-110xxS_DW/SMD
-V
OUT
1μF/250V
1812 MLCC
EMI Filtering Class B
Fuse
C3
C3
+VIN
+V
OUT
LOAD
C4
C3
L1
Fuse
DC
LOAD
C1
C2
DC
C1
C2
COM
DC
-V
OUT
-V
OUT
-VIN
-VIN
C4
C4
MODEL
Fuse
C1
C3
C2
N/A
1.5μF/100V
1812 MLCC
N/A
C3/C4
1000pF/2kV
1206 MLCC
1000pF/2kV
1206 MLCC
1000pF/2kV
1206 MLCC
L1
CMC: 325μH
ref.: WE 744290321
ref.: CMC-06
CMC: 325μH
ref.: WE 744290321
ref.: CMC-06
CMC: 497μH
ref.: WE 7448013501
PD-5
L1
RP08-24xxS_DW
RP08-24xxS_DW/SMD
+VIN
+V
OUT
4.7μF/50V
1812 MLCC
1.5μF/100V
1812 MLCC
1μF/250V
1812 MLCC
LOAD
Input
C1
-V
OUT
-VIN
RP08-110xxS_DW
RP08-110xxS_DW/SMD
C4
www.recom-power.com
LOAD
C2
RP08-48xxS_DW
RP08-48xxS_DW/SMD
DC
DC
COM
REV.: 5/2017
LOAD
DC
LOAD
Input
Input
+VIN
+V
OUT
LOAD
京公网安备 11010802033920号
EEWORLD
