The ABC150 Series of open-frame power supplies, with its wide
universal 90 - 264 VAC input range and high power density, is available
at 150 W of output power and a variety of single output voltages.
The high efficiency and high power density of the ABC family ensures
minimal power loss in end-use equipment, thereby facilitating higher
reliability, easier thermal management and meets regulatory approvals
for environmentally-friendly end products.
These power supplies are ideal for telecom, datacom, industrial
equipment and other applications.
•
•
•
•
4 x 2 x 1.3 Inch Form Factor
150 W with Forced-Air Cooling
12 V @ 0.5 A fan voltage auxiliary output
High Efficiency > 86%
Low conducted and radiated noise
•
•
Light weight
IEC Protection Class Options:
•
•
Class I: Earthing Tab J4 (no suffix)
Class II: No Earthing Tab (-2 suffix)
•
•
Cover Kit Accessory Available
RoHS Compliant
•
•
•
•
Instrumentation
Lighting
Industrial Applications
Applied Computing
•
•
•
•
Renewable Energy
Test and Measurement
Robotics
Wireless Communication
2
ABC150 Series
MODEL
1
ABC150-1005G
ABC150-1T05G
ABC150-1012G
ABC150-1T12G
ABC150-1015G
ABC150-1T15G
ABC150-1024G
ABC150-1T24G
ABC150-1048G
ABC150-1T48G
COVER-201-XBC
6
CONNECTOR
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
OUTPUT VOLTAGE
5 VDC
5 VDC
12 VDC
12 VDC
15 VDC
15 VDC
24 VDC
24 VDC
48 VDC
48 VDC
MAX LOAD
CONVECTION
2
16.0 A
16.0 A
8.33 A
8.33 A
6.67 A
6.67 A
4.17 A
4.17 A
2.08 A
2.08 A
MAX LOAD
300 LFM
2,3, 4
16.0 A
20.0 A
12.5 A
12.5 A
10.0 A
10.0 A
6.25 A
6.25 A
3.13 A
3.13 A
MINIMUM LOAD
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
RIPPLE &
NOISE
5
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
Metal cover kit accessory
Specifications are for nominal input voltage, 25°C unless otherwise stated.
PARAMETER
Input Voltage
Input Frequency
Input Current
No Load Power
Inrush Current
Leakage Current
Power Factor
Switching Frequency
120 VAC:
230 VAC:
120 VAC:
230 VAC:
120 VAC:
230 VAC:
PFC converter (variable)
Resonant converter (variable)
120 VAC:
230 VAC:
DESCRIPTION / CONDITION
Universal
SPECIFICATION
90-264 VAC / 120-390 VDC
47 to 63 Hz
1.7 A max.
0.85 A max.
1.2 W
35 A max.
65 A max.
< 150 µA
< 300 µA
0.99
0.95
35 - 250 kHz, 90 kHz typical
35 - 250 kHz, 90 kHz typical
1
2
For Class II (without input Earth pin) add suffix -2 (e.g.: ABC150-1012G-2).
Combined output power from V1, VSTBY and VFAN should not exceed the total output power rating.
3
Fan output voltage tolerance is +/-20%.
4
Peak current for fan output is 1 A.
5
Ripple is 2% up to 20% load and < 1% above 20% load. Ripple is peak to peak with 20 MHz bandwidth and 10 µF (Tantalum
capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.
6
When used in Cover Kit, de-rate output power to 70 % under all operating conditions.
tech.support@psbel.com
ABC150 Series
3
PARAMETER
Output Power
Efficiency
Hold Up Time
Line Regulation
Load Regulation
Transient Response
Rise Time
Set Point Accuracy
Voltage Adjustment
Over Current Protection
Over Voltage Protection
Short Circuit Protection
DESCRIPTION / CONDITION
Derate output power linearly to 80% from 90 VAC to 80 VAC input
Peak Power 170 W for 0.2 s
120 VAC:
230 VAC:
120 VAC:
230 VAC:
SPECIFICATION
150 W
84% typical
86% typical
6 ms
10 ms
+/-0.5%
+/-2.0%
< 10%,
recovery time < 5 ms
< 100 ms
± 1%
±3%
110% typical above rating
110 to 150%
Main output 50 to 100% load change,
50 Hz, 50% duty cycle, 0.1A / µs
Main output
V1
V1
Short term, Automatic recovery
PARAMETER
Operating Temperature
Storage Temperature
DESCRIPTION / CONDITION
Refer to derating curves
Start-up is guaranteed
Convection:
300 LFM:
Convection:
300 LFM:
SPECIFICATION
-20 to 70°C
-20 to 0°C
-40 to 70° C
80 W
100 W
100 W
150 W
95%
10,000 ft.
40,000 ft.
2.4 million hours
5 V model
Cooling
Other models
Humidity
Altitude
Reliability
Non Condensing
Operating:
Non-Operating:
MTBF according to Telcordia -SR332-Issue 3
Conducted Emissions
Radiated Emissions
Input Current Harmonics
Voltage Fluctuation and Flicker
ESD Immunity
Radiated Field Immunity
Electrical Fast Transient Immunity
Surge Immunity
Conducted Immunity
Magnetic Field Immunity
Voltage Dips, Interruptions
EN55032-B, CISPR22-B, FCC PART15-B
EN 55032 A;
with external core (King core K5B RC 25x12x15-M in input cable)
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
Pass
Pass
Level B
Class D
Pass
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Level 3, Criterion A
Criterion A & B
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00283_AE
© 2017 Bel Power Solutions & Protection
4
ABC150 Series
PARAMETER
Isolation Voltage
Safety Standards
Agency Approvals
CE mark
DESCRIPTION / CONDITION
Input to Output:
Approved to the latest edition of the following standards:
CSA/UL60950-1, EN60950-1 and IEC60950-1
Nemko, UL, C-UL
Complies with LVD Directive
SPECIFICATION
Min. 4242 VDC
CONNECTOR
AC Input Connector
PIN
J1
DESCRIPTION / CONDITION
Pin 1
AC Line
Pin 2
AC Neutral
Pin 1,2
Pin 3,4
Pin 1
Pin 2
V1
RTN
VFAN (12 V / 0.5 A)
RTN
DC Output Connector
J2
Fan
Earthing Tab
J3
J4
MANUFACTURER / PN
Molex: 26-60-4030 or equivalent
Mating: 09-50-3031; Pins: 08-50-0106
Option-1: Tyco: 1776112-4 or equivalent
Mating: 13 AWG wire
Option-2: JST: B4P-VH-B (LF) (SN) or B4P-VH (LF) (SN) or
equivalent
Mating: VHR-4M; Pins: SVH-41T-P1.1
Tyco: 640456-2 or equivalent
Mating: 640440-2
Molex: 19705-4301 or equivalent
Mating: 190030001
PARAMETER
Weight
Dimensions
DESCRIPTION / CONDITION
150 g (0.33 lbs.)
101.6 x 50.8 x 33.6 mm (4.0 x 2.0 x 1.3 inch)

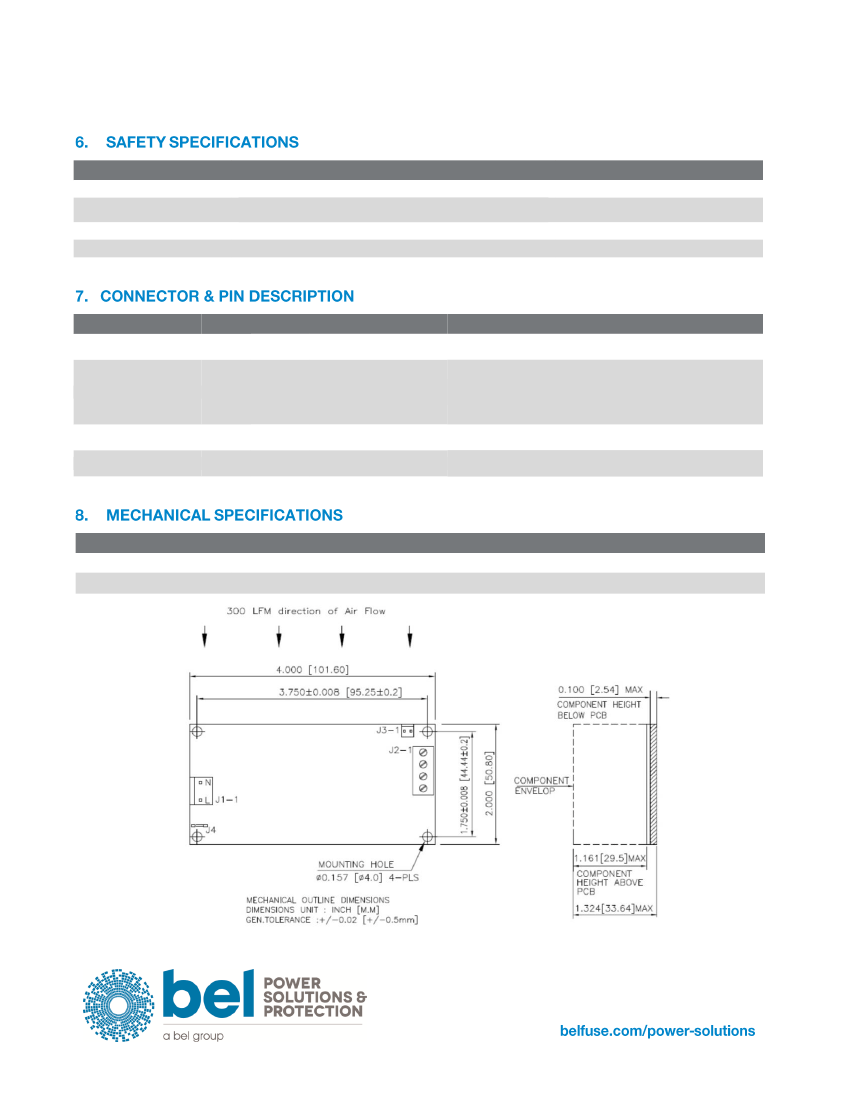

Figure 1 - Mechanical Drawing
tech.support@psbel.com
ABC150 Series
NOTES:
In case the PCB is mounted in a metal enclosure, using metal hardware ensure the following:
1
Stand off, used to mount PCB has OD of 5.4 mm max.
2
Screws, used to fix PCB on stand off, have head dia of 6.0 mm max.
3
Washer, if used, to have dia of 6.5 mm max.
5
Convection load: 80 W up to 50 °C
De-rate above 50 °C @ 3.125% per °C
Forced air cooled load: 100W up to 50°C
De-rate above 50 °C @ 2.5% per °C
Convection load: 100 W up to 50 °C
De-rate above 50 °C @ 2.5% per °C
Forced air cooled load : 150 W up to 50°C
De-rate above 50 °C @ 1.67% per °C

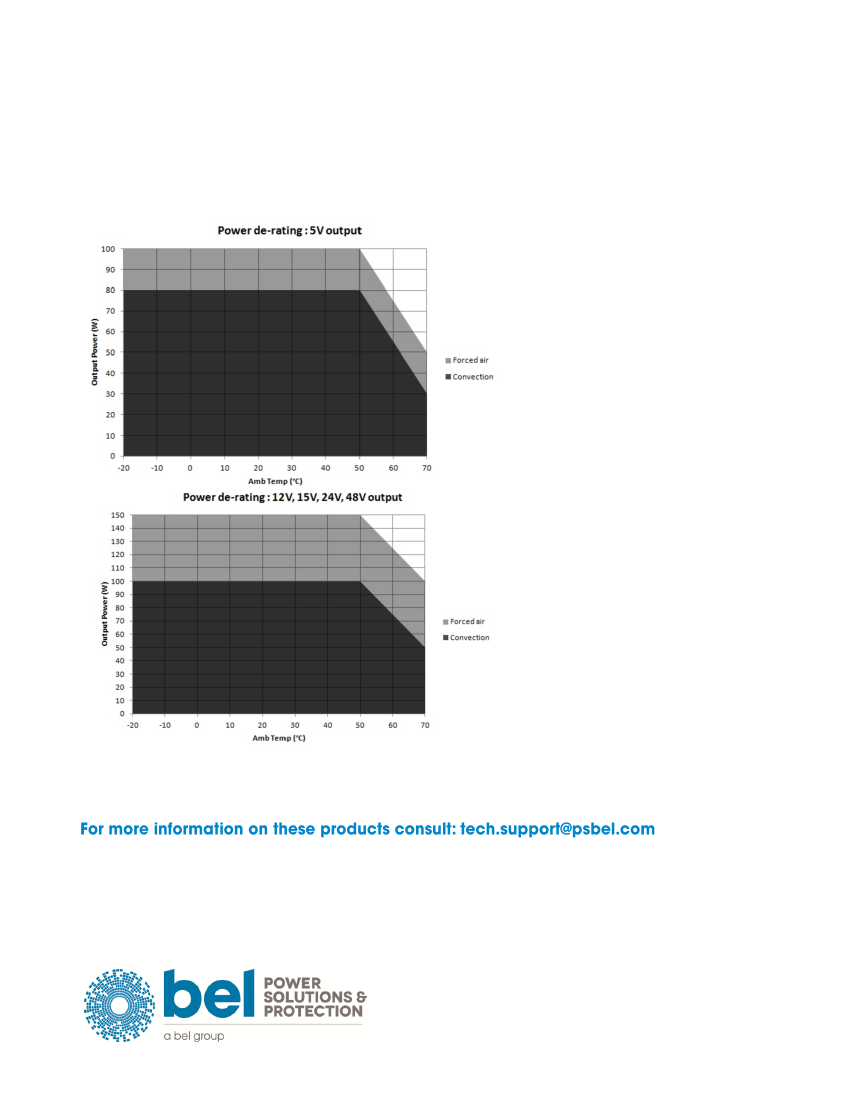

Figure 2. Derating Curves
NUCLEAR AND MEDICAL APPLICATIONS
- Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS
- The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00283_AE
© 2017 Bel Power Solutions & Protection
