Features
Regulated
Converters
Description
•
•
•
•
•
•
2:1 Wide Input Voltage Range
1.6kVDC Isolation
UL Certified
Efficiency up to 89%
Six-Sided Continuous Shield
No Minimum Load Required
DC/DC Converter
RP15-A
15 Watt
3
1“x1“
Single & Dual
Output
3Y
wa
EAR
The RP15-A series are ultraminiature power DC/DC converters in a case half the size of industry
standard 15W converters. Despite their small size, the RP15-A converters are fully specified devices
with output currents up to 4 Amps, no minimum load, 1600VDC isolation and low ripple/noise figures.
The outputs are also fully protected against short circuits, overcurrent and overvoltage. The RP15-A
series will find many uses in applications where board space and/or board height is at a premium.
rranty
Selection Guide
Part Number
RP15-123.3SA
(3,4)
RP15-1205SA
(3,4)
RP15-1212SA
(3,4)
RP15-1215SA
(3,4)
RP15-243.3SA
(3,4)
RP15-2405SA
(3,4)
RP15-2412SA
(3,4)
RP15-2415SA
(3,4)
RP15-483.3SA
(3,4)
RP15-4805SA
(3,4)
RP15-4812SA
(3,4)
RP15-4815SA
(3,4)
RP15-1205DA
(3,4)
RP15-1212DA
(3,4)
RP15-1215DA
(3,4)
RP15-2405DA
(3,4)
RP15-2412DA
(3,4)
RP15-2415DA
(3,4)
RP15-4805DA
(3,4)
RP15-4812DA
(3,4)
RP15-4815DA
(3,4)
Input
Voltage Range
[VDC]
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
9-18
9-18
9-18
18-36
18-36
18-36
36-75
36-75
36-75
Output
Voltage
[VDC]
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output
Current
[mA]
4000
3000
1300
1000
4000
3000
1300
1000
4000
3000
1300
1000
±1500
±625
±500
±1500
±625
±500
±1500
±625
±500
Input
(1)
Efficiency
(1)
Current
typ.
[mA]
[%]
1310
84
1420
88
1512
86
1420
88
640
86
710
88
747
87
710
88
320
86
355
88
369
88
355
88
1471
85
1437
87
1420
88
735
85
710
88
710
88
368
85
351
89
355
88
Max. Capacitive
Load
(2)
[µF]
12000
6000
1000
660
12000
6000
1000
660
12000
6000
1000
660
±3000
±520
±330
±3000
±520
±330
±3000
±520
±330
E196683
UL60950-1 Certified
Notes:
Note1: Values at nominal input voltage and full load.
Note2: Test by minimum Vin and constant resistor load.
Model Numbering
RP15-__ __ _A/_ _
Input Voltage
Output Voltage
Single
or
Dual
Ordering Examples
RP15-2405SA/P = 24V Input, 5V Output, Positive Logic CTRL pin and Trim pin fitted
RP15-4805DA-HC = 48V Input, ±5V Output, Heat-sink fitted.
Package
(4)
Control Logic
(3)
Notes:
Note3: Standard part is without suffixes and Trim and CTRL pins are not fitted.
add suffix “P” for CTRL function with positive logic (1=ON, 0=OFF) and trim pin for single output
add suffix “N” for CTRL function with negative logic (0=ON, 1=OFF) and trim pin for single output
Note4: add suffix -HC for premounted Heat-sink and clips
www.recom-power.com
REV.: 3/2017
PD-1
RP15-A
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
BASIC CHARACTERISTICS
Parameter
Input Voltage Range
Series
Condition
nom. Vin = 12V
nom. Vin = 24V
nom. Vin = 48V
Vin = 12V
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
Min.
9VDC
18VDC
36VDC
Typ.
12VDC
24VDC
48VDC
8VDC
Max.
18VDC
36VDC
75VDC
9VDC
18VDC
Under Voltage Lockout (UVLO)
Vin = 24V
Vin = 48V
14.5VDC
36VDC
30.5VDC
Pi-Type
30mAp-p
36VDC
50VDC
100VDC
30ms
30ms
360kHz
400kHz
440kHz
±10.0%
0%
Input Filter
Input Reflected Ripple Current
(5)
Input Surge Voltage
Start-up time
Operating Frequency Range
Minimum Load
Optional Output Trim
(6)
measured by 20MHz bandwidth
with a 1µF M/C X7R and 10µF T/C
with a 1µF M/C X7R and 10µF T/C
measured by 20MHz bandwidth
with a 1µF M/C X7R and 10µF T/C
Positive Logic
Remote ON/OFF
(6)
Negative Logic
Input current of Remote pin (CTRL)
Single
3.3Vout, 5Vout
12Vout, 15Vout
Dual
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC OFF
DC-DC ON
-0.5 mA
75mVp-p
100mVp-p
100mVp-p
of full load
nominal Vin and full load
Vin = 12V, 100ms max.
Vin = 24V, 100ms max.
Vin = 48V, 100ms max.
Power up
Remote ON/OFF
Ripple and Noise
Open or 3.0 < Vr < 15VDC
Short or 0 < Vr < 1.2VDC
Short or 0 < Vr < 1.2VDC
Open or 3.0 < Vr < 15VDC
2.5mA
1.0mA
Notes:
Note5: Simulated source impedance of 12µH. 12µH inductor in series with +Vin.
Note6: The ON/OFF control function can be positive or negative logic. The pin voltage is referenced to -Vin pin.
If no suffix is specified, the control pin will be omitted

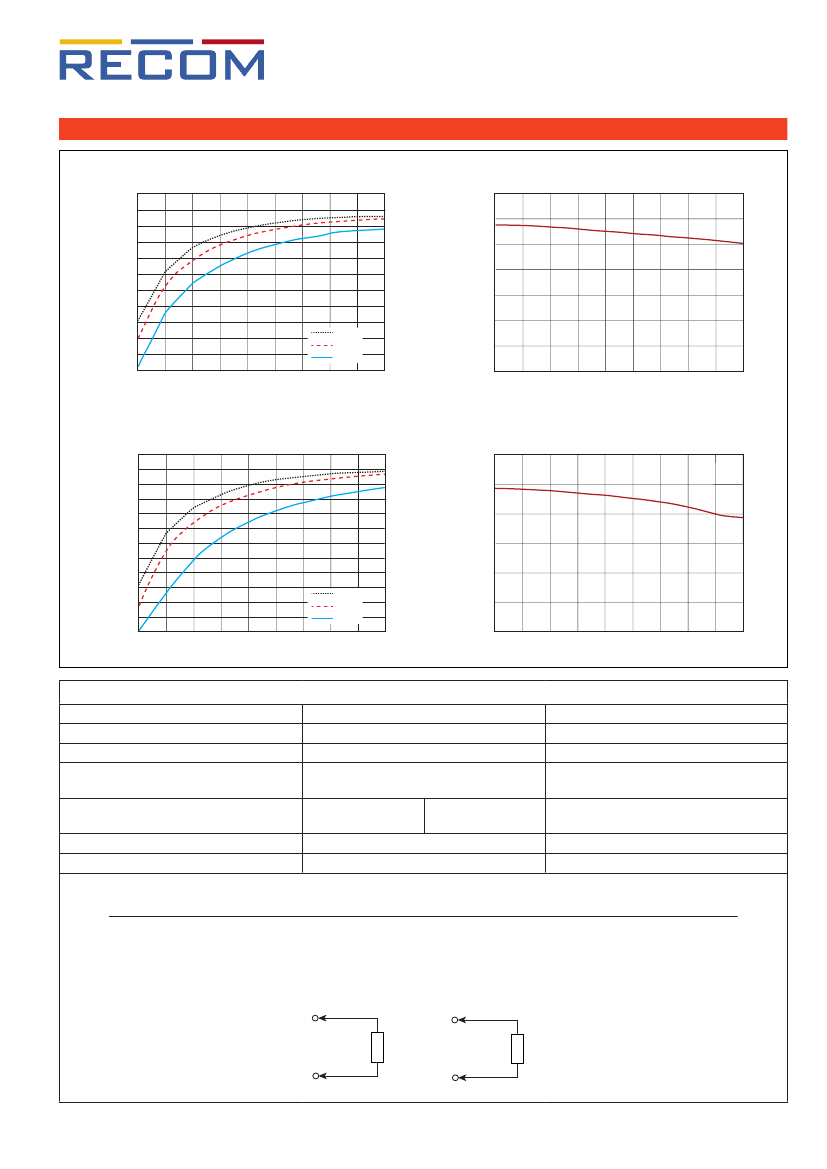

RP15-1205SA
95
90
85
Efficiency vs. Output Current
90
85
Efficiency vs. Input Voltage
Efficiency [%]
80
75
70
65
60
55
50
45
40
10
20
30
40
50
60
70
80
9Vin
12Vin
18Vin
90
100
Efficiency [%]
80
75
70
65
60
9
10
11
12
13
14
15
16
17
18
Output Current [%]
continued on next page
PD-2
REV.: 3/2017
Total Input Voltage [%]
www.recom-power.com
RP15-A
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
RP15-2405SA
95
90
85
80
75
70
65
60
55
50
45
40
10
20
30
40
50
60
70
80
18Vin
24Vin
36Vin
90
100
Series
Efficiency vs. Input Voltage
95
90
Efficiency vs. Output Current
Efficiency [%]
Efficiency [%]
85
80
75
70
65
60
18
20
22
24
26
28
30
32
34
36
Output Current [%]
Total Input Voltage [%]
RP15-4805SA
95
90
85
Efficiency vs. Output Current
95
90
Efficiency vs. Input Voltage
Efficiency [%]
80
75
70
65
60
55
50
45
40
10
20
30
40
50
60
70
80
36Vin
48Vin
75Vin
90
100
Efficiency [%]
85
80
75
70
65
36
40
44
48
52
56
60
66
72
75
Output Current [%]
Total Input Voltage [%]
REGULATIONS
Parameter
Output Voltage Accuracy
Output Trimming
Line Voltage Regulation
Load Voltage Regulation
Cross Regulation
Transient Response recovery time
Single
Single
Dual
0% to 100% load
Single
Dual
Condition
Value
±1%
±10%
±0.2%
±0.5%
±0.2%
±1.0%
±5%
250µs typ.
asymmetrical 25%<>100% load
25% load step change
External Output Trimming
Output Voltage Trimming
Single output Powerline converters offer the feature of trimming the output voltage over a certain range around the nominal value by using
external trim resistors. No general equation can be given for calculating the trim resistors, but the following trimtables give typical values for
chosing these trimming resistors. If voltages between the given trim points are required, extrapolate between the two nearest given values to
work out the resistor required or use a variable resistor to set the output voltage.
6
TRIM UP
5
RU
TRIM DOWN
RD
4
5
continued on next page
www.recom-power.com
REV.: 3/2017
PD-3
RP15-A
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
RP15-xx3.3A
Trim up
Vout =
R
U
=
Trim down
Vout =
R
D
=
1
3.333
385.07
1
3.267
116.72
2
3.366
191.51
2
3.234
54.78
3
3.399
126.99
3
3.201
34.13
4
3.432
94.73
4
3.168
23.81
5
3.465
75.37
5
3.135
17.62
6
3.498
62.47
6
3.102
13.49
7
3.531
53.25
7
3.069
10.54
8
3.564
46.34
8
3.036
8.32
9
3.597
40.96
9
3.003
6.60
10
3.63
36.66
10
2.97
5.23
%
Volts
kOhms
%
Volts
kOhms
Series
RP15-xx05A
Trim up
Vout =
R
U
=
Trim down
Vout =
R
D
=
1
5.05
253.45
1
4.95
248.34
2
5.10
125.70
2
4.90
120.59
3
5.15
83.12
3
4.85
78.01
4
5.20
61.82
4
4.80
56.71
5
5.25
49.05
5
4.75
43.94
6
5.30
40.53
6
4.70
35.42
7
5.35
34.45
7
4.65
29.34
8
5.4
29.89
8
4.60
24.78
9
5.45
26.34
9
4.55
21.23
10
5.50
23.50
10
4.50
18.39
%
Volts
kOhms
%
Volts
kOhms
RP15-xx12A
Trim up
Vout =
R
U
=
Trim down
Vout =
R
D
=
1
12.12
203.22
1
11.88
776.56
2
12.24
99.06
2
11.76
380.72
3
12.36
64.33
3
11.64
248.78
4
12.48
46.97
4
11.52
182.81
5
12.60
36.56
5
11.40
143.22
6
12.72
29.61
6
11.28
116.83
7
12.84
24.65
7
11.16
97.98
8
12.96
20.93
8
11.04
83.85
9
13.08
18.04
9
10.92
72.85
10
13.20
15.72
10
10.8
64.06
%
Volts
kOhms
%
Volts
kOhms
RP15-xx15A
Trim up
Vout =
R
U
=
Trim down
Vout =
R
D
=
1
15.15
161.56
1
14.85
818.22
2
15.3
78.22
2
14.70
401.56
3
15.45
50.45
3
14.55
262.67
4
15.60
36.56
4
14.40
193.22
5
15.75
28.22
5
14.25
151.56
6
15.90
22.67
6
14.10
123.78
7
16.05
18.70
7
13.95
103.94
8
16.20
15.72
8
13.80
89.06
9
16.35
13.41
9
13.65
77.48
10
16.50
11.56
10
13.50
68.22
%
Volts
kOhms
%
Volts
kOhms
PD-4
REV.: 3/2017
www.recom-power.com
RP15-A
DC/DC Converter
Specifications
measured at Ta = 25°C, nominal input voltage, full load otherwise noted
PROTECTIONS
Parameter
Short Circuit Protection (SCP)
Over Voltage Protection (OVP)
Over Load Protection (OLP)
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Notes:
Note7: This power module is not internally fused. An input line fuse must always be used.
3.3Vout
5Vout
Zener Diode Clamp
12Vout
15Vout
% of Iout rated
I/P to O/P
I/P (O/P) to case
500VDC
Series
Condition
Value
continuous, automatic recovery
3.7 - 5.4V
5.6 - 7.0V
13.5 - 19.6V
16.8 - 20.5V
150% typ.
1.6kVDC/1 minute
1.0kVDC/1 minute
1GΩ min.
1000pF max.
ENVIRONMENTAL
Parameter
Operating Temperature Range
Maximum Case Temperature
Temperature Coefficient
Thermal Impedance
Operating Humidity
Thermal Shock
Vibration
MTBF
MIL-HDBK-217F
Bellcore TR-NWT-000332
(8)
RP15-1215SA
100
80
60
40
20
0
-40
100
80
60
40
20
0
-40
Condition
without derating
with derating
Value
-40°C to +68°C
-40°C to +105°C
+105°C
±0.02%/°C max.
Natural convection (20LFM)
Natural convection (20LFM) with Heat sink
18.2°C/Watt
15.8°C/Watt
5% - 95% RH
MIL-STD-810F
MIL-STD-810F
1600 x 10
3
hours
1330 x 10
3
hours
Derating Graph
(9)
RP15-1215SA with Heat-sink
Output Power [%]
-20
0
20
40
60
Ambient Temperature [°C]
68
80
100
105
Output Power [%]
-20
0
20
40
60
Ambient Temperature [°C]
80
73
100
105
Notes:
Note8: BELLCORE TR-NWT-000332. Case l: 50% Stress, Temperature at 40°C.
MIL-HDBK 217F Notice 2. Ta = 25°C, full load, (Ground, Benign, controlled environment).
Note9: Derating graphs are valid only for the shown part numbers. If you need detailed derating-information about a part-
number not shown here please contact our technical support service at techsupportAT@recom-power.com
www.recom-power.com
REV.: 3/2017
PD-5
京公网安备 11010802033920号
EEWORLD
