SSTW001A3B41-SRZ

Description
Isolated DC/DC Converters 36-75VDC 15W12V 1.3A SMT
Categorysemiconductor    Power management
File Size787KB,15 Pages
ManufacturerGE
Websitehttp://www.ge.com
Download Datasheet Parametric View All

SSTW001A3B41-SRZ Online Shopping

Suppliers Part Number Price MOQ In stock
SSTW001A3B41-SRZ - - View Buy Now

SSTW001A3B41-SRZ Overview

Isolated DC/DC Converters 36-75VDC 15W12V 1.3A SMT

SSTW001A3B41-SRZ Parametric

Parameter NameAttribute value
Product CategoryIsolated DC/DC Converters
ManufacturerGE
RoHSDetails
Number of Outputs1 Output
Output Power15 W
Input Voltage36 V to 75 V
Output Voltage-Channel 112 V
Output Current-Channel 11.3 A
Isolation Voltage2.25 kV
Mounting StyleSMD/SMT
Length1.1 in
Width0.96 in
Height0.33 in
Operating Temperature Range- 40 C to + 85 C
PackagingBulk
ProductIsolated
Factory Pack Quantity150
GE
Data Sheet

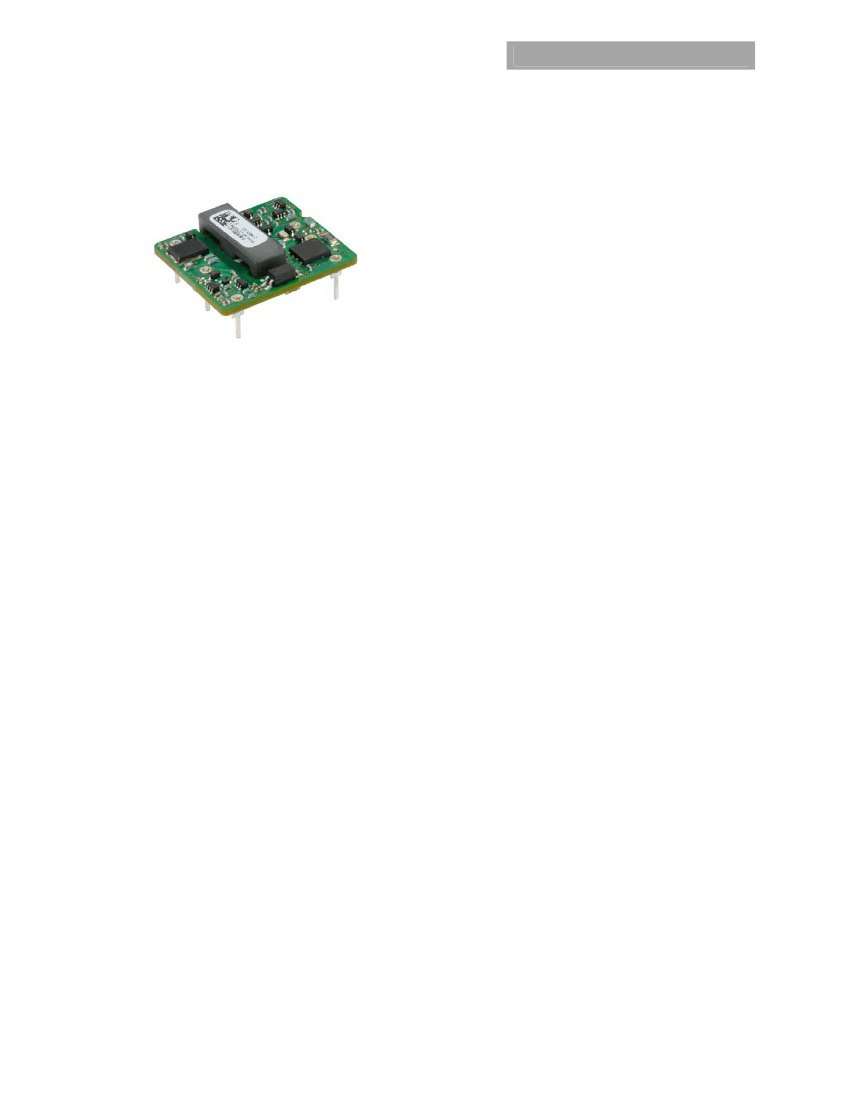

SSTW001A3B Barracuda™ Series; DC-DC Converter Power Modules
36-75Vdc Input; 12Vdc, 1.3A, 15W Output
Features
Compliant to RoHS II EU “Directive 2011/65/EU (-Z versions)
Compliant to REACH Directive (EC) No 1907/2006
Ultra-wide Input Voltage Range, 36V
dc
to 75Vdc
No minimum load
High efficiency – 87.5% at full load (V
IN
=48Vdc)
Constant switching frequency
Low output ripple and noise
Small Size and low profile, follows industry standard 1x1
footprint
27.9mm x 24.4mm x 8.5mm (MAX)
(1.10 x 0.96 x 0.335 in)
Surface mount (SMT) or Through hole (TH)
Reflow process compliant, both SMT and TH versions
Positive Remote On/Off logic
Output overcurrent/voltage protection (hiccup)
Over-temperature protection
Output Voltage adjust: 90% to 110% of V
o,nom
Wide operating temperature range (-40°C to 85°C)
UL*Recognized to UL60950-1, CAN/CSA† C22.2 No.60950-1,
and EN60950-1(VDE ‡ 0805-1) Licensed
CE mark meets 2006/95/EC directive§
Meets the voltage and current requirements for ETSI 300-
132-2 and complies with and licensed for Basic insulation
rating per EN60950-1
2250 Vdc Isolation tested in compliance with IEEE 802.3¤
PoE standards
ISO** 9001 and ISO 14001 certified manufacturing facilities
RoHS Compliant
Applications
Wireless Networks
Hybrid power architectures
Optical and Access Network Equipment
Enterprise Networks including Power over Ethernet (PoE)
Industrial markets
Options
Negative Remote On/Off logic
Surface Mount/Tape and Reel (-SR Suffix)
Description
The SSTW001A3B Barracuda™ series power modules are isolated dc-dc converters that operate over an ultra-wide input voltage
range of 36Vdc -75Vdc and provide a single precisely regulated output voltage at 12Vdc. This series is a low cost, smaller size
alternative to the existing LW/LAW/LC/SC/SW with enhanced performance parameters. The output is fully isolated from the input,
allowing versatile polarity configurations and grounding connections. The modules exhibit high efficiency of 87.5% typical at full
load. Built-in filtering for both input and output minimizes the need for external filtering. The module is fully self-protected with
output over-current and over-voltage, over-temperature and input under voltage shutdown control. Optional features include
negative or positive on/off logic and SMT connections.
*
UL
is a registered trademark of Underwriters Laboratories, Inc.
CSA
is a registered trademark of Canadian Standards Association.
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
§ This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
¤ IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards.
March 26, 2013
©2012 General Electric Company. All rights reserved.
Page 1
