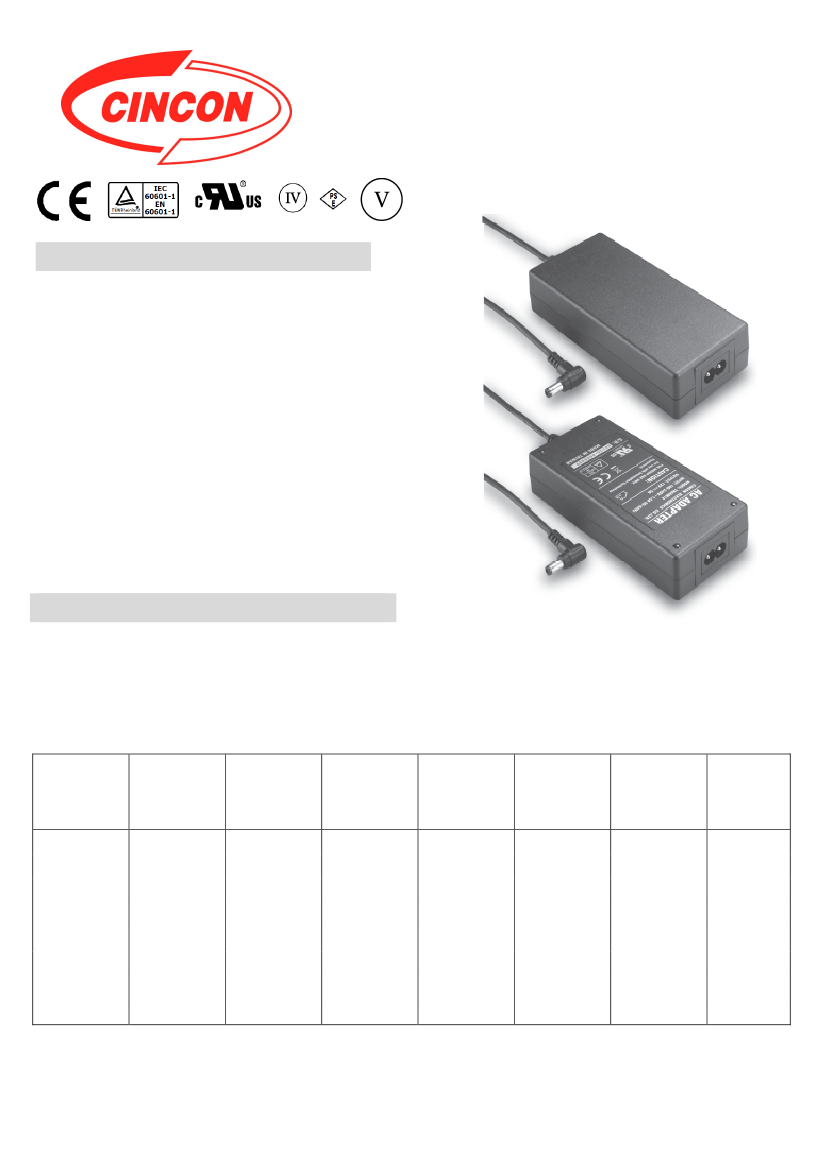

V16
︳
Features
TR60M SERIES
60W MEDICAL
SWITCHING ADAPTER
* Universal Input Range 90~264VAC
* Meets EN60601-1 and EN55011 Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CEC Level
Ⅳ
(Output Cable Length
≦
1800mm)
(TR60M Series meets CEC IV except
TR60M05 is Non-CEC Compliant)
(TR60M12
: Output Cable Length
≦
1220mm 16AWG
)
* Efficiency & Standby Power Meet Level V (Option)
(Output Cable Length
≦
1800mm)
(TR60M12
：
Output Cable Length
≦
720mm 16AWG)
(TR60M15
：
Output Cable Length
≦
1220mm 16AWG)
(TR60M18,TR60M19
：
Output Cable Length
≦
1500mm 18AWG)
* Meets 2MOPP
Ordering information
TR60MXX-
Model No.
XX
DC Plug Type
X
OVP
E: With OVP
XX
DC Cable Length and Type
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12:1220mm with Ferrite Core
13:1800mm with Ferrite Core
*18AWG/UL1185
RIPPLE &
OUTPUT
MODEL
VOLTAGE
CURRENT
NOTE 2
OUTPUT
NOISE
VOLTAGE
ACCURACY
NOTE 1
LINE
REGULATION
NOTE 3
LOAD
% EFF. (Typ.)
REGULATION
NOTE 5
NOTE 4
TR60M05
TR60M12
TR60M15
TR60M18
TR60M19
TR60M24
TR60M36
TR60M48
5V
12V
15V
18V
19V
24V
36V
48V
6A
5A
4A
3.33A
3.15A
2.5A
1.66A
1.25A
50mVp-p
120mVp-p
150mVp-p
180mVp-p
190mVp-p
240mVp-p
360mVp-p
480mVp-p
±4%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±6%
±5%
±3%
±2%
±2%
±2%
±2%
±2%
75%
85%
85%
86%
86%
87%
87%
87%
Specifications are subject to change without notice.
1
V16
Specifications
INPUT SPECIFICATIONS:
Voltage …....………....…..............…………………..……………… 90~264Vac
Frequency ………………………………………........……………..... 47 to 63Hz
Inrush Current ………………..……. Cold Start @25℃80A max. @240Vac
Conducted EMI ……………………..…………….…… CISPR/FCC Class B
Leakage Current ……………………………………..……………… 0.1mA max.
TR60M Series Derating Curve
100%
Rated Load(%)
75%
50%
25%
0%
0
10
20
30
40
Ambient Temperature(
o
C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time …………………………………………......… 8ms typ. @115Vac
Short Circuit Protection …………….…………………….….……… Continuous
Over Voltage Protection ………………..................................................… Yes
Temperature Coefficient …………………….............................….…±0.05%/℃
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output =5,656VDC
Operating Temperature ................................... 0 ~ 60℃ (see derating curve)
Storage Temperature …………………………...….......…….......... -20 ~ 85℃
Humidity …………………..….......………........ 93% RH max. Non condensing
Cooling ………………………………….…………………… Natural Convection
Switching Frequency ………………………………………… 100KHz Typical
MTBF ……… MIL-HDBK-217F, GB, at 25℃/115VAC ………. 200K hrs min.
Altitude ……………………………………………………………………… 3000m
Dimensions …….……. . 5.197x2.283x1.201inches (132.00x58.00x30.50mm)
Weight …………………... ………………………………… 345g(0.76 Pounds)
NOTE:
1. Voltage accuracy at 60% full load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measurement @20MHz BW.
3. Line regulation measured from 100Vac to 240Vac, full load.
4. Load regulation measured from 60% to 100% full load and from 60%
to 20% full load (60% +/- 40% full load).
5. Typical efficiency at 230VAC and full load at 25℃.
6. ”Various TR Series adapters are PSE certified. PSE certification
alone is not sufficient for importation into Japan. A valid PSE mark
must contain the name of the importer as shown in the example below.
If PSE mark is required, the name of the registered importer must be
supplied to Cincon on order placement. Product labels will not contain
PSE mark if importer name is not supplied. Consult factory or local
represen tative for details”.
SAFETY AND EMC:
Emission and lmmunity …………… EN55011, EN60601-1-2, EN61000-3-2
EN61000-3-3
Safety …………………..… IEC60601-1, EN60601-1, UL ANSI/AAMI ES60601-1:2005
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
5.197[132.00]
70.866[1800.00]±1.969[50.00]
2.283[58.00]
LED
IEC320/C8
1.201[30.50]
DC Plug type: V+ ─●)─ V-
DC Plug :Right Angle(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
MCU
