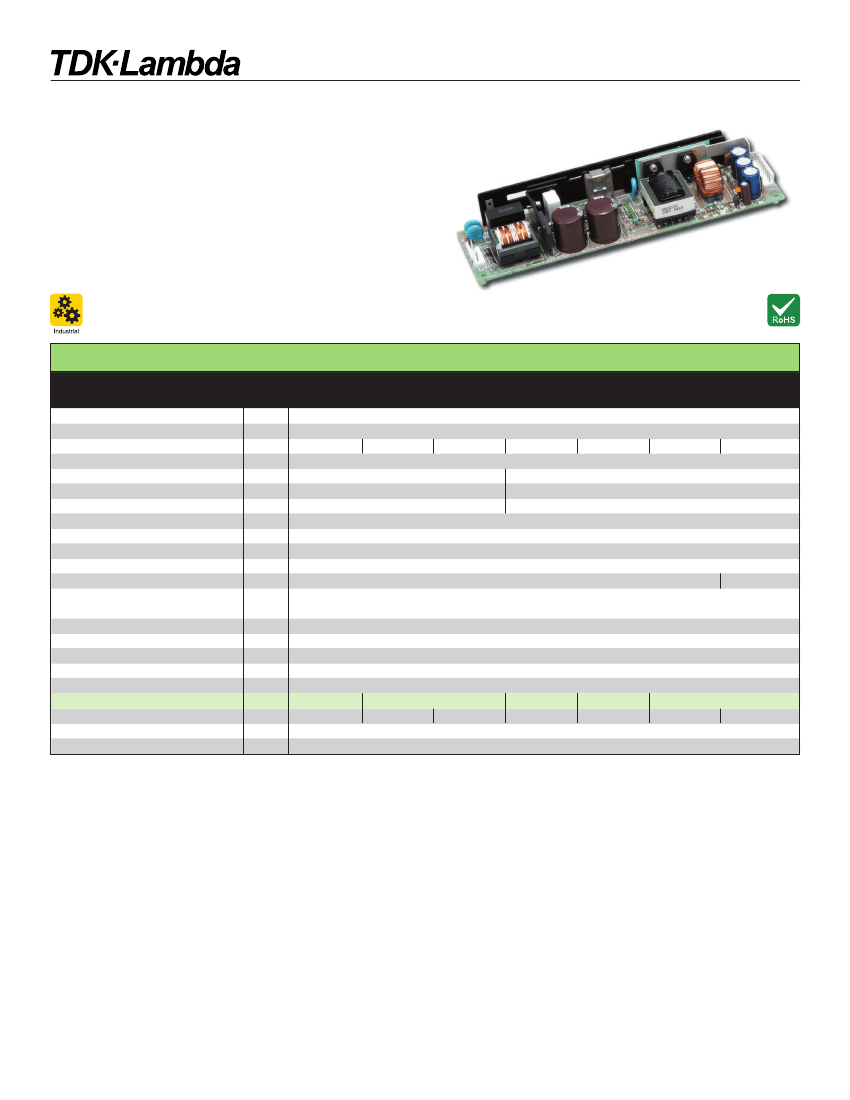

VSB/VSC/VSP Series
10W to 150W Single Output, 115VAC Input
Features
u
Input transient protected
u
2 year warranty
u
High quality design
u
200% Peak Power Version (VSP)
u
Broad product range
Key Market Segments & Applications
Specifications
VS50B
VS75B
VS100B
VS150B
Model
VS50P
VS75P
VS100P
VS150P
AC Input Voltage range
-
85-132VAC (47-440Hz)
DC Input Voltage range
VDC
110 - 175VDC
Inrush Current (100VAC)
(1)
A
25
30
25
30
30
20
20
Temperature Coefficient
-
<0.02%/ºC
Overcurrent Protection
(2)
-
~105%
VSB:~125%; VSP: >102% of Peak
Overvoltage Protection
V
~115% Diode Clamp
~115 - 135% Manual Reset
Hold Up Time (Typ) at 100VAC
ms
20
17
Remote Sense
-
None
Operating Temperature
(3)
-
-10ºC to +60ºC, derate linearly to 70% load from 50ºC to 60ºC
Storage Temperature
-
-30 to +85ºC
Humidity (non condensing)
-
Storage 10-95% RH, Operating 30-90% RH
Cooling
(4)
-
Convection
Forced
Withstand Voltage
-
Input to Ground 2kVAC (20mA), Input to Output 2kVAC (20mA),
Output to Ground 500VAC (100mA) for 1 min.
Isolation Resistance
-
>100M at 25°C & 70%RH, Output to Ground 500VDC
Vibration (non operating)
-
10 - 55Hz (1 minute sweep), 19.6m/s
2
constant X, Y, Z 1 hour
Shock
-
< 196.1 m/s
2
Safety Agency Approvals
-
UL60950-1, CSA60950-1, EN60950-1
Conducted & Radiated EMI
-
FCC Class B, VCCI-B
Recommended EMI Filter
-
RSEL-20R5W
RSEL-2001W
RSEL-2002W RSEL-2003W
RSEL-2006W
Weight (Typ) (VSP)
g
65
80
150
200
350 (280) 420 (350)
550 (480)
Size (WxHxD)
mm
See Outline Drawings
Warranty
yrs
Two Years
Notes:
(1) 25°C ambient (cold start)
(2) Avoid prolonged operartion in overload
(3) VS50B24 -10°C to +60°C, derate linearly to 62% load from 40°C to 60°C, VS50P derate to 60% at 60°C
(4) 0.7m/s forced air required, consult installation manual for derating with convection cooling
VS10C
VS15C
VS30C
1-800-526-2324 • www.us.tdk-lambda.com/lp/
142
Disclaimer: us.tdk-lambda.com/lp/legal.htm
VSB/VSC/VSP Series
Model Selector
Model
Adjust
Voltage Range
V
V
3.3
3.3
3.3
3.3
3.3
3.3
3.3
5
5
5
5
5
5
5
12
12
12
12
12
12
12
15
15
15
15
15
15
15
24
24
24
24
24
24
24
24
24
24
24
36
36
36
36
48
48
48
48
2.97-3.63
2.97-3.63
2.97-3.63
2.97-3.63
2.97-3.63
2.97-3.63
2.97-3.63
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
13.5-16.5
13.5-16.5
13.5-16.5
13.5-16.5
13.5-16.5
13.5-16.5
13.5-16.5
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
32.4-39.6
32.4-39.6
32.4-39.6
32.4-39.6
43.2-52.8
43.2-52.8
43.2-52.8
43.2-52.8
Max Peak Load
Curr. Curr. Reg
A
A
mV
2
3
6
10
15
20
30
2
3
6
10
15
20
30
0.9
1.3
2.5
4.3
6.3
8.5
12.5
0.7
1
2
3.5
5
7
10
0.5
0.7
1.3
2.5
2.5
3.2
3.2
4.3
4.3
6.3
6.3
0.9
2.1
3
4.2
0.7
1.6
2.2
3.2
-
-
-
12
18
24
36
-
-
-
12
18
24
36
-
-
-
5.16
7.56
10.2
15
-
-
-
4.2
6.0
8.4
12
-
-
-
3.0
4.2
3.84
7.0
5.16
10
7.56
12
-
2.52
3.6
5.04
-
1.92
2.64
3.84
40
40
40
40
40
40
40
40
40
40
40
40
40
40
96
96
96
96
96
96
96
120
120
120
120
120
120
120
240
240
150
150
150
150
150
150
150
150
150
240
240
240
240
480
300
200
300
Line
Reg
mV
20
20
20
20
20
20
20
20
20
20
20
20
20
20
48
48
48
48
48
48
48
60
60
60
60
60
60
60
96
96
96
96
96
96
96
96
96
96
96
144
144
144
144
192
192
192
192
Ripple
Noise Eff.
mV
%
120
120
120
120
120
120
120
120
120
120
120
120
120
120
150
150
150
150
150
150
150
150
150
150
150
150
150
150
200
200
200
200
180
200
180
200
180
200
180
300
300
300
300
400
400
400
400
62
62
69
73
72
72
72
71
72
75
78
79
79
78
75
75
80
79
80
80
80
75
75
81
80
80
80
80
78
78
82
80
83
81
83
81
85
80
86
80
81
81
80
80
81
81
81
VSB/VSC Outline Drawing
LEADS
.118 (3) MAX
K
VS10C-3
VS15C-3
VS30C-3
VS50B-3
VS75B-3
VS100B-3
VS150B-3
VS10C-5
VS15C-5
VS30C-5
VS50B-5
VS75B-5
VS100B-5
VS150B-5
VS10C-12
VS15C-12
VS30C-12
VS50B-12
VS75B-12
VS100B-12
VS150B-12
VS10C-15
VS15C-15
VS30C-15
VS50B-15
VS75B-15
VS100B-15
VS150B-15
VS10C-24
VS15C-24
VS30C-24
VS50B-24
VS50P-24
VS75B-24
VS75P-24
VS100B-24
VS100P-24
VS150B-24
VS150P-24
VS30C-36
VS75B-36
VS100B-36
VS150B-36
VS30C-48
VS75B-48
VS100B-48
VS150B-48
3.5 HOLES ARE FOR
CUSTOMER MTG
INPUT
OUTPUT
F B
L
CN2
COMPONENT SIDE
H
CN1
J
G
E
C
D
A
NOTE: TOP LEFT AND BOTTOM
RIGHT MOUNTING HOLES
ARE NOT PRESENT ON VS10 MODELS
OUTPUT
CN3
OUTPUT
CN2
F B
M
J
G
DIMENSIONS:
WEIGHT:
MODEL
VS10
VS15
VS30
VS50
VS75
VS100
VS150
A
3.70
(94)
B
1.93
(49)
C
.67
(17)
.67
(17)
.98
(25)
.98
(25)
1.26
(32)
1.26
(32)
1.42
(36)
D
3.425
(87)
4.252
(108)
4.823
(122.5)
7.283
(185)
8.346
(212)
8.346
(212)
8.346
(212)
E
.138
(3.5)
.138
(3.5)
.197
(5)
.197
(5)
.197
(5)
.197
(5)
.197
(5)
F
1.654
(42)
1.693
(43)
1.576
(40)
1.576
(40)
1.576
(40)
2.047
(52)
2.560
(65)
G
.138
(3.5)
.138
(3.5)
.197
(5)
.197
(5)
.197
(5)
.197
(5)
.197
(5)
H
1.02
(26)
1.22
(31)
1.02
(26)
1.10
(28)
.85
(21.5)
.98
(25)
1.81
(46)
J
.85
(21.5)
1.39
(35.25)
1.18
(30)
.67
(17)
1.06
(27)
1.22
(31)
.85
(21.7)
K
-
-
-
-
5.335
(135.5)
4.705
(119.5)
4.961
(126)
L
-
-
-
-
1.280
(32.5)
1.673
(42.5)
2.165
(55)
M
-
-
-
-
-
-
1.91
(48.5)
.17 LBS
.22 LBS
.29 LBS
.44 LBS
.77 LBS
.92 LBS
1.21 LBS
4.53
(115)
1.97
(50)
5.22
(132.5)
1.97
(50)
7.68
(195)
1.97
(50)
8.74
(222.0)
1.97
(50)
8.74
(222.0)
2.44
(62)
8.74
(222.0)
2.95
(75)
NOTE:
1. DIMENSIONS ARE IN INCHES EXCEPT DIMENSIONS ( ) ARE IN MM.
Other Industrial Products
HWS
ZWS, ZWD, ZWQ
SC, SCS120
ZP
15W to 1500W Single output
5W to 240W Universal input
30W to 120W Single, dual & triple output
40W to 60W Single & multiple output
For Additional Information, please visit
us.tdk-lambda.com/lp/products/vsb-series.htm
Peak Current Note: For 10s maximum, 35% duty cycle, average power
not to exceed maximum ratings. See installation manual.
1-800-526-2324 • www.us.tdk-lambda.com/lp/
143
