POWER
Data Sheet
Total Power:
132 Watts
Input Voltage:
36 - 75 V
# of Outputs:
Single
SPECIAL FEATURES
2:1 Wide input range
Optimised for high
density, small space
applications
Low ripple and noise
Fixed switching frequency
Super high efficiency
High capacitive load capability
Basic insulation system
Aluminium substrate design

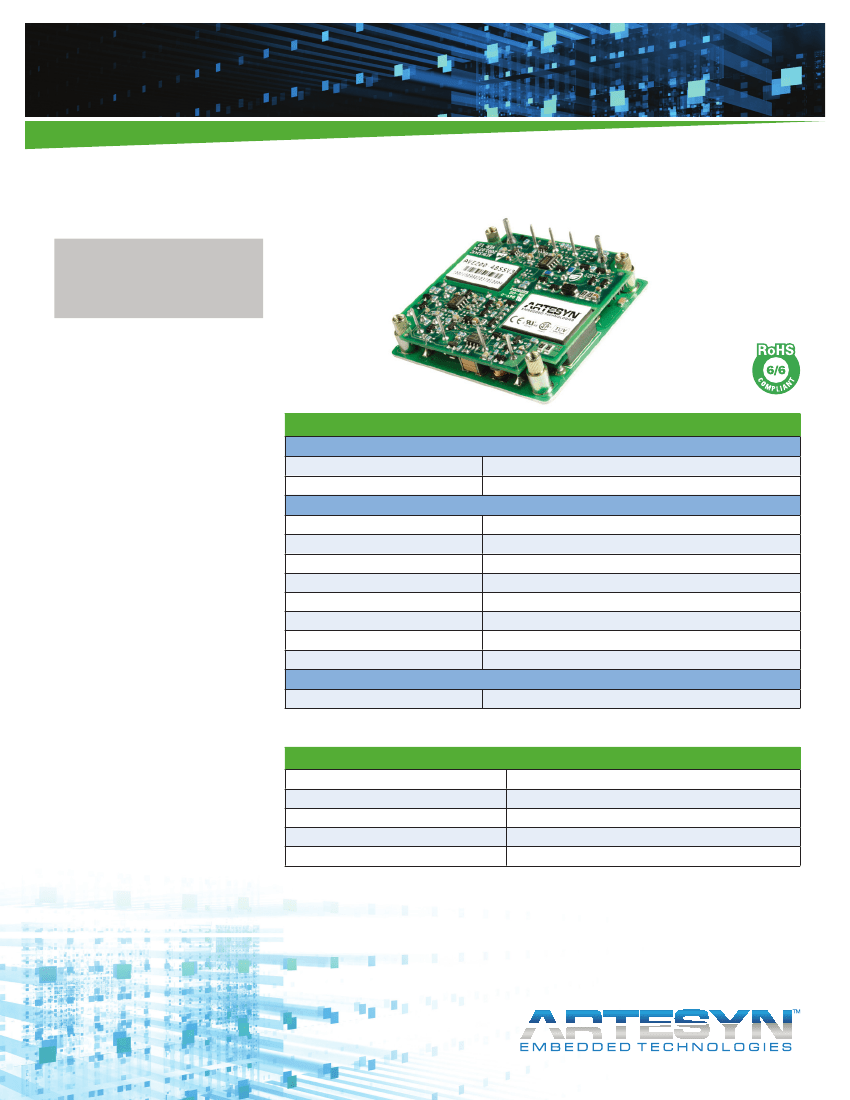

AVE200 Series
132 Watts
Electrical Specifications
Input
Input range:
Efficiency:
Output
Voltage tolerance:
Line regulation:
Load regulation:
Noise/ripple:
Over voltage protection:
Over temperature protection:
Switching frequency:
Temperature coefficient:
Isolation
I/O isolation:
1500 VDC min.
+/-1%
10 mV
20 mV
150 mV
Hiccup: Auto-restart
Auto-restart
280 kHz
±0.02/°C
36 - 75 VDC
89%
SAFETY
UL, cUL: UL60950
TUV/CE: IEC/EN60950
Environmental Specifications
Operating ambient temperature range:
Storage temperature:
Humidity:
MTBF:
RoHS Compliant
-40 °C to +70 °C
-55 °C to +125 °C
5% to 95% (non-condensing)
2 Million hours
AVE200 Series Data Sheet
Ordering Information
Model number
AVE200-48S3V3
Input voltage
36 - 75 Vin
Output voltage
3.3 V @ 40 A
Power
132 W
- Standard version is negative enable
- “-M” = Thread hole fixture

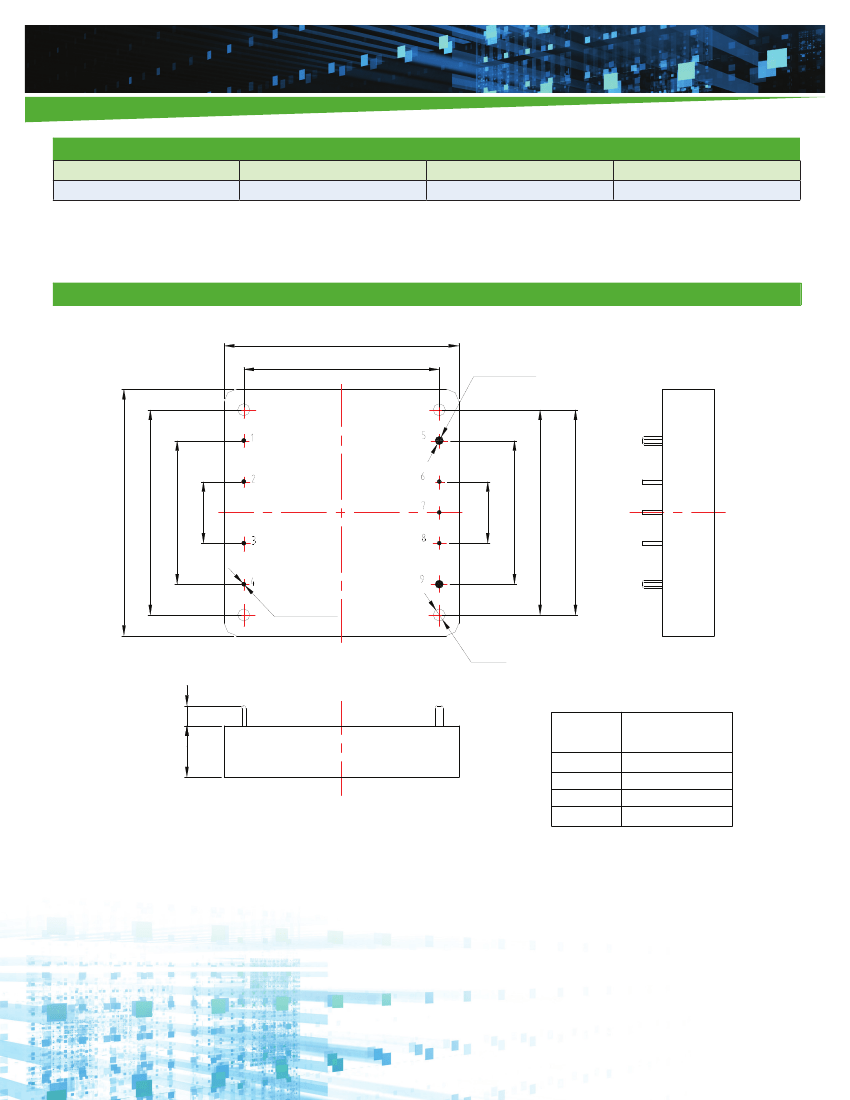

Mechanical Drawings
57.9 [2.28]
48.26 [1.90]
2-ø2.0
-0.10
+0.05
TOP VIEW
35.56 [1.401]
35.56 [1.40]
15.24 [0.60]
50.80 [2.00]
50.8 [2.00]
50.8 [2.00]
Pin Length Option
12.7 [0.50] L
Device Code
Suf x
-4
-6
-8
NONE
L
4.8mm+/-0.5mm
3.8mm+/-0.5mm
2.8mm+0.5/-0.3mm
5.8mm+/-0.5mm
15.24 [0.600]
7-ø1.0± 0.10
TOLERANCES: X.Xmm=+/-0.5mm
X.XXmm=+/-0.25mm
61 [2.40]
4-M3
AVE200 Series Data Sheet
Pin Designations
Pin No.
1
2
3
4
5
6
7
8
9
Notes:
Un-dimensioned components are for visual reference only.
Function
Vin (+)
CNT
CASE
Vin (-)
Vo (+)
+SENSE
TRIM
-SENSE
Vo (-)
