VHK150W-Q48-S12 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> VHK150W-Q48-S12

VHK150W-Q48-S12: CategoryPower/power management The power supply circuit; File Size448KB，8 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric Compare View All

VHK150W-Q48-S12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VHK150W-Q48-S12	-	-	View	Buy Now

VHK150W-Q48-S12 Parametric

Parameter Name	Attribute value
Brand Name	CUI Inc
Is it lead-free?	Lead free
Maker	CUI
package instruction	PACKAGE-9
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	R-XDFM-X9
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C
Maximum output voltage	13.2 V
Minimum output voltage	10.8 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	150 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

For more information, please visit the

product page.

date

page

06/18/2015

1 of 8

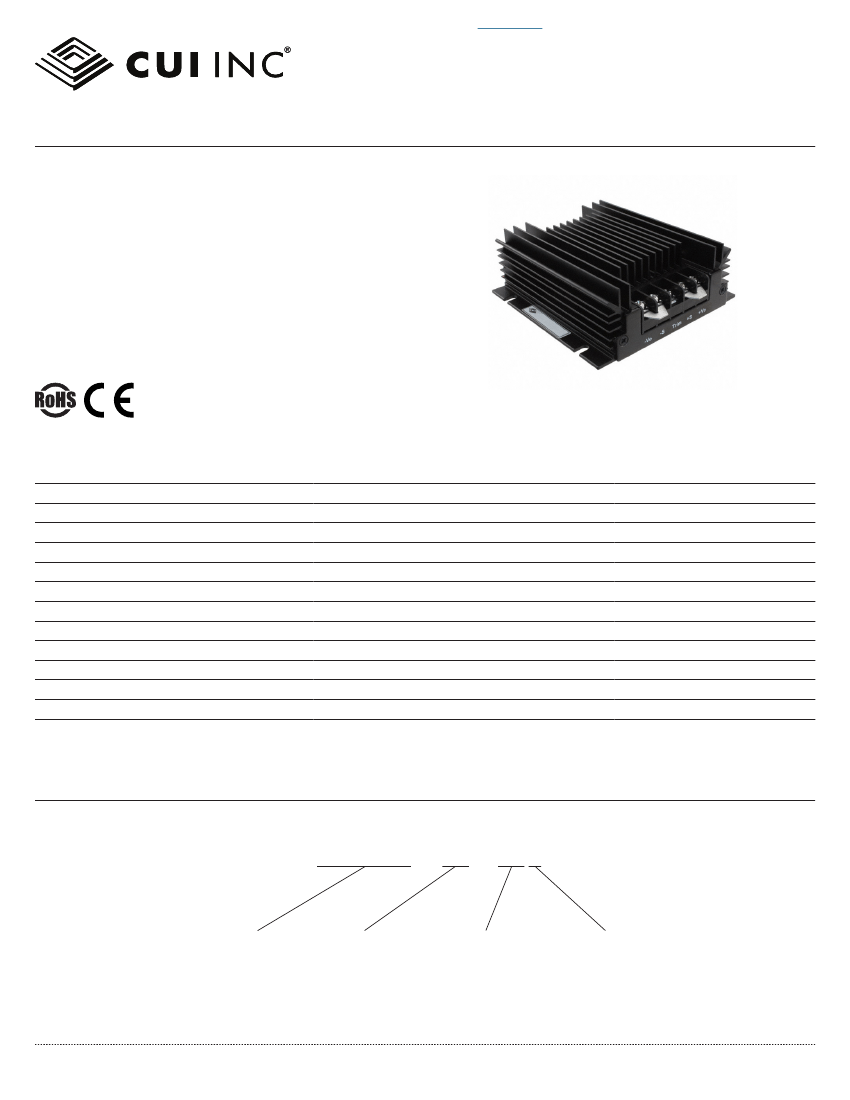

SERIES:

VHK150W

│

DESCRIPTION:

DC-DC CONVERTER

FEATURES

• up to 150 W isolated output

• rugged metal enclosure with integrated heat sink

• 4:1 input range (9~36 Vdc, 18~75 Vdc)

• single output from 5~48 Vdc

• 1,500 Vdc isolation

• over current, over temperature, over voltage,

and short circuit protections

• remote on/off

• efficiency up to 90%

MODEL

VHK150W-Q24-S5

VHK150W-Q24-S12

VHK150W-Q24-S15

VHK150W-Q24-S24

VHK150W-Q24-S28

VHK150W-Q24-S48

VHK150W-Q48-S5

VHK150W-Q48-S12

VHK150W-Q48-S15

VHK150W-Q48-S24

VHK150W-Q48-S28

VHK150W-Q48-S48

Note:

input

voltage

range

(Vdc)

output

voltage

(Vdc)

output

current

max

(A)

output

power

max

(W)

ripple

and noise

max

(mVp-p)

efficiency

typ

(%)

9 ~ 36

18 ~ 75

12.5

6.5

5.4

3.12

12.5

6.5

5.4

3.12

125

150

156

150

125

150

156

150

100

150

240

280

480

100

150

240

280

480

86.5

87.5

1. Ripple and noise are measured at full load, 20 MHz BW with 10µF tantalum capacitor and 1µF ceramic capacitor across output.

PART NUMBER KEY

VHK150W - QXX - SXX

Base Number

Input Voltage

Output Voltage

Remote On/Off Control

"blank" = positive logic

N = negative logic

cui.com

VHK150W-Q48-S12 Related Products

	VHK150W-Q48-S12	VHK150W-Q24-S12	VHK150W-Q48-S48	VHK150W-Q24-S48
Description		Isolated DC/DC Converters dc-dc isolated, 150W, 9 36Vdc input, 12Vdc, 12.5A, single output, chassis mount	48 Vdc, 3.12 A, 150 W, 18~75 Vdc Input Range	Isolated DC/DC Converters dc-dc isolated, 150W, 9~36Vdc input, 48Vdc, 3.12A, single output, chassis mount
Brand Name	CUI Inc	CUI Inc	CUI Inc	CUI Inc
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
package instruction	PACKAGE-9	PACKAGE-9	PACKAGE-9	PACKAGE-9
Reach Compliance Code	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V	36 V	75 V	36 V
Minimum input voltage	18 V	9 V	18 V	9 V
Nominal input voltage	48 V	24 V	48 V	24 V
JESD-30 code	R-XDFM-X9	R-XDFM-X9	R-XDFM-X9	R-XDFM-X9
Maximum load regulation	0.2%	0.2%	0.2%	0.2%
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	9	9	9	9
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	13.2 V	13.2 V	52.8 V	52.8 V
Minimum output voltage	10.8 V	10.8 V	43.2 V	43.2 V
Nominal output voltage	12 V	12 V	48 V	48 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum total power output	150 W	150 W	150 W	150 W
Fine-tuning/adjustable output	YES	YES	YES	YES
Maker	CUI	CUI	-	CUI
