EVS18-16R7-A Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Output Power	300 W
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

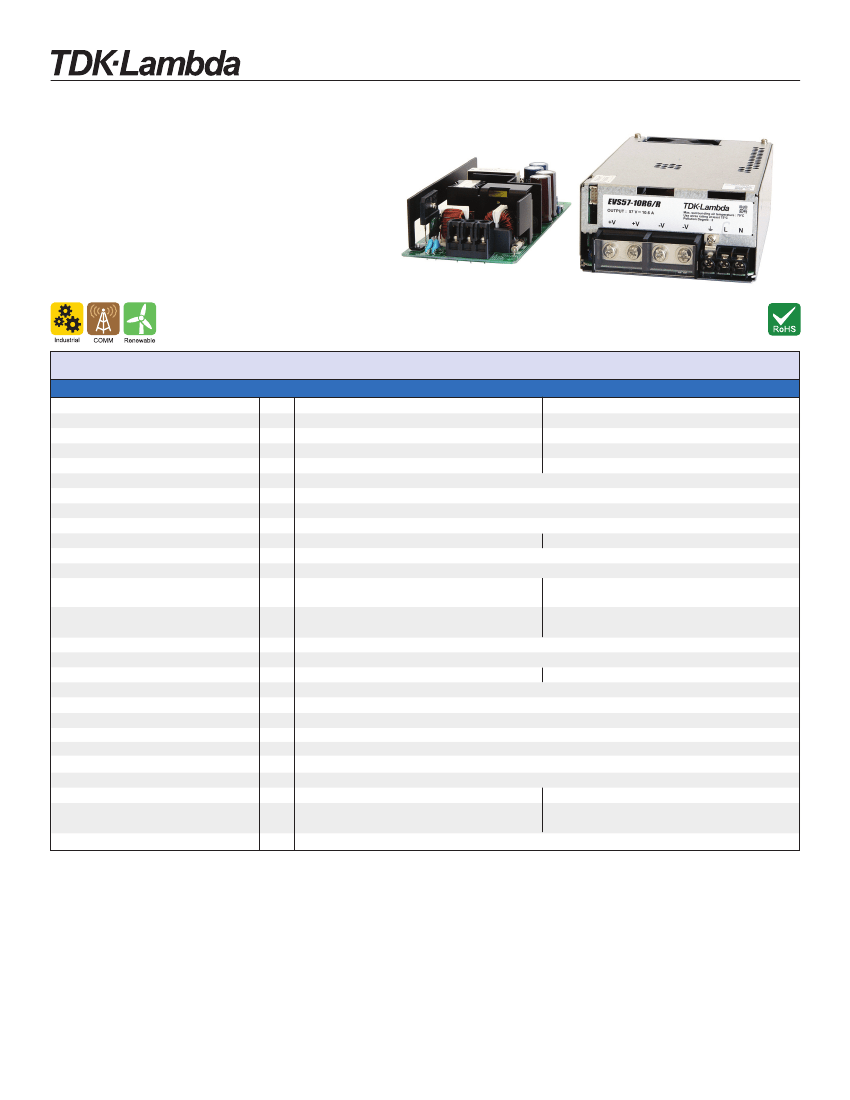

EVS Series

300 and 600W Constant Current Power Supplies

Features



Universal Input (85 - 265VAC)



Adjustable Current Settings



Convection Cooled Rating



Five Year Warranty



Suitable for Battery Charging

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage

Input Current (1)

Inrush Current (2)(3)

Power Factor

Leakage Current

Temperature Coefﬁcient

Constant Current Setting Accuracy

Overvoltage Protection

Hold Up Time (Typ)

Efﬁciency (2)

Remote On/Off

Series & Parallel Operation

Operating Temperature

(No external airﬂow)

Operating Temperature

External airﬂow (1.4m/s)

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

Notes:

(1) Safety certiﬁed for AC input only. EVS300 derate linearly to 80% load from 90 to 85Vac. EVS600 derate linearly to 80% load from 110 to 85Vac

(2) 100/200VAC

(3) 25°C ambient (cold start)

EVS300

EVS600

85-265VAC (47-63Hz) or 120-370VDC (1)

85-265VAC (47-63Hz) or 120-330VDC (1)

3.6 / 1.8

7.2 / 4.0

15 / 30

20 / 40

0.97/0.93(2). Meets EN61000-3-2

0.95/0.9(2). Meets EN61000-3-2

0.5mA Max. Typically 0.2/0.4mA(2)

Less than 0.75mA

%/°C

<0.02%/°C

±10%

18V*: 19.8-23.4V, 36V: 39.6-46.8V, 57V: 62.7-74.1V (* EVS300 only)

10ms at 100VAC input

18V: 86/89%, 36V: 88/91%, 57V: 87/90%

36V: 85/88%, 57V: 84/87%

Optional

Yes, see instruction manual

-20 to +70°C

°C

Derate linearly to 40% load from 45 to 70°C

Derate linearly to 20% load from 50 to 70°C

-20 to +70°C

°C

Derate linearly to 70% load from 60 to 70°C

Not applicable (EVS600 has internal fan)

°C

-30 to +75°C

%RH

Operating: 30 - 90%RH, Storage: 10 - 90%RH

Convection or forced air

Internal fan

VAC

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

MΩ

>100MΩ at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant, X, Y, Z 1 hour each

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, CE Mark

EN55011/EN55022-B, FCC Class B, VCCI-B

EN61000-4-2, -3, -4, -5, -6, -8, -11; EN61000-6-2

540g (open frame)

1600g

3.31 x 1.65 x 7.09

4.72 x 2.4 x 7.48

84 x 42 x 180mm

120 x 61 x 190mm

yrs

Five Years

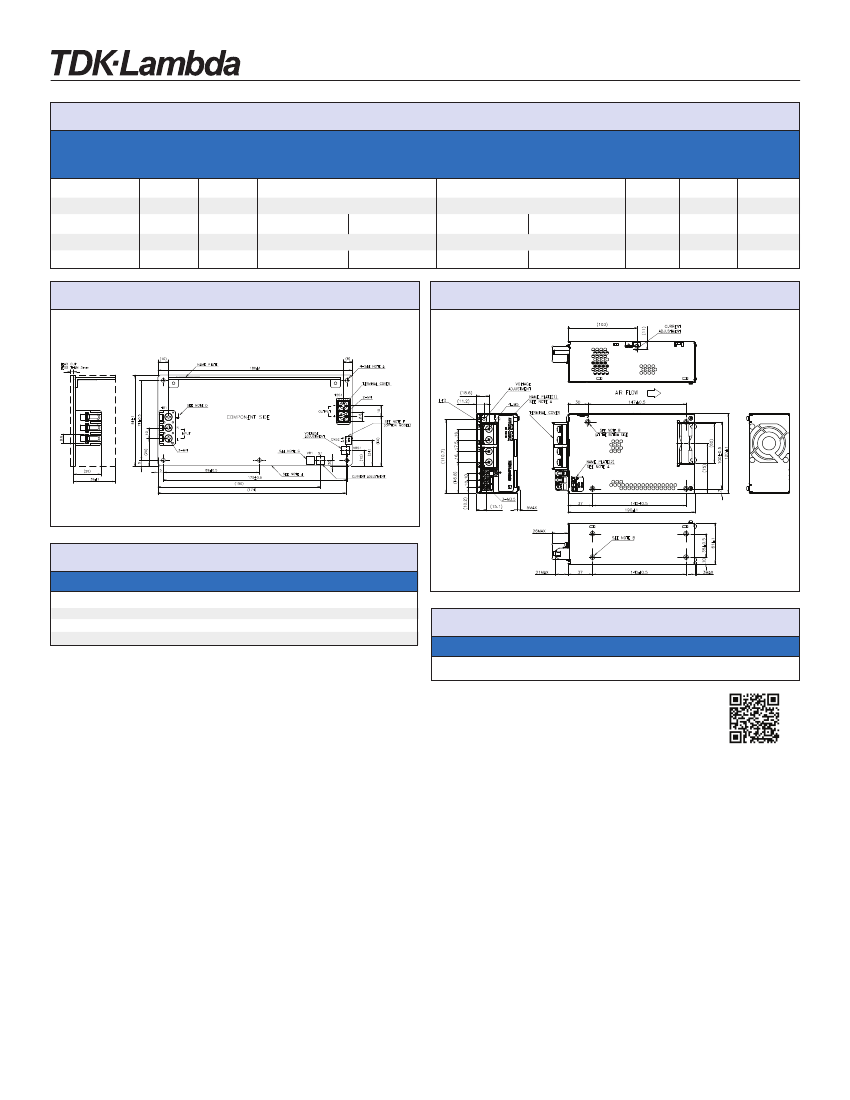

1-800-526-2324 • www.us.tdk-lambda.com/lp/

107

Disclaimer: us.tdk-lambda.com/lp/legal.htm
