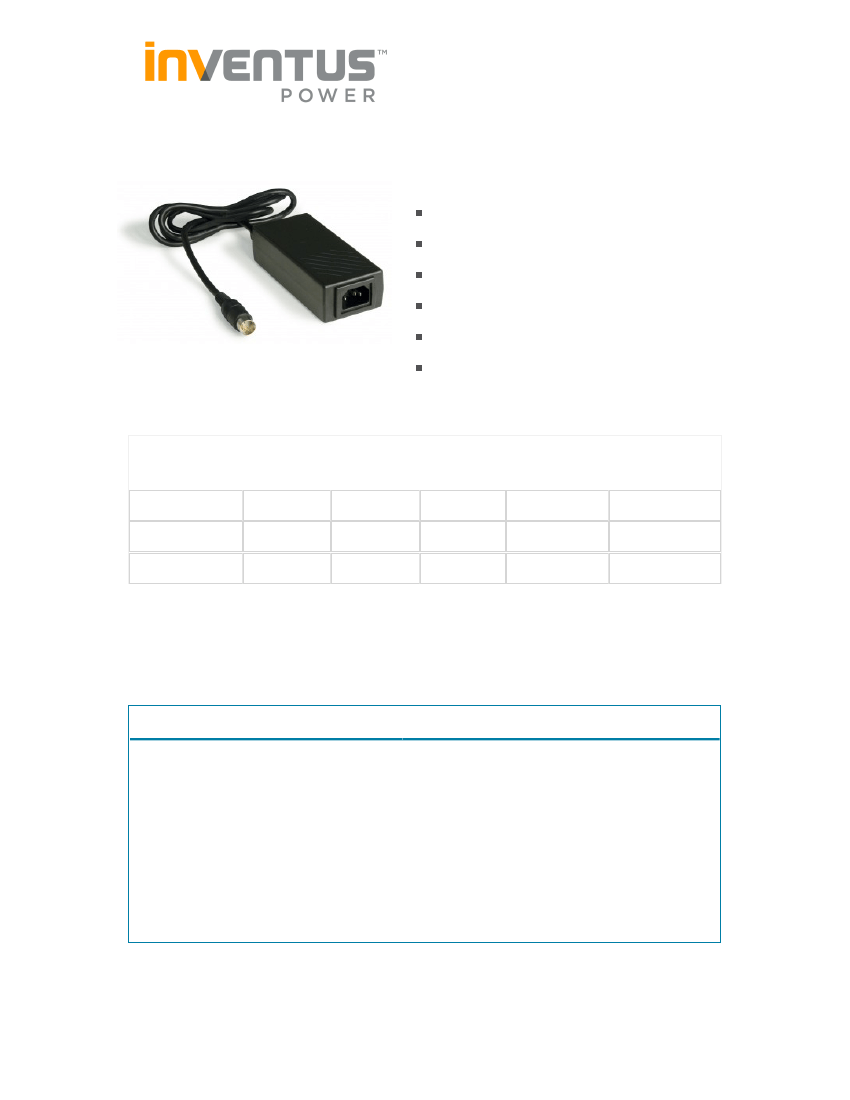

FWA065 Series
High Efficiency: Level VI
65 Watt ITE Desktop Power Supply
High Power Density 4.9W/in3
Lifetime Expectation >5 years
Holdup Time >25ms at full load
Safety Approval EN609501 Class I
EISA, CEC Compliant
Elpac Part
Number
FWA065012A11A
FWA065015A11A
FWA065024A11A
Notes
Output
Voltage
12.0V
15.0V
24.0V
Output
Current
6.0A
4.8A
3.0A
Peak
Current
1
7.2A
5.7A
3.6A
Total
Regulation
2
±5%
±5%
±5%
Typical
Efficiency
3
88%
89%
91%
1 2) Maximum peak load (86W) lasting 500ms with a maximum 10% duty cycle.
2 Includes initial setting, line regulation, load regulation, and thermal drift.
3 Typical at 115VAC (including output cable).
Input
Input Voltage
Input Frequency
Input Current
Inrush Current
Zero Load Power Consumption
Touch Leakage Current
85 264VAC 100 240VAC Nominal
47 63Hz
<1.5A rms
<37A at 230VAC cold start
<0.20W
<80µA @ 132VAC @ 60Hz
<100µA @ 264VAC @ 60Hz
Output
Output Voltage
Total Regulation
Minimum Load
StartUp Delay
HoldUp Time
Ripple & Noise
Over Voltage Protection
Over Temperature Protection
Over Current Protetion
Short Circuit Protection
Notes
* Ripple and noise measured with 20MHz bandwidth; 10μF tantalum capacitor in parallel with a 0.1μF ceramic capacitor.
See Table
+/5%
No minimum load required
<750ms
>25ms at any input voltage
<1% pkpk *
110135%
Active Recoverable; plus Passive Non Recoverable
120 180%
shutdown, autorestart (hiccup mode)
General
Efficiency
MTBF
Size
Weight
Power Density
Avg Efficiency 88.2% @ 115VAC; 89.7% @ 230VAC
min. 200,000 hours demonstrated

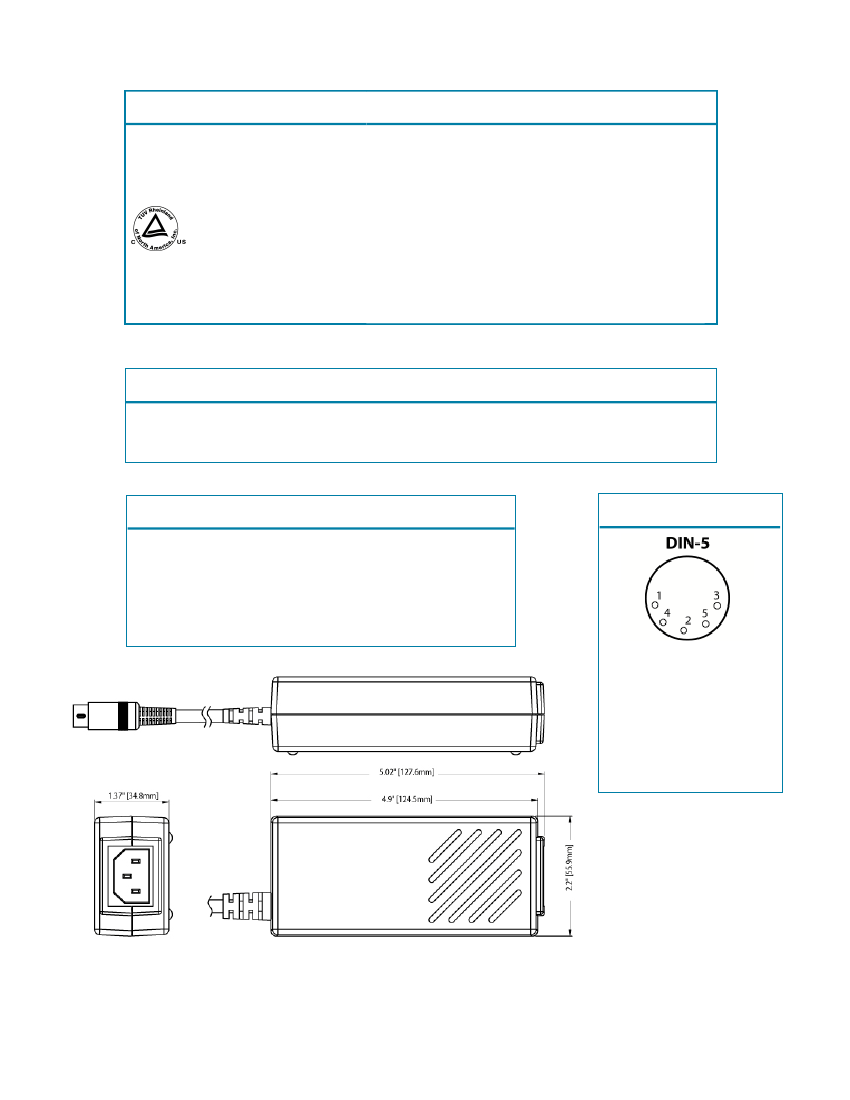

5.02" (127.6mm) x 2.20" (55.9mm) x 1.37" (34.8mm)
1.3 lbs (0.58 kg)
4.9W/in3
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Cooling
Vibration
0 – 60°C (Full load to 40°C, derate linearly to 50% load at 60°C)
40°C to +85°C
595%, noncondensing
Natural Convection
All units production tested to 19.6m/s2
EMC & Safety
Emissions
Immunity
Certified by TUV to the following:
FCC class B, CISPR22 class B EN6100032, 3
EN6100042, 3, 4, 5, 6, 8, 11
cTUVus
UL 609501
CAN/CSA22.2 No.609501
CB per IEC609501
CE marked to LVD & EMC
Input Configuration
Standard Input Cable
Connection on Power Supply Body
Not Provided
IEC 320 C14 Receptacle
Output Configuration (12V, 15V, 24V)
Standard Output Cable 6 ft.
Cord Size
Connector (PSU side)
Mating Connector
2x16awg
Switchcraft DIN5, P/N 05GM5MX (male pins)
Switchcraft 57GB5FX or equivalent
Output Pin Assignments
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Return
Return
+V1
Return
+V1
