DT80PW180C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> DT80PW180C

Preview

DT80PW180C: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 0.1uF 50Volts C0G 5%; CategoryPower/power management; File Size81KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

DT80PW180C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT80PW180C	-	-	View	Buy Now

DT80PW180C Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 0.1uF 50Volts C0G 5%

DT80PW180C Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	TDK Corporation
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	80 W
Output Voltage-Channel 1	18 V
Output Current-Channel 1	4.45 A
Commercial/Medical	Commercial
DC Output Connector	4 Pin DIN
DC Output Cord Length	1.05 m
Efficiency	Level V
AC Plug included/required	Required
Load Regulation	Regulated
Mounting Style	Desktop
Factory Pack Quantity	1
Unit Weight	1 lb

Preview

Download Datasheet

View All

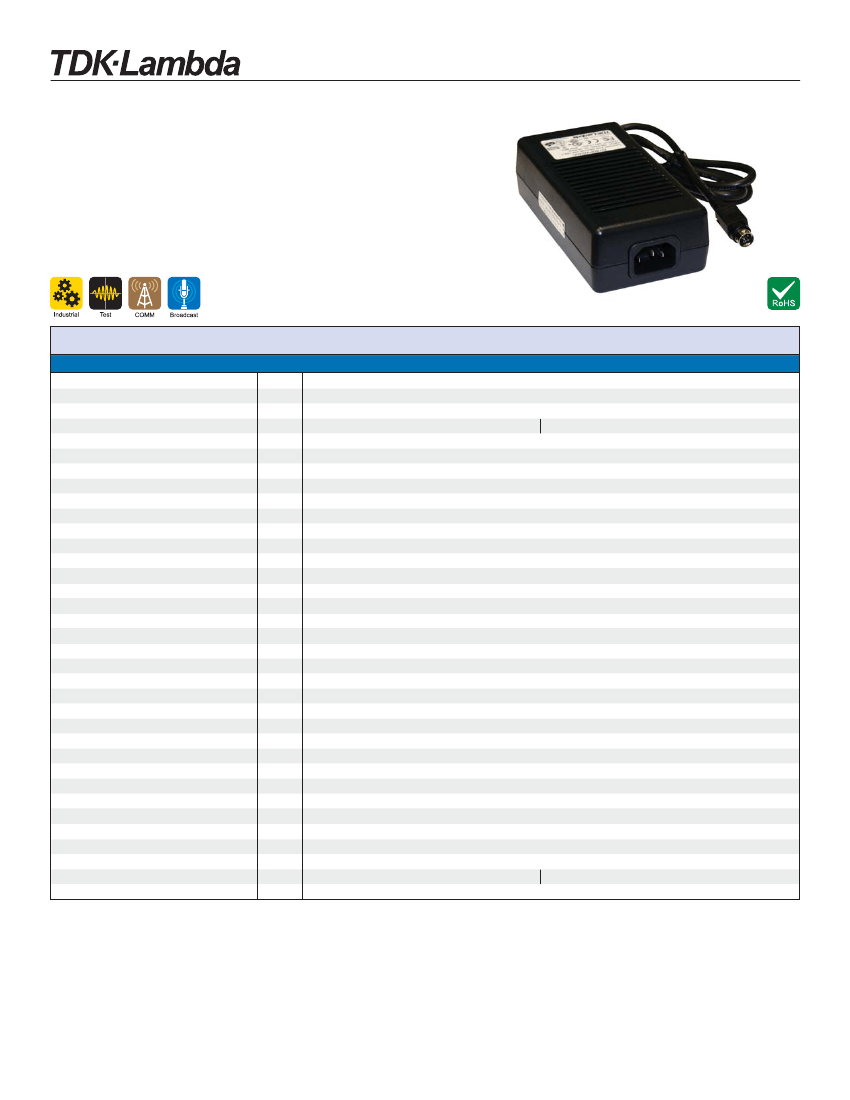

DT62/80-C Series

62-80W AC-DC External Power Supplies

Features



CEC, EISA

(1)

& ErP Stage 2 Compliant



Wide Range AC Input



Power Factor Correction (DT80)



Low Proﬁle & Lightweight



85% Efﬁcient

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

VAC

Inrush Current

A

Input Current (Maximum)

A

Power Factor

-

Leakage Current (typ, 264VAC 63Hz) mA

Hold Up Time (Typ)

ms

Temperature Coefﬁcient

°C

Voltage Accuracy

%

Adjustment Range

-

Minimum Load

-

Total Regulation

-

Ripple & Noise

%

Short Circuit Protection

-

Overvoltage Protection

V

Efﬁciency

%

Operating Temperature

°C

Storage Temperature

°C

Humidity (non condensing)

-

Cooling

-

Withstand Voltage

-

Vibration (non operating)

-

Shock

-

Safety Agency Approvals

-

California Energy Commission (CEC)

-

EISA

(1)

-

Ofﬂoad Power Consumption

W

Conducted & Radiated EMI

-

Immunity

-

Weight (Typ)

g

Size (WxLxH)

in

Cable Length and Thickness

mm

AC Input Connector

-

Output Connector

-

MTBF (MIL-HNBK), 100% load, 25C

hours

Warranty

yrs

DT62PWxxx-C

DT80PWxxx-C

90 - 264VAC (47 - 63Hz)

<50A at 230VAC input, 25°C ambient cold start

2.5A

None

Typically 0.9 at full load(Meets EN61000-3-2)

0.7mA

16ms at 115VAC input

±0.05%/°C

±1%

None

±5%

1%

Continuous - hiccup mode (110-160%)

110 - 130% of nominal (Cycle input power to reset)

>85% typical

0 to +40°C Full load, derate linearly to 50% load at 60°C

-10 to +70°C

10 - 90% RH

Convection

Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)

23.52m/s

2

(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

< 196.1 m/s

2

(20G)

UL60950-1, EN609501-1, IEC60950-1

See model selector

< 0.5W

EN55022-B, FCC Class B

EN55024

410g

2.71 x 5.2 x 1.57

1050mm

IEC 320-C14 (Accepts IEC 320-C13)

Kycon KPPx-4P or equivalent. Pins 1 & 2: -Vout, Pins 3 & 4: +Vout

223,933 Hours

203,109 Hours

One Year

(1) EISA - Energy Independence and Security Act of 2007.

1-800-526-2324 • www.us.tdk-lambda.com/lp/

131

Disclaimer: us.tdk-lambda.com/lp/legal.htm
