ZWS150BP48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> ZWS150BP48

ZWS150BP48: DescriptionSwitching Power Supplies 48Vout 3.2A 153.6W; CategoryPower/power management; File Size117KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

ZWS150BP48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZWS150BP48	-	-	View	Buy Now

ZWS150BP48 Overview

Switching Power Supplies 48Vout 3.2A 153.6W

ZWS150BP48 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	48 V
Number of Outputs	1 Output
Output Power	153.6 W
Open Frame/Enclosed	Open Frame
Input Voltage	85 VAC to 265 VAC
Output Current-Channel 1	3.2 A
Commercial/Medical	Commercial
Mounting Style	Chassis
Length	160 mm
Width	75 mm
Height	34 mm
Approvals	EN60950-1, UL60950-1
Packaging	Bulk
Factory Pack Quantity	1
Unit Weight	12.698626 oz

Preview

Download Datasheet

View All

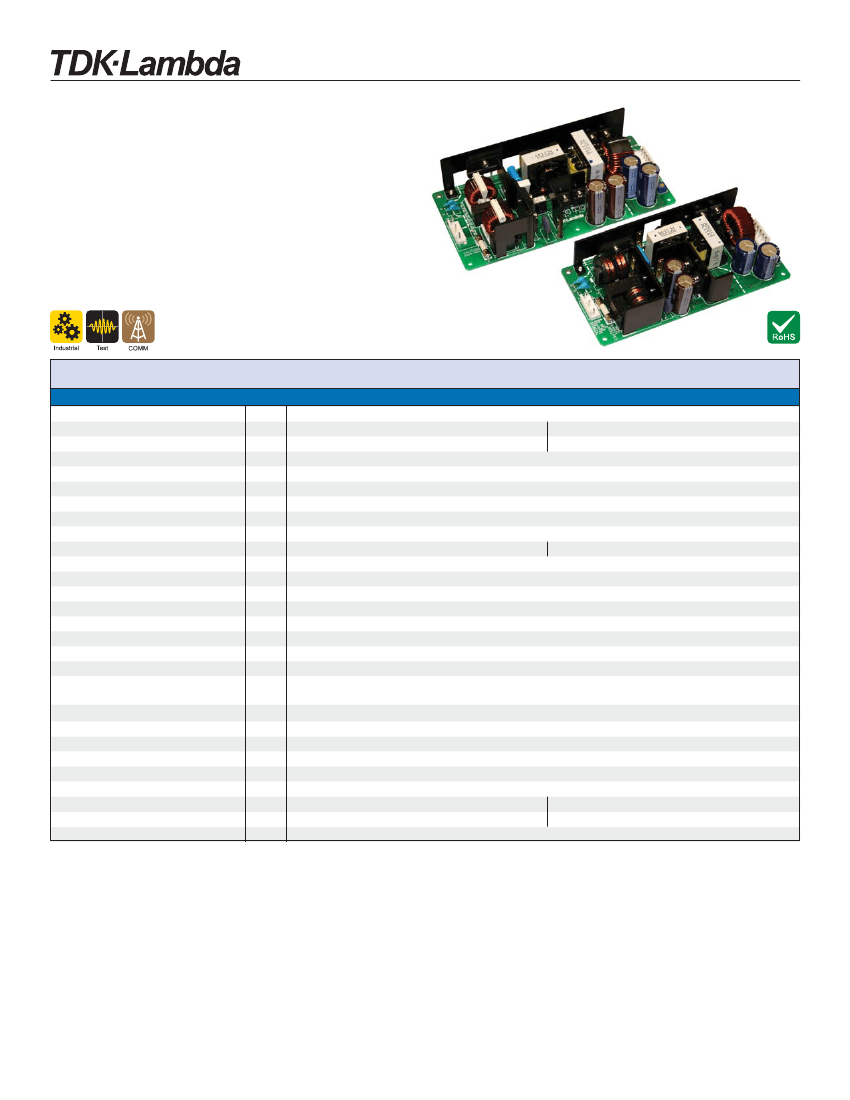

ZWS-BP Series

150-480W Single Output Power Supplies

Features



Universal Input (85 - 265VAC)



Power factor Corrected



Up to 200% Peak Power capability



Five year warranty



Less than 0.5mA earth leakage current

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage

Input Current

Inrush Current

(1)(2)

Power Factor

Leakage Current

Temperature Coefﬁcient

%/°C

Overcurrent Protection

(3)

Overvoltage Protection

Hold Up Time (Typ)

(1)

Efﬁciency

(1)

Remote On/Off

Line Regulation

Load Regulation

Ripple & Noise

Operating Temperature

°C

Storage Temperature

°C

Humidity (non condensing)

%RH

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

in(mm)

yrs

ZWS150BP

ZWS240BP

85-265VAC (47-63Hz), 120-370VDC* (Derate to 80% load below 90VAC Input)

1.9 / 0.95

2.8 / 1.5

14 / 28

15 / 30

0.98 at 100VAC, 0.93 at 200VAC, Meets EN61000-3-2

0.5mA Max. Typically 0.2mA (100VAC), 0.4mA (230VAC)

<0.02%/°C

>101% of peak current capability (constant current style)

24V: 27.6-32.4V, 36V: 41.4-48.6, 48V: 55.2-64.8V

87 / 90%

88 / 91%

Optional, contact factory

0.4%

0.8%

-10°C to +70°C, derate linearly to 50% load from 50°C to 70°C

-30 to +75°C

Operating: 30 - 90%RH, Storage: 10 - 90%RH

Convection

Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA),

Output to Ground 500VAC (20mA) for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour each

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 OV II, CE Mark

EN55011/EN55022-B, FCC Class B, VCCI-B

EN61000-4-2 (lvl2, 3), -3 (lvl 3), -4 (lvl 3), -5 (lvl 3, 4), -6 (lvl 3), -8 (lvl 4), -11

360g

520g

2.95 x 1.46 x 6.3 (75 x 37 x 160)

3.31 x 1.65 x 7.09 (84 x 42 x 180)

Five Years

*Safety certiﬁed for AC input only

Notes:

(1) 100/200VAC

(2) 25°C ambient (cold start)

(3) Avoid prolonged operation in overload

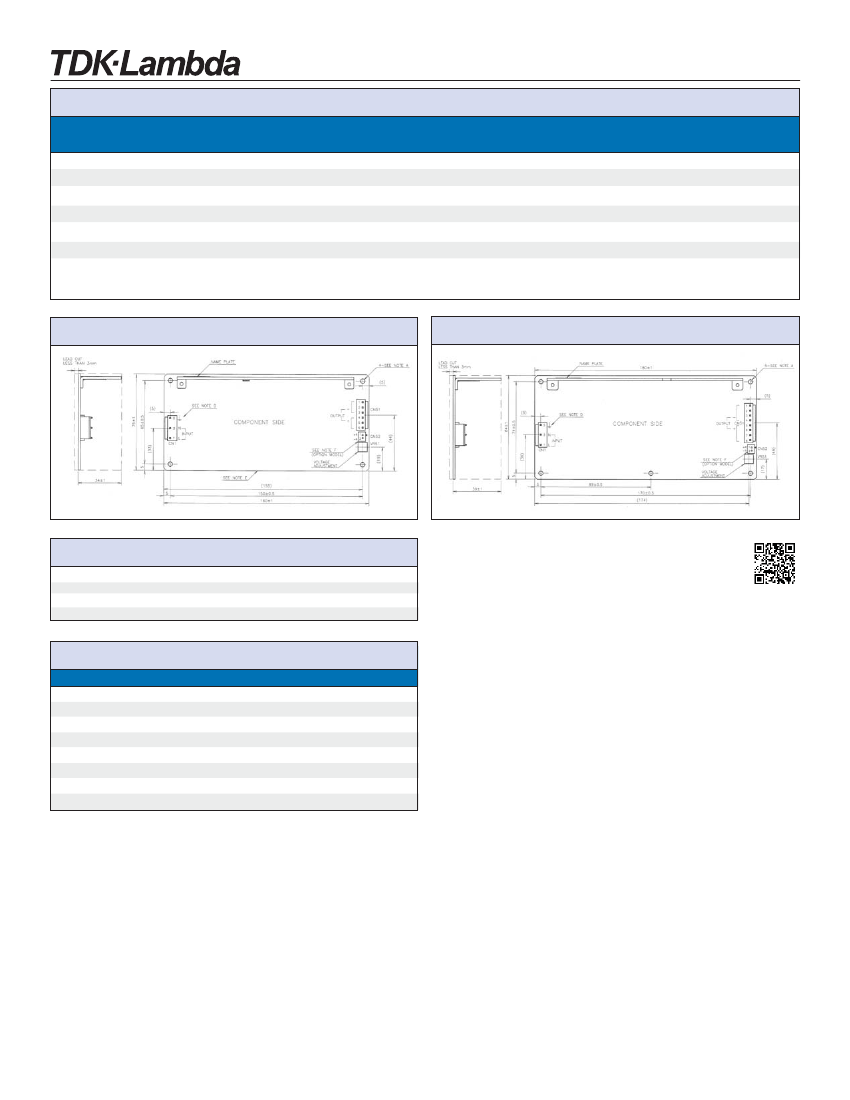

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
