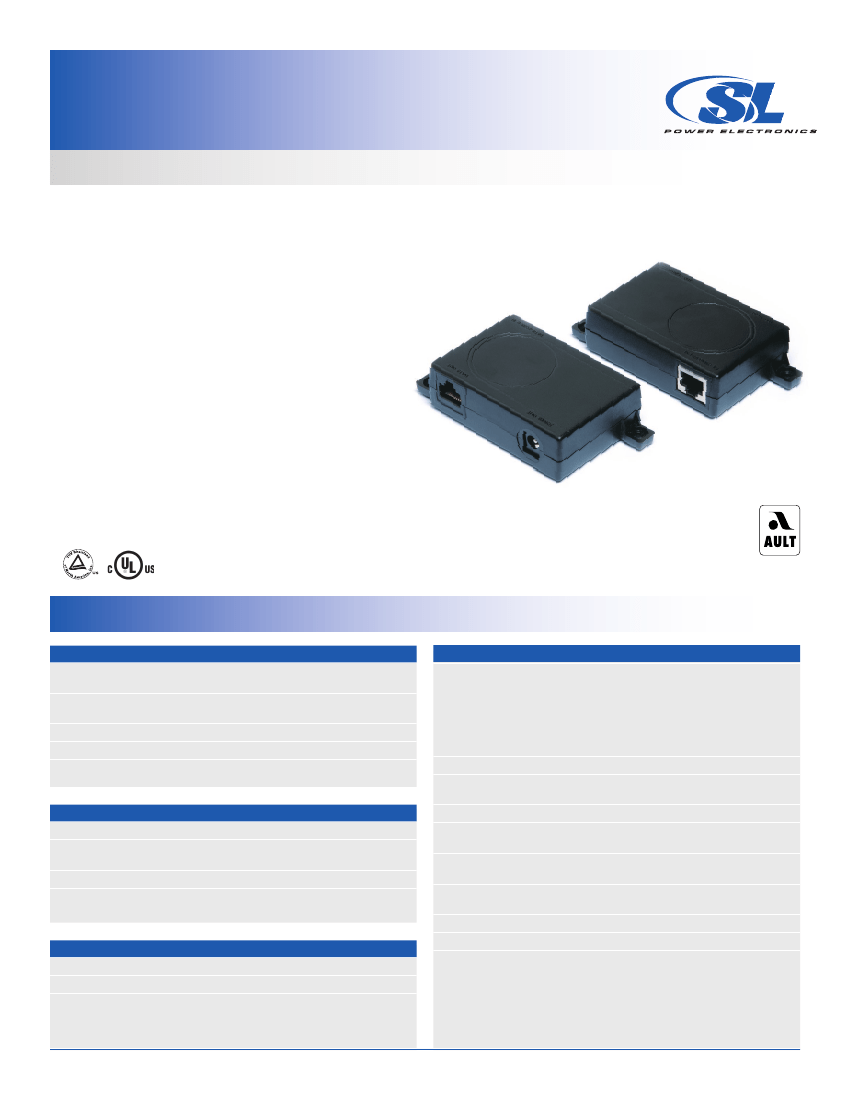

LS15
PoE
Series Line Splitter
1 Year Warranty
• Power over Ethernet (PoE)
• Converts POE to Separate Power and Data Lines
• High Efficiency: 90%, 24V unit
• Industry Leading Small Profile; 3”x 2.1”x 1”
• Meets IEEE 802.3AF
• Full Thermal Protection
• Short Circuit & Overload Protection
• Input Shutdown
• UVLO / OVLO
• Surge Protection
International Safety Standard Approvals
Specifications
Output Specifications
Line and Load
Voltage Regulation
Transient Response
+/-1% V-out
1% of V-out
(50%-100% load deviation)
Transorb protected
Standard
1% of V-out, 20MHz BW
General Specifications
Efficiency
Switching Frequency
Recovery time
I-overload
Short Circuit
Thermal Shutdown
Approvals and
Safety Standards
Case and Dimension
Weight
Input Connector
In Midspan
configuration
5V
12V
24V
Measured from Data/Power
pins of RJ45 connector,
to.output of std Switchcraft
712A conn.
87% min.
88% min.
90% min.
200kHz +/- 1%
100Usec to 1% V-out
(SR= 1a/10Usec)
120% ± 5%
Auto recovery when short
is removed
Internally protected against
over-temp conditions.
TUV Pending
3.0L x 2.1W x 1.0H (in)
58g (2.05oz)
Standard RJ45 connector
Overvoltage Protection
Output Connection
Output Noise
Input Specifications
Input
Input Current
Overload Protection
Input Surge
Input Undervoltage
Reset power
to start unit
Turn on
Turn off
36-57 Vdc
When Iin > 450mA for
75mSec, input latches off
Transorb protected
33-42Vdc
30-34Vdc
Environmental Specifications
Operating temperature
Storage Temperature
Max ambient
operating Temp
-40°C to +60°C
-40°C to +85°C
60*C @ Full load
SL Power Electronics Corp
•
6050 King Drive
•
Ventura, CA 93003
•
Phone:805.486.4565
•
Fax:805.487.8911
•
Email:info@slpower.com
•
www.slpower.com
LS15
PoE
Ault Part Number
LS15-05
LS15-12
LS15-24
Series Line Splitter
For the most current data and application support visit www.slpower.com
Output
Voltage
5 V DC
12 V DC
24 V DC
Output Current
Per IEEE 802.3AF
*
2.00 A
0.90 A
.475 A
Output
Power
10.0 W
10.8 W
11.4 W
Efficiency
(with cable)
480 mV
480 mV
480 mV
Notes
*
Power limited per Input requirements of IEEE802.3af Table 33-12. I-port Max=350mA @V-port=37V./ I-port Max=260mA @V-port=57V
Higher outputs available for non-compliant systems

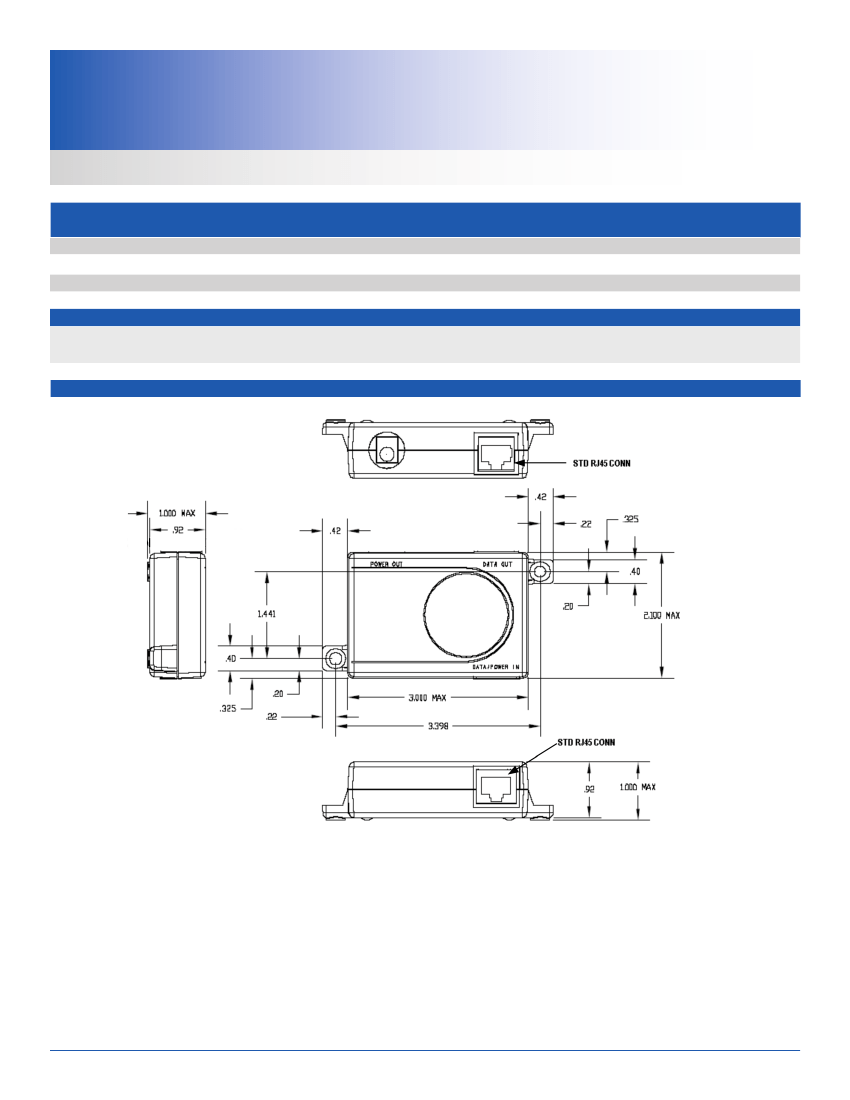

Outline Configuration
2 of 3
SL Power Electronics Corp.
•
6050 King Drive
•
Ventura, CA 93003
•
Phone:805.486.4565
•
Fax:805.487.8911
•
Email:info@slpower.com
•
www.slpower.com
LS15
PoE
Series Line Splitter

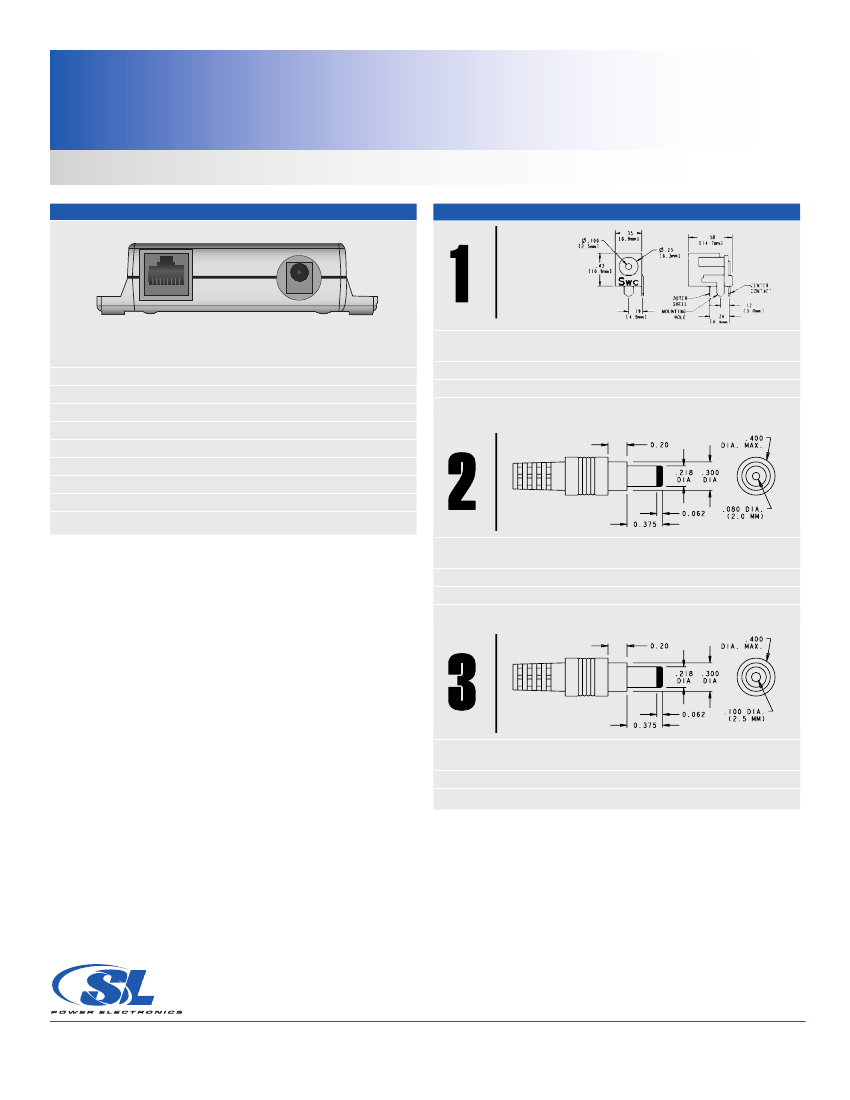

Data/Power in & Data Out Connection
Power Out Connection
87654321
Pin
1
2
3
4
5
6
7
8
Standard RJ45 Jack
Configuration- For 802.3af compliant units
Mode A
Pos Vport, Neg Vport
Pos Vport, Neg Vport
Neg Vport, Pos Vport
Neg Vport, Pos Vport
Mode B
Pos Vport, Neg Vport
Pos Vport, Neg Vport
Neg Vport, Pos Vport
Neg Vport, Pos Vport
Description
Pinout Code
Suggested Mating
12”, 18AWG Cable w Switchcraft S760
connector or equivalent
Center contact: positive
Switchcraft 722A plug or equivalent
Description
Pinout Code
Suggested Mating
Switchcraft RAPC 712A connector
or equivalent
Center contact: positive
Switchcraft 760 plug or equivalent
Description
Pinout Code
Suggested Mating
12”, 18AWG Cable w Switchcraft 760
connector or equivalent
Center contact: positive
Switchcraft 712A plug or equivalent
3 of 3
SL Power Electronics Corp
•
6050 King Drive
•
Ventura, CA 93003
•
Phone:805.486.4565
•
Fax:805.487.8911
•
Email:info@slpower.com
•
www.slpower.com
Data Sheet © 2007 SL Power Electronics Corp. The information and specifications contained in this data sheet are believed to be correct at time of publication.
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
Rev. 04/19/07
