CLM-DS14 Rev 3K
LED MoDuLE DrivEr Data shEEt
Cree
®

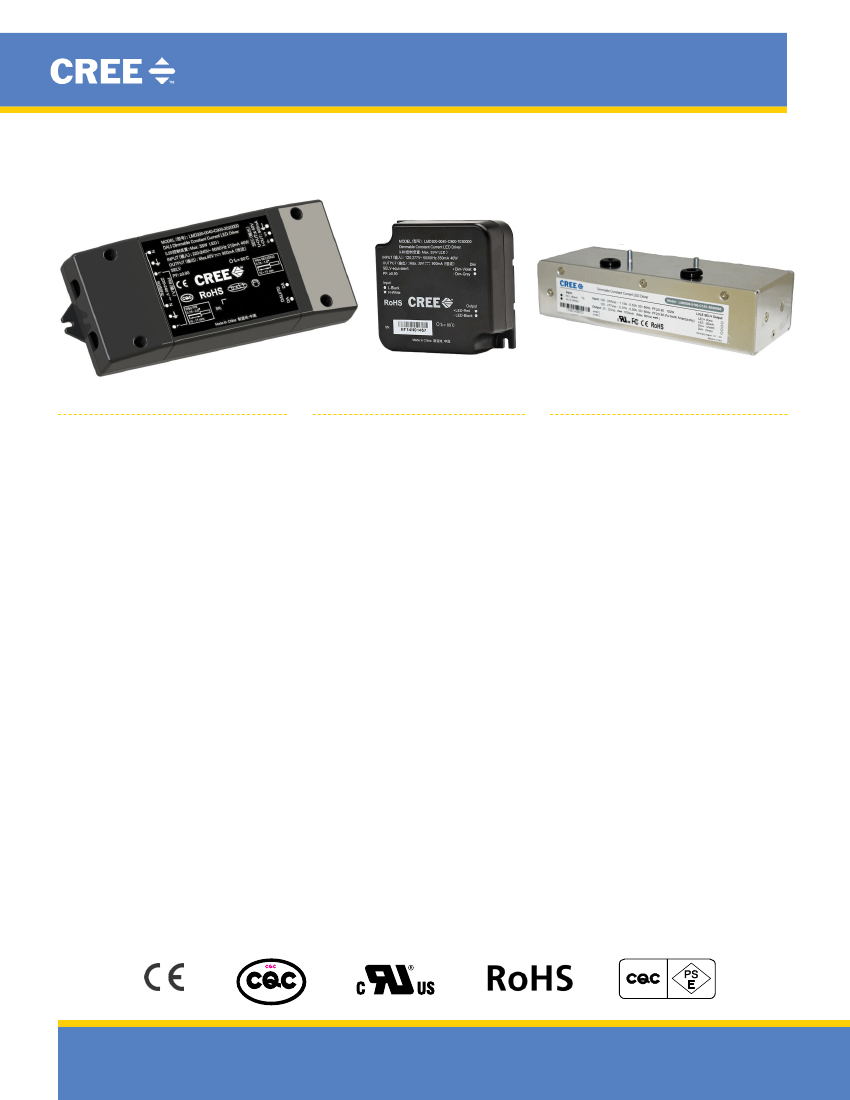

LMD300, LMD400 & LMD600 LED Module Drivers
ProDuCt DEsCriPtion
Cree
LeD
modules
provide
lighting
designers and manufacturers with simple,
easy-to-adopt LeD lighting solutions that
reduce luminaire development time and
speed time-to-market. Cree LMD300,
LMD400
and
LMD600
LeD
module
FEaturEs
•
•
Input voltage options: 100‑240 V,
100‑277 V, 120‑277 V & 220‑240 V
0/1‑10 V dimming support for
100‑240 V, 100‑277 V, 120‑277 V &
220‑240 V options
•
•
DALI + Touch dimming support for
220‑240 V option
Optimized for Cree LMH2 2000-,
3000- 4000- and 6000-lm light
sources
•
LMD400 enables California Title
24 compliance
tabLE oF ContEnts
Order Codes.................................................2
Characteristics - LMD300 100- to 240-v
0/1‑10 V Dimming Driver
............................2
Characteristics - LMD300 120- to 277-v
0/1‑10 V Dimming Driver
............................3
Characteristics - LMD300 220- to 240-v
0/1‑10 V Dimming Driver
............................3
Characteristics - LMD300 220- to 240-v
DALI + Touch Dimming Driver ....................4
Characteristics - LMD400 120- to 277-v
0/1‑10 V Dimming Driver
............................4
Characteristics - LMD600 100- to 277-v
0/1‑10 V Dimming Driver
............................5
Dimming ......................................................6
Mechanical Dimensions .............................7
Wiring Diagrams ....................................... 10
Thermal Design ........................................ 13
emergency Battery Operation ................. 13
Safety and Regulatory Notes................... 14
Packaging ................................................. 16
drivers are specifically designed to work
with the Cree LMH2 2000-, 3000-, 4000-
and 6000-lumen light sources to jump-
start the design process for recessed
downlights, wall sconces or pendant
lights in demanding end markets such
as retail, museums, hospitality and
restaurants.
www.CRee.Com/XLAmp
Copyright © 2013-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are
registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
LMD300, LMD400 & LMD600 LED MoDuLE DrivErs
orDEr CoDEs
LMD300
nominal input
Voltage (VaC)
100-240
120-277
220-240
220-240
Frequency (Hz)
50/60
50/60
50/60
50/60
typical output Current
(ma)
900
900
900
900
Dimming
0/1‑10 V
0/1‑10 V
0/1‑10 V
DALI + Touch
order Code
LMD300-0040-C900-8030000
LMD300-0040-C900-7030000
LMD300-0040-C900-2030000
LMD300-0040-C900-2020000
LMD400
nominal input
Voltage (VaC)
120-277
Frequency (Hz)
50/60
typical output Current
(ma)
940
Dimming
0/1‑10 V
order Code
LMD400-0048-C940-7030000
LMD600
nominal input
Voltage (VaC)
100-277
Frequency (Hz)
50/60
typical output Current
(ma)
1700
Dimming
0/1‑10 V
order Code
LMD600-0100-C1A7-7030000
CharaCteristiCs - LMD300 100- to 240-V 0/1-10 V DiMMing DriVer
Order Code: LMD300-0040-C900-8030000
Characteristics
Input voltage range
Input power
Output current
Output voltage
Driver efficiency (@ 55 °C) ‑ with LMH2 2000‑lm light
source
Driver efficiency (@ 55 °C) ‑ with LMH2 3000‑lm light
source
Power factor - with LMH2 2000-lm light source
Power factor - with LMH2 3000-lm light source
LeD driver case temperature
°C
0
unit
vAC
W
mA
v
%
%
85
86
0.95
0.95
70
900
40
Minimum
90
typical
Maximum
264
40
•
3‑D models (.STEP files) for the LMD300 LED module drivers are available on the Cree website by selecting the Documentation tab
on the
LMH2 product page.
Copyright © 2013-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
LMD300, LMD400 & LMD600 LED MoDuLE DrivErs
CharaCteristiCs - LMD300 120- to 277-V 0/1-10 V DiMMing DriVer
Order Code: LMD300-0040-C900-7030000
Characteristics
Input voltage range
Input power
Output current
Output voltage
Driver efficiency (@ 55 °C) ‑ with LMH2 2000‑lm light
source
Driver efficiency (@ 55 °C) ‑ with LMH2 3000‑lm light
source
Power factor - with LMH2 2000-lm light source
Power factor - with LMH2 3000-lm light source
Dimming current @ 120 V
Dimming current @ 277 V
LeD driver case temperature
mA
mA
°C
0
unit
vAC
W
mA
v
%
%
85
86
0.95
0.95
2.3
2.3
70
900
40
Minimum
108
typical
Maximum
305
40
•
3‑D models (.STEP files) for the LMD300 LED module drivers are available on the Cree website by selecting the Documentation tab
on the
LMH2 product page.
CharaCteristiCs - LMD300 220- to 240-V 0/1-10 V DiMMing DriVer
Order Code: LMD300-0040-C900-2030000
Characteristics
Input voltage range
Input power
Output current
Output voltage
Driver efficiency (@ 55 °C) ‑ with LMH2 2000‑lm light
source
Driver efficiency (@ 55 °C) ‑ with LMH2 3000‑lm light
source
Power factor - with LMH2 2000-lm light source
Power factor - with LMH2 3000-lm light source
LeD driver case temperature
°C
0
unit
vAC
W
mA
v
%
%
85
86
0.95
0.95
70
900
39
Minimum
207
typical
230
Maximum
264
40
•
3‑D models (.STEP files) for the LMD300 LED module drivers are available on the Cree website by selecting the Documentation tab
on the
LMH2 product page.
Copyright © 2013-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
LMD300, LMD400 & LMD600 LED MoDuLE DrivErs
CharaCteristiCs - LMD300 220- to 240-V DaLi + touCh DiMMing DriVer
Order Code: LMD300-0040-C900-2020000
Characteristics
Input voltage range
Input power
Output current
Output voltage
Driver efficiency (@ 55 °C) ‑ with LMH2 2000‑lm light
source
Driver efficiency (@ 55 °C) ‑ with LMH2 3000‑lm light
source
Power factor - with LMH2 2000-lm light source
Power factor - with LMH2 3000-lm light source
LeD driver case temperature
°C
0
unit
vAC
W
mA
v
%
%
81
85
0.95
0.95
70
900
39
Minimum
207
typical
230
Maximum
264
40
•
3‑D models (.STEP files) for the LMD300 LED module drivers are available on the Cree website by selecting the Documentation tab
on the
LMH2 product page.
CharaCteristiCs - LMD400 120- to 277-V 0/1-10 V DiMMing DriVer
Order Code: LMD400-0048-C940-7030000
Characteristics
Input voltage range
Input power
Output current
Output voltage
Driver efficiency (@ 55 °C) ‑ with LMH2 2000‑lm light
source
Driver efficiency (@ 55 °C) ‑ with LMH2 3000‑lm light
source
Driver efficiency (@ 55 °C) ‑ with LMH2 4000‑lm light
source
Power factor - with LMH2 2000-lm light source
Power factor - with LMH2 3000-lm light source
Power factor - with LMH2 4000-lm light source
Dimming current @ 120 V
Dimming current @ 277 V
LeD driver case temperature
mA
mA
°C
0
unit
vAC
W
mA
v
%
%
%
85
86
87
0.95
0.95
0.95
2.3
2.3
90
940
22-44
Minimum
108
typical
Maximum
305
48
•
3‑D models (.STEP files) for the LMD400 LED module driver are available on the Cree website by selecting the Documentation tab on
the
LMH2 product page.
Copyright © 2013-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
LMD300, LMD400 & LMD600 LED MoDuLE DrivErs
CharaCteristiCs - LMD600 100- to 277-V 0/1-10 V DiMMing DriVer
Order Code: LMD600-0100-C1A7-7030000
Characteristics
Input voltage range
Input power
Output current
Output voltage
Driver efficiency (@ 55 °C) ‑ with LMH2 6000‑lm light
source
Power factor - with LMH2 6000-lm light source
Dimming current @ 120 V
Dimming current @ 277 V
LeD driver case temperature
mA
mA
°C
0
unit
vAC
W
mA
v
%
87
0.95
.05
.05
76
1700
25-52
Minimum
90
typical
Maximum
305
102
•
3‑D models (.STEP files) for the LMD600 LED module driver are available on the Cree website by selecting the Documentation tab on
the
LMH2 product page.
Copyright © 2013-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
