ZME200-24SX-F-W datasheet, PDF

Datasheet> All Categories > Power/power management> ZME200-24SX-F-W

ZME200-24SX-F-W: DescriptionSwitching Power Supplies 200W 24V 8.3A; CategoryPower/power management; File Size3MB，2 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

ZME200-24SX-F-W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZME200-24SX-F-W	-	-	View	Buy Now

ZME200-24SX-F-W Overview

Switching Power Supplies 200W 24V 8.3A

ZME200-24SX-F-W Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	ETA-USA
RoHS	Details
Length	176 mm
Width	95 mm
Height	50 mm
Approvals	EN60601-1
Factory Pack Quantity	1

Preview

Download Datasheet

View All

ETA-USA

ZME200-SX-F-W

The Power Professionals

200W Open Frame

FEATURES:

• High reliability

• 100% BURN-IN tested

• Short circuit protection

• Over load protection

• Over voltage protection

• 100% Hi-pot tested

• No load power consumption <500mW

RoHS

OUTPUT

MODEL/CHANNEL

Output Voltage

Output Current

Ripple and Noise(max.) *3

Voltage Adjustment Range

Unit

Vdc

Vac

ZME200- ZME200- ZME200- ZME200- ZME200-

12SX-F-W 16SX-F-W 19SX-F-W 20SX-F-W 24SX-F-W

16.7

240

12.5

300

10.5

300

8.3

300

±5% of stated output

ZME200- ZME200-

36SX-F-W 48SX-F-W

5.6

4.2

300

INPUT

Hold Up Time

Input Voltage

Input Current

Input Frequency

AC100-240V

3A at 90VAC/1.5 at 264VAC max

47-63Hz

AC90-264V

>87% at full load @ 115 VAC

Built in (Auto recover)

>0.9 at full load

Single

50/60Hz

16 mS at full load at AC115V

Input Frequency Range

Input Voltage Range

Efficiency

Phase

Protection

Over Current Protection

Power Factor

Over Voltage Protection

Short Circuit Protection

Line Conducted Noise

Built in (latch type, AC recycle)

Built-in (auto recover)

Built to meet FCC Part 18 Class B

Built to meet EN60601-1-2

Built to meet EN55011 Class B

Environmental

Agencies

MTBF

Safety

mm/g

UL: UL60601-1 C-UL: 22.2 No. 60601-1 CB IEC60601-1 and EN60601-1

>140,000 hours at full load and 25°C ambient temperature

20~90[%RH] (non-condensing)

-10 to +85°C

Convection

<300µA at AC264V

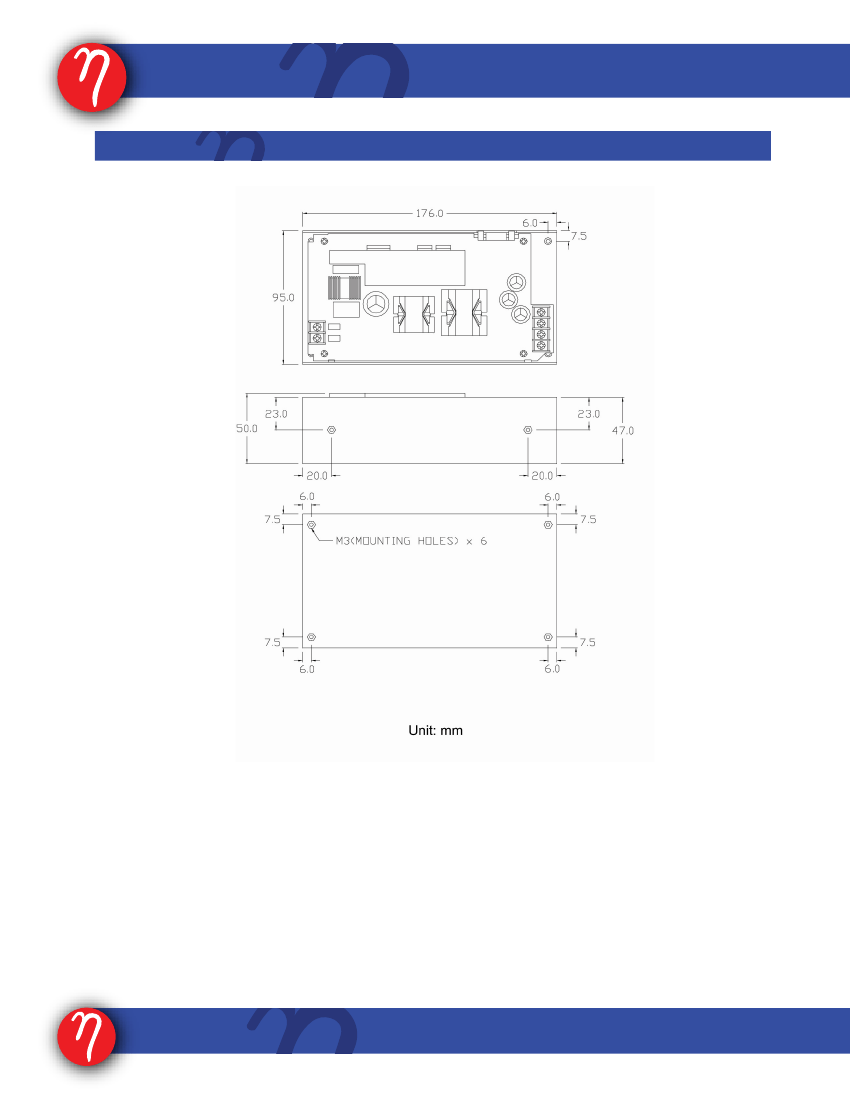

176 × 95 × 50mm

0°C to +40°C

Environment

Operating Temperature

Storage Temperature

Cooling

Leakage current

Dimension

Size(WxHxD) / Weight

Operating Humidity

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
