HWS30A-12-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> HWS30A-12-A

HWS30A-12-A: DescriptionRF Adapters - In Series SMA JACK(F) TO JACK(F) PANEL; CategoryPower/power management; File Size482KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

HWS30A-12-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HWS30A-12-A	-	-	View	Buy Now

HWS30A-12-A Overview

RF Adapters - In Series SMA JACK(F) TO JACK(F) PANEL

HWS30A-12-A Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	12 V
Number of Outputs	1 Output
Output Power	30 W
Open Frame/Enclosed	Enclosed
Input Voltage	265 VAC/370 VDC
Output Current-Channel 1	2.5 A
Commercial/Medical	Commercial
Isolation Voltage	500 VDC
Mounting Style	Chassis
Length	95 mm
Width	31.5 mm
Height	82 mm
Input Frequency	63 Hz
Load Regulation	Regulated
Power - Convection	30 W
Factory Pack Quantity	1
Unit Weight	8.465751 oz

Preview

Download Datasheet

View All

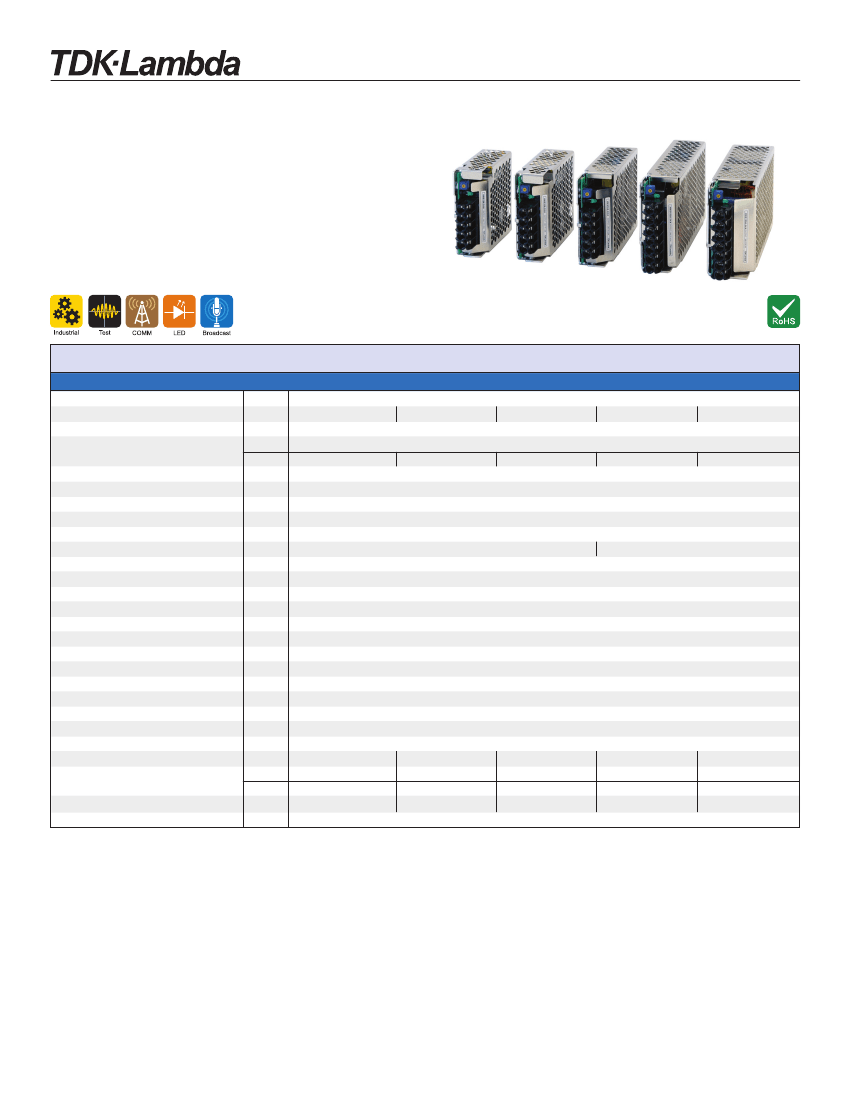

HWS15A-150A/A Series

50-150W Single Output Industrial Power Supplies

Features



Limited Lifetime Warranty



UL508 approved



SEMI F47 Compliant (high line AC)



Universal Input (85 - 265VAC)



Higher Efﬁciency Than HWS series

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage Range

Input Current (Typ) (1)

Inrush Current (1)

Power Factor (1)

Temperature Coefﬁcient

%/°C

Overcurrent Protection

Overvoltage Protection

Hold Up Time (Typ)

Leakage Current (max)

Remote Sense

Indicator

Operating Temperature (with cover) °C

Storage Temperature

°C

Humidity (non condensing)

%RH

Cooling

Withstand Voltage

VAC

Isolation Resistance

M Ohms

Vibration (non operating)

Shock

m/s

Safety Agency Approvals

Line Dip

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD) (with cover)

Inches

MTBF - Telcordia SR-332 issue 3**

Hours

Warranty

HWS15A/A

HWS30A/A

HWS50A/A

HWS100A/A

HWS150A/A

85 - 265VAC (47 - 63Hz) or 120 - 370VDC* (Withstands 300VAC for 5s)

0.35 / 0.2

0.65 / 0.4

0.65 / 0.35

1.3 / 0.65

1.9 / 0.95

14 / 28

Meets EN61000-3-2

0.97/0.91

0.98/0.93

<0.02%/°C

>105%

Yes

>0.5mA (Typ 0.2mA at 100VAC, 0.4mA at 230VAC)

Yes

Green LED = ON

-10°C to +70°C, derate linearly to 20% load from 50°C to 70°C (2)

-30 to +85°C

Operating: 30 - 90%RH, Non operating 10 - 95%RH

Convection

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE Mark

Complies with SEMI F47 (200VAC line only)

EN55011 / EN55022-B, FCC-B, VCCI-B

IEC61000-4-2, -3, -4, -5, -6, -8, -11; IEC61000-6-2

190

240

300

470

520

1.24x3.23x3.15 1.24x3.23x3.74 1.24x3.23x4.72

1.3x3.23x6.3

1.65x3.23x6.3

31.5x82x80

31.5x82x95

31.5x82x120

33x82x160

42x82x160

12,116,851

8,169,868

3,726,622

2,963,512

2,676,081

Limited lifetime warranty (See website for terms & conditions)

* Safety certiﬁed for AC input only ** 24V output model, 25°C ambiient, full load, 230VAC input

(1) 100/200VAC

(2) HWS15A/A derates linearly to 50% load from 50 to 70°C

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
