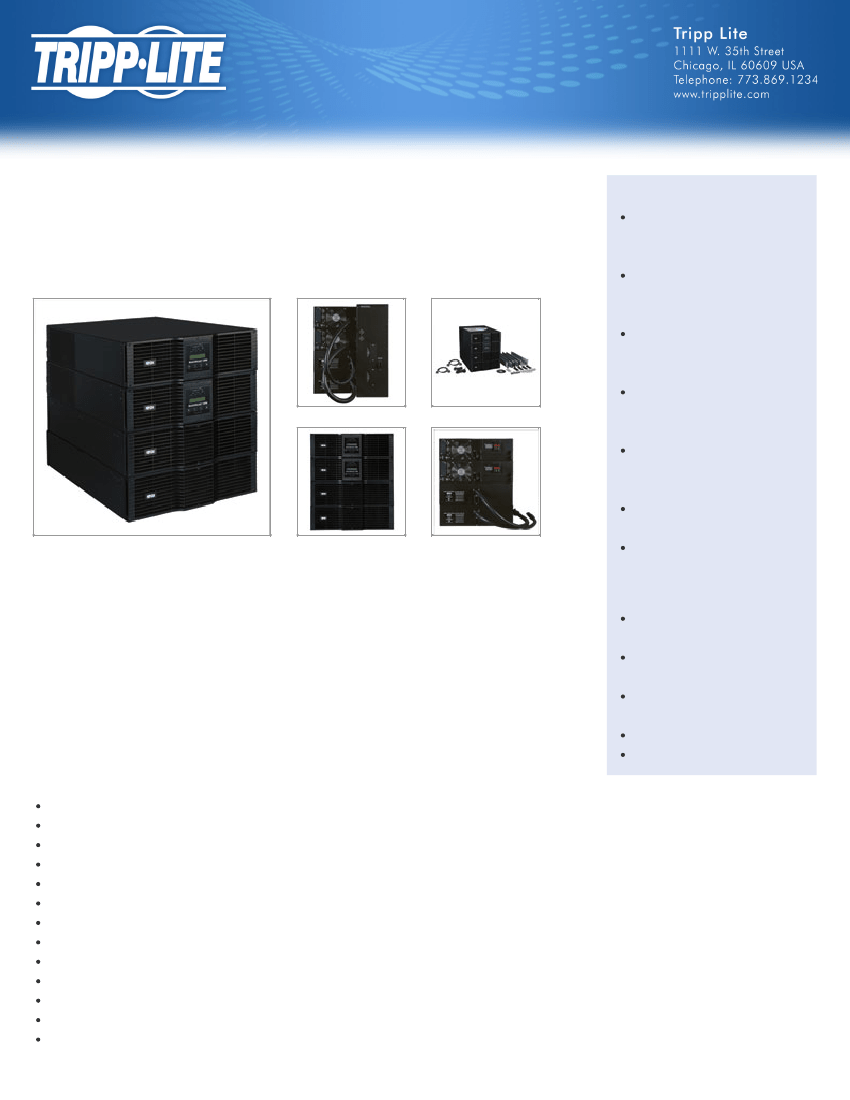

SmartOnline 200-240V 16kVA 14.4kW
Double-Conversion UPS, N+1, 12U, Network Card
Slot, USB, DB9, Bypass Switch, Hardwire
MODEL NUMBER:
SU16KRTHW
Highlights
16kVA / 16,000VA / 14,400W
on-line double-conversion UPS,
0.9 power factor
200/208/220/230/240V +/-2%
50/60Hz output, 96% Efficient
Economy-mode option
Hot-swap power & battery
modules, N+1 fault tolerance at
loads up to 8kVA
USB, RS232 & EPO ports,
network management card
options
Front panel LEDs with detailed
LCD monitoring and control
screen
Expandable runtime with optional
external battery packs
Hardwire input (3 wire), Hardwire
Description
Tripp Lite SU16KRTHW 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete
power protection for critical server, network and telecommunications equipment in a 12U rack/tower
configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and
non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected
service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass
switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined
operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS
ideal for advanced networking applications in data centers, computer rooms, network closets and rugged
industrial locations.
output (3 wire)
Package Includes
Two
SU8000RT3UPM
UPS
power modules
Two
BP240V10RT3U
battery
packs
SUPDMB20KHW
PDU with
Bypass switch
4 post rackmount installation rails
USB, DB9 & EPO Cabling
Features
Tripp Lite SU16KRTHW 16kVA, 16,000VA / 14,400 watt on-line, double-conversion UPS system in 12U total rack/tower configuration
Unique configuration offers 16kVA non-redundant operation and automatic N+1 redundancy at load levels of 8kVA and under
Included Parallel PDU with manual bypass switch enables hot-swap replacement power modules at any supported load level
Hardwire input (3 wire) and hardwire output (3 wire) connections
Supports North American (L1,L2,G) 208/240v hardwire input / output, plus International 230/220/240v (L,N,PE) hardwire input / output
Optional
SU6000XFMR2U
transformer offers 120v output in North American 208/240V (L1,L2,G) input configurations
Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal
Supports 50/60Hz operation for worldwide frequency compatibility
Expandable runtime with optional external battery packs
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Battery independent restart
Intelligent battery management system with temperature-compensated charging extends battery life
Highly efficient economy mode option
1/6
Compatible with Tripp Lite UPS management card options
TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD
and
RELAYIOCARD
Also compatible with
RELAYIOMINI
module (RELAYIOMINI requires removal of USB interface module)
Applications utilizing the optional network communications card require two
SNMPWEBCARD
accessories (install one per included power module)
HID-compliant USB interface
USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
www.tripplite.com/poweralert
Optional
2POSTRMKITHD
supports installation in 2 post 19 inch racks (4 required)
Optional
2-9USTAND
supports upright tower placement (2 required)
Supports Emergency Power Off (EPO) via built-in interface
Front panel LEDs and LCD readout with scroll controls
LED / LCD display panel rotates for viewing in rackmount or tower configurations
External battery packs are field replaceable and hot swappable
Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
Specifications
OUTPUT
Output Volt Amp Capacity (VA)
Output kVA Capacity (kVA)
Output Watt Capacity (Watts)
Output kW Capacity (kW)
Output Capacity Details
Power Factor
Crest Factor
Nominal Output Voltage(s)
Supported
Nominal Voltage Details
Frequency Compatibility
Frequency Compatibility Details
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles
Output Receptacle Details
16000
16
14400
14.4
Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30
seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as load levels are reduced to 95% or less
0.9
3:1
200V; 208V; 220V; 230V; 240V
Voltage selection via front panel LCD interface
50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to
50Hz or 50Hz to 60Hz (no de-rating)
+/- 2%
+/- 10%
+/- 2%
Hardwire
Supports North American 208/240V* output (L1,L2,G) and International 230/220/240V (L,N,PE) hardwire output;
*For 120V output with 208/240V (L1,L2,G) input wiring, use optional SU6000XFMR2U transformer
2/6
Output AC Waveform (AC Mode)
Output AC Waveform (Battery Mode)
Pure Sine wave
Pure Sine wave
INPUT
Rated input current (Maximum Load)
Nominal Input Voltage(s) Supported
UPS Input Connection Type
UPS Input Connection Description
Recommended Electrical Service
Input Phase
92A (200V), 88.4A (208V), 83.6A (220V), 80A (230V), 76.6A (240V)
200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Hardwire
Supports North American 208/240V input (L1,L2,G) and International 230/220/240V (L,N,PE) input wiring
100A @ 200V-240V (L, N, PE), or 100A @ 200V, 208V, or 240V (L1, L2, G)
Single-Phase
BATTERY
Full Load Runtime (min.)
Half Load Runtime (min.)
Expandable Battery Runtime
External Battery Pack Compatibility
Expandable Runtime Description
DC System Voltage (VDC)
Battery Recharge Rate (Included
Batteries)
Battery Replacement Description
Expandable Runtime
5.5 minutes (14,400 watts)
13.5 minutes (7200 watts)
Runtime is expandable with external battery packs
BP240V10RT3U;
BP240V557C-1PH;
BP240V787C-1PH
; BP240V1037C-1PH; BP240V1407C-1PH
For best results, add external batteries in multiples of two so that both included 8kVA power modules have an equal
number and type of connected battery packs
240
Less than 6 hours from 10% to 90% (typical, full load discharge)
Hot-swappable, user replaceable external battery packs
Yes
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction
Undervoltage Correction
2% output voltage regulation in standard online, double-conversion mode
Corrects overvoltages up to 300V
Corrects undervoltages as low as 100V
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display
Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;
LED/LCD panel rotates for viewing in rack/tower formats (see manual)
2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and
execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module
replacement
Alarm cancel switch
Unique audible alarms for all major UPS, environmental and power conditions (see manual)
6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD
screen offers additional information and control options
3/6
Switches
Alarm Cancel Operation
Audible Alarm
LED Indicators
SURGE / NOISE SUPPRESSION
UPS AC Suppression Response
Time
EMI / RFI AC Noise Suppression
Instantaneous
Yes
PHYSICAL
Included Mounting Accessory
Description
Installation Form Factors Supported
with Optional Accessories
Optional Mounting Accessory Notes
Primary Form Factor
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
Rack Height (U Spaces)
Maximum Device Depth (in.)
Minimum Required Rack Depth
(inches)
Maximum Device Depth (cm)
Minimum Required Rack Depth (cm)
UPS Power Module Weight (lbs.)
UPS Power Module Weight (kg)
4 sets of adjustable 4 post rack rails included (one for each included 3U module)
2 post rackmount(2POSTRMKITHD ); Tower(2-9USTAND)
Qty 4
2POSTRMKITHD
required; Qty 2
2-9USTAND
required
Rackmount
5.14 x 17.5 x 25.82
13.06 x 44.45 x 65.58
12
32.5
37.5
82.55
95.25
43
19.50
Includes 2 SU8000RT3UPM UPS/Power modules, 2 BP240V10RT3U Battery packs and SUPDMB20KHW parallel
bypass PDU; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a
single unit; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with parallel bypass
PDU installed
5.25 x 17.5 x 25
158.7
71.99
36 x 40.25 x 51
91.44 x 102.24 x 129.54
600
272.4
Fans
Steel
826
4/6
UPS Dimensions Details
Included Battery Pack Dimensions
(hwd / in.)
Included Battery Pack Weight (lbs.)
Included Battery Pack Weight (kg)
UPS Shipping Dimensions (hwd / in.)
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Cooling Method
UPS Housing Material
Maximum Device Depth (mm)
Minimum Required Rack Depth (mm)
Primary UPS Height (mm)
Primary UPS Width (mm)
Primary UPS Depth (mm)
Shipping Height (mm)
Shipping Width (mm)
Shipping Depth (mm)
952
131
444
656
914
1022
1295
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
AC Mode BTU / Hr. (Full Load)
AC Economy Mode BTU / Hr. (Full
Load)
Battery Mode BTU / Hr. (Full Load)
AC Mode Efficiency Rating (100%
Load)
AC Economy Mode Efficiency Rating
(100% Load)
Operating Elevation (ft.)
Audible Noise
Operating Elevation (m)
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
0 to 95%, non-condensing
5464
2047
4864
90%
96%
0-3000m (0 to 10,000 ft.)
60 dBA at front side 1 meter
0-3000 m
COMMUNICATIONS
Communications Interface
Network Management Cards
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
SNMPWEBCARD; TLNETCARD; WEBCARDLX
;
MODBUSCARD; RELAYIOCARD
Applications utilizing any supported network management card option, require the use of two network cards of the
same-model (install one card per included UPS power module); RELAYIOMINI installation requires removal of
panel containing USB ports on each included UPS power module
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
http://www.tripplite.com/poweralert
USB, DB9 serial and EPO cables included
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Monitoring Port Description
PowerAlert Software
Communications Cable
WatchDog Compatibility
LINE / BATTERY TRANSFER
Transfer Time
Transfer Time (Economy Mode)
No transfer time (0 ms.) in online, double-conversion mode
8 milliseconds typical power failure response in optional economy mode
5/6
