LPS3314-103MLB: DescriptionFixed Inductors Power Inductor SEE PART COMMENT TAB; CategoryPassive components inductor; File Size176KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LPS3314-103MLB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LPS3314-103MLB	-	-	View	Buy Now

LPS3314-103MLB Overview

Fixed Inductors Power Inductor SEE PART COMMENT TAB

LPS3314-103MLB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1313
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1313
structure	Shielded
core material	FERRITE
DC Resistance	0.33 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPS3314
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.3 mm
Package length	3.3 mm
Package form	SMT
Package width	3.3 mm
method of packing	TR
Maximum rated current	0.7 A
self resonant frequency	55 MHz
series	LPS3314
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass frit
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

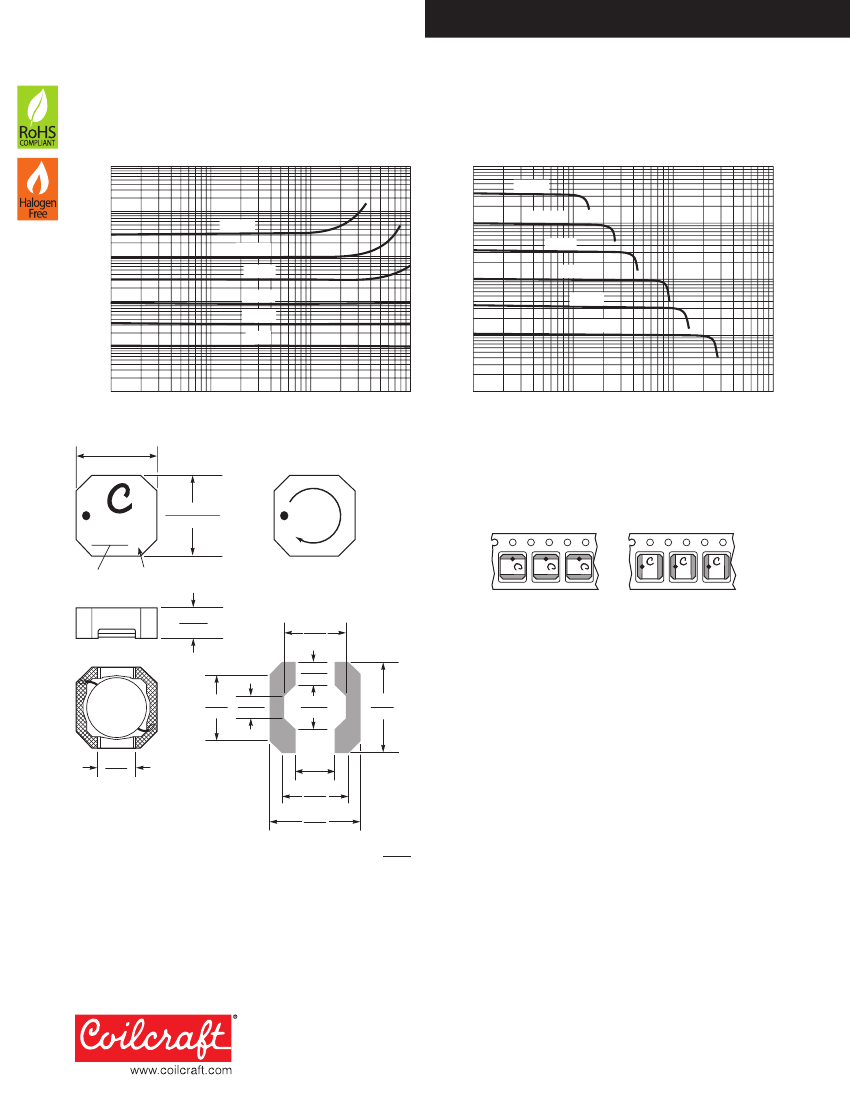

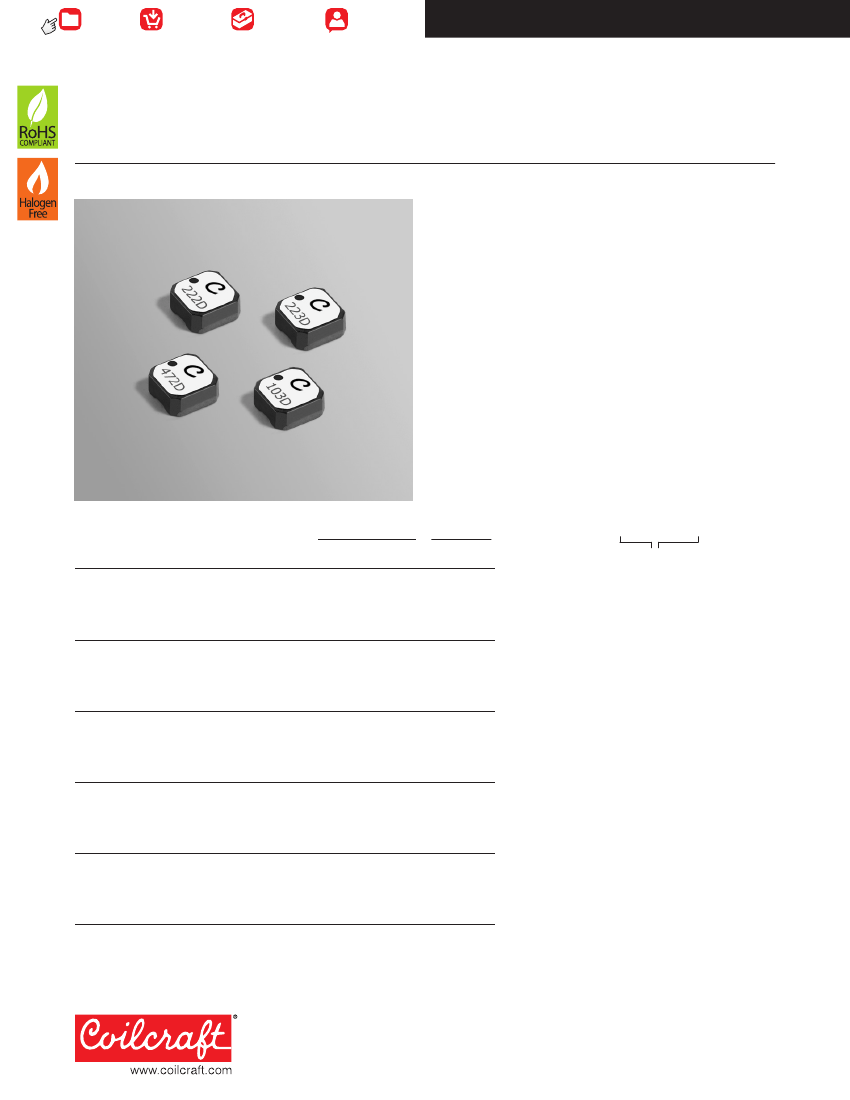

Document 541-1

Shielded Power Inductors – LPS3314

• Very low DCR; excellent current handling

• Miniature 3.3 × 3.3 mm footprint; less than1.4 mm tall

Designer’s Kit C330

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Environmental

RoHS compliant, halogen free

Terminations

RoHS compliant matte tin over nickel over silver.

Other terminations available at additional cost.

Weight

44.1 – 46.5 mg

Ambient temperature

–40°C to +85°C with (40°C rise)

Irms

current.

Maximum part temperature

+125°C (ambient + temp rise).

Derating.

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,

0.3 mm thick, 8 mm pocket spacing, 1.52 mm pocket depth

Recommended pick and place nozzle

OD: 3.3 mm; ID:

≤

1.65 mm

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part number

Isat

(A)

DCR SRF

max

Inductance

typ

10% 20% 30%

±20% (µH) (Ohms) (MHz) drop drop drop

Irms

(A)

20°C 40°C

rise rise

1.6

1.2

1.0

0.90

0.82

0.70

0.65

0.62

0.52

0.45

0.43

0.35

0.32

0.30

0.29

0.24

0.22

0.20

0.19

0.16

0.13

0.12

0.11

0.095

2.10

1.60

1.35

1.25

1.10

1.00

0.87

0.82

0.68

0.60

0.58

0.47

0.42

0.40

0.39

0.32

0.30

0.27

0.25

0.22

0.18

0.16

0.145

0.125

1. Please, specify

termination

and

packaging

codes:

LPS3314-824MRC

Termination: R

= RoHS compliant matte tin over

nickel over silver.

Special order, added cost:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481

embossed plastic tape (1000 parts

per full reel).

= Less than full reel. In tape, but not

machine ready. To have a leader and

trailer added ($25 charge), use code

letter C instead.

= 13″ machine-ready reel. EIA-481

embossed plastic tape. Factory

order only, not stocked (3500 parts

per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an

Agilent/HP 4192A impedance analyzer or equivalent.

Inductance at 1 MHz is the same for parts with SRF

≥10

MHz.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 8753ES or equivalent.

5. DC current at 25°C that causes the specified induc-

tance drop from its value without current.

Click for temperature derating information.

6. Current that causes the specified temperature rise from

25°C ambient. This information is for reference only and

does not represent absolute maximum ratings.

Click for temperature derating information.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components”

before soldering.

LPS3314-102MR_

LPS3314-222MR_

LPS3314-332MR_

LPS3314-472MR_

LPS3314-562MR_

LPS3314-682MR_

LPS3314-822MR_

LPS3314-103MR_

LPS3314-153MR_

LPS3314-183MR_

LPS3314-223MR_

LPS3314-333MR_

LPS3314-473MR_

LPS3314-563MR_

LPS3314-683MR_

LPS3314-823MR_

LPS3314-104MR_

LPS3314-124MR_

LPS3314-154MR_

LPS3314-184MR_

LPS3314-224MR_

LPS3314-334MR_

LPS3314-474MR_

LPS3314-564MR_

LPS3314-684MR_

LPS3314-824MR_

1.0

2.2

3.3

4.7

5.6

6.8

8.2

100

120

150

180

220

330

470

560

680

820

0.062

0.100

0.145

0.175

0.220

0.240

0.270

0.330

0.440

0.575

0.720

0.920

1.40

1.55

1.80

2.00

2.75

3.45

4.10

4.80

6.00

9.30

12.0

14.0

18.5

24.0

215

140

115

9.0

7.0

6.0

4.5

4.0

3.7

1.8

1.3

1.1

0.97

0.92

0.87

0.58

0.56

0.46

0.44

0.30

0.28

0.26

0.22

0.20

0.19

0.16

0.14

0.11

0.10

0.095

0.092

1.9

1.4

1.2

0.99

0.95

0.90

0.75

0.66

0.56

0.51

0.48

0.38

0.33

0.30

0.26

0.24

0.23

0.21

0.19

0.17

0.16

0.12

0.11

0.105

0.100

2.0

1.5

1.3

1.0

0.98

0.91

0.78

0.70

0.59

0.54

0.49

0.40

0.34

0.31

0.29

0.26

0.24

0.22

0.20

0.18

0.17

0.13

0.11

0.105

0.086 0.099 0.100 0.085 0.110

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 541-1

Revised 03/31/17

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
