LFSPXO056245Reel datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFSPXO056245Reel

Preview

LFSPXO056245Reel: DescriptionStandard Clock Oscillators 26.0MHz 2.0 x 1.6 x 0.7mm; CategoryPassive components; File Size212KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO056245Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO056245Reel	-	-	View	Buy Now

LFSPXO056245Reel Overview

Standard Clock Oscillators 26.0MHz 2.0 x 1.6 x 0.7mm

LFSPXO056245Reel Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	26 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	3.3 V
Output Format	CMOS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	2 mm
Width	1.6 mm
Height	0.7 mm
Packaging	Reel
Current Rating	7 mA
Duty Cycle - Max	55 %
Factory Pack Quantity	1000
Type	Crystal Oscillator

Preview

Download Datasheet

View All

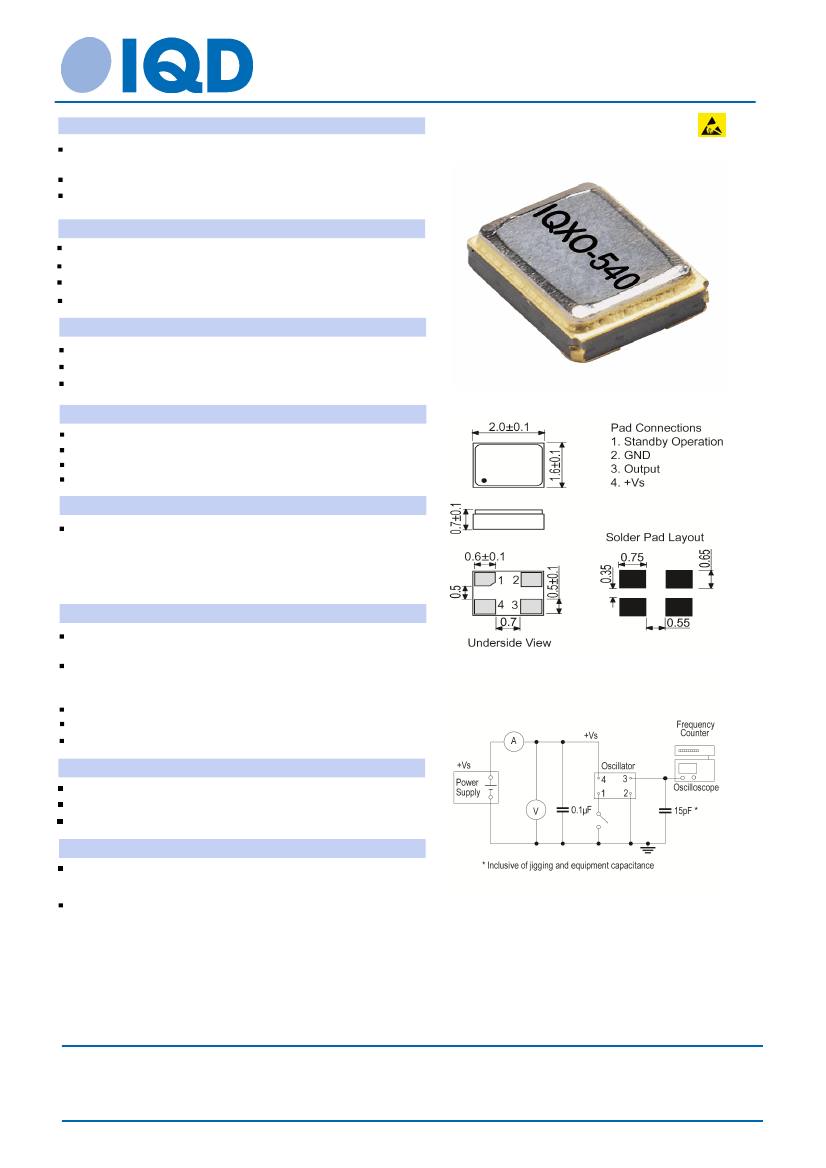

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO056245Reel

Description

Standard 2 x 1.6 crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed

Model

IQXO-540

Model Issue number

2

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

26.0MHz

±

50.00ppm

-40.00 to 85.00°C

±5ppm

3.3V ±10%

Supply Voltage

Current Draw

7.000mA

Standby Current: 10μA max (pad 1 at logic '0')

Output Details

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

45/55%

Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables

oscillator output

Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Impact: Weight of 10G dropped to centre of part from a height

of 6mm

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –40 to 85°C

RoHS Terminations

RoHS Reflow Temp

250°C max

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 26 Apr 18 9:36 using Part Data Sheet V1.00015
