LFSPXO050641Bulk datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO050641Bulk

LFSPXO050641Bulk: DescriptionStandard Clock Oscillators 25MHz 2.5V 25ppm -40C +85C; CategoryPassive components; File Size356KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO050641Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO050641Bulk	-	-	View	Buy Now

LFSPXO050641Bulk Overview

Standard Clock Oscillators 25MHz 2.5V 25ppm -40C +85C

LFSPXO050641Bulk Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	25 MHz
Frequency Stability	25 PPM
Load Capacitance	15 pF
Operating Supply Voltage	2.5 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	5 mm x 3.2 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	5 mm
Width	3.2 mm
Height	1.3 mm
Packaging	Bulk
Current Rating	10 mA
Duty Cycle - Max	55 %
Factory Pack Quantity	100

Preview

Download Datasheet

View All

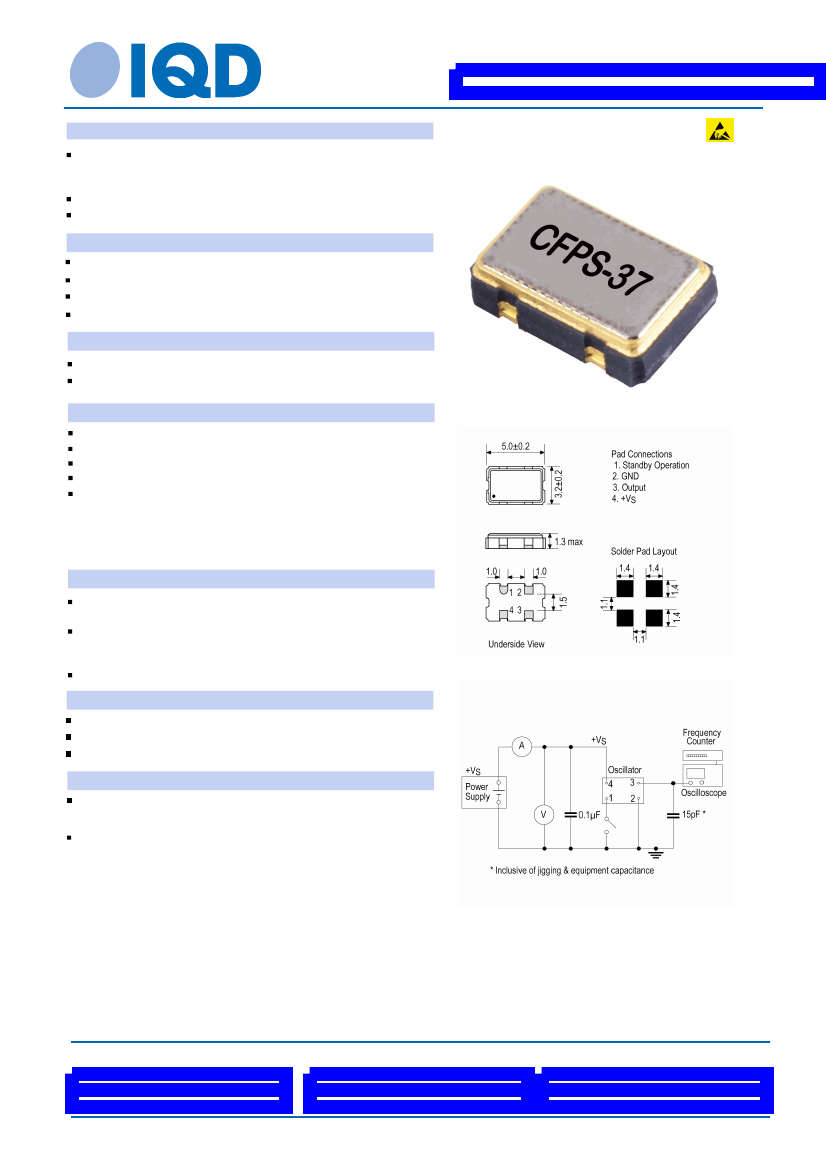

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO050641Bulk

Description

Standard 5 x 3.2mm crystal oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-37

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

25.0MHz

±25.00ppm

-40.00 to 85.00°C

±3ppm max per year

Supply Voltage

Current Draw

Output Details

2.5V ±5%

10.00mA

Outline (mm)

CMOS

Output Compatability

Drive Capability

15pF

Rise and Fall Time

5.0ns max

45/55%

Duty Cycle

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output.

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output and

oscillator output goes to the high impedance state.

No connection to pad 1 enables oscillator output.

Standby Current: 10μA max.

Environmental Parameters

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave.

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs).

Storage Temperature Range: –55 to 125°C

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 3 Oct 16 19:12 using Part Data Sheet V1.00014
