N74F199N

Description
8-bit parallel-access shift register
Categorylogic    logic
File Size64KB,8 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric Compare View All

N74F199N Overview

8-bit parallel-access shift register

N74F199N Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
package instructionDIP, DIP24,.3
Reach Compliance Codeunknow
JESD-30 codeR-PDIP-T24
JESD-609 codee0
Maximum Frequency@Nom-Su70000000 Hz
Number of digits8
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Philips Semiconductors FAST Products
Product specification
8-bit parallel-access shift register
74F199
FEATURES
Buffered clock and control inputs
Shift right and parallel load capability
Fully synchronous data transfers
J-K(D) inputs to first stage
Clock enable for hold (do nothing) mode
Asynchronous Master Reset
DESCRIPTION
The 74F199 is an 8-bit Parallel Access Shift Register and its

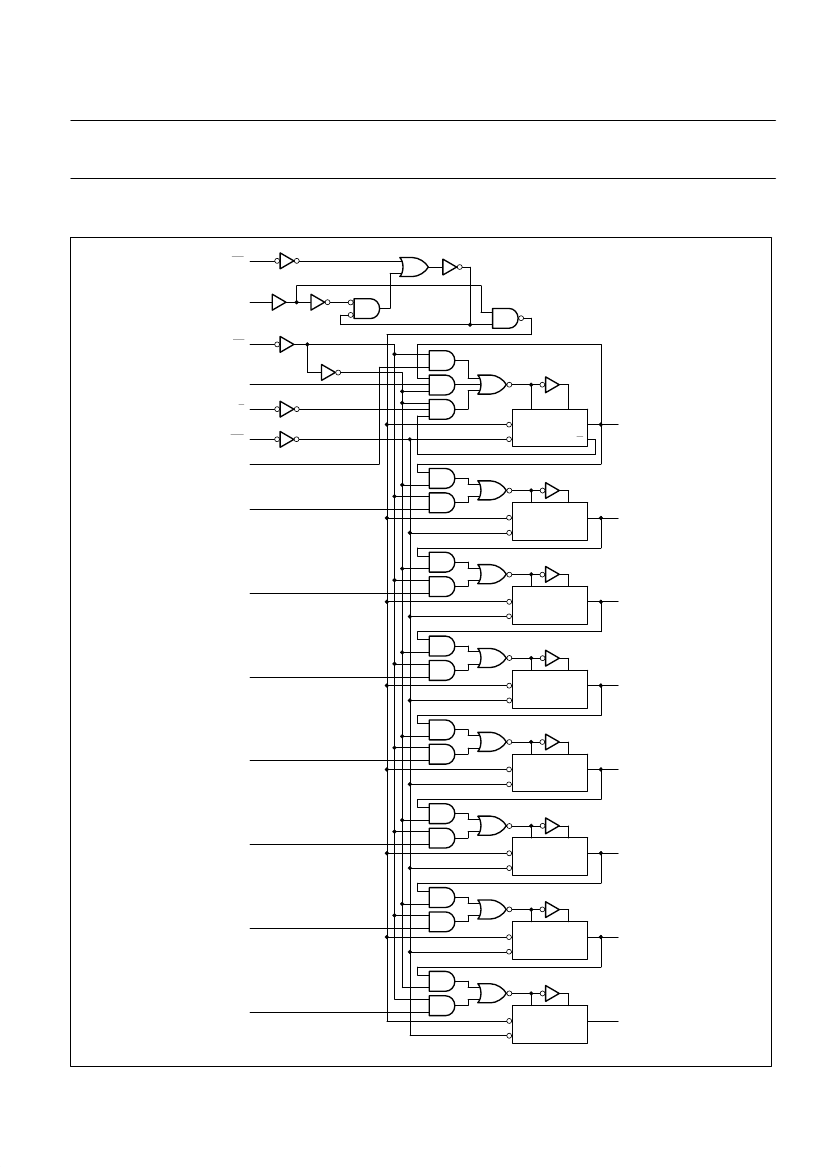

functional characteristics are indicated in the Logic Diagram and
Function Table. The device is useful in a variety of shifting, counting
and storage applications. It performs serial, parallel, serial-to-parallel,
or parallel–to-serial data transfers at very high speeds.
The 74F199 operates in two primary modes: shift right (Q0→Q1)
and parallel load, which are controlled by the state of the Parallel
Enable (PE) input. Serial data enters the first flip-flop (Q0) via the J
and K inputs when the PE input is High, and is shifted one bit in the
direction Q0→Q1→Q2 following each Low-to-High clock transition.
The J and K inputs provide the flexibility of the J-K type input for
special applications, and by tying the two together the simple D-type
input is made for general applications.
The device appears as eight common clocked D flip-flops when the
PE input is Low. After the Low-to-High clock transition, data on the
parallel inputs (D0–D7) is transferred to the respective Q0–Q7
outputs.
All parallel and serial data transfers are synchronous, occurring after
each Low-to-High clock transition. The 74F199 utilizes
edge-triggered, therefore there is no restriction on the activity of the
J, K, Dn, and PE inputs for logic operation, other than the setup and
hold time requirements.
A Low on the Master Reset (MR) input overrides all other inputs and
clears the register asynchronously forcing all bit positions to a Low
state.
PIN CONFIGURATION
K 1
J
D0
Q0
D1
Q1
D2
Q2
D3
2
3
4
5
6
7
8
9
24 V
CC
23 PE
22 D7
21 Q7
20 D6
19 Q6
18 D5
17 Q5
16 D4
15 Q4
14 MR
13 CP
Q3 10
CE 11
GND 12
SF00152
TYPE
74F199
TYPICAL f
MAX
95MHz
TYPICAL
SUPPLY CURRENT
(TOTAL)
70mA
ORDERING INFORMATION
DESCRIPTION
24-pin plastic slim DIP
(300mil)
24-pin plastic SOL
COMMERCIAL RANGE
V
CC
= 5V
±10%,
T
amb
= 0°C to +70°C
N74F199N
N74F199D
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS
D0–D7
J, K
PE
CE
DP
MR
Q0–Q7
DESCRIPTION
Parallel data inputs
J and K inputs
Parallel Enable input
Clock Enable input
Clock Pulse inputs (Active rising edge)
Master Reset input (Active Low)
Data outputs
74F (U.L.) HIGH/LOW
1.0/1.0
1.0/1.0
1.0/1.0
1.0/1.0
1.0/1.0
1.0/1.0
50/33
LOAD VALUE HIGH/LOW
20µA/0.6mA
20µA/0.6mA
20µA/0.6mA
20µA/0.6mA
20µA/0.6mA
20µA/0.6mA
1.0mA/20mA
NOTE:
One (1.0) FAST unit load is defined as: 20µA in the High state and 0.6mA in the Low state.
June 15, 1988
1
853–0082 93568
