LFXTAL066140Cutt datasheet, PDF

Datasheet> All Categories > Passive components> LFXTAL066140Cutt

LFXTAL066140Cutt: CategoryPassive components; File Size172KB，1 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFXTAL066140Cutt Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL066140Cutt	-	-	View	Buy Now

LFXTAL066140Cutt Parametric

Parameter Name	Attribute value
Product Category	Crystals
Manufacturer	IQD
RoHS	Details
Termination Style	SMD/SMT
Package / Case	2 mm x 1.6 mm
Load Capacitance	10 pF
Frequency	25 MHz
Tolerance	20 PPM
Frequency Stability	20 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	2 mm
Width	1.6 mm
Height	0.5 mm
Diameter	-
Packaging	Cut Tape
ESR	100 Ohms
Lead Spacing	-
Mounting Style	SMD/SMT
Product	Crystals
Factory Pack Quantity	500
Type	Quartz Crystal

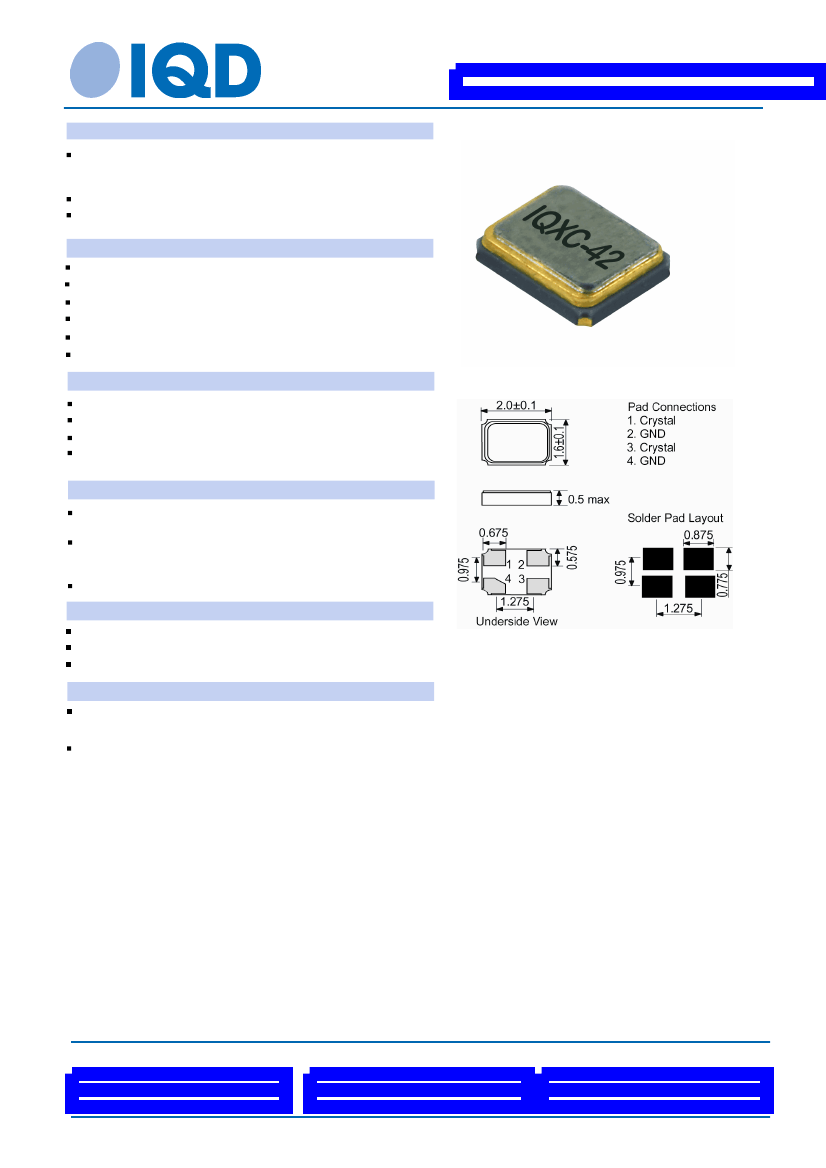

Preview

Download Datasheet

View All

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL066140Bulk

Description

2 x 1.6mm SMD crystal

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

IQXC-42

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

25.0MHz

±20.00ppm

-40.00 to 85.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

10.00pF

3pF max

100µW max

100.00Ω max

Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3

mutually perpendicular planes

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 4 Oct 16 12:40 using Part Data Sheet V1.00014
