LFSPXO056225Cutt datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO056225Cutt

LFSPXO056225Cutt: DescriptionStandard Clock Oscillators 13.0MHz 2.0 x 1.6 x 0.7mm; CategoryPassive components; File Size124KB，1 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO056225Cutt Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO056225Cutt	-	-	View	Buy Now

LFSPXO056225Cutt Overview

Standard Clock Oscillators 13.0MHz 2.0 x 1.6 x 0.7mm

LFSPXO056225Cutt Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	13 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	2.5 V
Output Format	CMOS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	2 mm
Width	1.6 mm
Height	0.7 mm
Packaging	Cut Tape
Factory Pack Quantity	100
Type	SMD Clock Oscillators

Preview

Download Datasheet

View All

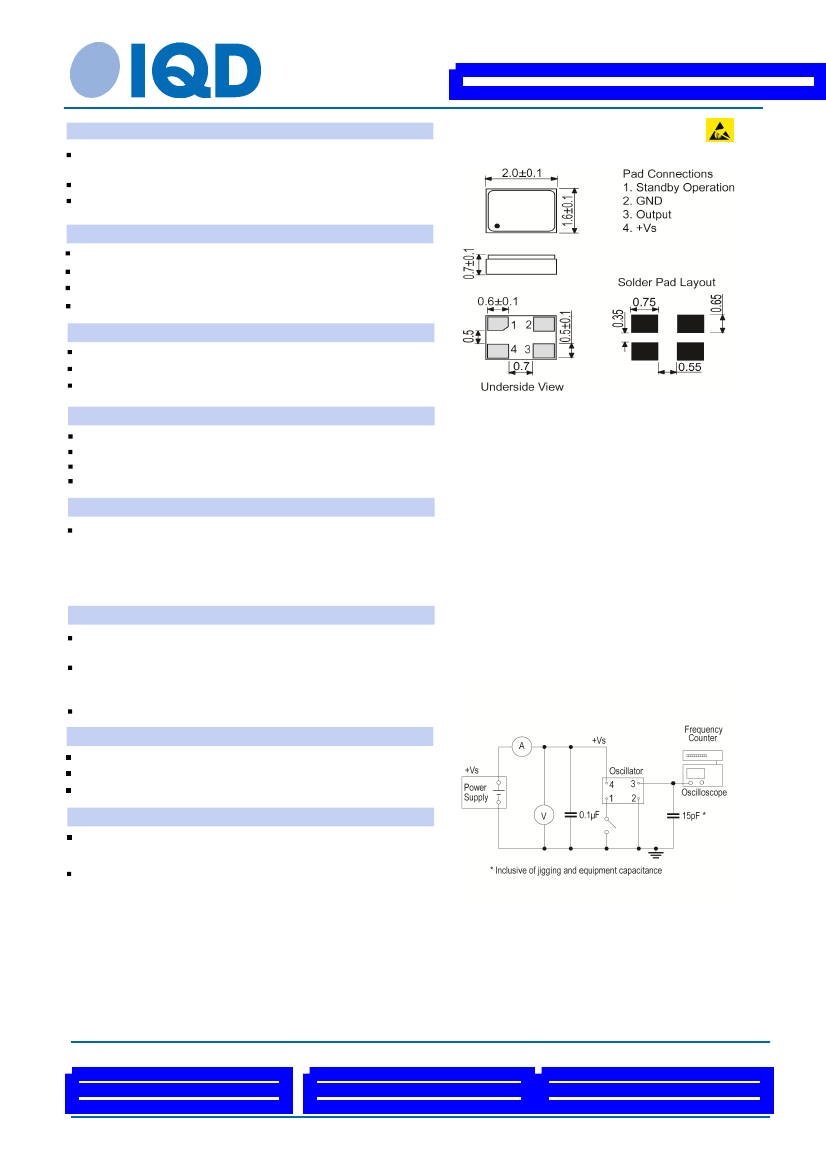

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO056225Cutt

Description

Standard 2 x 1.6 crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed

Model

IQXO-541

Model Issue number

Frequency Parameters

Outline (mm)

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

13.0MHz

±50.00ppm

-40.00 to 85.00°C

±5ppm

2.5V ±10%

Supply Voltage

Current Draw

4.00mA

Standby Current: 10μA max (pad 1 at logic '0')

Output Details

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

45/55%

Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables

oscillator output

Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Impact: Weight of 10g dropped to centre of part from a height

of 6mm

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –40 to 85°C

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

In tape, cut from a reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1
