LFSPXO025224Reel datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO025224Reel

LFSPXO025224Reel: DescriptionStandard Clock Oscillators 27MHz 1.8V 50ppm -40C +85C; CategoryPassive components; File Size696KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO025224Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO025224Reel	-	-	View	Buy Now

LFSPXO025224Reel Overview

Standard Clock Oscillators 27MHz 1.8V 50ppm -40C +85C

LFSPXO025224Reel Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	27 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	1.8 V
Supply Voltage - Min	1.71 V
Supply Voltage - Max	1.89 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	7.2 mm
Width	5.2 mm
Height	1.4 mm
Packaging	Reel
Packaging	Cut Tape
Packaging	MouseReel
Current Rating	6 mA
Duty Cycle - Max	60 %
Factory Pack Quantity	1000
Type	Crystal Oscillator

Preview

Download Datasheet

View All

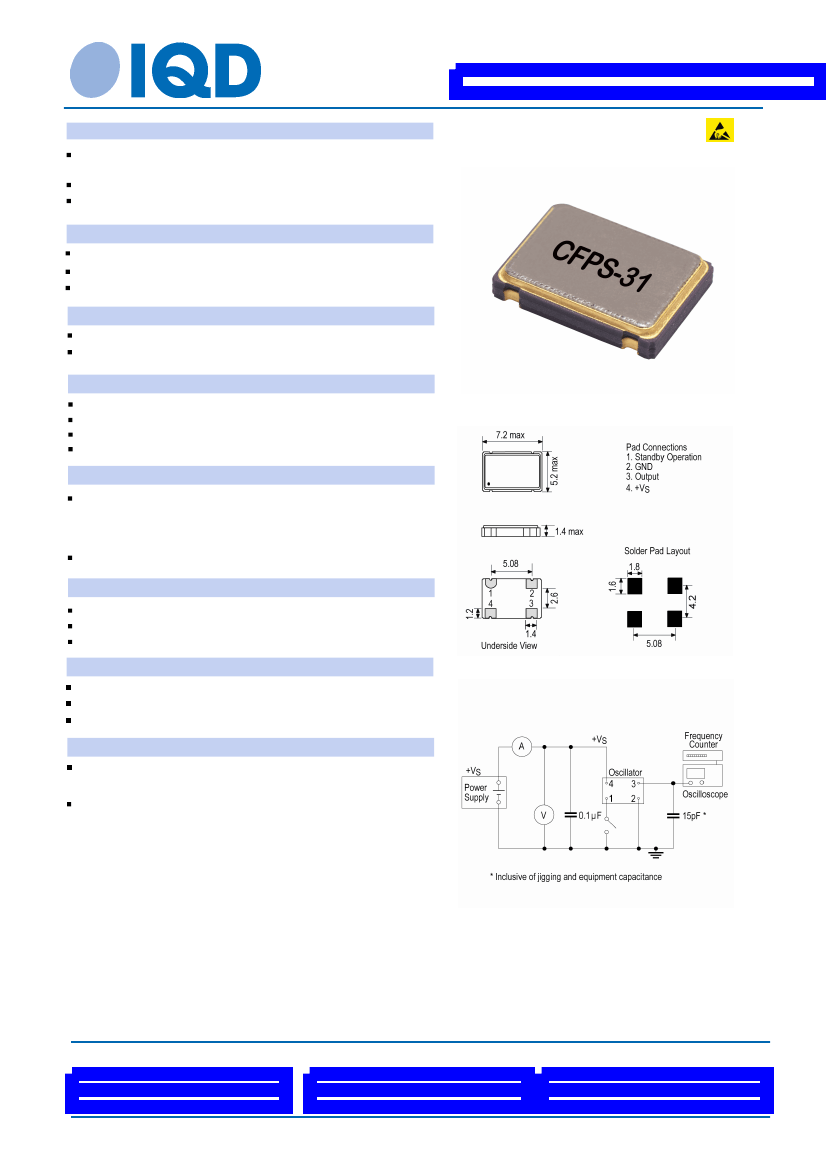

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO025224Reel

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

CFPS-31

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

27.0MHz

±50.00ppm

-40.00 to 85.00°C

Supply Voltage

Current Draw

Output Details

1.8V ±5%

6.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
