Document 924-1
Miniature Transformers

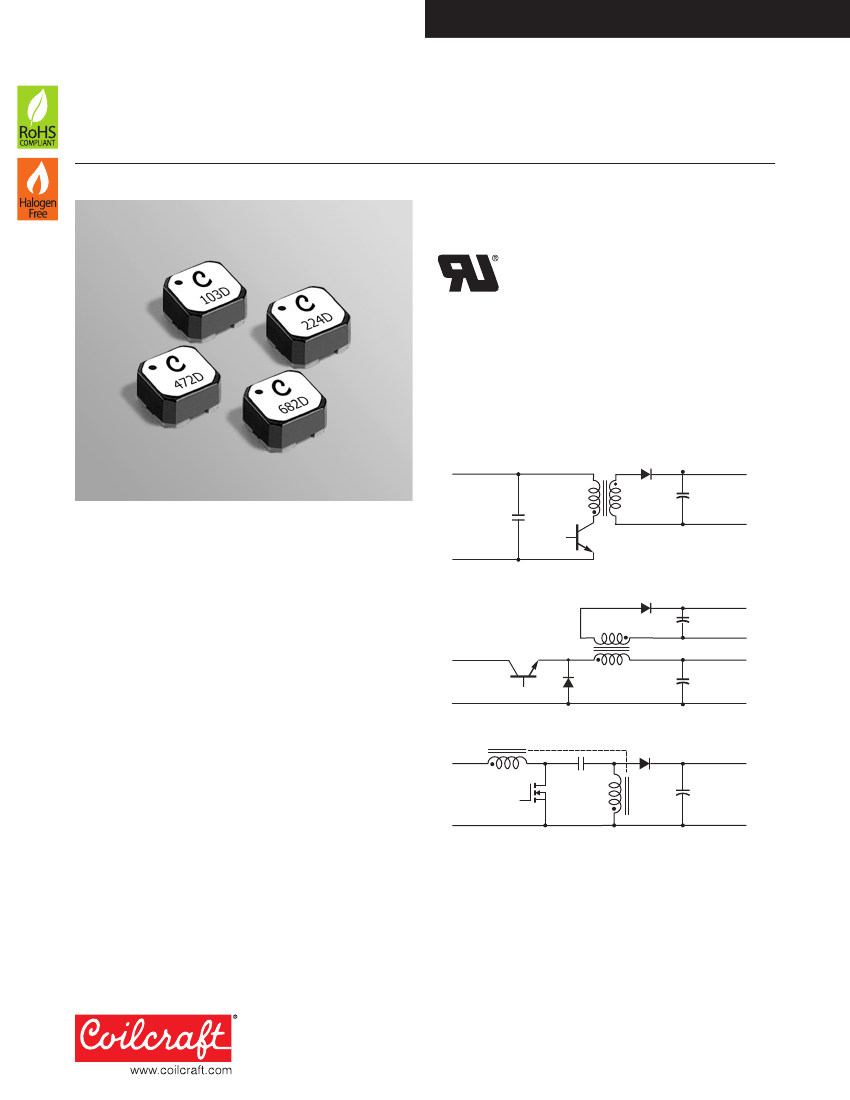

LPD5030V
With 1500 Vdc (1000 Vrms) isolation and a small pack-
age size, the LPD5030V series is ideal for use in high
density isolated circuit applications.
Functional Safety Listed by UL.
Functional
insulation class for TNV-1 to SELV applica-
tions. Functional insulation with a maximum
60 Vdc, 42.4 V peak input/output voltages with working
voltages up to 210 Vdc. (Report #E219588-A6)
These miniature transformers provide tight coupling, high
inductance and excellent current handling.
They can be used as
• Flyback transformers
• Coupled inductors in SEPIC applications
• Common mode filter chokes.
+
+
L1
L2
D
C
V
OUT
Core material
Ferrite
Core and winding loss
Go to online calculator
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
210 – 225 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
PCB washing
Tested with pure water or alcohol only. For other
solvents, see
Doc787_PCB_Washing.pdf.
V
IN
C
SW
–
–
Typical Flyback Converter
+
C
V
OUT
L2
+
V
IN
SW
D
D
–
+
AUX
L1
C
V
OUT
–
Typical Buck Converter with auxiliary output
D
–
+
L1
V
IN
+
C
V
OUT
C1
Q
L2
–
Refer to Application Note, Document 639,
“Selecting Coupled Inductors for SEPIC Applications”
Typical SEPIC schematic
–
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 924-1
Revised 06/14/13
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 924-2
LPD5030V Transformers for Flyback Applications
Part number
1
LPD5030V-472ME_
LPD5030V-682ME_
LPD5030V-103ME_
LPD5030V-333ME_
LPD5030V-154ME_
LPD5030V-224ME_
Inductance
at 0 A
2
±20% (µH)
4.7
6.8
10
33
150
220
Inductance
at
Ipk
3
±20% (µH)
3.3
4.7
7.0
23
105
154
DCR
imax
4
(Ohms)
0.322
0.395
0.490
0.895
3.82
5.25
Leakage
inductance
5
typ (µH)
0.109
0.109
0.130
0.195
0.456
0.541
Isolation
6
(Vrms)
1000
1000
1000
1000
1000
1000
Turns
ratio
1
:
1
1
:
1
1
:
1
1
:
1
1
:
1
1
:
1
Ipk
3
(A)
1.90
1.55
1.30
0.67
0.31
0.24
1. When ordering, please specify
packaging
code:
LPD5030V-224MEC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (2500 parts per
full reel).
2. Inductance is for the primary, measured at 100 kHz, 0.1 Vrms, 0 Adc on
an Agilent/HP 4284A LCR meter or equivalent.
3. Peak primary current drawn at minimum input voltage.
4. DCR is for each winding.
5. Leakage inductance is for the primary winding with the secondary wind-
ings shorted.
6. Designed to provide Functional Insulation only; does not protect against
electrical shock; nor intended for the isolation of SELV circuits from
Hazardous Voltage circuits.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
LPD5030V Coupled Inductors for SEPIC Applications
Part number
1
LPD5030V-472ME_
LPD5030V-682ME_
LPD5030V-103ME_
LPD5030V-333ME_
LPD5030V-154ME_
LPD5030V-224ME_
Inductance
2
±20% (µH)
4.7
6.8
10
33
150
220
DCR
max
3
(Ohms)
0.322
0.395
0.490
0.895
3.82
5.25
SRF Coupling
Leakage
typ
4
coefficient inductance
5
Isolation
6
(MHz)
typ
typ (µH)
(Vdc)
55.0
49.9
37.1
19.2
8.1
6.5
0.97
0.97
0.97
0.98
0.98
>0.99
0.109
0.109
0.130
0.195
0.456
0.541
1500
1500
1500
1500
1500
1500
Isat
(A)
7
10%
20% 30%
drop drop drop
1.45
1.30
1.10
0.49
0.25
0.16
1.70
1.50
1.20
0.59
0.29
0.21
1.90
1.55
1.30
0.67
0.31
0.24
Irms
(A)
both
one
windings
8
winding
9
0.65
0.59
0.54
0.43
0.18
0.16
0.92
0.83
0.76
0.61
0.25
0.22
1. When ordering, please specify
packaging
code:
LPD5030V-224MEC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (2500 parts per
full reel).
2. Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms,
0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads
are connected in parallel, inductance is the same value. When leads
are connected in series, inductance is four times the value.
3. DCR is for each winding. When leads are connected in parallel, DCR is half
the value. When leads are connected in series, DCR is twice the value.
4. SRF measured using an Agilent/HP 4191A or equivalent. When leads
are connected in parallel, SRF is the same value.
5. Leakage Inductance is for L1 and is measured with L2 shorted.
6. Designed to provide Functional Insulation only; does not protect against
electrical shock; nor intended for the isolation of SELV circuits from
Hazardous Voltage circuits.
7. DC current, at which the inductance drops the specified amount from
its value without current. It is the sum of the current flowing in both
windings.
8. Equal current when applied to each winding simultaneously that causes a
40°C temperature rise from 25°C ambient. See temperature rise calculation.
9. Maximum current when applied to one winding that causes a 40°C
temperature rise from 25°C ambient. See temperature rise calculation.
10. Electrical specifications at 25°C.
Refer to Doc 639 “Selecting Coupled Inductors for SEPIC Applications.”
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Coupled Inductor Core and Winding Loss Calculator
This web-based utility allows you to enter frequency, peak-to-peak
(ripple) current, and
Irms
current to predict temperature rise and
overall losses, including core loss.
Go to online calculator.

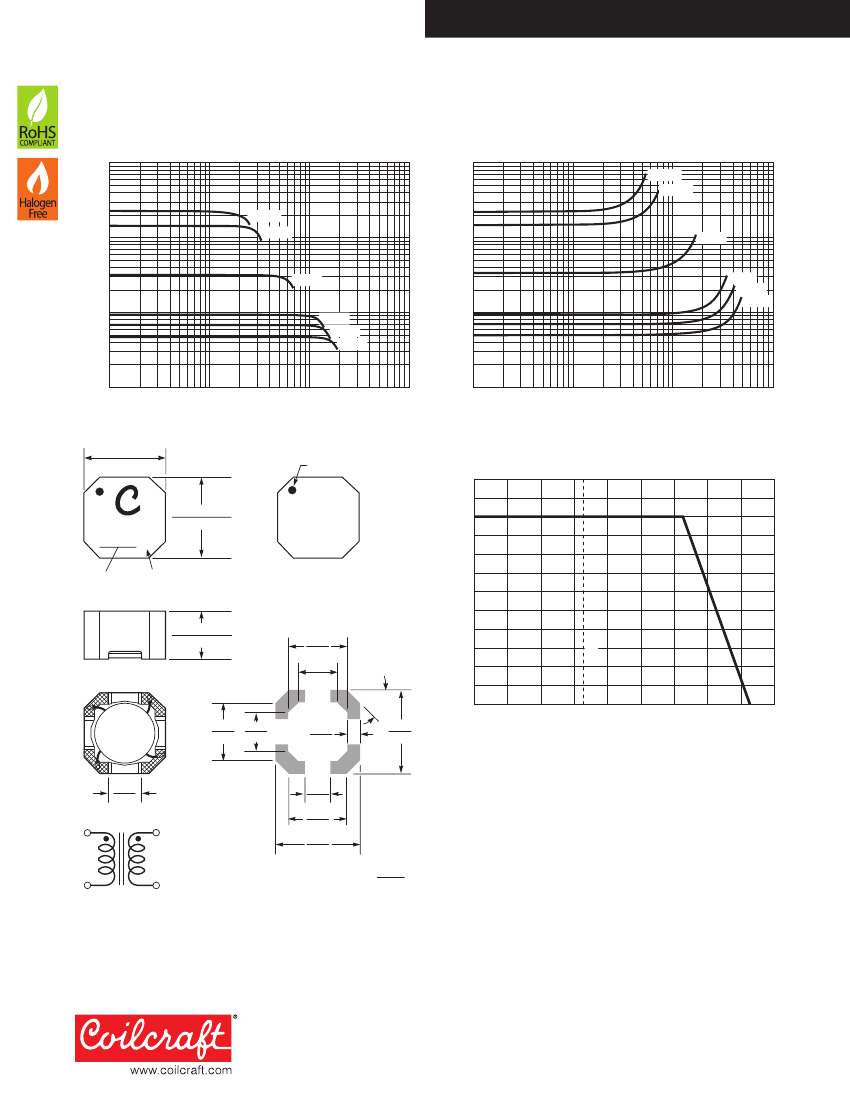

These parts are preproduction products for electrical evaluation only. Document 924-2 Revised 06/14/13
