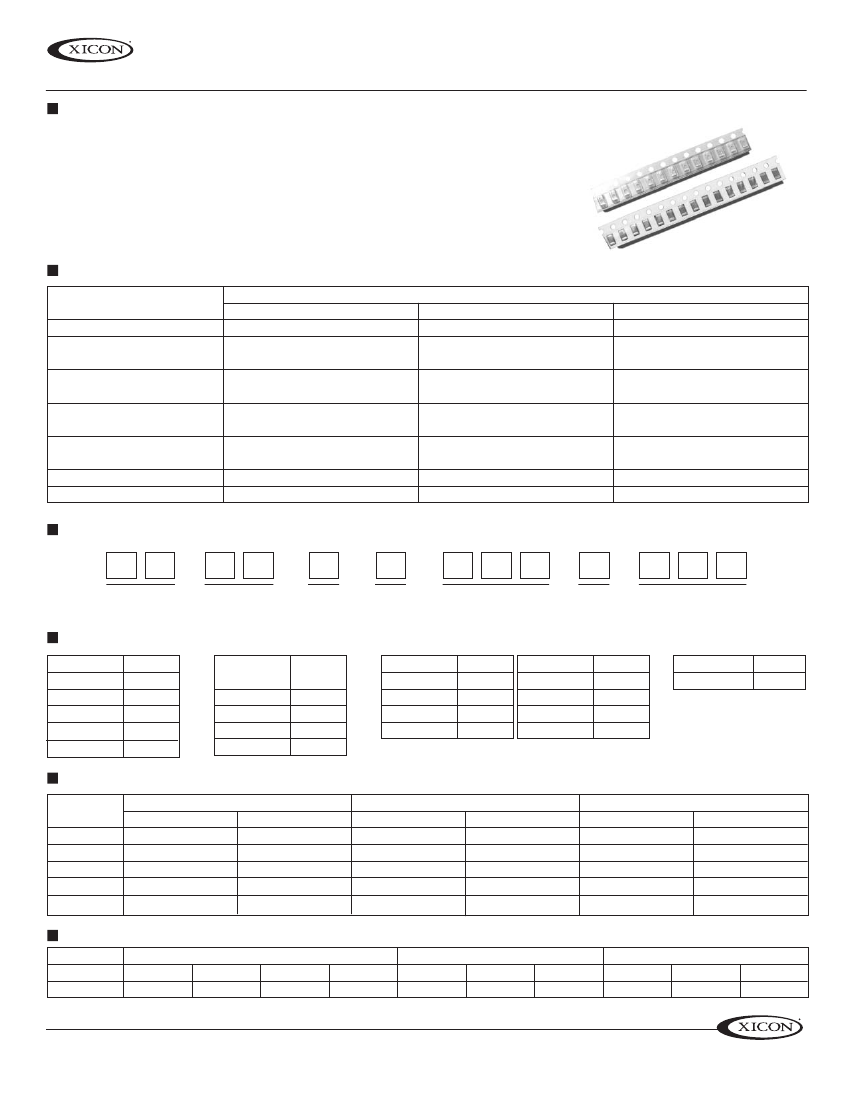

Ceramic Chip Capacitors
FEATURES
•
•
•
•
•
•
•
•
High reliability
Small size with high dielectric constant
Low inductance
Popular temperature coefficients available
Wide operating temperature range
High insulation resistance
Case sizes: 0603, 0805, 1206, 1210
RoHS Compliant
CC Series
CHARACTERISTICS
Item
Operating Temperature Range
Temperature Coefficient
Measuring Conditions for
Capacitance and D.F.
Dissipation Factor and Tangent
of Loss Angle (Tan
δ)
Insulation Resis. After 60 sec.
Charging at Rated Voltage 25°C
Voltage Test 25°C
Capacitance Aging
NPO / COG
-55°C ~ +125°C
±30ppm/°C for C>20pF
+120ppm, -40ppm/°C for C≤20pF
1MHz, 1Vrms for C≤1,000pF
1KHz, 1Vrms for C>1,000pF
≥0.001 for C≥50pF
≤1.5(150/C + 7) x 10
-2
for C<50pF
≥100GΩ or ≥1,000MΩ(C)
whichever is less
2.5 x rated voltage
0
Characteristics
X7R
-55°C ~ +125°C
∆C
±15% maximum
over -55°C +125°C
1KHz, 1Vrms
≤0.025
≥100GΩ or ≥1,000MΩ(C)
whichever is less
2.5 x rated voltage
=1.5% per decade hour
Z5U
-25°C ~ +85°C
∆C
±56%-22% maximum
over +10°C +85°C
1KHz, 0.3Vrms
≤0.030
≥10GΩ or ≥1,000MΩ(C)
whichever is less
2.5 x rated voltage
=5% per decade hour
PART NUMBERING SYSTEM
C
C
5
0
2
Case
Size
N
Temperature
Coefficient
1
0
Value
1
J
Tolerance
-
R
Suffix
C
Series
Voltage
CODES FOR CASE SIZE, TEMPERATURE COEFFICIENT, AND TOLERANCE
Case Size
0805
1206
1210
0603
0402
Code
1
2
3
4
5
Temperature
Coefficient
NPO / COG
X7R
Z5U
Y5V
Code
N
B
Z
V
Tolerance
±0.25pF
±0.5pF
±5%
±10%
Code
C
D
J
K
Tolerance
±20%
+80% -20%
+100% -0%
GMV
Code
M
Z
P
V
Suffix
RoHS
Code
-RC
For capacitance values below 10pF, use C or D.
GMV = Guaranteed Minimum Value
CAPACITANCE RANGES
Case Size
0603
0805
1206
1210
0402
NPO / COG
50V
1.0pF~470pF
1.0pF~1500pF
1.0pF~3900pF
4700pF~8200pF
1.0pF~220pF
100V
1.0pF~1000pF
1.0pF~2700pF
3300pF~5600pF
50V
100pF~0.01µF
100pF~0.1µF
100pF~0.1µF
0.12µF~0.22µF
220pF~1000pF
X7R
100V
100pF~.022µF
100pF~.047µF
.047µF~0.1µF
Z5U (0805, 1206, 1210) / Y5V (0603)
50V
100V
0.01µF~0.1µF
---
2700pF~0.15µF
---
8200pF~0.47µF
0.22µF~0.68µF
---
---
TOLERANCE AVAILABLE
Availability
Tolerance
Capacitance
±0.25pF
<5pF
NPO / COG
±0.5pF
±2%
≤10pF
>13pF
±5%
≥10pF
±5%
All Values
X7R
±10%
All Values
±20%
All Values
±20%
All Values
Z5U
+80% -20% +100% -0%
All Values
All Values
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600124
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Date Revised: 4/6/06
Ceramic Chip Capacitors
DIMENSIONS
CC Series
Configuration:
Terminations (nickel barrier)
Reel Dimensions (mm):
Reel Quantity: 4,000 per Reel
L
W
T
E
E
Termination
Electrodes
Termination
Electrodes
Silver metalization
Nickel barrier layer
Solder plated layer
ø13
±0.5
50 178
min.
±2.0
10
±1
Case Size
0603
0805
1206
1210
0402
L (length)
1.52 ±0.2
2.0 ±0.2
3.2 ±0.2
3.2 ±0.2
1.0 ±0.2
W (width)
0.8 ±0.2
1.2 ±0.2
1.6 ±0.2
2.5 ±0.2
0.5 ±0.2
Dimensions (mm)
T (thickness) max.
.65
1.0
1.25
1.3
.35
E (termination)
0.5 ±0.2
0.5 ±0.2
0.5 ±0.2
0.5 ±0.2
0.4 ±0.2
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600124
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Date Revised: 4/6/06
