DS-DSS-313
Two-Way Power Divider
10-2000MHz
Features
Fully Hermetic Package
Loss: 0.6 dB Typical Mid-band
Isolation: 28 dB Typical Mid-band
VSWR: 1.2:1 Typical Mid-band
Impedance: 50 Ohms Nominal
Maximum Power Rating or Input Power: 250 mW
Max.
Internal Load Dissipation: 50 mW Max.
MIL-STD-202 Screening Available
Rev. V3

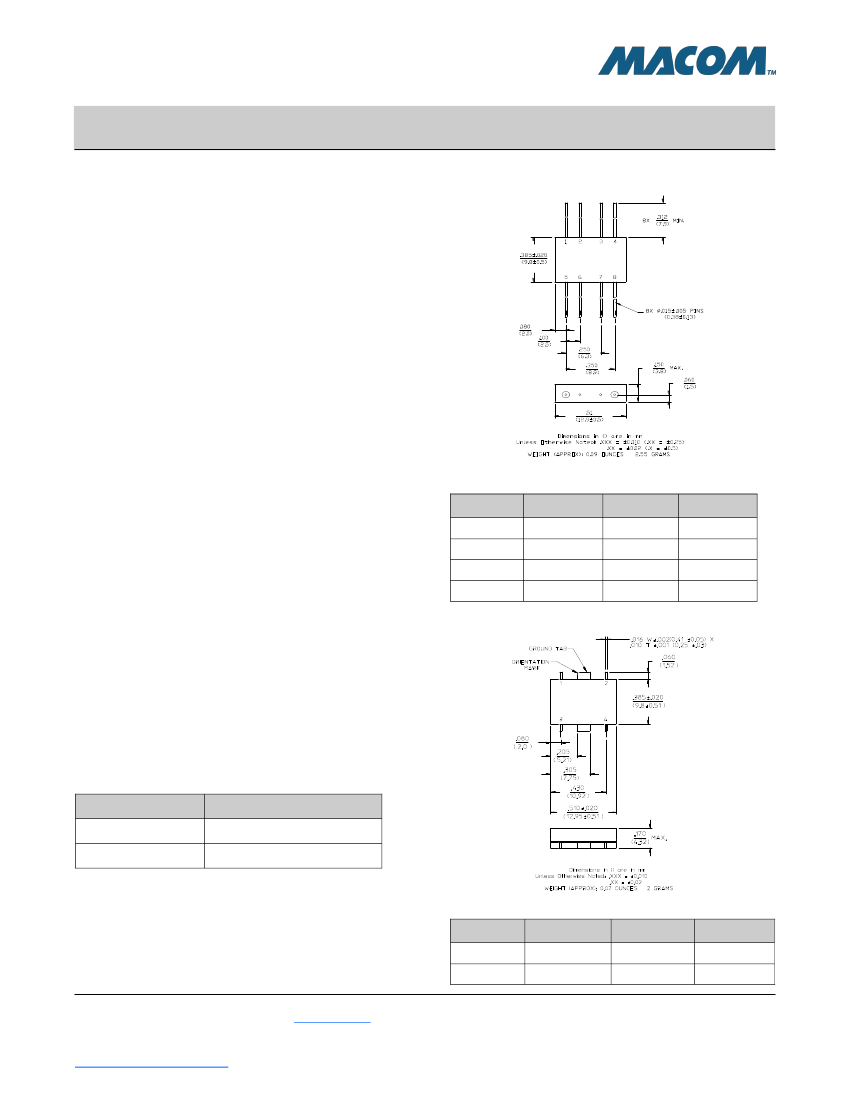

FP-2 (DS-313)
Description
A Power Divider is ideally a lossless reciprocal
device which can also perform vector summation of
two or more signals and thus is sometimes called a
power combiner or summer.
Pin Configuration (DS-313)
Pin No.
1
2
3
4
Function
GND
GND
Output C
Pin No.
5
6
7
8
Function
GND
GND
GND
Output D
SF-1 (DSS-313)
Ordering Information
Part Number
DS-313 PIN
DSS-313 PIN
Package
FP-2
SF-1
Pin Configuration (DSS-313)
Pin No.
1
1
2
Function
Output C
Pin No.
3
4
Function
GND
Output D
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-DSS-313
Two-Way Power Divider
10-2000MHz
DS-313 Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Insertion Loss
Test Conditions
Less Coupling
Frequency
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
°
°
°
Ratio
Ratio
Ratio
Min
—
—
—
23
18
12
—
—
—
—
—
—
—
—
—
Typ
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Max
1.1
1.3
1.8
—
—
—
0.3
0.4
0.6
4
6
8
1.5:1
1.6:1
1.8:1
Rev. V3
Isolation
—
Amplitude Balance
—
Phase Balance
—
VSWR
All Ports
DSS-313 Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Insertion Loss
Test Conditions
Less Coupling
Frequency
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
20 - 1000 MHz
10 - 1500 MHz
1500 - 2000 MHz
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
°
°
°
Ratio
Ratio
Ratio
Min
—
—
—
22
18
12
—
—
—
—
—
—
—
—
—
Typ.
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Max
1.1
1.3
1.8
—
—
—
0.3
0.4
0.6
5
8
11
1.5:1
1.6:1
1.8:1
Isolation
—
Amplitude Balance
—
Phase Balance
—
VSWR
All Ports
1. All specifications apply with 50 ohm source and load impedance.
