UBX1C102MHL1TN

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 1000uF
CategoryPassive components    capacitor
File Size942KB，2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric Compare View All

UBX1C102MHL1TN Online Shopping

Suppliers Part Number Price MOQ In stock
UBX1C102MHL1TN - - View Buy Now

UBX1C102MHL1TN Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 1000uF

UBX1C102MHL1TN Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1171387533
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan
ECCN codeEAR99
YTEOL6.95
capacitance1000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter16 mm
dielectric materialsALUMINUM
length25 mm
Manufacturer's serial numberBX
negative tolerance20%
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package formRadial
method of packingTape
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)16 V
ripple current800 mA
seriesBX
Terminal pitch7.5 mm

Preview

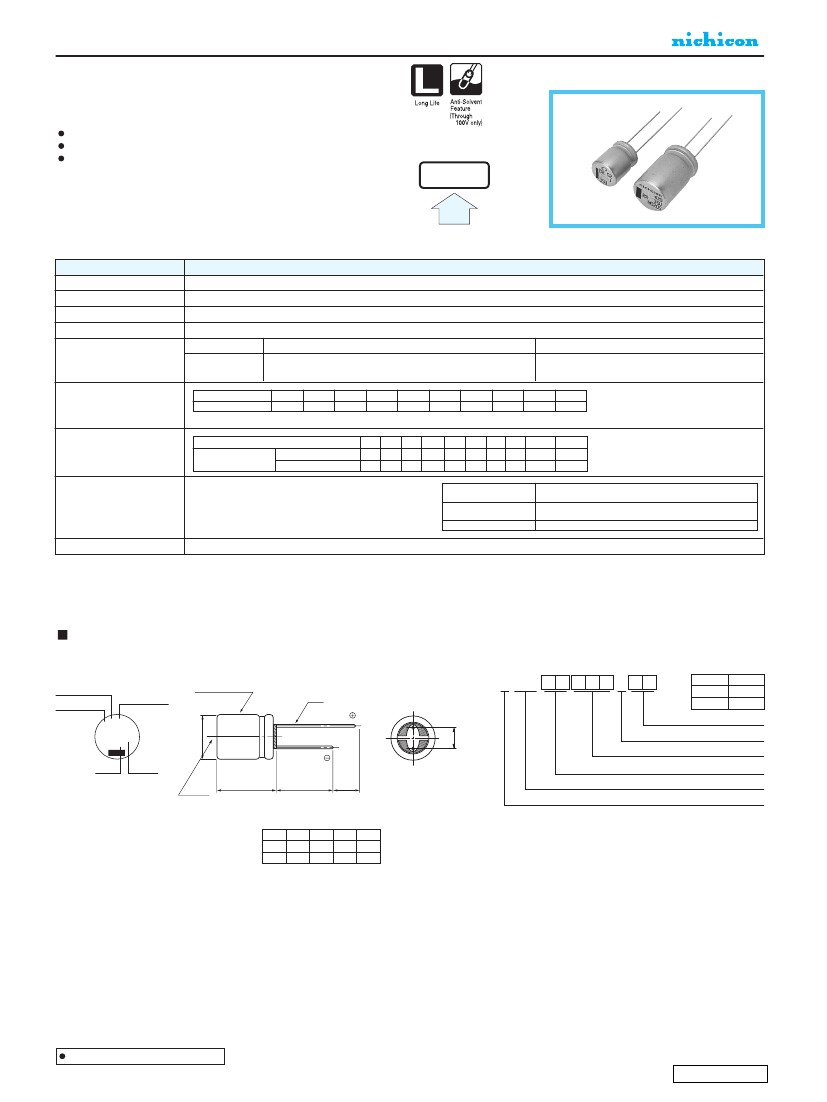

Download Datasheet
ALUMINUM ELECTROLYTIC CAPACITORS
BX
High Temperature Range, For +150°C Use
series
Laminated case series.
Suited for automobile electronics where heavy duty services are indispensable.
Compliant to the RoHS directive (2011/65/EU).
BX
High
Temperature
BW
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
–55 to +150°C (10 to 100V), –40 to +150°C (160
·
200V), –25 to +150°C (350
·
400V)
10 to 400V
1 to 4700µF
± 20% at 120Hz, 20°C
Rated Voltage (V)
Leakage current
10 to 100
After 1 minute's application of rated voltage at 20°C, leakage
current is not more than 0.03CV or 4 (µA), whichever is greater.
160 to 400
< 1000 :
I
= 0.1CV+40 (µA) max.
CV =
CV > 1000 :
I
= 0.04CV+100 (µA) max.
120Hz 20°C
Tangent of loss angle (tan
δ)
10
16
25
35
50
63
80
100
Rated voltage (V)
0.20 0.16 0.14 0.12 0.10 0.10 0.08 0.08
tan
δ
(MAX.)
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
160
·
200 350
·
400
0.20
0.24
Stability at Low Temperature
ZT / Z20 (MAX.)
Z– 40°C / Z+20°C
10
3
4
16
2
4
25
2
4
35
2
4
50
2
4
63
2
4
80 100
160
·
200 350
·
400
2
2
3
6
6
-
4
4
120Hz
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 2000 hours (1000 hours for
φD=10
and 12.5) at 150°C, the peak voltage shall not
exceed the rated voltage.
Black print on the case top.
Capacitance change
tan
δ
Leakage current
Within ±30% of the initial capacitance value (10 to 100V)
Within ±20% of the initial capacitance value (160 to 400V)
300% or less than the initial specified value (10 to 100V)
200% or less than the initial specified value(160 to 400V)
Less than or equal to the initial specified value
Marking
Radial Lead Type
Type numbering system (Example : 10V 3300µF)
1
2
3
4
5
6
7
8
9 10 11
φD
10
12.5 to 18
Code
PL
HL
Rated Capacitance
Trade mark
nichicon
Laminated case
Rated Voltage
φD
+
0.5 MAX.
UB X 1 A 3 3 2 MH L
φ
d
3300
BX 10V
H1001
Configuration
P
±0.5
Capacitance tolerance (±20%)
Rated capacitance (3300µF)
Rated voltage (10V)
Series
Lot No.
Pressure
relief vent
L+
1.5MAX.
15
MIN
4
MIN
Series name
Type
(mm)
φD
P
φd
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
•
Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
