PE-1210FT120JTT datasheet, PDF

Datasheet> All Categories > Passive components> PE-1210FT120JTT

PE-1210FT120JTT: DescriptionFixed Inductors 1210 SMD IND FERRITE; CategoryPassive components; File Size2MB，28 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

PE-1210FT120JTT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-1210FT120JTT	-	-	View	Buy Now

PE-1210FT120JTT Overview

Fixed Inductors 1210 SMD IND FERRITE

PE-1210FT120JTT Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	Pulse A Technitrol Company
RoHS	Details
Inductance	12 nH
Tolerance	5 %
Maximum DC Current	450 mA
Maximum DC Resistance	140 mOhms
Product	RF Inductors
Shielding	Unshielded
Termination Style	SMD/SMT
Package / Case	1210 (3225 metric)
Length	3.4 mm
Width	2.41 mm
Height	2.41 mm
Case Code - in	1210
Case Code - mm	3225
Q Minimum	17
Self Resonant Frequency	2300 MHz
Factory Pack Quantity	2000
Unit Weight	0.000564 oz

Preview

Download Datasheet

View All

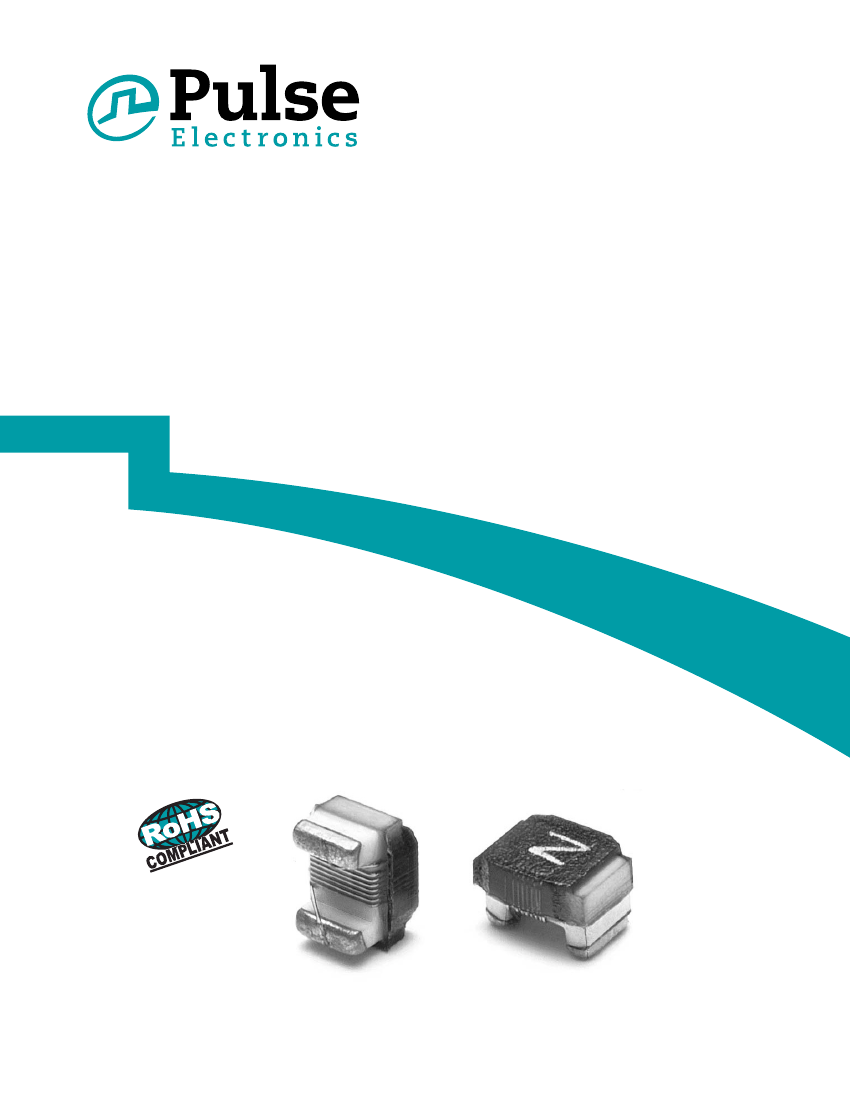

RF Chip Inductors

Wire-Wound - 0402, 0603, 0805, 1008, 1206

Pulse Electronics - leading supplier of magnetics for consumer applications

Table of Contents

The 0402 to 1206 series range of Miniature Chip Inductors contains the very latest in wire-wound technology and

Ceramic or Ferrite Core, thus providing the ultimate in performance demanded by today's Wireless products. The

Inductors provide high Q and SRFs in an industry standard size and footprint. Pulse chip inductors manufactured

after February 2005 are in compliance with RoHS requirements.

Part Number Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Performance Specifications

Environmental Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mechanical Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Tape and Reel Specification . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Miniature Wire-wound RF Chip Inductors

0402CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

0603CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

0805CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-13

0805CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

0805FT Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

1008CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20

1008CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

1008CQ Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24

1206CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..25-27

Pulse Jack

WC701.O (01/15)

www.pulseelectronics.com
