54794002X5R471M datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 54794002X5R471M

54794002X5R471M: DescriptionEMI Feedthrough Filters 470PF 250V 25A; CategoryAnalog mixed-signal IC filter; File Size336KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

54794002X5R471M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54794002X5R471M	-	-	View	Buy Now

54794002X5R471M Overview

EMI Feedthrough Filters 470PF 250V 25A

54794002X5R471M Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
filter type	FEED THROUGH CAPACITOR
Base Number Matches	1

Preview

Download Datasheet

View All

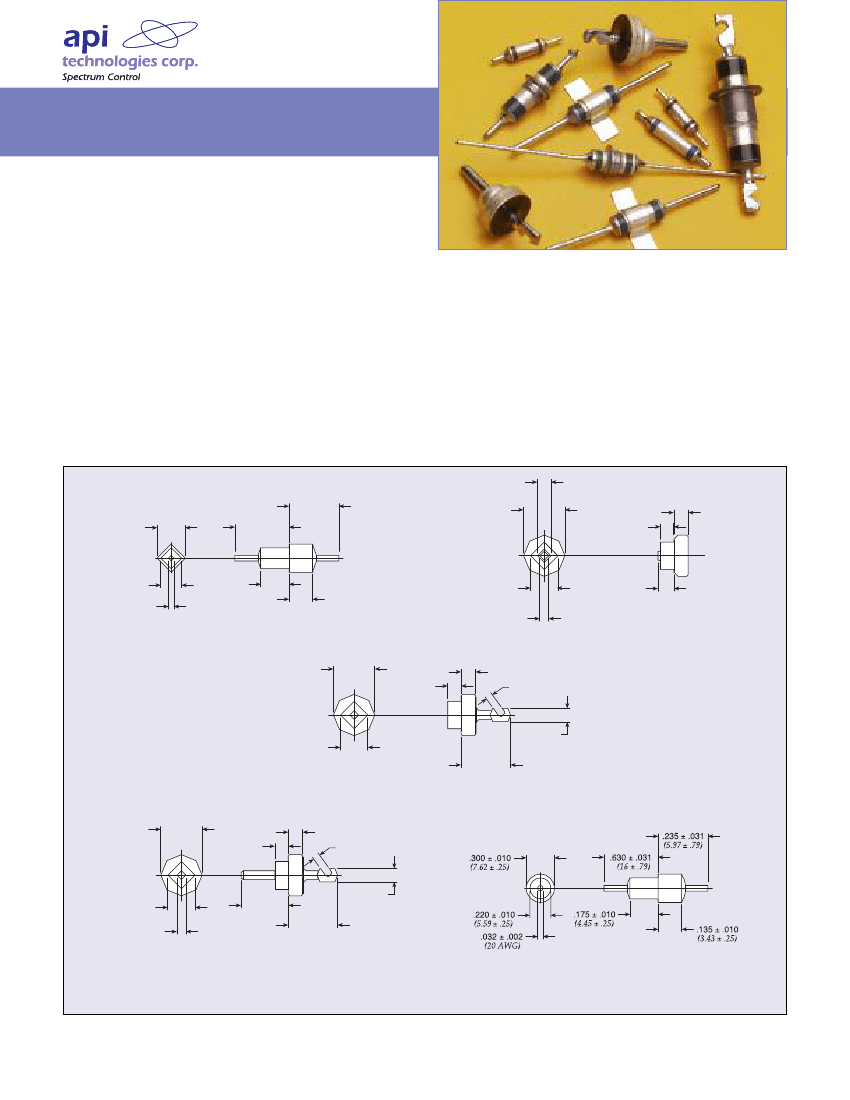

Solder-in Filters

Solder-in filters are ideal for use in critical areas where

space does not allow use of mounting tools or hardware.

The solder-in feature also allows installation in unison

with other board mounted components. Primarily used

in filtering signal/data lines and DC power lines.

Features

Small size to allow effective use of space

Voltage ratings to 750 VDC

Multiple circuit configurations: C, L & Pi available

High temperature construction to prevent reflow during installation

MIL-F-15733 QPL versions available

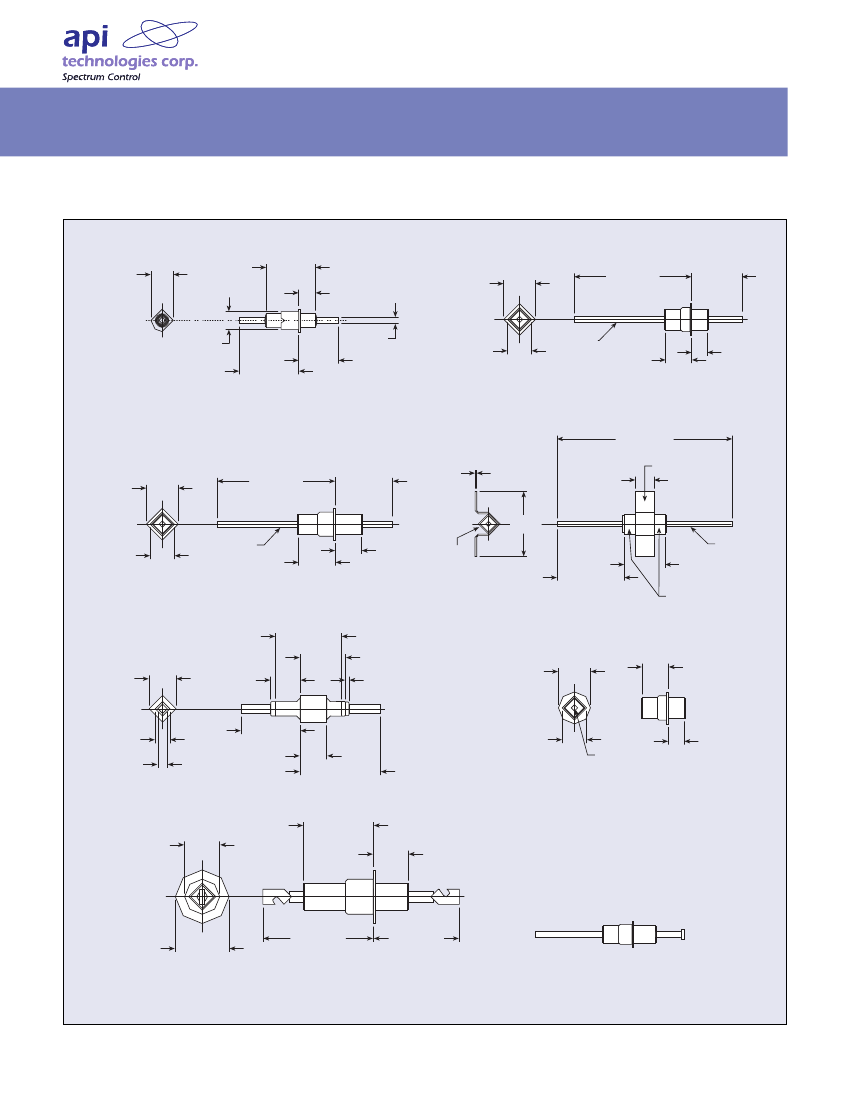

ø .062

.005

(ø 1.59

.13)

.359

.015

(9.11

.38)

ø B

.015

(ø B

.38)

.390

.030

(9.91

.76)

ø .281

.015

(ø 7.14

.38)

.093

.015

(2.38

.38)

.093

.015

(2.38

.38)

ø A Max.

(ø A Max.)

ø .040

.005

(ø 1.02

.13)

.203

.015

(5.15

.38)

.170

.030

(4.34

.76)

ø .190 Max.

(ø 4.83)

ø .044

.005

(ø 1.12

.13)

.140 Max.

(3.57 Max.)

Figure 1

ø .281

.015

(ø 7.14

.38)

Figure 2

.093

.015

(2.38

.38)

.05

.01

(1.27

.25)

.093

.015

(2.38

.38)

ø .190 Max.

(ø 4.83)

.343

.030

(8.73

.76)

.093

.015

(2.38

.38)

Figure 3

ø .281

.015

(ø 7.14

.38)

.093

.015

(2.38

.38)

.05

.01

(1.27

.25)

.093

.015

(2.38

.38)

ø .190 Max.

(ø 4.83)

ø .062

.005

(ø 1.59

.13)

.328

.030

(8.33

.76)

.343

.030

(8.73

.76)

.093

.015

(2.38

.38)

Figure 4

Figure 5

Dimensions in inches

(mm)

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
