LFXTAL072330BULK

Description
Crystals 16MHz 10pF -40C 85C
CategoryPassive components
File Size122KB,1 Pages
ManufacturerIQD
Download Datasheet Parametric View All

LFXTAL072330BULK Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL072330BULK - - View Buy Now

LFXTAL072330BULK Overview

Crystals 16MHz 10pF -40C 85C

LFXTAL072330BULK Parametric

Parameter NameAttribute value
Product CategoryCrystals
ManufacturerIQD
RoHSDetails
Termination StyleSMD/SMT
Package / Case4 mm x 2.5 mm
Load Capacitance10 pF
Frequency16 MHz
Tolerance10 PPM
Frequency Stability15 PPM
Drive Level100 uW
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Length4 mm
Width2.5 mm
Height0.7 mm
Diameter-
PackagingBulk
ESR80 Ohms
Lead Spacing-
Mounting StyleSMD/SMT
ProductCrystals
Factory Pack Quantity100
TypeQuartz Crystal

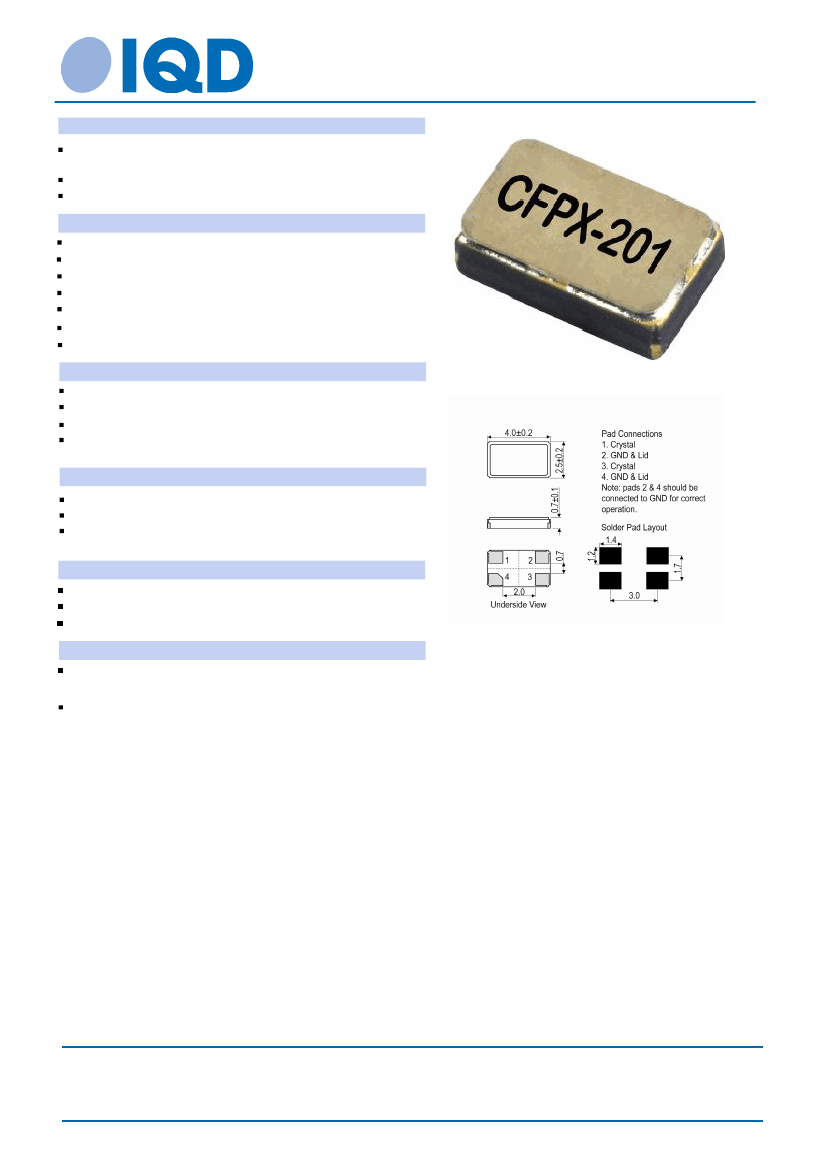

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL072330BULK
Description
4 x 2.5mm SMD crystal in a hermetically sealed ceramic
package with a seam sealed metal lid.
Model
CFPX-201
Model Issue number
4
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
16.0MHz
±10.00ppm
@ 25°C
±
15.00ppm
-40.00 to 85.00°C
Fundamental
± 3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
10.00pF
5pF max
100µW max
80.00Ω max
Storage Temperature Range: -40°C to 90°C
Drop: 75cm drop (3 times) onto hard wooden board.
Vibration: 1.5mm amplitude, 10Hz-55Hz, 1min in 3 mutually
perpendicular planes, duration 2hrs each plane.
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 10 May 16 9:09 using Part Data Sheet V1.00014
