LAE1BCHIP0603KFE96 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LAE1BCHIP0603KFE96

Preview

LAE1BCHIP0603KFE96: DescriptionResistor Kits 122x100 E96 1 100ppm 10R-1M +JUMPER; CategoryPassive components; File Size68KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

LAE1BCHIP0603KFE96 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LAE1BCHIP0603KFE96	-	-	View	Buy Now

LAE1BCHIP0603KFE96 Overview

Resistor Kits 122x100 E96 1 100ppm 10R-1M +JUMPER

LAE1BCHIP0603KFE96 Parametric

Parameter Name	Attribute value
Product Category	Resistor Kits
Manufacturer	Vishay
RoHS	Details
Product	Thick Film Resistor SMD Kit
Resistance Range	10 Ohms to 1 MOhms + Jumper
Power Rating	100 mW
Tolerance	1 %
Temperature Coefficient	100 PPM / K
Voltage Rating	75 V
Termination Style	SMD/SMT
Package / Case	0603 (1608 metric)
Packaging	Bulk
Features	122 x 50 pieces
Factory Pack Quantity	1
Type	Thick Film Chip Resistors Engineering Design Kit
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

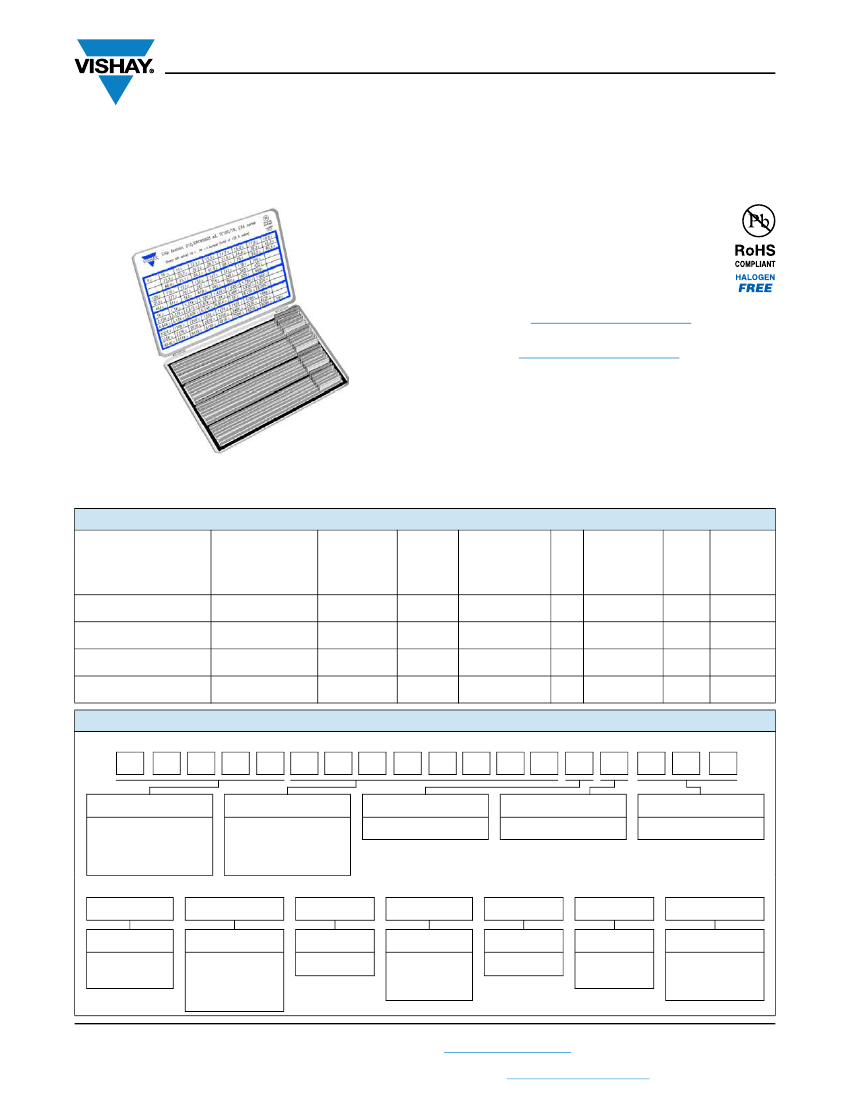

D/CRCW e3 - Sample Kit

www.vishay.com

Vishay

Sample Kit

Standard Thick Film Chip Resistors

D/CRCW 100 1 % e3

FEATURES

• The kits contain 1/4 E96 series

• The values specified ± 1 % tolerance

and ± 100 ppm/K

• AEC-Q200 qualified

• For further information refer to datasheet

D/CRCW e3:

www.vishay.com/doc?20035

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

The commercial-off-the-shelf thick film chip resistors are

now conveniently taped in strips, individually labeled and

packaged in new engineering design kits

MINILABS, STANDARD ELECTRICAL SPECIFICATIONS

PART NUMBER

PRODUCT

LIMITING

RATED

ELEMENT TEMPERATURE

RESISTANCE

TOL.

QUANTITY

DISSIPATION

VOLTAGE COEFFICIENT

RANGE

SERIES

%

PIECES

P

70

U

max.

ppm/K



W

AC/DC

10R to 1M

0.063

50

± 100

±1

1/4 E96 122 x 100

+ Jumper

10R to 1M

0.10

75

± 100

±1

1/4 E96 122 x 50

+ Jumper

10R to 1M

0.125

150

± 100

±1

1/4 E96 122 x 50

+ Jumper

10R to 1M

0.25

200

± 100

±1

1/4 E96 122 x 50

+ Jumper

LAE1ACHIP0402KFE96

LAE1BCHIP0603KFE96

LAE1CCHIP0805KFE96

LAE1DCHIP1206KFE96

D10/CRCW0402 e3

D11/CRCW0603 e3

D12/CRCW0805 e3

D25/CRCW1206 e3

PART NUMBER AND PRODUCT DESCRIPTION

PART NUMBER: LAE1ACHIP0402KFE96

L

A

E

1

A

C

H

I

P

0

4

0

2

K

F

E

9

6

MODEL

LAE 1A

LAE 1B

LAE 1C

LAE 1D

PRODUCT

CHIP

RESISTOR

0402

CHIP

RESISTOR

0603

CHIP

RESISTOR

0805

CHIP

RESISTOR

1206

TCR

K

= ± 100 ppm/K

TOLERANCE

F

=±1%

SERIES

1/4

E96

PRODUCT DESCRIPTION: LAB D10/CRCW0402 100 1/4 E96 1 % 122x100 e3

LAB

MODEL

Minilab,

thick film chip

D10/CRCW0402

PRODUCT

D10/CRCW0402

D11/CRCW0603

D12/CRCW0805

D25/CRCW1206

100

TCR

±

100

ppm/K

1/4 E96

VALUE/SERIES

Every fourth

value from

E96 series

1%

TOLERANCE

±

1%

122x100

QUANTITY

122 x 100

122 x 50

e3

LEAD (Pb)-FREE

e3

= pure tin

component

termination finish

Revision: 19-Feb-15

Document Number: 31092

1

For technical questions, contact:

thickfilmchip@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

LAE1BCHIP0603KFE96 Related Products

	LAE1BCHIP0603KFE96	LAE1ACHIP0402KFE96	LAE1CCHIP0805KFE96
Description	Resistor Kits 122x100 E96 1 100ppm 10R-1M +JUMPER	Resistor Kits 122x50 E96 1% 100ppm 10R-1M + JUMPER	Resistor Kits 122x50 E96 1% 100ppm 10R-1M + JUMPER
Product Category	Resistor Kits	Resistor Kits	Resistor Kits
Manufacturer	Vishay	Vishay	Vishay
RoHS	Details	Details	Details
Product	Thick Film Resistor SMD Kit	Thick Film Resistor SMD Kit	Thick Film Resistor SMD Kit
Resistance Range	10 Ohms to 1 MOhms + Jumper	10 Ohms to 1 MOhms	10 Ohms to 1000000 Ohms
Power Rating	100 mW	62.5 mW (1/16 W)	125 mW (1/8 W)
Tolerance	1 %	1 %	1 %
Temperature Coefficient	100 PPM / K	100 PPM / C	100 PPM / K
Voltage Rating	75 V	50 V	150 V
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	0603 (1608 metric)	0402 (1005 metric)	0805 (2012 metric)
Packaging	Bulk	Bulk	Bulk
Factory Pack Quantity	1	1	1
Unit Weight	0.000071 oz	3.174657 oz	0.000194 oz
