37SR500LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 37SR500LF

Preview

37SR500LF: DescriptionTrimmer Resistors - Through Hole 9mm 500 Open Type Trimmer; CategoryPassive components; File Size158KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

37SR500LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	37SR500LF	-	-	View	Buy Now

37SR500LF Overview

Trimmer Resistors - Through Hole 9mm 500 Open Type Trimmer

37SR500LF Parametric

Parameter Name	Attribute value
Product Category	Trimmer Resistors - Through Hole
Manufacturer	TT Electronics plc
RoHS	Details
Termination Style	Pin
Product	Single Turn
Resistance	500 Ohms
Adjustment	Side Crossed
Power Rating	500 mW (1/2 W)
Tolerance	20 %
Operating Temperature Range	- 30 C to + 100 C
Packaging	Bulk
Element Type	Cermet
Height	9 mm
Length	11.5 mm
Factory Pack Quantity	500
Type	Trimmer Resistors - Single Turn
Width	8.8 mm

Preview

Download Datasheet

View All

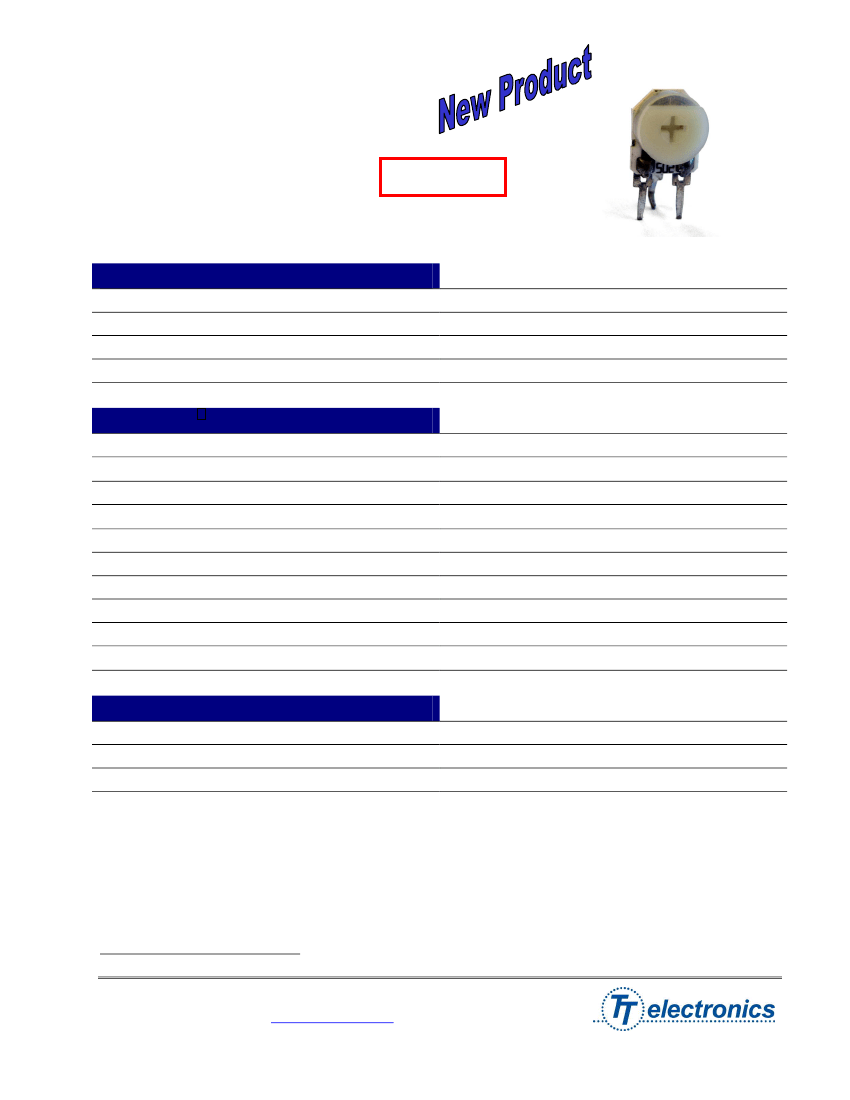

Model 37

9 mm Single-Turn

Open Frame

Cermet Trimming

Potentiometer

RoHS Compliant

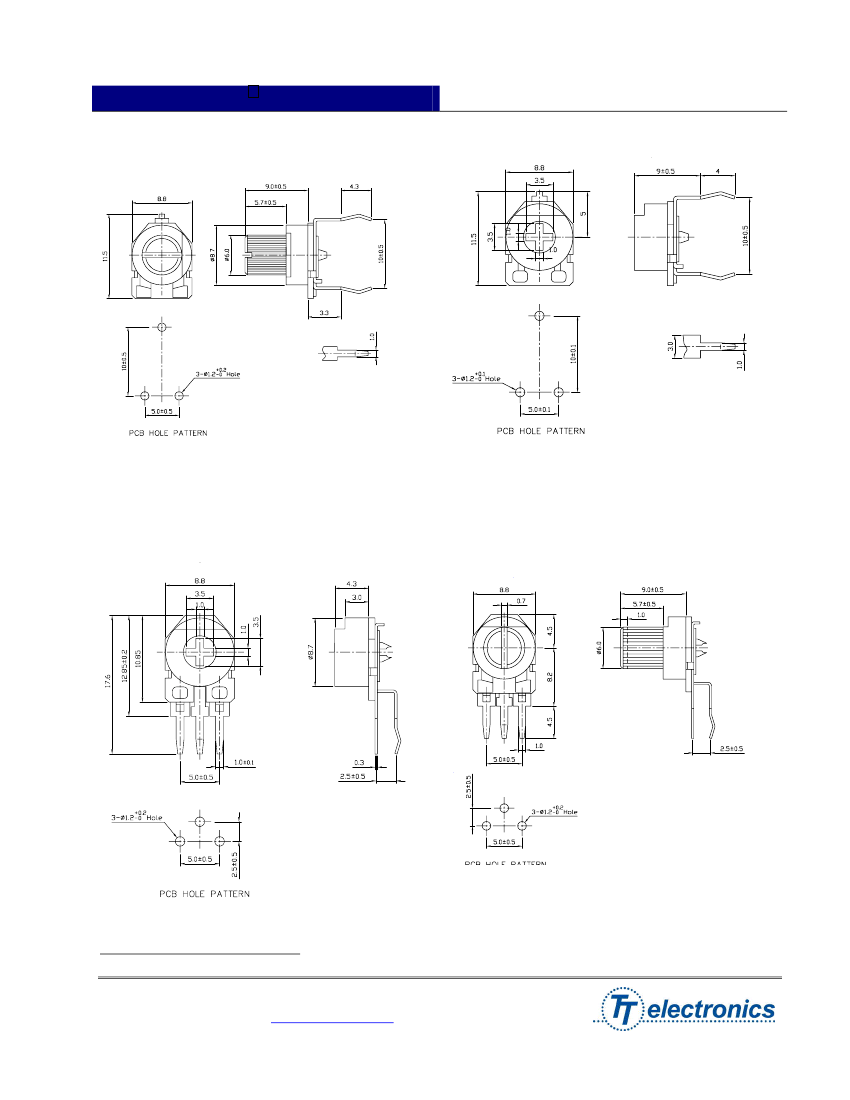

STYLES AVAILABLE

Top Adjust (with extension)

Top Adjust

Side Adjust

Side Adjust (with extension)

37F

37P

37W

37S

ELECTRICAL

1

Resistance Range

Standard Resistance Tolerance

Input Voltage, Maximum

Power rating, Watts

End Resistance, Maximum

Actual Electrical Travel

Insulation Resistance, Minimum

Resolution

Contact Resistance Variation

Temperature Coefficient of Resistance

100 to 1,000,000 Ohms

±

20%

250 V

0.5 @ 70°C

<500 ohms: 10 Ohms Max; > 500 ohms: 2% Max.

280° ±15°

100 Megohms

Essentially infinite

5% Max.

±250 ppm/°C

MECHANICAL

Torque, Maximum

Weight, Approx.

Wiper Position

4.5 in. oz.

0.01 oz.

Approx. 50%

1

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

October 11, 2006

Website:

www.bitechnologies.com

page 1 of 3

BI technologies

37SR500LF Related Products

	37SR500LF	37SR1MEGLF
Description	Trimmer Resistors - Through Hole 9mm 500 Open Type Trimmer	Trimmer Resistors - Through Hole 9mm 1MEG Open Type Trimmer
Product Category	Trimmer Resistors - Through Hole	Trimmer Resistors - Through Hole
Manufacturer	TT Electronics plc	TT Electronics plc
RoHS	Details	Details
Termination Style	Pin	Pin
Product	Single Turn	Single Turn
Resistance	500 Ohms	1 MOhms
Adjustment	Side Crossed	Side Crossed
Power Rating	500 mW (1/2 W)	500 mW (1/2 W)
Tolerance	20 %	20 %
Operating Temperature Range	- 30 C to + 100 C	- 30 C to + 100 C
Packaging	Bulk	Bulk
Element Type	Cermet	Cermet
Height	9 mm	9 mm
Length	11.5 mm	11.5 mm
Factory Pack Quantity	500	500
Type	Trimmer Resistors - Single Turn	Trimmer Resistors - Single Turn
Width	8.8 mm	8.8 mm
