DEMMZ5V1PN-A101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DEMMZ5V1PN-A101

DEMMZ5V1PN-A101: DescriptionD Subminiature Connector, 5 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size107KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DEMMZ5V1PN-A101 Overview

D Subminiature Connector, 5 Contact(s), Male, Solder Terminal, Plug,

DEMMZ5V1PN-A101 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-24308
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	YES
Manufacturer's serial number	DEMM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD AND PANEL
Shell surface	CADMIUM
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

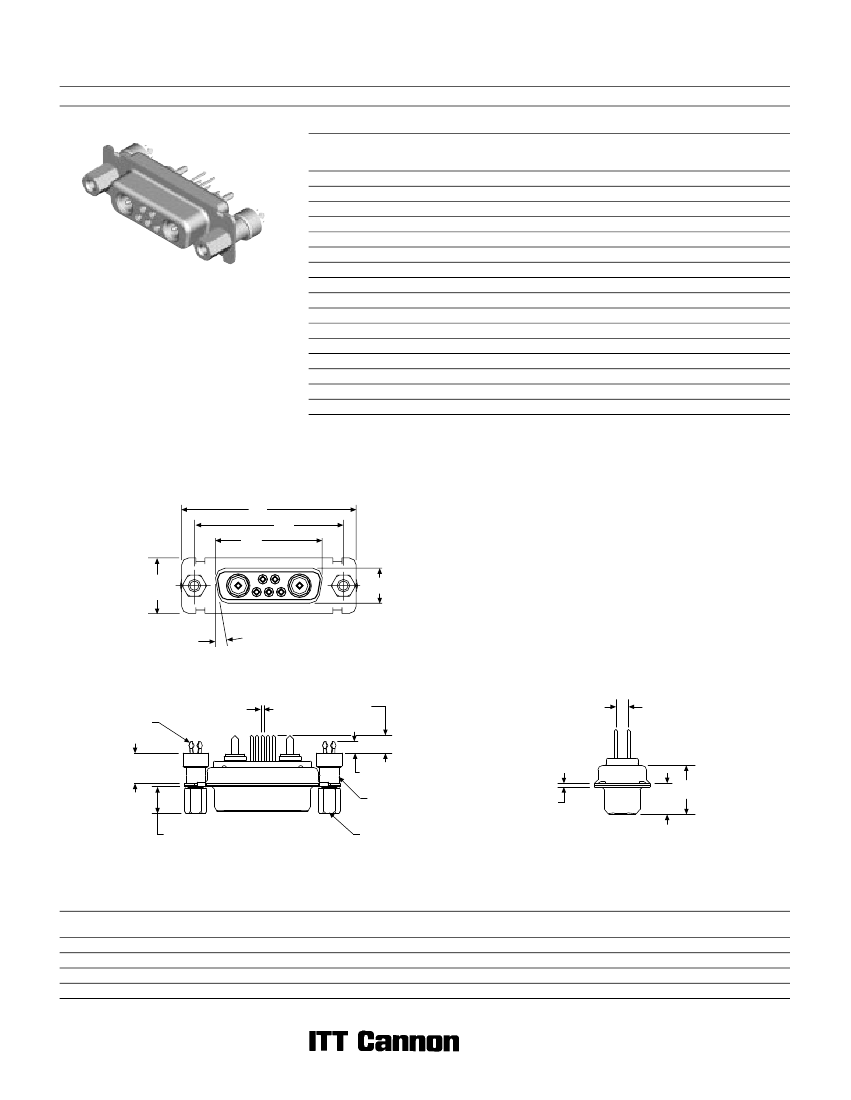

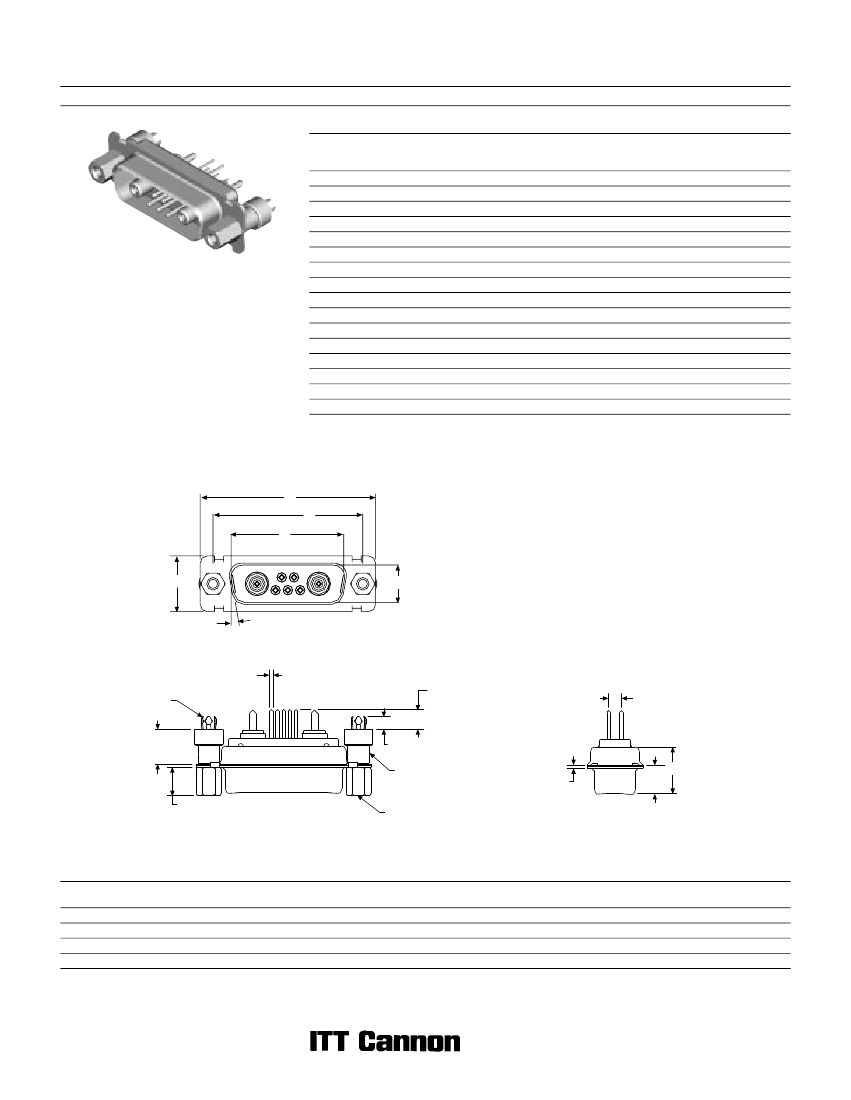

D Subminiature

High Voltage Straight PCB (Sizes DE-DC)

Plug

Part Numbers with Standoff #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Military/High Reliability

Reader’s Resource

For contact cavity arrangements,

see page 222.

For P.C. hole patterns, see pages 254-255.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Part Number

Without Screw Locks

Without Boardlocks

DEMMV5V1PN

DAMMV7V2PN

DAMMV11V1PN

DAMMV3V3PN

DAMMV3VK3PNTM

DBMMV5V5PN

DBMMV9V4PN

DBMMV13V3PN

DBMMV17V2PN

DBMMV21V1PN

DCMMV8V8PN

DCMMV13V6PN

DCMMV17V5PN

DCMMV21VA4PN

DCMMV25V3PN

DCMMV27V2PN

Part Number

Without Screw Locks

With Boardlocks

DEMMZ5V1PN

DAMMZ7V2PN

DAMMZ11V1PN

DAMMZ3V3PN

DAMMZ3VK3PNTM

DBMMZ5V5PN

DBMMZ9V4PN

DBMMZ13V3PN

DBMMZ17V2PN

DBMMZ21V1PN

DCMMZ8V8PN

DCMMZ13V6PN

DCMMZ17V5PN

DCMMZ21VA4PN

DCMMZ25V3PN

DCMMZ27V2PN

Part Number

With Screw Locks

With Boardlocks

DEMMN5V1PN

DAMMN7V2PN

DAMMN11V1PN

DAMMN3V3PN

DAMMN3VK3PNTM

DBMMN5V5PN

DBMMN9V4PN

DBMMN13V3PN

DBMMN17V2PN

DBMMN21V1PN

DCMMN8V8PN

DCMMN13V6PN

DCMMN17V5PN

DCMMN21VA4PN

DCMMN25V3PN

DCMMN27V2PN

Notes: For DD shell size, see page 164.

Keyed.

Engaging Face

10°

Ø 0,76

(.030)

BOARDLOCK

4,52

(.178)

2,84

(.112)

7,62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Hardware and high voltage contact

removed for clarity

Dimensions

Plug

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

8,36 (.329)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,72 (.422)

10,82 (.426)

±0,37

(.015)

6,69 (.264)

—

±0,41

(.016)

—

6,84 (.269)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

162

Dimensions are shown in mm (inch)

Dimensions subject to change
