LM0512HP Series
SMD Power Choke Coil
SMD Power Choke Coil
1. PART NO. EXPRESSION :
PIC0512HP SERIES
LM 0 5 1 2 H P 1 R 0 M F -
□□
(a)
(b)
(c)
(d)
(e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Type code
(d) Inductance code : 1R0 = 1.0uH
(e) Tolerance code : M = ± 20%, Y = ± 30%
(f) F : RoHS Compliant
(g) 11~99 : Internal controlled number

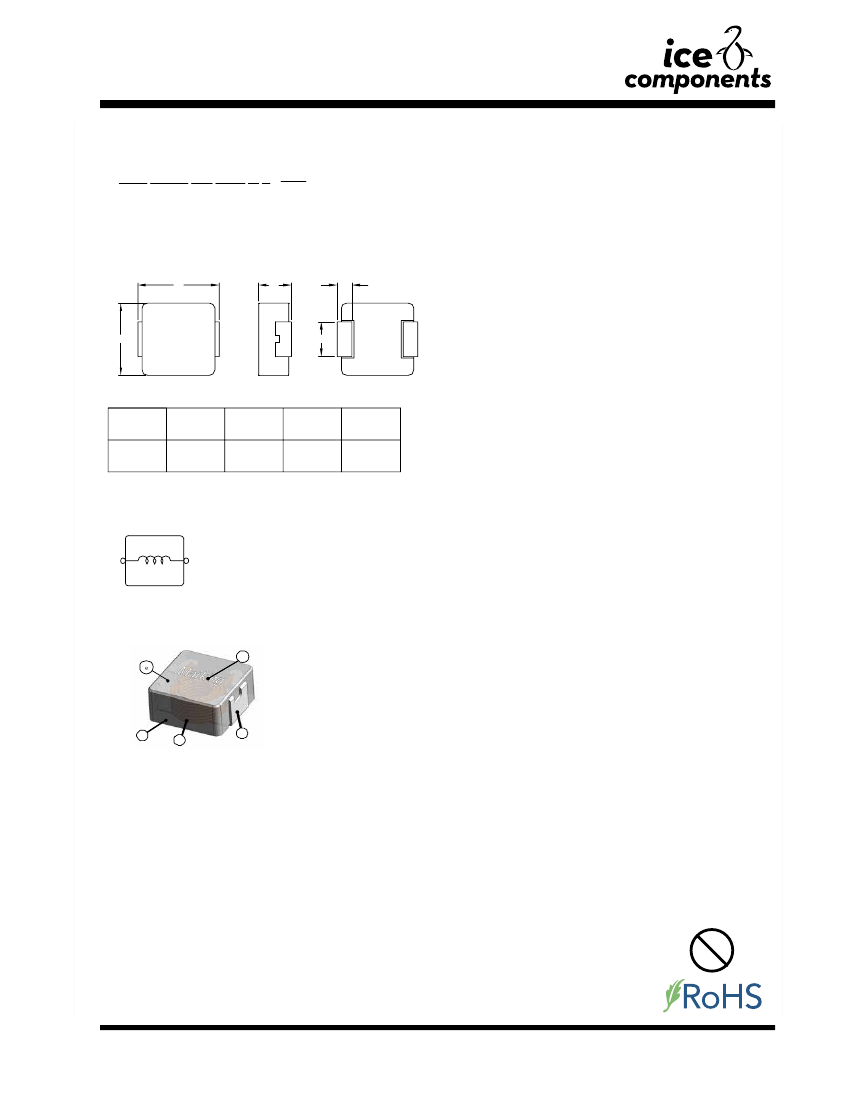

2. CONFIGURATION & DIMENSIONS :
A
C
D
1R0
1151
B
E
Unit:m/m
A
5 .7± 0.3
B
5.2± 0.2
C
1.0± 0.2
D
1 .1± 0.3
E
2.5± 0.3
3. SCHEMATIC :
4. MATERIALS :
d
(a) Core : Carbonyl Powder.
(b) Wire : Polyester Wire or equivalent
(c) Solder Plating : 100% Pb free solder
(d) Ink : Halogen-free ketone
(e) Paint : Epoxy resin
e
a
b
c
5. GENERAL SPECIFICATION :
a) Test Freq. : L : 100KHz/1.0V
b) Ambient Temp. : 25° C
c) Operating Temp. : -40° C to +125° C
d) Storage Temp. : -10° C to + 40° C
e) Humidity Range : 50 ~ 60% RH (Product without taping)
f) Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1min.)
g) Saturation Current (Isat) will cause L0 to drop 20% typical. (keep quickly).
h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125° C under worst case operating conditions.
Pb
(09/13) LM0512HP-1
20.02.2012
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
PG. 1
LM0512HP Series
SMD Power Choke Coil
SMD Power Choke Coil
6. ELECTRICAL CHARACTERISTICS :
Inductance L
( μH )
@ 0A
0.10
0 .22
0 .33
0 .36
0 .47
0 .68
1 .00
1 .20
1 .50
2 .20
3 .30
4 .70
5 .60
6 .80
8 .20
1 0.0
0
PIC0512HP SERIES
Part No.
LM0512HPR10YF
LM 0 512 HPR22YF
LM05 12 HP R33MF
LM05 12 HP R36MF
LM05 12 HP R47MF
LM05 12 HP R68MF
LM05 12 HP 1R0MF
LM05 12 HP 1R2MF
LM05 12 HP 1R5MF
LM05 12 HP 2R2MF
LM05 12 HP 3R3MF
LM05 12 HP 4R7MF
LM05 12 HP 5R6MF
LM05 12 HP 6R8MF
LM05 12 HP 8R2MF
LM 0 512 HP1 00MF
Irms
(A)
Typ.
14
1 0.7
8.5
8.0
7.0
6.0
5.0
4.5
4.0
3.5
3.0
2.5
2.4
2.0
1.7
1.5
Isat
(A)
Typ.
14.5
1 4.0
1 3.5
13
11
9.0
6.0
5.5
5.0
4.0
3.8
3.2
3.2
3.0
2.8
1.8
DCR
( mΩ )
Typ. @ 25° C
4.3
5.5
7.8
10
1 3.6
2 1.5
26
33
38
65
75
1 00
1 75
1 93
3 27
3 35
DCR
( mΩ )
Max. @ 25° C
5.2
6.7
9.4
1 1.5
1 5.8
2 4.5
30
40
44
75
86
1 15
2 01
2 22
3 78
3 85
Tolerance : M = ± 20%, Y = ± 30%
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM0512HP-2
20.02.2012
PG. 2
LM0512HP Series
SMD Power Choke Coil
SMD Power Choke Coil

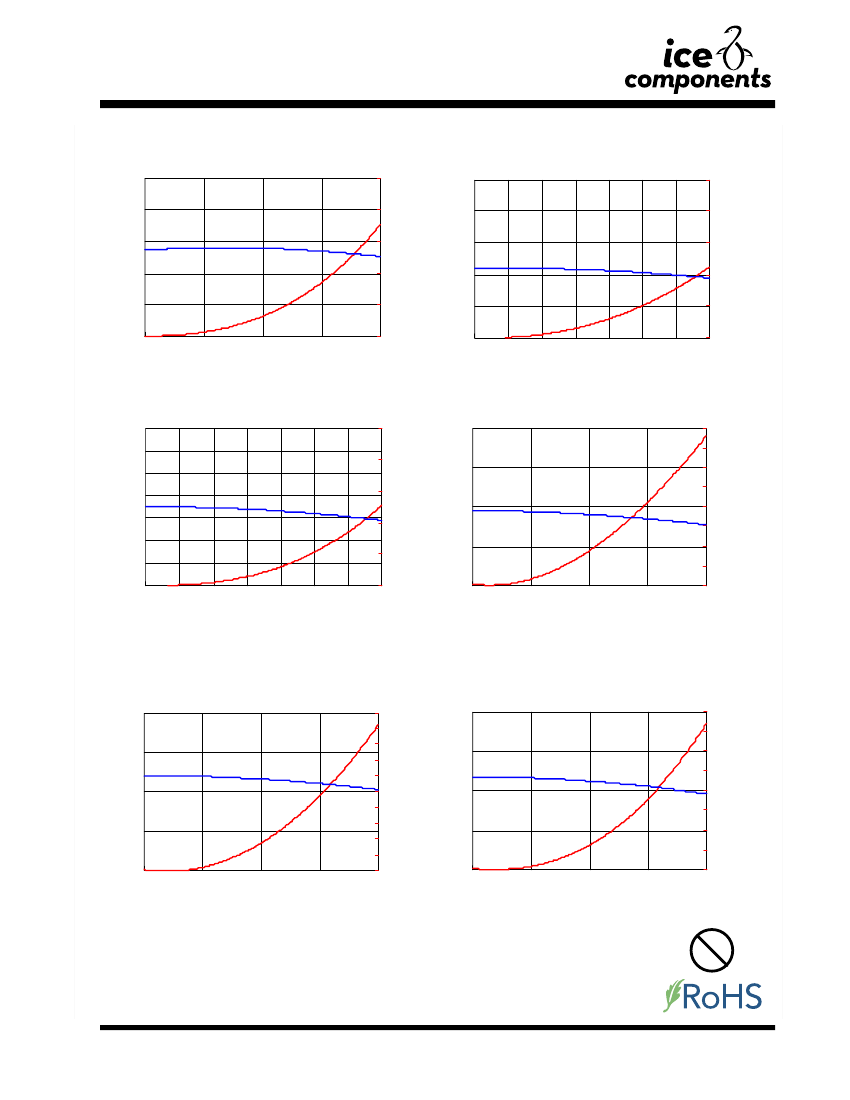

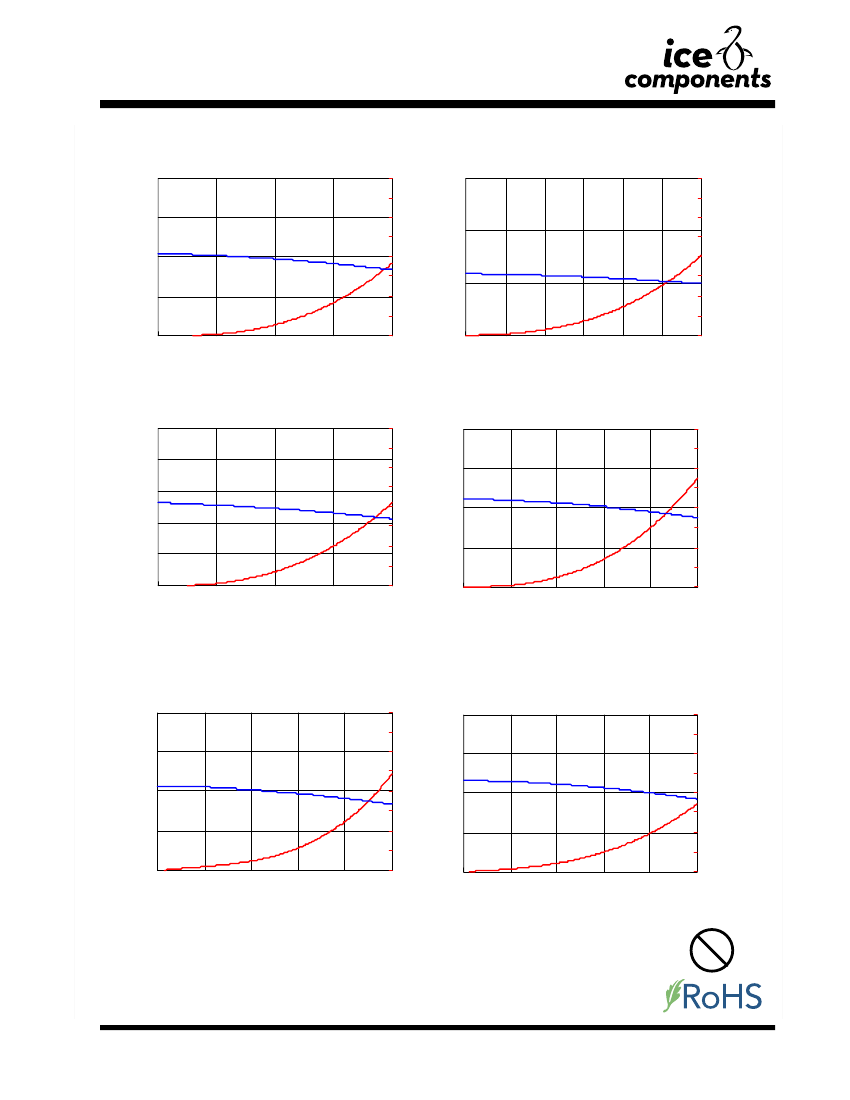

7. CHARACTERISTICS CURVES :
0 .2
PIC0512HP SERIES
LM0512HPR10YF
TMPC0512HP
-R10
10 0
0 .5
LM0512HPR22YF
TMPC0512HP
-R22
10 0
0. 16
80
0 .4
80
INDUCTANCE(uH)
INDUCTANCE(uH)
TEMP. RISE(
o
C)
0. 12
60
0 .3
60
0. 08
40
0 .2
40
0. 04
20
0 .1
20
0
0
0
5
10
15
20
0
0
DC CURRE
NT(A)
0
2
4
6
8
10
12
14
DC CURRE
NT(A)
0 .7
LM0512HPR33MF
TMPC0512HP
-R33
10 0
0 .8
LM0512HPR36MF
TM
PC0512HP-R36
80
70
0 .6
80
0 .6
INDUCTANCE(uH)
INDUCTANCE(uH)
TEMP. RISE(
o
C)
0 .4
60
50
0 .4
40
30
0 .2
20
10
0 .3
40
0 .2
20
0 .1
0
0
0
0
0
2
4
6
8
10
12
14
0
3.25
6. 5
9.75
13
DC CURRE
NT(A)
DC CURRENT(A)
0 .8
LM0512HPR47MF
TM
PC0512HP-R47
10 0
90
80
1 .2
LM0512HPR68MF
TM
PC0512HP-R68
80
70
INDUCTANCE(uH)
TEMP. RISE(
o
C)
60
0 .4
50
40
30
0 .2
20
10
0
0
50
0 .6
40
30
0 .3
20
10
0
0
0
3
6
9
12
0
2.25
4. 5
6.75
9
DC CURRENT(A)
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM0512HP-3
20.02.2012
TEMP. RISE(
o
C)
70
INDUCTANCE(uH)
0 .6
0 .9
60
TEMP. RISE(
o
C)
0 .5
60
TEMP. RISE(
o
C)
PG. 3
LM0512HP Series
SMD Power Choke Coil
SMD Power Choke Coil
7. CHARACTERISTICS CURVES :
LM0512HP1R0MF
2
PIC0512HP SERIES
TM
PC0512HP-1R0
80
70
3
LM0512HP1R2MF
TMPC0512HP
-1R2
80
70
60
INDUCTANCE(uH)
INDUCTANCE(uH)
1 .5
60
TEMP. RISE(
o
C)
50
1
40
30
0 .5
20
10
0
0
2
50
40
30
20
10
1
0
0
0
1.75
3. 5
5.25
7
0
1
2
3
4
5
6
DC CURRENT(A)
DC CURRE
NT(A)
LM0512HP1R5MF
3
TM
PC0512HP-1R5
80
70
4
LM0512HP2R2MF
TM
PC0512HP-2R2
80
70
2 .4
INDUCTANCE(uH)
INDUCTANCE(uH)
60
3
60
50
TEMP. RISE(
o
C)
1 .8
50
40
2
40
30
1 .2
30
20
0 .6
10
0
0
1
20
10
0
1. 5
3
4. 5
6
0
0
DC CURRENT(A)
0
1
2
3
4
5
DC CURRENT(A)
6
LM0512HP3R3MF
TM
PC0512HP-3R3
80
70
8
LM0512HP4R7MF
TM
PC0512HP-4R7
80
70
INDUCTANCE(uH)
INDUCTANCE(uH)
4 .5
60
6
60
50
TEMP. RISE(
o
C)
50
3
40
30
1 .5
20
10
0
0
4
40
30
2
20
10
0
0. 9
1.8
2. 7
3.6
4. 5
0
0
DC CURRENT(A)
0
0. 7
1.4
2. 1
2.8
3. 5
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM0512HP-4
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
20.02.2012
PG. 4
LM0512HP Series
SMD Power Choke Coil
SMD Power Choke Coil
7. CHARACTERISTICS CURVES :
