M85049-93-16

Description
Circular MIL Spec Tools, Hardware u0026 Accessories BANDING SPLIT-RING
CategoryThe connector
File Size50KB，1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric Compare View All

M85049-93-16 Online Shopping

Suppliers Part Number Price MOQ In stock
M85049-93-16 - - View Buy Now

M85049-93-16 Overview

Circular MIL Spec Tools, Hardware u0026 Accessories BANDING SPLIT-RING

M85049-93-16 Parametric

Parameter NameAttribute value
Product CategoryCircular MIL Spec Tools, Hardware & Accessories
ManufacturerGlenair
RoHSDetails
ProductAccessories
TypeBand Split Ring
Factory Pack Quantity1

Preview

Download Datasheet
Miscellaneous
Accessories

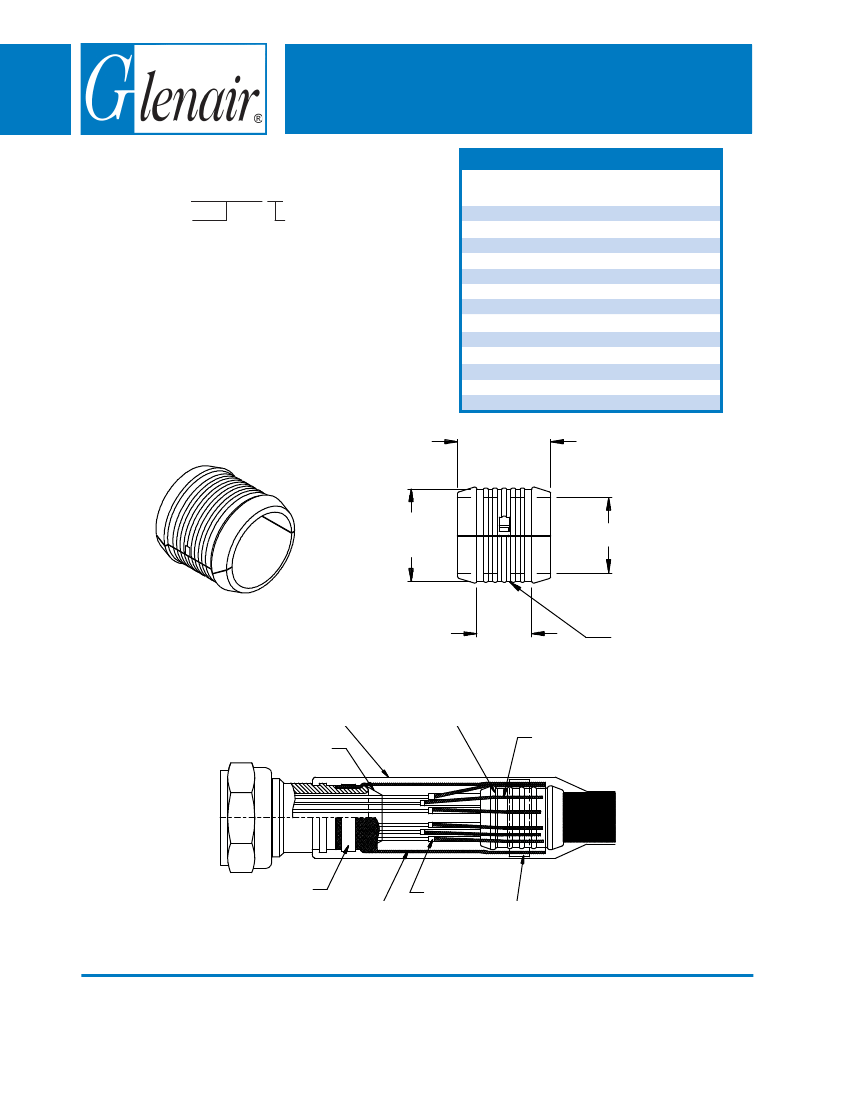

AS85049/93
Banding Split-Ring
TABLE I
M85049/93-10
Basic Part No.
Dash No.
A Dia
Dash No. ± .01
(0.3)
04
.25
(6.4)
06
.38
(9.7)
08
.50 (12.7)
10
.63 (16.0)
12
.75 (19.1)
14
.88 (22.4)
16
1.00 (25.4)
18
1.13 (28.7)
20
1.25 (31.8)
22
1.38 (35.1)
24
1.50 (38.1)
26
1.63 (41.4)
28
1.75 (44.5)
.88 (22.4)
Max
B Dia
± .03
(0.8)
.36
(9.1)
.49 (12.4)
.61 (15.5)
.74 (18.8)
.86 (21.8)
.99 (25.1)
1.11 (28.2)
1.24 (31.5)
1.36 (34.5)
1.49 (37.8)
1.61 (40.9)
1.74 (44.2)
1.86 (47.2)
1. For complete dimensions see applicable
Military Specification.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Use with Glenair banding backshells and braid
socks. Consult factory for specific application
part numbers.
B
A
.50
(12.7)
Min.
Accomodates
600-052 Band
SAMPLE APPLICATION
Shrink Sleeve or
Shrink Boot
Tap Wrap
Split Ring
Shield Pig Tail
or Drain Wire
BAND-IT
®
Band
Shield
Sock
Solder
Sleeve
BAND-IT
®
Band
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 68 - 36
