MXP120
™
Sealed Connector System
34900, 34899, 160091
The high-performance, compact MXP120™ Sealed
Connection System is designed to perform in harsh
environments and can replace common 1.50mm systems
in space-constrained safety-restraint, body electronics
and powertrain applications
Features and Benefits
Versatile sealed connection system using space-
saving 1.20mm terminals on 4.00mm pitch
Meets power requirements up to 13.0A
Suitable for sealed safety-restraint, body electronics
and powertrain applications
IP68 rated. IPX9K under evaluation Withstands high-
pressure spray environments
Offers significant space-savings for confined design
parameters
Limits connector pitch to 4.00mm with SWS
Confirms global acceptance and marketability

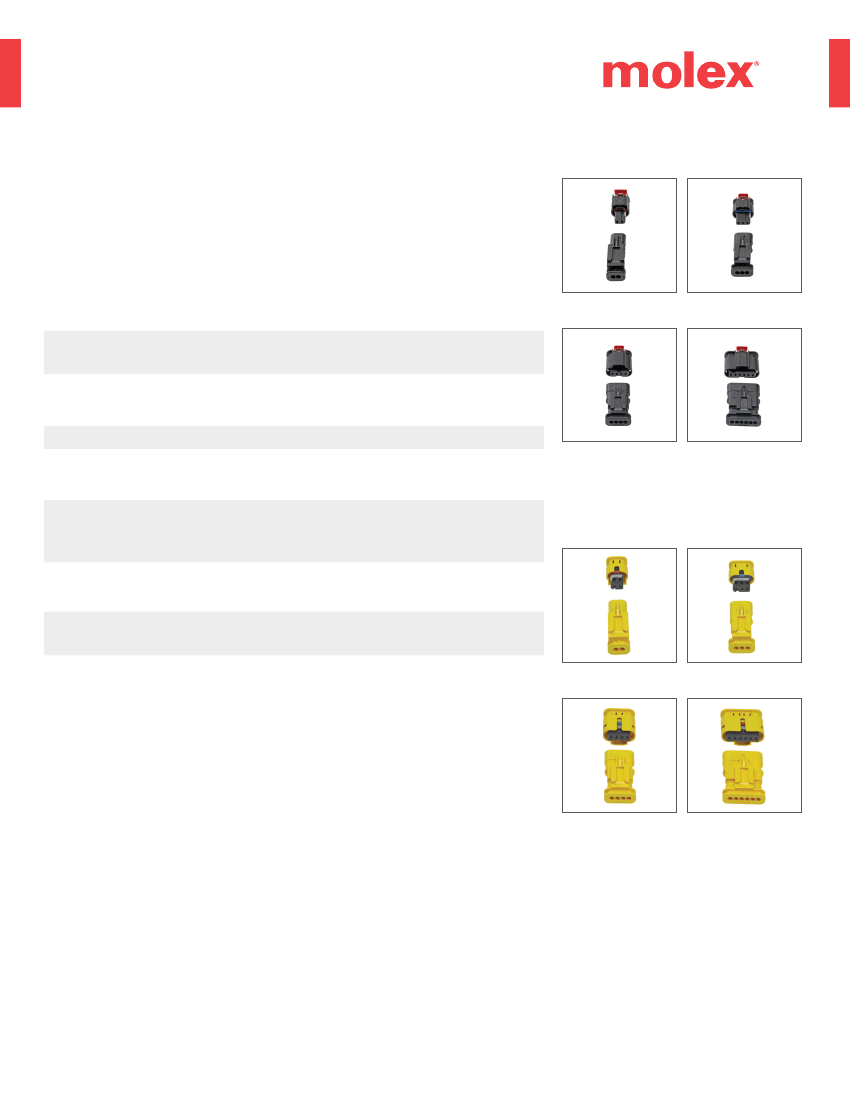

1-by-4 Circuit
1-by-6 Circuit
Black Housings:
Body Electronics & Powertrain Applications
1-by-2 Circuit
1-by-3 Circuit
Single wire seal (SWS) connection system with robust
perimeter seal
Reduced package size when compared to existing
1.50mm connection systems
Accommodates wire gauges up to 1.00mm²
Compatible with AK and USCAR interfaces; designed
using worldwide AK cavity definition
Female receptacles feature medium or long shrouds
for 1-by-4 circuit and above (short shrouds for below
4-circuit)
Female receptacles with Independent Secondary
Locking (ISL)
Male blade connectors with Primary Lock
Reinforcement (PLR)
Female receptacles feature integral locking-latch with
bridge protection and audible click
Ensures all circuit sizes and keying options are scoop
proof
Yellow Housings:
Safety Applications
Ensures efficient terminal positioning and detection of
partial installation of terminals
Secure mating performance
Avoids damage to the latch during packaging and
transit
1-by-2 Circuit
1-by-3 Circuit
1-by-4 Circuit
1-by-6 Circuit
MXP120
™
Sealed Connector System
34900, 34899, 160091
Applications
MXP120
™
Sealed Connector System
Sealed applications in automotive and commercial vehicles:
Black Outer Housings:
Body electronics connections in wet areas T3-V1-S2 with tin terminals; T3-V2-S2 with silver terminals:
Exterior lighting
Turn signals (indicators)
Door-lock mechanisms
Powertrain (T4-V4-S3 - 155°C high-vibration for severe applications, high-pressure jets)
Fuel injection
Emission controls
Ignition coil
Yellow Outer Housings:
Safety systems T3-V2-S2 125°C on-engine vibration:
Supplemental Inflatable Restraints (SIR)
Safety Restraint Systems (SRS)
Seat-belt pretensioners
Airbags - steering wheel / side / curtain
In-vehicle Safety Systems
Body Electronics in Wet Areas
and Powertrain Applications
Specifications
REFERENCE INFORMATION
Packaging:
Housings – 4-cell bulk pack
Use With:
Receptacle terminals –
1.2 LL SWS from Tyco and Kostal
Blade terminals – 1.2 CB SWS from Tyco
Cavity Plugs – Tyco
Designed In: Millimeters
RoHS: Yes
Halogen Free: Yes
ELECTRICAL
Voltage (max.): 500V DC
Current (max.): 13.0A
Contact Resistance: 8 milliohms max.
Dielectric Withstanding Voltage:
1000V AC min for 60sec.
Insulation Resistance:100 Megohms min.
PHYSICAL
Housing: PA SPS resin
Operating Temperature: -40 to +125°C
Flammability: Per ISO3795 or GMW3191
Burn rate: 100mm/ Mn max.
Material self-extinguishing
For full Product Specification please refer to:
PS-34900-0001
Ordering Information
Gender
Circuit Size
Series No.
Outer Shroud Size
Housing Colour
Cavity Insert Color
Black
Light Grey
Dark Grey
Stone Grey
Coding
A
B
C
D
E
F
G
Clip Slot
†
Female
1x2
1x3
1x4
1x6
Male
34900
Short
Medium
Long
34899
Yellow
Black
-
-
7mm (USCAR)
11mm (MX150)
† Custom clip-slots available, volume dependant - contact Molex
www.molex.com/dpb/mxp120.html
Order No. 987650-7994 Rev. 5
USA/0k/GF/2016.11
©2016 Molex
