52116-0243 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52116-0243

52116-0243: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 1210 100uF 10volts *Derate Voltage/Temp; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52116-0243 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52116-0243	-	-	View	Buy Now

52116-0243 Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 1210 100uF 10volts *Derate Voltage/Temp

52116-0243 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.35 inch
subject depth	1.012 inch
body length	0.488 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	700VAC V
Insulation resistance	250000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	52116
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	2
Maximum wire diameter	20 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 11/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

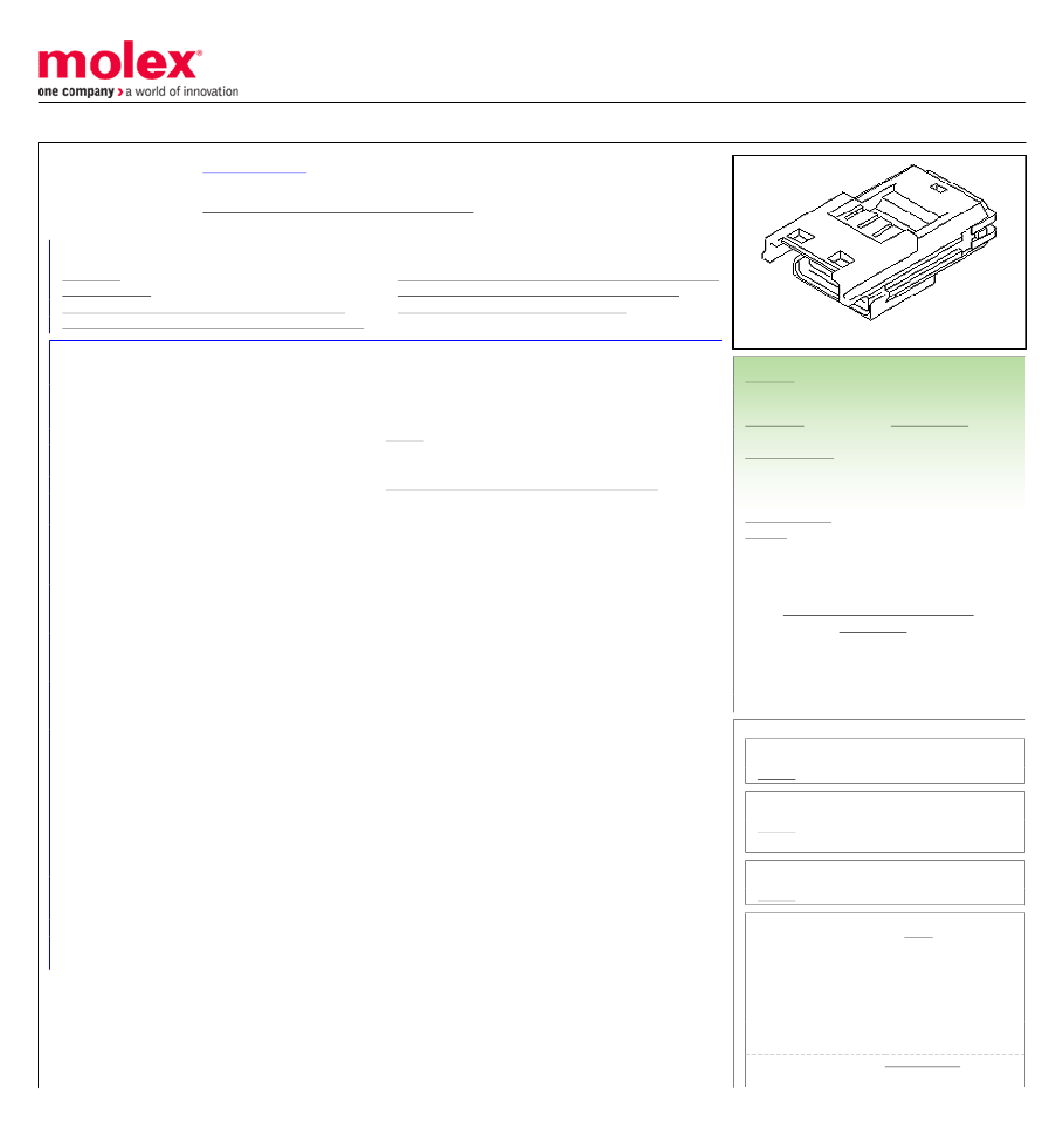

0521160243

Active

Mizu-P25™ Miniature Waterproof Connectors

Mizu-P25 5.00mm Pitch Waterproof Wire-to-Wire Plug Housing for AVSS 0.3, 2 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52116-001-001 (PDF)

Application Specification AS-52117-001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Part Link

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-52117-001-JP-001 (PDF)

Packaging Specification 521160000-P00 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

Crimp Housings

52116

Signal, Wire-to-Wire

62202-4400

Mizu-P25™ Miniature Waterproof Connectors

Mizu-P25 Waterproof, Splash Proof

883906527471

White

Plug

Yes

Polyester

1.518/g

Tray

5.00mm

-40°C to +105°C

3.0A

N/A

Mates With

52117 Mizu-P25 2.50mm Pitch Waterproof

Wire-to-Wire Receptacle Housing

Use With

50038 Mizu-P25 Crimp Terminal

AS-52117-001-001, AS-52117-001-JP-001

521160000-P00

PS-52116-001-001

SD-52116-001

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Sealing Cap Hand 0622024400

Tool

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Search Parts in this Series
