424-93-208-41-002000: DescriptionIC Socket, SIP8, 8 Contact(s),; CategoryThe connector socket; File Size280KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

424-93-208-41-002000 Overview

IC Socket, SIP8, 8 Contact(s),

424-93-208-41-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP8
Shell material	PLASTIC
JESD-609 code	e0
Number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

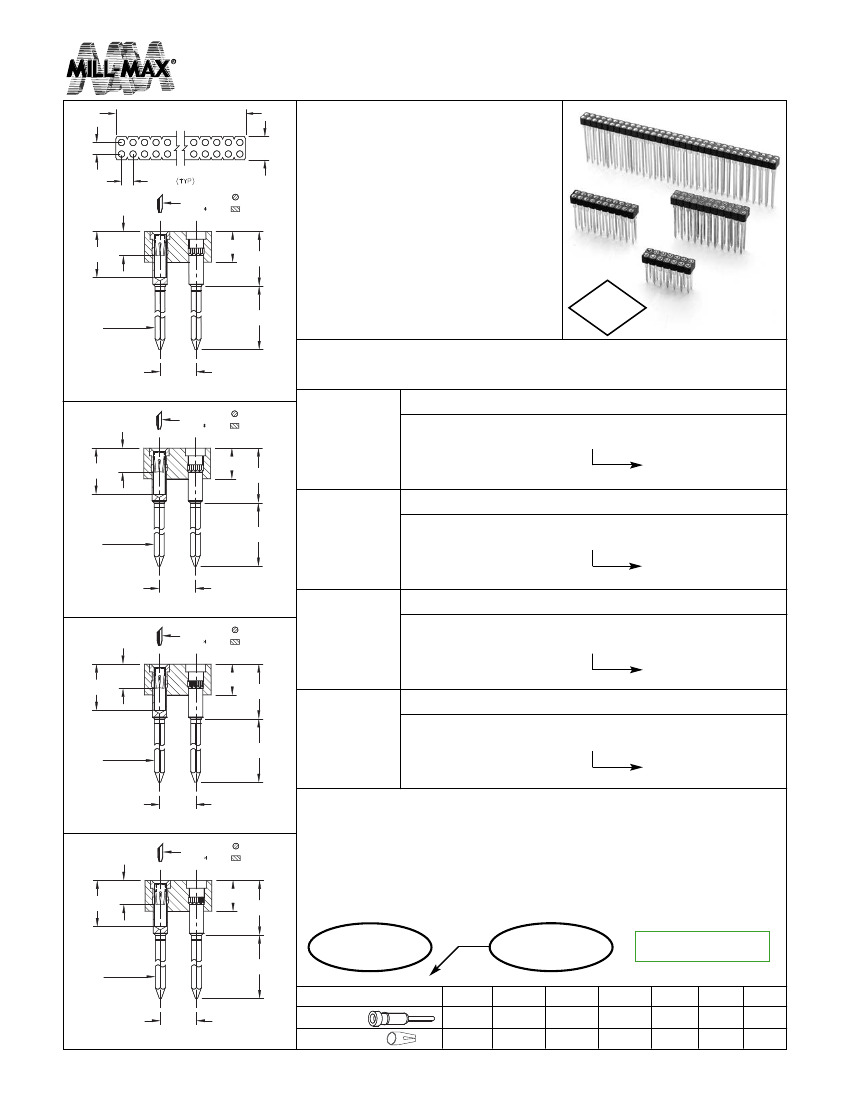

SINGLE-IN-LINE SOCKETS

2,54 Grid Wrapost

Double Row

Number of Pins X 2,54 / 2

Series 421, 422

423, 424

2,54

5,08

•

Wrapost double row strip sockets are

available with 1 - 4 level wraposts:

1-Level uses pin # 0040-1

2-Level uses pin # 0089-2

3-Level uses pin # 0088-3

4-Level uses pin # 0086-4

See page 166 for details.

2,54

0,38-0,64

0,25 0,46

2,49

4,06

2,79

4,9

•

Hi-Rel, 4-finger BeCu #30 contact is

rated at 3 amps. See page 218 for details.

•

Insulators are high temp. thermoplastic.

2002/95/EC

RoHS

0,64

SQUARE

6,6

2,54

Ordering Information

Series 421...001

1 Level Wrapost

Fig. 1

0,38-0,64

0,25 0,46

Fig. 1

4,9

421-XX-2_ _-41-001000

Specify # of pins

Series 422...001

02-64

2 Level Wrapost

2,49

4,06

2,79

0,64

SQUARE

9,4

Fig. 2

422-XX-2_ _-41-001000

Specify # of pins

02-64

3 Level Wrapost

2,54

Fig. 2

0,38-0,64

0,25 0,46

Series 423...001

Fig. 3

4,9

423-XX-2_ _-41-001000

Specify # of pins

Series 424...002

02-64

4 Level Wrapost

2,49

4,06

2,79

0,64

SQUARE

12,95

Fig. 4

424-XX-2_ _-41-002000

Specify # of pins

02-64

2,54

Fig. 3

0,38-0,64

0,25 0,46

2,49

4,06

2,79

4,9

0,64

SQUARE

16,0

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

SPECIFY PLATING CODE XX=

2,54



0,25µm Au

0,76µm Au

5,08µm Sn/Pb

0,76µm Au



5,08µm Sn

0,76µm Au



Sleeve (Pin)

Contact (Clip)

Fig. 4

w w w. m i l l - m a x . c o m



516-922-6000
