01K80A-40ML5

CategoryThe connector
File Size792KB,4 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

01K80A-40ML5 Online Shopping

Suppliers Part Number Price MOQ In stock
01K80A-40ML5 - - View Buy Now

01K80A-40ML5 Parametric

Parameter NameAttribute value
Product CategoryRF Connectors / Coaxial Connectors
ManufacturerRosenberger
RoHSDetails
ProductConnectors
RF SeriesRPC-1.00
GenderJack
Impedance50 Ohms
Maximum Frequency110 GHz
Termination StyleSMD/SMT
OrientationRight Angle
PolarityStandard
Mounting TypePCB
Board Thickness1.5 mm
Body FinishGold
Body MaterialBeryllium Copper
Body StyleRight Angle
Contact MaterialBeryllium Copper
Contact PlatingGold
Contact Termination-
Coupling MechanismThreaded
Insulation Resistance5 GOhms
Mating Cycles500 Cycles
Factory Pack Quantity1
Voltage Rating150 V
Cables & Connectors Supplement
PROOF

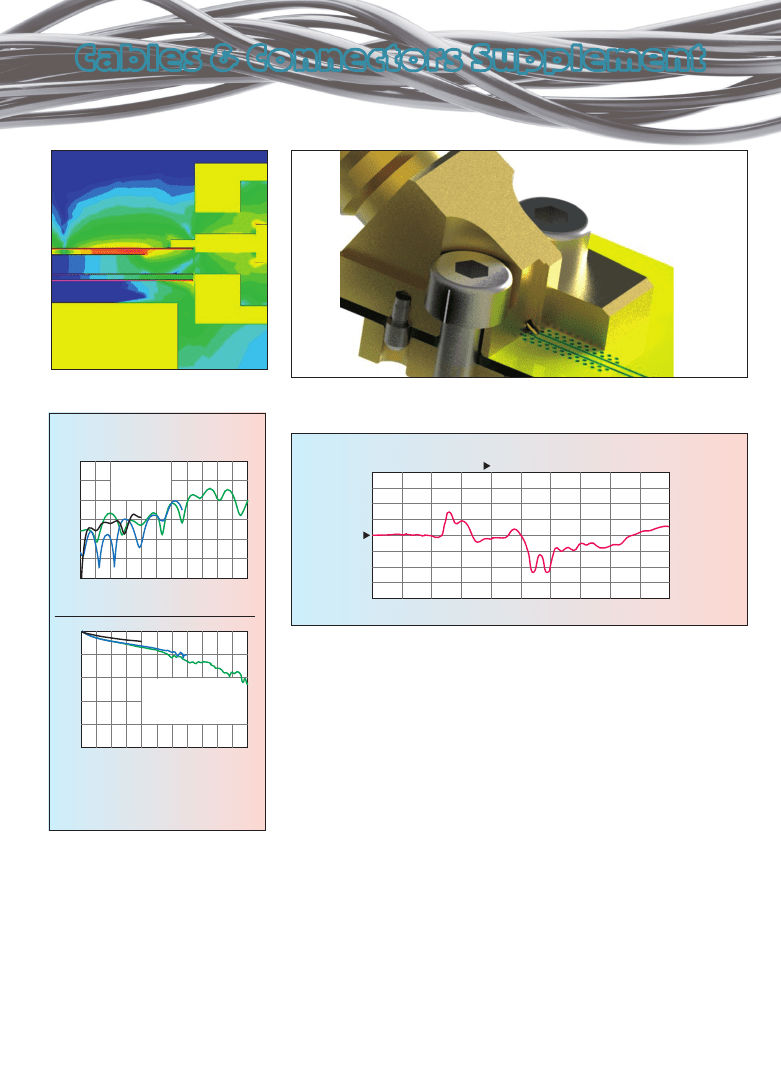

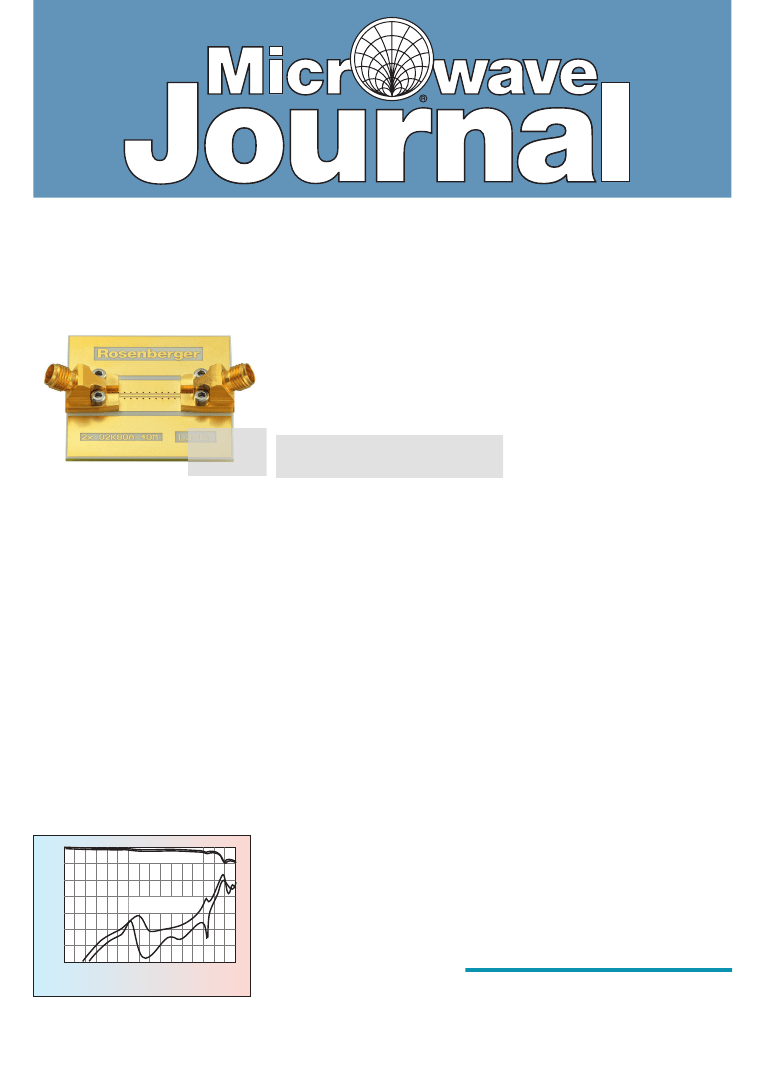

significant trend is the ever-in-
creasing bandwidth requirements
of high frequency electronics and
modern data-transmission circuits, alongside
a strong push toward integrated modules, is
cost and performance. This means that classi-
cal coax connectors do not have an important
role to play in large volume assemblies at high
frequencies. However, connectivity solutions
for test and measurement applications are
required for frequencies up to 110 GHz and
beyond in the design phase. To
0
address these issues, the Solder-
INSERTION LOSS
5
less PCB Mount Rosenberger
10
Precision Connectors (RPC)
15
were developed.
REFLECTION LOSS
20
Surface mount connectors
25
are typically realized as right an-
gle or edge mount types. Both
30
of these types are used through-
35
0
4
8
12 16 20 24 28 32
out the communication indus-
FREQUENCY (GHz)
try where impedance control
Fig. 1 Calculated insertion (S
12
, S
21
) and
and good shielding properties
reflection loss (S
11
, S
22
).
are required. They are reliable,
S-PARAMETERS (dB)
Solderless
PCB Mount
Connectors
A
exhibiting excellent and reproducible results.
However, with the move to very high frequen-
cies, where the wavelength of the transmitted
signals is comparable to the dimensions of the
connector, care has to be taken not to couple
resonant structures to the signal path.
This means that careful control of potential
resonances and radiation at the interface from
the connector to the circuit board is essential
for a predictable performance. The wavelength
in vacuum is 3 mm at 100 GHz and quarter
(0.75 mm) and half wave (1.5 mm) resonances
have to be managed. Voids and gaps have to be
small compared to these dimensions, keeping
in mind that the wavelength is much smaller in
the PCB dielectric.
SUBSTRATE THICKNESS
The substrate thickness also has to be kept
Rosenberger
Hochfrequenztechnik GmbH
Fridolfing, Germany
Reprinted with permission of
MICROWAVE JOURNAL
®
from the March 2013 Cables and Connectors Supplement.
©2013 Horizon House Publications, Inc.
